FAST Fabrication 94 b4000 turn into SNORE class 7 race truck build thread

[slammer67]

awesome
you definitely need to add some vids of it jumping
wicked fab work



[FAST Fabrication]

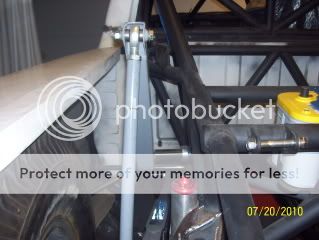

old bedside mounts

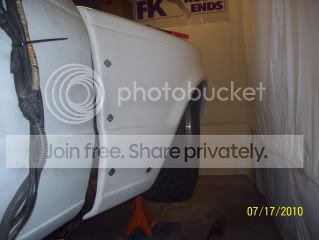

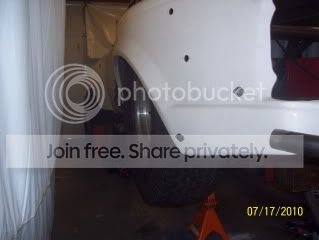

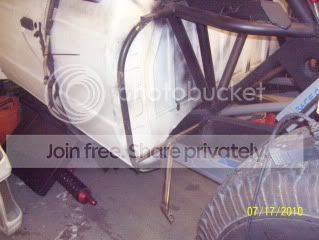

new mounts, glass out further in the back, amd 1" 5/8 gap at bump

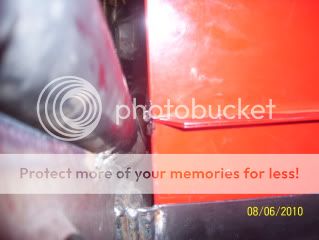

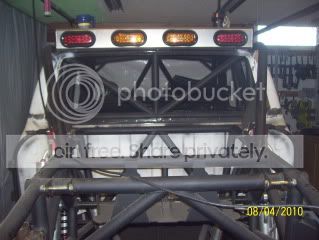

here is the glass mounted, there is a slight gap in bumper, but tech guy told me need to cut the hook off so there will be plenty of room..

future plans if/when bedsides break or mount breaks plan to cut bend out of front and go straight across like rear and change the previous tabs to the longer plate tabs, also plan to put a 4th in the rear on top but a hood pin not a dzus fastener so easy to set on straight and keep wait off fastener

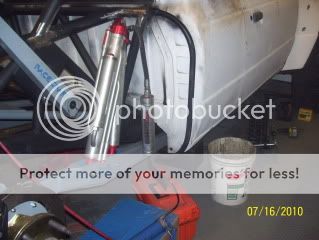

shock parts showed up tonight, tomo we dissamble the shocks and work on building the new rear mounts, then the rear is finished minus plumbing and whatever happens with fuel cell



[FAST Fabrication]

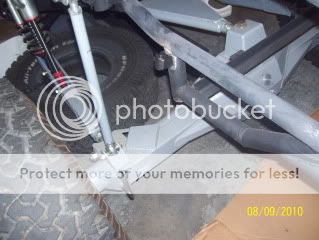

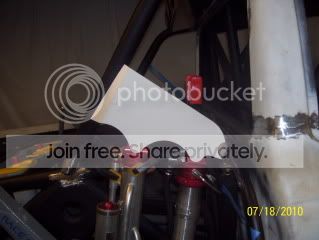

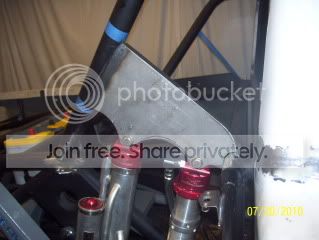

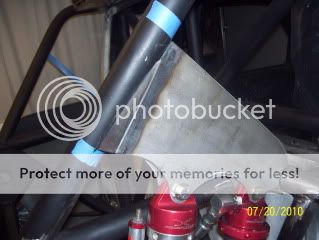

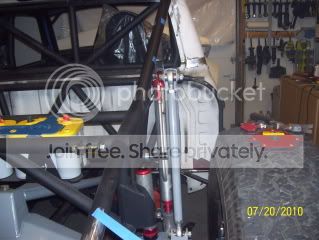

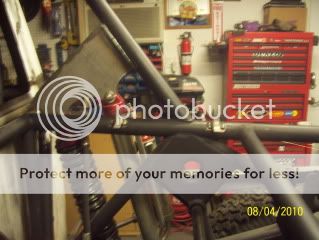

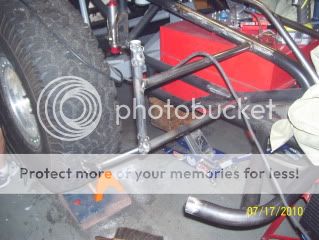

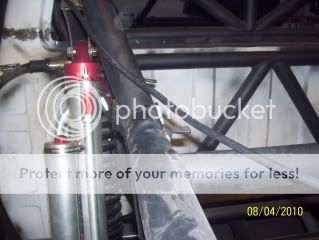

Here is FAST Fabrication custom shock mounts prior to weld and over lay plate. These were completely designed by a Master Carpenter not a Fabricator and has never claimed to be one, he built the whole thing with (Jigsaw, Grinder, Cut-Off, Drill, Hammer, Vise, Tape Measure, Level, Plumb Bob, Clamps, and Welded) the thing is perfect, shocks are correct distance, completely vertical ends do not rub anywhere on trailing arm and spacers are same distance, and shock mount follows same plan as trailing arm. Over lay plate is getting cut tomo then I am going to see about getting letters cut into it by CNC otherwise will do it with a drill, jigsaw, and die grinder.

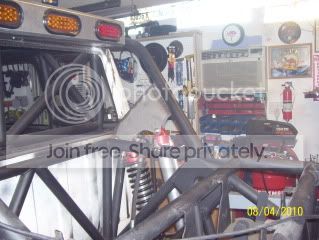

In your guys opinion does it look strong enough, its 1/8 plate has one vertical rib on the inside, may box bottom corners or put vertical wedges at the bottom to if you think it needs it. It was very difficult took 2.5 days lots of going back and forth to the grinding with the compound angles and then the driver side tubes being half inch in. We were able to keep it symetrical from distance to tube and mounting position, only difference from back you can see a lil top edge from inside plate on driverside, tube is 1/2" off but turns into about 1/8" because shocks are stagger because trailing arms do not go straight back they go at an angle.

the previous one, I cant show the tape measure pictures maybe in the future

just finished pass side today



[FAST Fabrication]

FAST Fabrication built explorer basic bumper

Took the boat out for the first time, it was super busy and windy

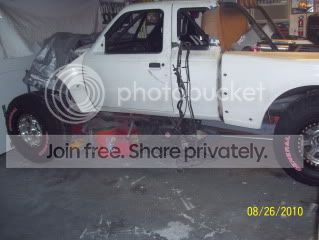

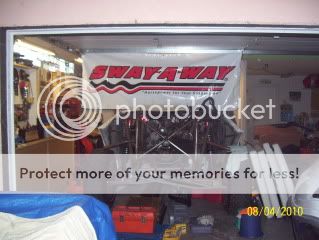

A look at the truck in the garage/shop

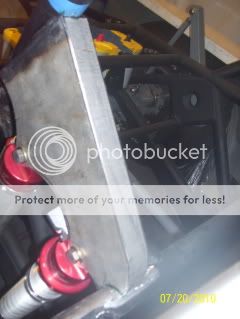

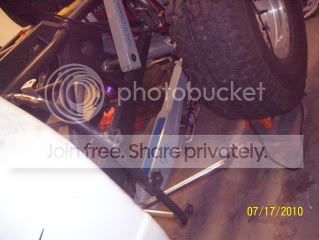

Shock mounts fully welded and overlay plates should be here tomo or friday from R&I

weld on resi mounts, tilted for a reason

bedside plate, for strength and race number stickers

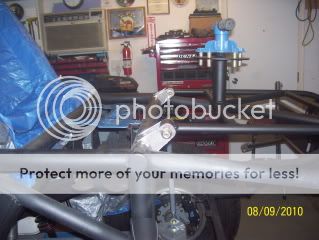

Rear limit straps completed, strapped at 25" for now

Spare tire mount is completely done, we made new tabs to raise the front to keep tires off batteries as well as give more room to put filler neck in between cell and rack

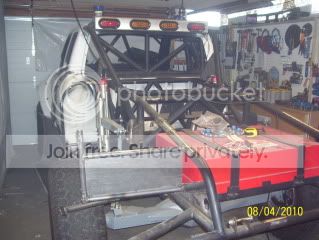

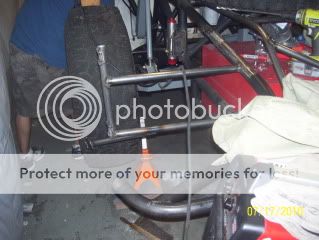

Added a tube cap to finish rear off besides paint and plumb/electrical...on to cab in next day or two after we finish welding a few things



[alwaysFlOoReD]



[FAST Fabrication]

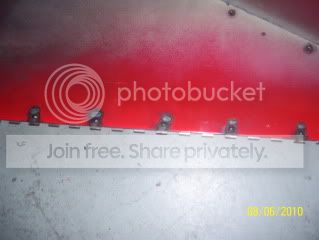

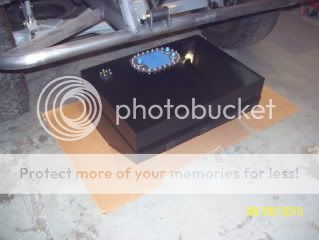

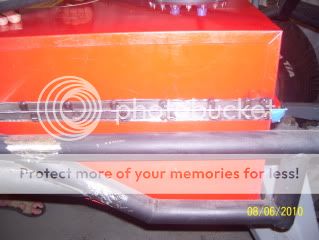

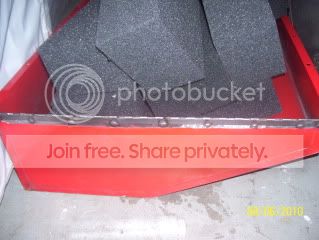

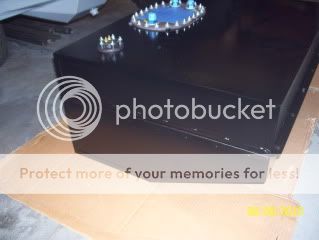

Took our damage 32 gallon jaz jeepspeed cell got a new blank bladder and sending unit completely dismantled the damage one, clean the tacks and edges and burns off the skin, cut the new holes in the blank and transfer all the parts including the foam.. Then using a piano hinge we attached both sides together allowing it to come apart as well as fit in ranger frame rails or at least our spot, its maybe a 1/8" wider then the actual box and hats only at the hinge part were before you had 1/2 flanges on both sides

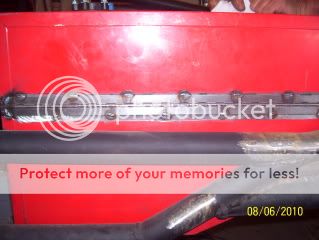

first we drilled holes from inside and did a spot/tack weld just like jaz does, but we decided to add small beads on outside and edges just in case.

\

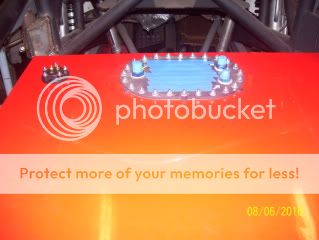

finished product, took about 9-10 hours



[Grunizzle]

Awesome build, and I want your garage!!



[FAST Fabrication]

garage y lol? we just got some new tools

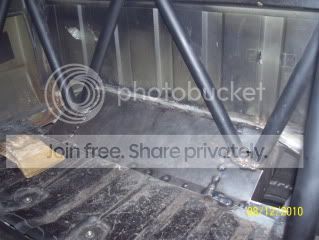

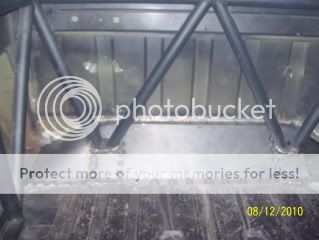

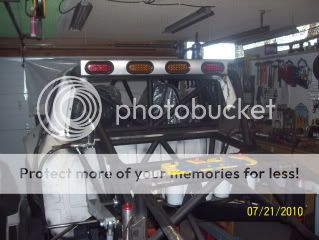

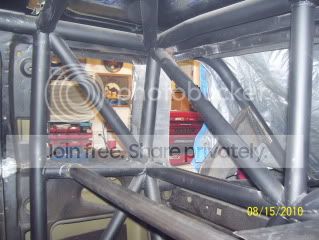

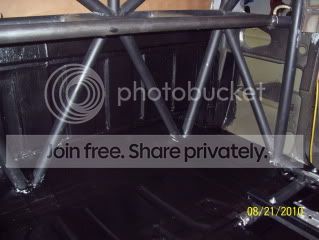

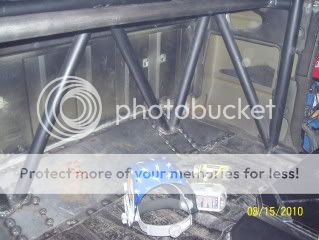

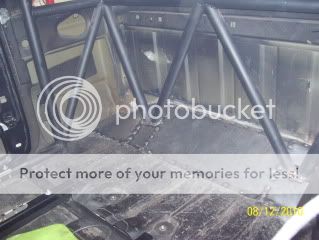

Finished the back panel, the ends were hard without metal shaping tools to match compound bends... So we did our best did not worry about having a straight line on bottom, didn’t matter because we had to cover up the square cut our on driver side.... looks good and hella strong, the 1" tube that they put between cab fell out as we were welding the cage to the plate, so might not bother with cutting a hole and running a tube to frame and floor.

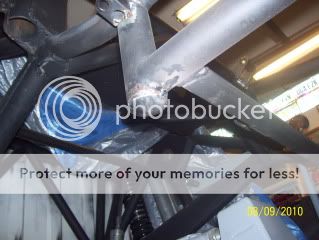

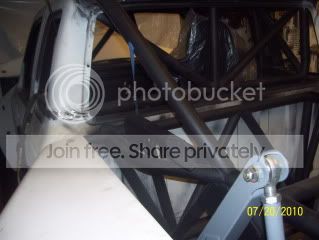

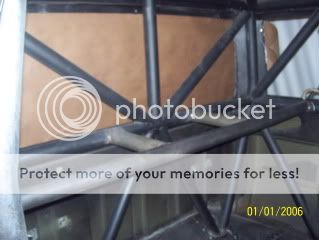

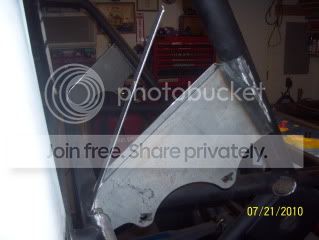

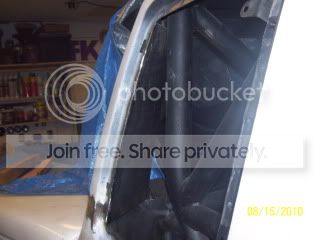

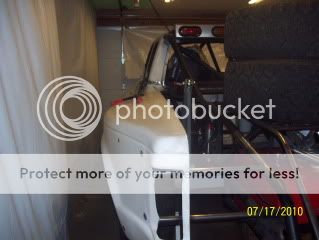

not sure if anyone has ever done this, but I came up with an idea to help with the scoop getting air to the coolers, but more so to strengthen the corner/back of cab were 2 pieces were cut out on each side (guessing because first cage was removed) and I myself welded the insides closed back together as far up as I could get the nozzle in and the driver side the gap between them was just too big, got tired or trying to bridge a 1/4" plus gap. So this piece welds to sliding glass window edge (were both pieces were cut from so adding a piece to weld not only the two pieces to the plate but also to outside skin, and then it goes to the extended cab window edge pass were the cab was cut off so strengthening that as well) It is super strong I like it, would of put dimples or our name in it, but then defeats purpose of pushing air through smoothly

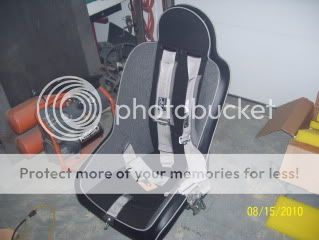

Seat harness are done

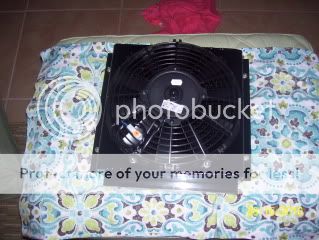

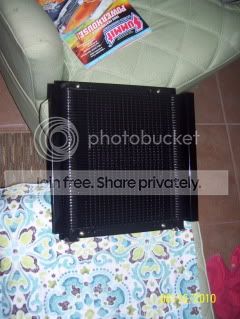

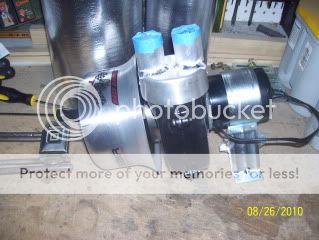

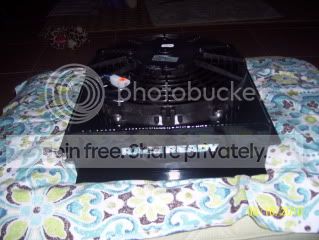

We got the engine oil cooler in yesterday will be getting lots of parts these next weeks, I pick a different color for the truck going with one single color will show it at the expo. Along with our fiberglass dash/scoops/and visor. I think we are going to make a mold for a visor and sell them cheap, even cheaper if you don’t want gel coated.



[FAST Fabrication]

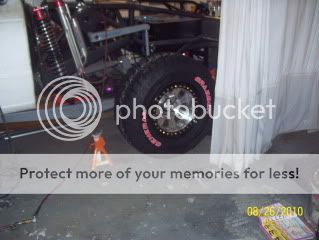

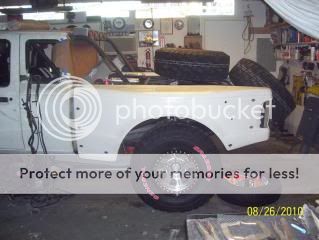

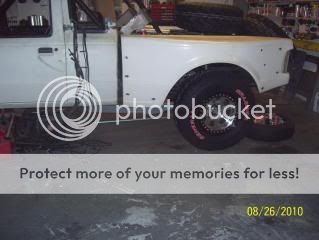

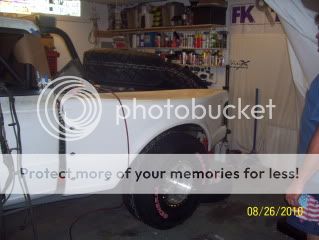

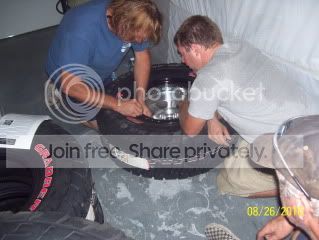

mounting our shoes



Thank You tp General Tire visit them at GeneralTire.com, I am very pleased with these competition tires.. no bulge whatsoever, was woried about my track width and it actually gave me more clearance. Highly recommend you check them out.



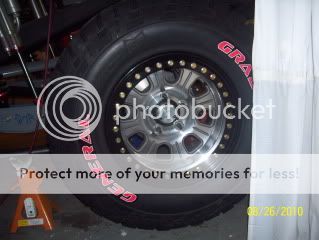

Thank you Allied/Raceline wheels, you can visit their site and see all their beadlock wheels and truck/suv wheels at racelinewheels.com The ring seats great on the tire and we are very happy with our change and happy we are using 17" wheels.

they weigh 125lbs a wheel mounted



[FAST Fabrication]

window net kit only using top bar

pci race air

new trailer

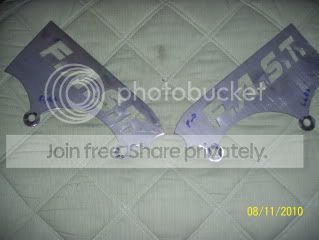

our shock plates



[FAST Fabrication]

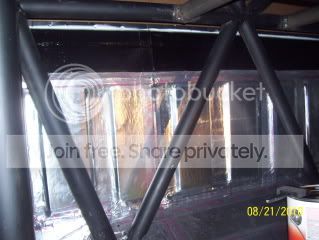

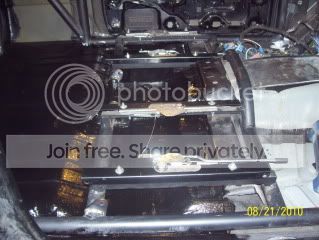

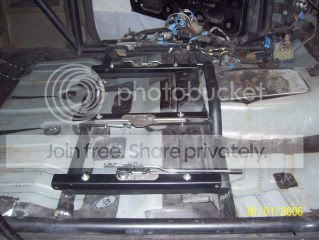

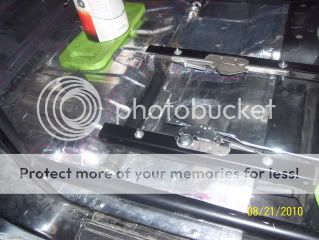

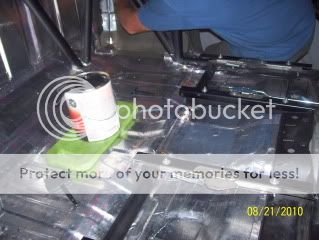

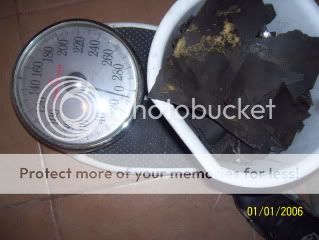

this is what we did last week removed 7lbs of sound deadener... then laid some gorilla mat and rolled on bedliner

our new dimples

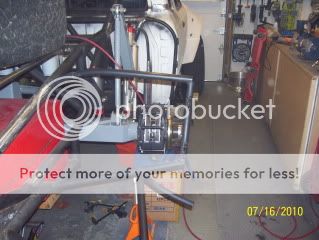

finishing touches to harness bar mounting fresh air to it tomo



[alwaysFlOoReD]

Tires and rims weigh 125 lbs, is that good? How much lighter than regular tire and rim?
Looking good so far,
Richard



[Grunizzle]

those new generals looks badass



[86 slo-vo]

Tires and rims weigh 125 lbs, is that good? How much lighter than regular tire and rim?
Looking good so far,
Richard

seams real heavy...just weighed my 35" yokohama's in at 90lb's



[FAST Fabrication]

yea they are heavy remember these are race tires.. much thicker and harder i believe a kevlar type compound their is only 25 psi in and these tires do not bulge at all you have same foot print whether 10 psi or 40 psi
