2.3L ('83-'97) 1988 XLT Carb Swap Questions


TimWick

Active Member
V8 Engine Swap
Joined
Dec 1, 2023
Messages
37
City
Arizona
Vehicle Year
1988
Engine
Transmission
Automatic
Tire Size
225 45 17
Hey all,

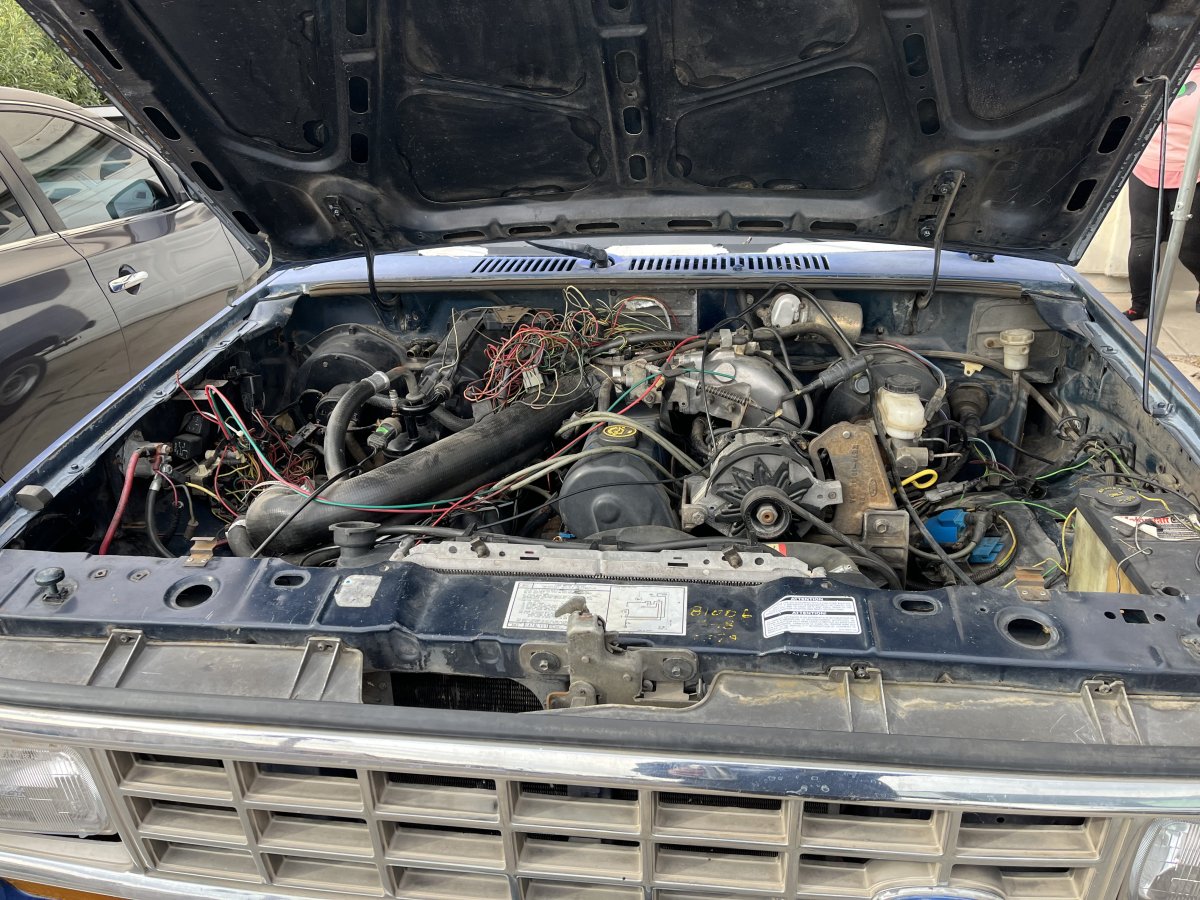

Recently got my hands on a 2.3 that’s currently fuel injected but the engine wiring harness is toasted. Edward scissor hands got into the engine bay and went to town.

Currently piecing together the conversion for carb based off posts here and other places.

Here’s what I have so far:
- [ ] Weber 32/36

- [ ]

- [ ] Adapter for lower intake

- [ ] Distributor

- [ ] Gm hei

- [ ] PC 91 e coil

- [ ] Freeze plugs for injector holes

- [ ] Fuel pressure regulator

- [ ] Fuel lines

- [ ] New spark plugs

My only concern is this distributor and e coil I got:

E coil:

I am not sure if that setup would work with the gm hei system. Or if I may have gotten the wrong distributor. I tried to search for ones from older pintos and mustang II but no place, along with rock auto, has any in stock with the vacuum advance.

Any help/insigits would be appreciated. Want to get this old girl back on the road.


Attachments

  • IMG_2718.jpeg
    279.8 KB · Views: 189
  • IMG_2672.jpeg
    281.2 KB · Views: 210
  • IMG_2674.jpeg
    223.5 KB · Views: 155
The 8000 series is called a "magnetic pickup" style distributor. So the HEI module should work with it. That is what the GM HEI distributor uses, and is also what the Ford Duraspark II distributor uses. It generates a A/C signal when the distributor turns.

The 8000 series is called a "magnetic pickup" style distributor. So the HEI module should work with it. That is what the GM HEI distributor uses, and is also what the Ford Duraspark II distributor uses. It generates a A/C signal when the distributor turns.

Okay thank you. I had thought it would since according to the other listings I had seen it shows up as a replacement part for the older engines I was mostly concerned since on the listing description it also said a cd type distributor.

An update:

Got the adapter in today and managed to get the top intake off and I ran into my first issue.

The lower intake is a 4 barrel but the adapter I got seems to be setup for a two barrel.

Not sure if I need to get an adapter for an adapter or find another setup to use.

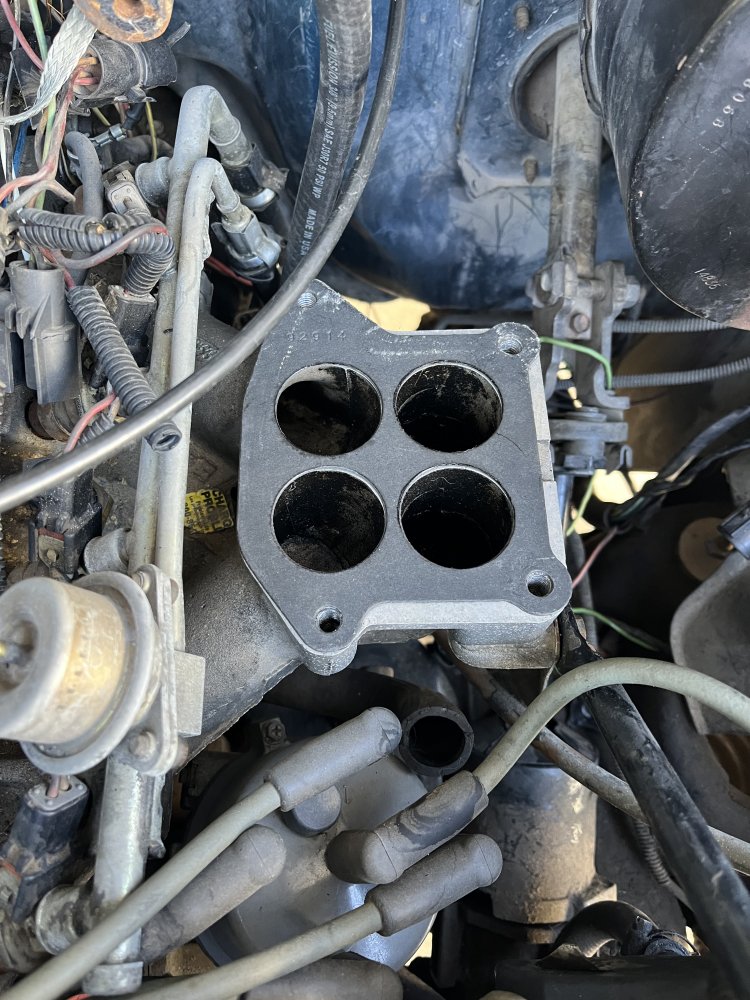

here’s the adapter I went with:


Attachments

  • IMG_2741.jpeg
    182.9 KB · Views: 217
  • IMG_2744.jpeg
    91.1 KB · Views: 133
Hey all,

Recently got my hands on a 2.3 that’s currently fuel injected but the engine wiring harness is toasted. Edward scissor hands got into the engine bay and went to town.

Currently piecing together the conversion for carb based off posts here and other places.

Here’s what I have so far:
- [ ] Weber 32/36

- [ ]

- [ ] Adapter for lower intake

- [ ] Distributor

- [ ] Gm hei

- [ ] PC 91 e coil

- [ ] Freeze plugs for injector holes

- [ ] Fuel pressure regulator

- [ ] Fuel lines

- [ ] New spark plugs

My only concern is this distributor and e coil I got:

E coil:

I am not sure if that setup would work with the gm hei system. Or if I may have gotten the wrong distributor. I tried to search for ones from older pintos and mustang II but no place, along with rock auto, has any in stock with the vacuum advance.

Any help/insigits would be appreciated. Want to get this old girl back on the road.
Hey I have a solution! You could just drop this in it and call it a day! I just pulled this out of a lifted Suzuki Samurai I had built that was lifted with a crap ton of mods. No, not kidding, it really was in a Zuk. You may or may not notice a "slight" increase in performance. Oh and that hole in the hood, thats all ok. It lets pretty and shiny things stick up and make noise!! LOL


Attachments

  • Zuk motor.jpg
    Zuk motor.jpg
    62.4 KB · Views: 122
An update:

Got the adapter in today and managed to get the top intake off and I ran into my first issue.

The lower intake is a 4 barrel but the adapter I got seems to be setup for a two barrel.

Not sure if I need to get an adapter for an adapter or find another setup to use.

here’s the adapter I went with:
That is not a 4 barrel lower intake. That is a 4 hole EFI lower intake. Even though it looks like a 4 barrel intake, you will never find a 4 barrel adapter that will fit. For a bolt on solution, you most likely need to find a earlier engine that had a carb from the factory and use that manifold. IF, it will fit your cylinder head. I have not experimented much with the 2.3, though my turbo SVO had a intake on it just like yours.

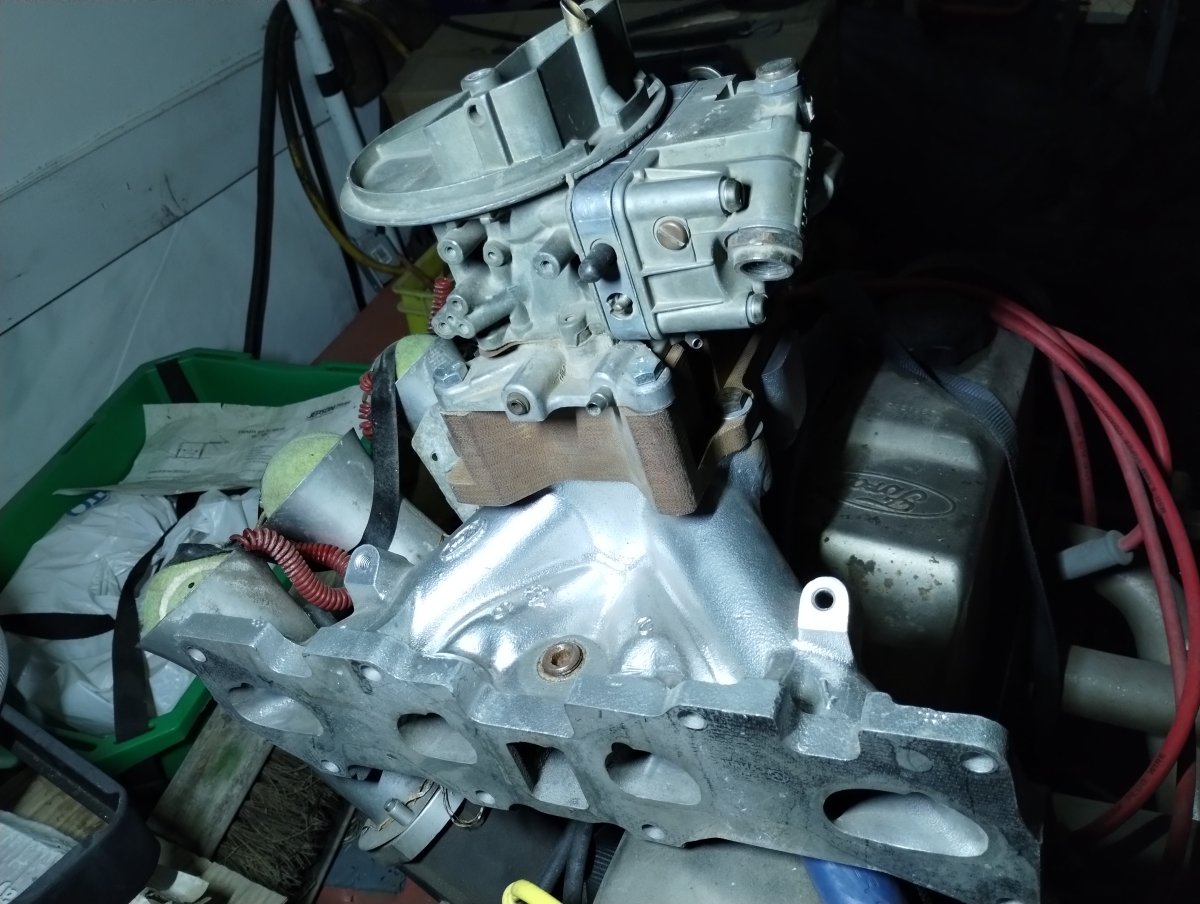

I have this efi manifold that has a homemade phenolic adapter to fit a 2bbl. The efi ports were welded shut. I've never used it yet so don't know how well it will work.


Attachments

  • IMG_20231202_192758204.jpg
    168.2 KB · Views: 137
  • IMG_20231202_192808099.jpg
    189.4 KB · Views: 128
  • IMG_20231202_192848326.jpg
    146.9 KB · Views: 127
That is not a 4 barrel lower intake. That is a 4 hole EFI lower intake. Even though it looks like a 4 barrel intake, you will never find a 4 barrel adapter that will fit. For a bolt on solution, you most likely need to find a earlier engine that had a carb from the factory and use that manifold. IF, it will fit your cylinder head. I have not experimented much with the 2.3, though my turbo SVO had a intake on it just like yours.

Yeah I was hopeful but you're right.

I have this efi manifold that has a homemade phenolic adapter to fit a 2bbl. The efi ports were welded shut. I've never used it yet so don't know how well it will work.
Was that a 3d printed adapter you made? Or how is it made?

I managed to find this one:

Which is referenced on this website:

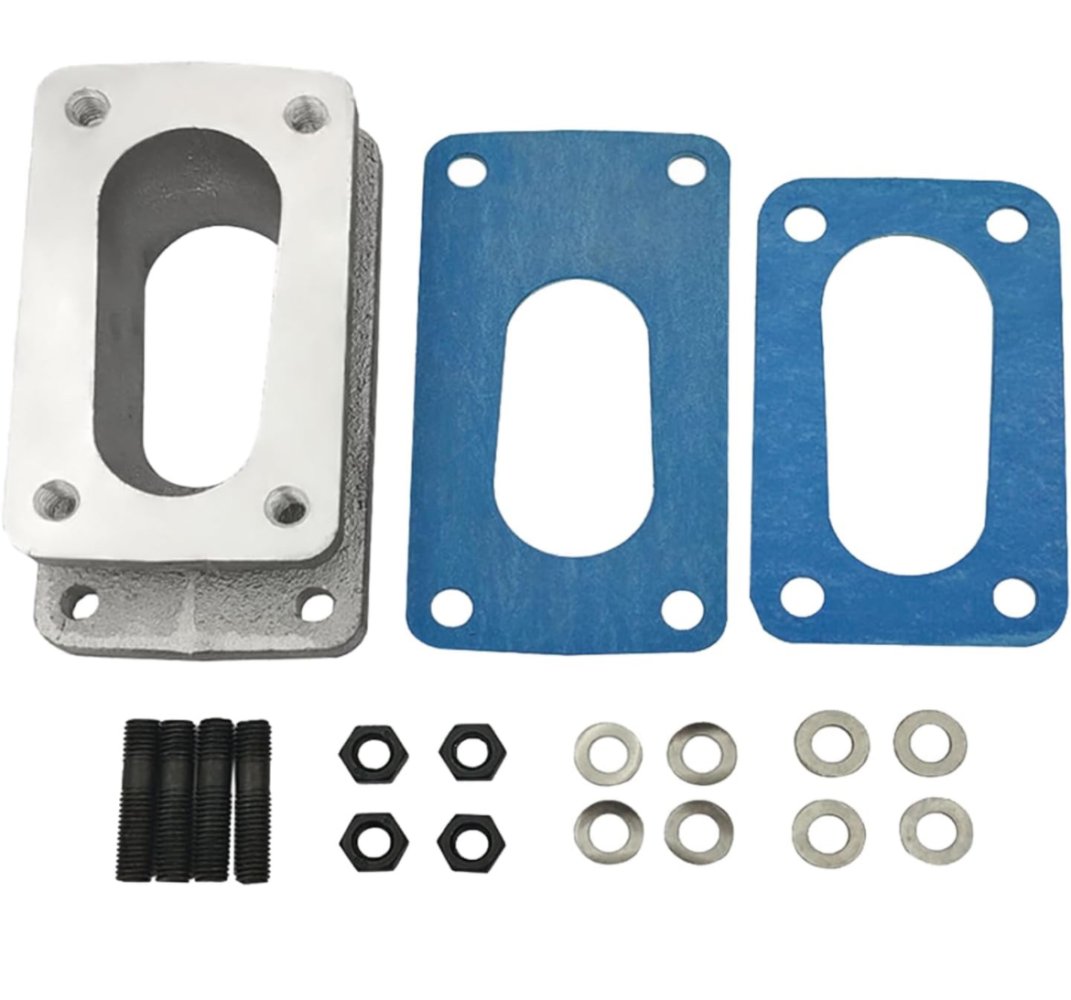

Ford 2.3l SOHC EFI Intake Manifold Adapter
Install Holley, Weber or Ford 4 cyl 2-Barrel. CNC machined from billet aluminum. 1" thick, full stepped plenum, increased fuel atomization and optimized carburetor position. Clear Hard Anodized. This adapter is designed for stock EFI manifolds, and can be ported. Complete with instructions, bolts and gaskets.

I believe this one might fit and work for what i'm looking for.

Yeah I was hopeful but you're right.


Was that a 3d printed adapter you made? Or how is it made?

I managed to find this one:

Which is referenced on this website:


Ford 2.3l SOHC EFI Intake Manifold Adapter
Install Holley, Weber or Ford 4 cyl 2-Barrel. CNC machined from billet aluminum. 1" thick, full stepped plenum, increased fuel atomization and optimized carburetor position. Clear Hard Anodized. This adapter is designed for stock EFI manifolds, and can be ported. Complete with instructions, bolts and gaskets.

I believe this one might fit and work for what i'm looking for.
I never made it. It came with an engine I got in trade for some work. It looks to be custom made as the engine was custom built for salt flats racing.

The link you show looks like it will work to me too.

Yeah I was hopeful but you're right.


Was that a 3d printed adapter you made? Or how is it made?

I managed to find this one:

Which is referenced on this website:


Ford 2.3l SOHC EFI Intake Manifold Adapter
Install Holley, Weber or Ford 4 cyl 2-Barrel. CNC machined from billet aluminum. 1" thick, full stepped plenum, increased fuel atomization and optimized carburetor position. Clear Hard Anodized. This adapter is designed for stock EFI manifolds, and can be ported. Complete with instructions, bolts and gaskets.

I believe this one might fit and work for what i'm looking for.
Good find, though not cheap is it?

Good find, though not cheap is it?

Unfortunately not no. So far the most expensive part of the swap. Everything else so far has been around 100 or less. So far with the cost of the truck and parts I am about 950 into the project.

You got a weber for 100 or less? Wow, prives have dropped, or its not a real weber.

You got a weber for 100 or less? Wow, prives have dropped, or its not a real weber.
Trying out the chyna version of a 32/36


So just around 95 with a discount I had from a gift card.

I’ve heard negative things about them but in the motorcycle world I’ve used china replacement carbs and parts and so far haven’t had any issues

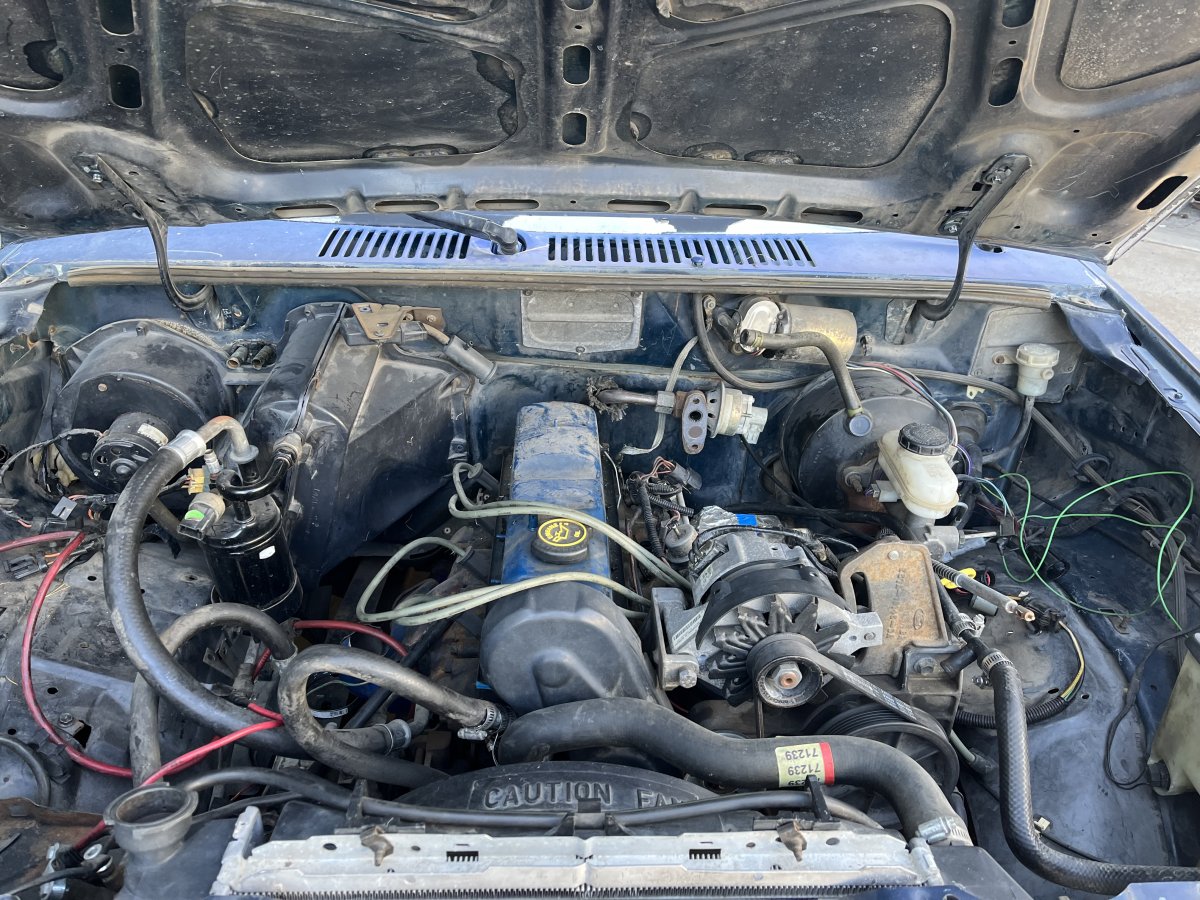

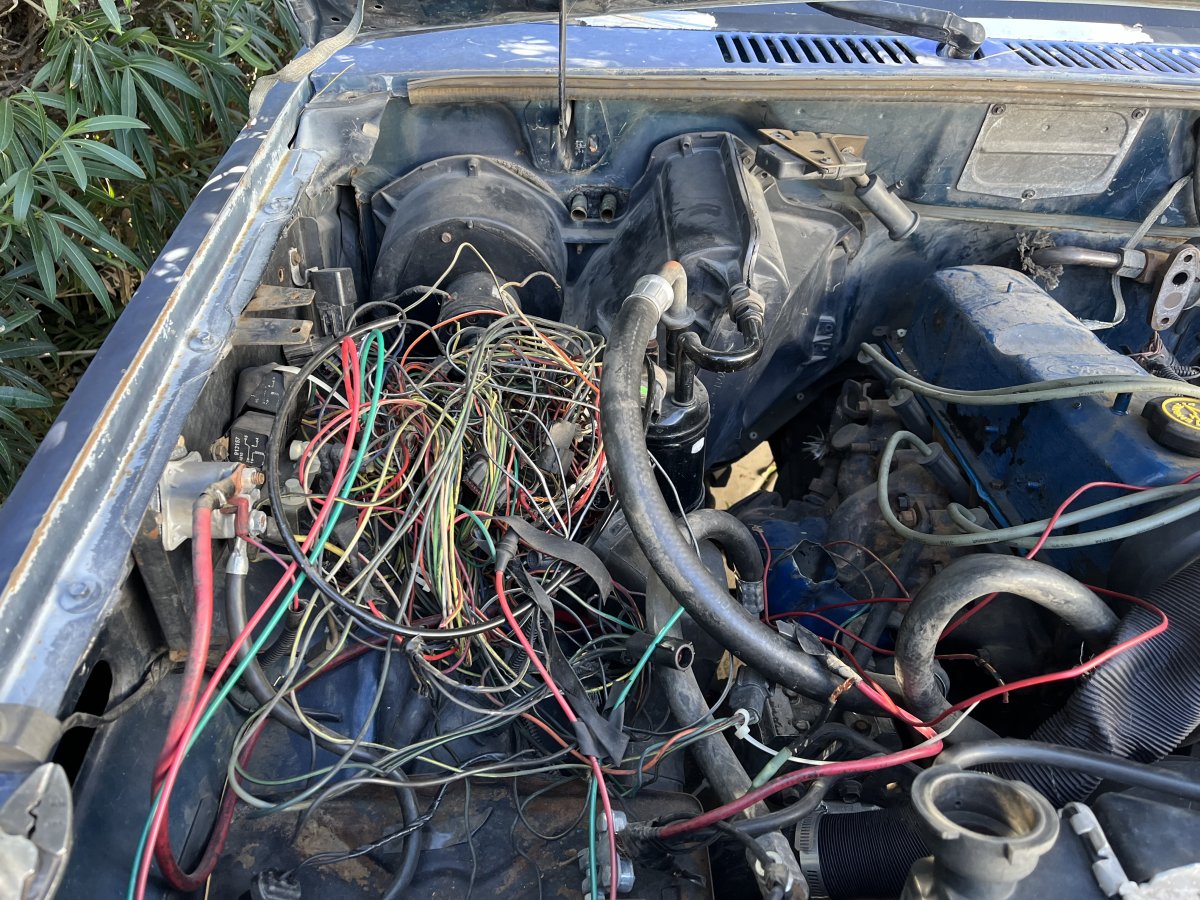

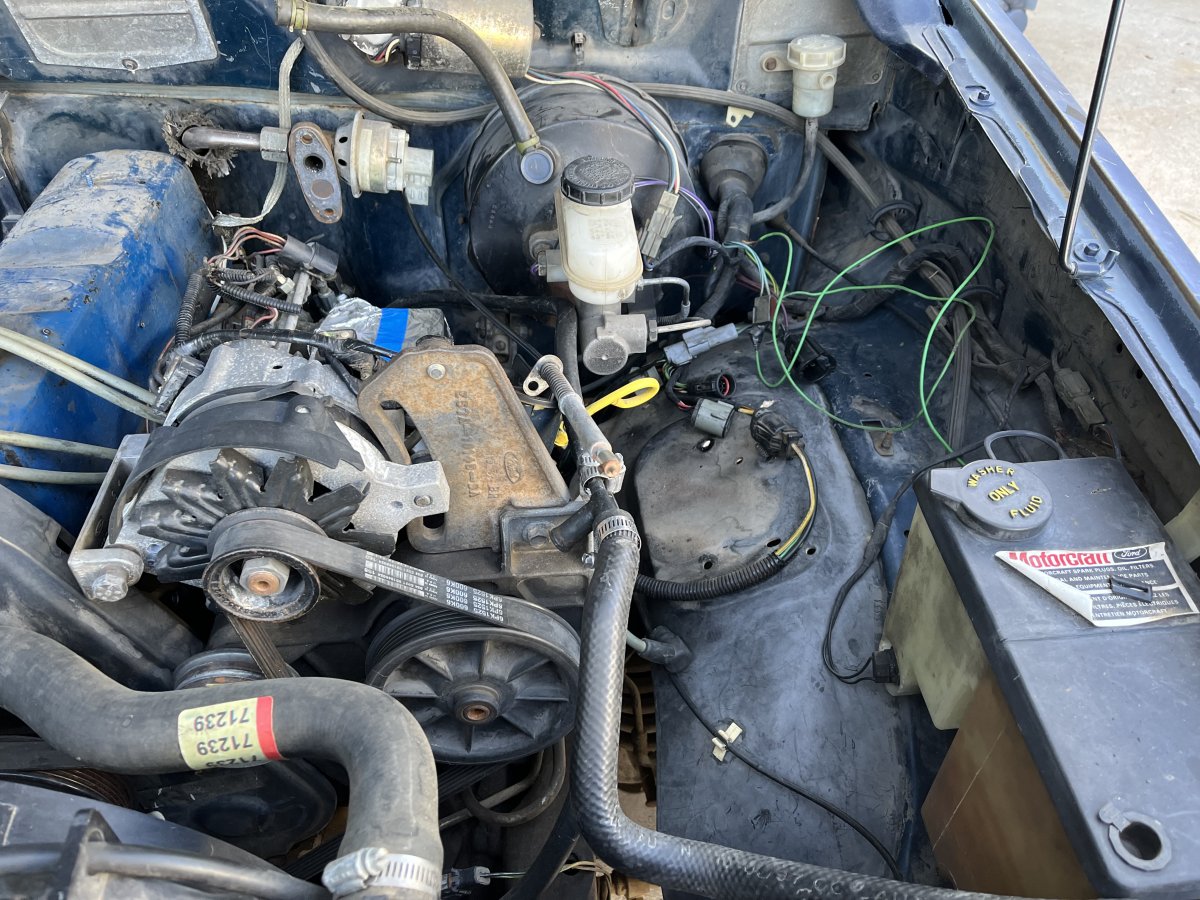

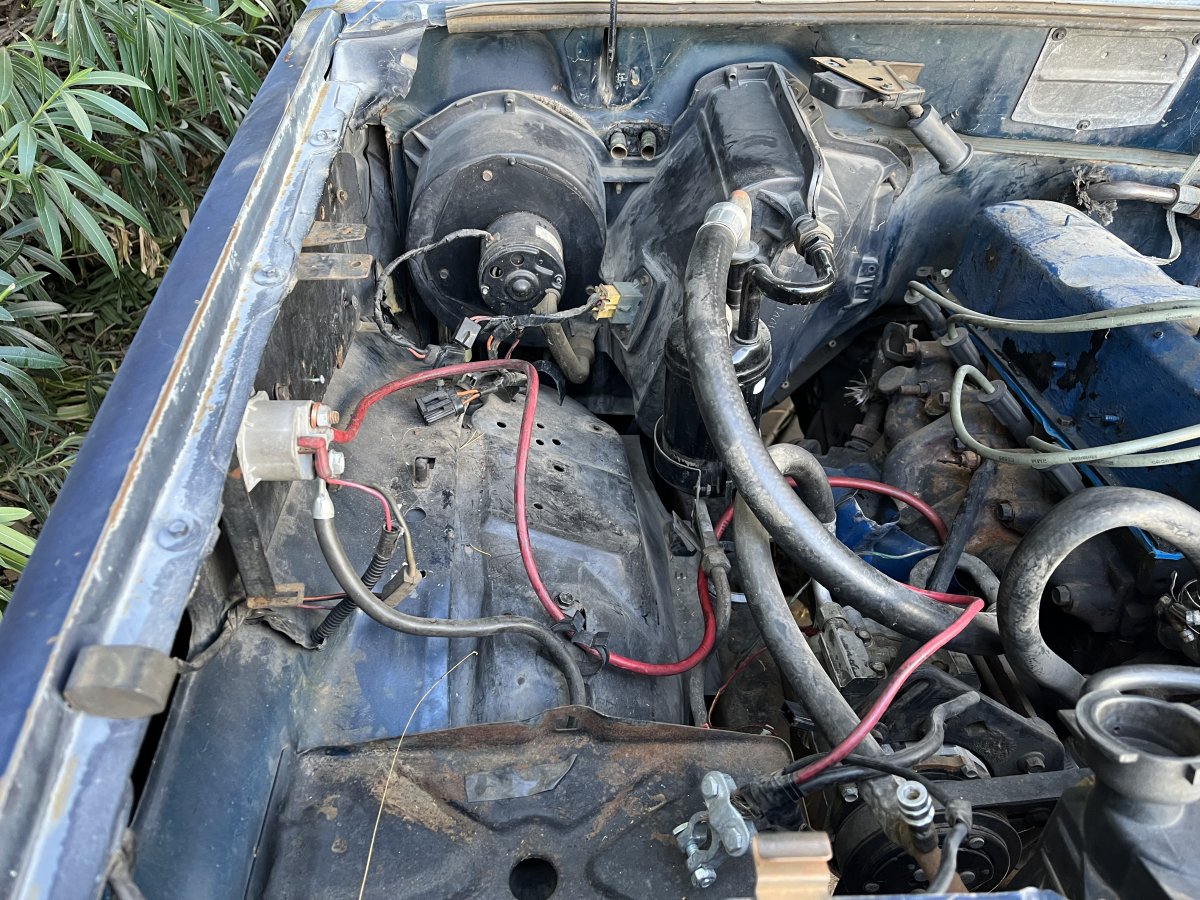

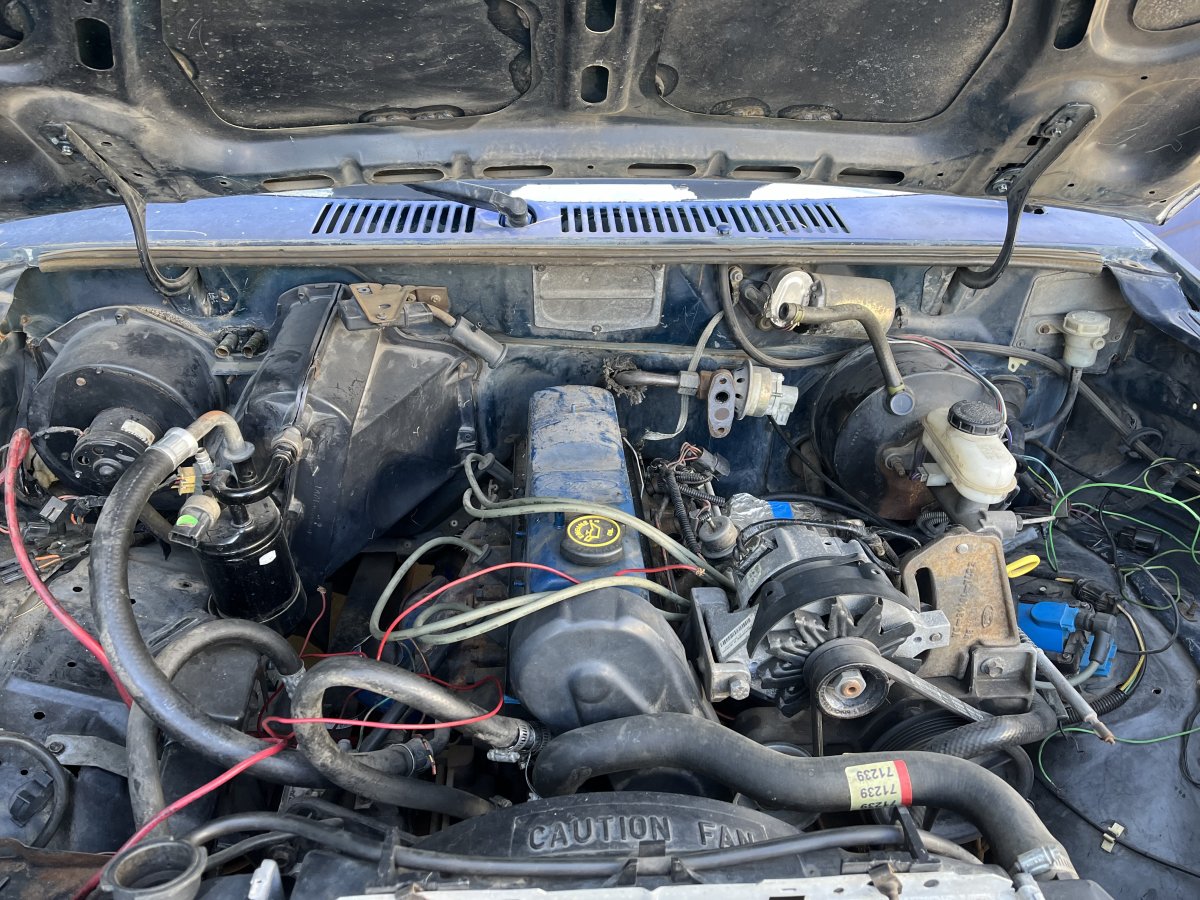

Today I also managed to un spaghetti the engine harness and yank it out.

Still need to move some things around but it’s getting there.


Attachments

  • IMG_2745.jpeg
    316.6 KB · Views: 213
  • IMG_2746.jpeg
    306.2 KB · Views: 123
  • IMG_2747.jpeg
    289.3 KB · Views: 480
  • IMG_2748.jpeg
    292.6 KB · Views: 208
  • IMG_2749.jpeg
    309.7 KB · Views: 176
  • IMG_2750.jpeg
    265.9 KB · Views: 303
Do you have any woodworking tools? You could possibly make your own spacer/adapter out of phenolic. Problem is, it's not that cheap either. You can get a 6 inch by 6 inch by 3/4 inch thick piece for $76.14 from McMaster Carr.

A scroll saw would probably do a decent job of it.

Do you have any woodworking tools? You could possibly make your own spacer/adapter out of phenolic. Problem is, it's not that cheap either. You can get a 6 inch by 6 inch by 3/4 inch thick piece for $76.14 from McMaster Carr.

A scroll saw would probably do a decent job of it.

For the cost of getting the tools and the material, plus being inexperienced with woodworking and fabrication, I’ll just spend the 130 for this bracket for now and see if it works. I’m pretty hopeful with this one. Won’t come in till the weekend though.
