The Jeep Dana 30

(Axle shown is from a 1989 Jeep Wrangler (YJ) and is missing the yoke and vacuum actuator)

Quick Answer: The Jeep Dana 30 is a compact solid front axle used in Jeep Cherokee (XJ) and Wrangler (YJ/TJ) models. High-pinion, reverse-cut versions are popular for solid axle swaps due to their driver-side differential, compatible width, and shared 5×4.5 bolt pattern with Ford Rangers.

Specification Summary

• Ring Gear Diameter: 7.20″
• Axle Shaft Diameter: 1.16″
• Axle Spline Count: 27
• Max Tire Size: 33″–35″
• Found In: Jeep Cherokee XJ (1984–2001), Wrangler YJ (1987–1996), Wrangler TJ (1997–2006)

Introduction

When I created The Ranger Station in 1999, there wasn’t very many people doing solid axle swaps (SAS). At the time the axle of choice was the early Bronco (EB) Dana 44 because it had a radius arm/coil spring setup and was similar in width to the Ranger axle. As time went by, the EB Dana 44’s became harder to find and some began looking to narrow full size Dana 44’s to match the Ranger’s axle width. People began looking at other alternatives and started looking at the Jeep Dana 30’s.  The Jeep Dana 30 is similar in width to the Ranger axles, has the differential on the drivers side like the Ranger and shares the same 5×4.5″ wheel bolt pattern.  This brings us to the point of this article……

The Jeep Dana 30

The Dana 30 first appeared in 1966 in the early Ford Bronco.  It was a very weak set up and was replaced in late 1971 by the Dana 44.  For the point of this article, we’re going to be discussing the Jeep Dana 30 that appeared in the Jeep Cherokee and Wrangler.

The Dana 30 that was put in the Cherokee (XJ) and Wrangler (YJ) is a high pinion, reverse cut unit and are the stoutest Dana 30’s built. The Cherokee (XJ) and Wrangler (YJ) differed in that the Wrangler (YJ) was set up for leaf spring and the Cherokee (XJ) used a coil spring setup.  These axles use a live spindle design which featured a sealed wheel bearing and no locking hubs.

All the Wrangler (YJ) and many Cherokees (XJ) (Part time four-wheel drive) used a vacuum operated CAD (axle disconnect) which split the passenger side inner axle shaft into two pieces with a coupling in between.  The full-time Cherokees (XJ) used a one piece axle. The non-disconnect front ends are easy to spot. Either look inside and see if the Jeep in question has a transfer case with a full time 4WD position or just look under the vehicle and make sure the passenger side upper control bracket is welded to the tube. The disconnect type axles have the passenger side upper control arm bracket cast as part of the disconnect assembly. The CAD (axle disconnect) was dropped for the Cherokee (XJ) models after 1991.

Some early full-time (XJ) Cherokees used a Rzeppa type CJ joint instead of a Spicer type joint.  Near the end of the line for the Wrangler (YJ) in 1995, the larger 5-297 u-joint replaced the 5-260.  This occurred as a mid-year change. The reverse cut unit was largely dropped in the 2000-2001 (XJ) Cherokee’s in place of a standard cut unit similar to the Grand Cherokee (ZJ) / Wrangler (TJ) unit.  A few leftover reverse units were still seen in those years.  The Wrangler (TJ) shafts can be used in the Cherokee (XJ) and Wrangler (YJ) for a one-piece shaft with 5-297 u-joints.  The 1993-1998 Grand Cherokee shafts should be avoided because they use CV joints.

Grand Cherokee (ZJ), Grand Cherokee (WJ), and Wrangler (TJ) use a standard cut Dana 30.

Jeep Dana 30 vs Ranger Dana 35

	Jeep Dana 30	Ford Ranger Dana 35
Ring Gear Diameter	7.20 Inches	7.56 Inches
Axle Shaft Diameter	1.16 Inches	1.16 Inches
Axle Shaft Spline Count	27	27
Pinion Shaft Diameter	1.38 Inches	1.41 Inches
Pinion Shaft Spline Count	26	26
U-joint	5-260x (up to 1995) or 5-297x (1995 up)	5-297x



Specifications:

Ring Gear Diameter: 7.20″
Cover Bolts: 10
Carrier Breaks: 3.54 / 3.73
Axle Shaft Diameter: 1.16″
Axle Spline Count: 27
Max Recommended Tire Size: 33″ – 35″

The Dana 30 can be found in both high and low pinion versions. The Dana 30 is actually surprisingly stout for it’s size. It can easily handle a 33″ tire, with aftermarket shafts its usually pretty safe to run 35s on them.

Found In:

1984-2001 Cherokee (XJ) – Reverse Cut
1987-1996 Wrangler (YJ) – Reverse Cut
1997-2006 Wrangler (TJ) – Standard Cut

CAD Problems

The YJ Dana 30 uses an axle disconnect system that is prone to failure. Often the vacuum hoses the activate the disconnect system will fall off or tear. Sometimes the vacuum motor won’t have enough power to engage the sleeve when the gear lube in the disconnect housing gets gummed up. Another problem is that since only one axle is ever disconnected, an automatic locker or limited slip differential can cause problems with the axle and with handling. The drivers side axle is always spinning the differential.

Dana 30 axle disconnect

Dana 30 Upgrades

U-joint and one-piece shaft upgrade – The Cherokee (XJ) and Wrangler (YJ) with the small 5-260X u-joints can be upgraded with the 1996 and up Cherokee (XJ) / Wrangler (YJ) shafts that use the 5-297 u-joint. 1996-1999 would be the most desirable Dana 30’s because they use the larger 5-297 u-joints and a one-piece passenger side axle instead of the CAD two-piece axle.

The photo above is of a Vacuum disconnect two piece axle shaft top and one piece shaft on the bottom.  The shaft on the bottom has a new stub shaft for the manual hub conversion.

Some manufactures such as Warn, offer’s replacement shafts with larger u-joints.  Here is a photo to show the difference between a 260x joint (top) and a 297x joint (bottom).

Notice the U-joint cap size between the stock 260X (top) and new 297X (bottom) U-joints

Manual Hubs – After converting to a one-piece shaft, you should do a manual hub conversion so you can unlock the axle shafts in the event of an axle failure and to allow the vehicle better handling on the road if you have a locker in the axle.

The Warn kit above is designed to convert the Dana 30 to manual hubs.  It retains the stock 5×4.5 wheel bolt pattern.

The Warn kit above is designed to not only convert the Dana 30 to manual hubs but also converts it to a 5×5.5 wheel bolt pattern.

Can a Built Dana 30 Handle 37s?

A Question in the January 2008 Fourwheeler Magazine ‘Techline’

Question: If I have a Dana 30 and put in 4340 chromoly shafts with 27-spline inners and outers, and large 297X or 760X U-joints, will it make it as strong as a Dana 44 or strong enough to run 37-inch-tall tires?

Answer: I can answer both questions with a No and a No. OK, so let’s now go into a bit more detail. First, the housing and axle tubes on a 44 are a lot stronger and beefier than those on a Dana 30, which results in less flex. Flex within the housing can actually pull the ring gear away from the pinion gear to the point where not full contact is made and gear breakage will occur. Next is the fact that the ring gear on a Dana 44 is 811/42 inches, while the ring gear on a Dana 30 is only 7-11/48 inches in diameter. This is also true with a lot smaller pinion as well as the pinion shaft. This all relates to fewer teeth in contact between the ring and pinion.

Now if you compare a high pinion Dana 30 to a standard cut Dana 44, as most vehicles use up front, then the strength factor gets a bit closer-maybe somewhere in the middle between the two, maybe a bit less. This is because a standard cut 44 is driving on the back side of the gear teeth while a high-pinion unit is driving on the correct side.

OK, now we can get to axle shafts. Dana 30s use a 27-spline axle of 1.13 inches in diameter, while most Dana 44s use a 30-spline, 1.31-inch axle. While this doesn’t seem like a really big difference, when engineers work it out with their magic math, there is a major difference in strength. OK, but what about using the chromoly axles? Well, they come close, but still not quite as close as one would think.

There is another option. Use a special ARB Air Locker that takes the 30-spline axle. Now we are up to the 44 in strength, and in fact better than a stock 44 axle shaft. But remember, we are still using that small Dana 30 ring-and-pinion and a housing with not nearly as much strength in it.

Will it handle 37-inch tires? Sure, but for how long is anyone’s guess. If you drove the vehicle only on easy trails, maybe a long time. But put a tire up against a big rock and stand on the skinny pedal, and most likely you’re going to clean the teeth right off those gears. Is it worth taking the chance? I don’t think so. In fact, depending on the weight of the vehicle, gearing, torque available, and driver’s state of mind, a 37-inch tire just may be too big for a Dana 44, even with chromoly axle shafts.

A True Jeep Dana 44?

Jeep did offer a Dana 44 with a driver’s side differential in the 2001 and newer Wrangler Rubicon. Company’s are selling these axles like the one pictured above complete with gears, locker and brakes.  Be prepared though to shell out $1,500. They have a 5×5 wheel bolt pattern.

Currie Enterprises

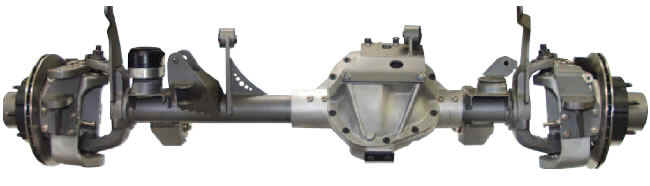

Ok, you have more money than fabrication talent and want to just buy a beefy solid front axle. Currie Enterprises can build you a front Dana 44 or Dana 60.  Shown above is their RockJock high pinion 60.

Installation Kits

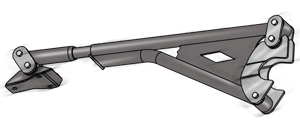

There isn’t any aftermarket ‘install’ kits that would allow you to install your Dana 30.  Hopefully if you’re at the point that you’re doing a swap like this, you have fabrication skills.  Both Barnes4WD and Ruff Stuff Specialties offer 3-link kits as well as link mounts and trac bar mounts.

Miscellaneous

(Jeep Wrangler (TJ) low pinion left vs Cherokee (XJ) high pinion right)

(1993-1998 Grand Cherokee CV joint shaft)

Frequently Asked Questions

Can a Jeep Dana 30 handle 37-inch tires?

While a Dana 30 can technically handle 37-inch tires with heavy-duty upgrades like chromoly 27-spline shafts and ARB Air Lockers, the axle housing and ring-and-pinion are still smaller and weaker than a Dana 44. On rough terrain, breakage is likely, so running 37s is generally not recommended.

What is a CAD axle disconnect and why is it a problem?

CAD (Carrier Axle Disconnect) is a vacuum-operated system used in some YJ and XJ front axles that splits the passenger-side axle shaft. It can fail if vacuum lines leak, the motor loses power, or the gear lube gums up. This may cause driveline issues and uneven power delivery.

Which Dana 30s have high-pinion, reverse-cut gears?

The Jeep Cherokee XJ (1984–2001) and Wrangler YJ (1987–1996) used high-pinion, reverse-cut Dana 30s. These are the stoutest Dana 30s built and are popular for solid axle swaps because they drive on the correct side of the gear teeth and match Ranger widths.

How can I upgrade a Dana 30 for strength?

Common upgrades include one-piece passenger-side axle shafts, larger 5-297 U-joints, chromoly shafts, and manual hub conversions. These upgrades improve reliability and drivability, especially if using lockers or larger tires.

Can a Dana 30 be swapped into a Ford Ranger?

Yes, it’s possible with custom suspension fabrication. Owners often use 3-link kits, trac bar mounts, and adjustable arms to fit a Dana 30 into a Ranger. Keep in mind that no full aftermarket “install kit” exists, so fabrication skills or professional help are required.

Photos Of A Jeep Dana 30 Installed In A Ford Ranger

Here are some photos I found on the internet of a Dana 30 install in a Ranger.

Owners Description – “I have custom made all of the suspension links. The lower arms are 1.75″ dia. .250 wall DOM with factory bushings on the axle end and Currie Johnny Joints on the frame end. The uppers are 1.25″ dia. .25 wall dom. Both uppers and lowers are threaded for full adjustability. The frame brackets are all designed and custom made by me. They mount where the factory trans crossmember mounted and now has a custom tube crossmember ran between them. I am running 6-inch Rock Krawler XJ springs on the front and Superlift leaves on the back. I am running 4.10 gears with the stock 2.9 motor and a swapped in 5 speed Mazda transmission. The motor has an MSD Blaster coil, and a K&N conical filter mounted behind the battery via a custom aluminum tube made by me as well. I also swapped in a late model Ford Explorer disc brake rear end and a late model Ranger one-piece rear driveshaft. I have 33-inch Swamper radials on it now but have plans for 35’s with a 5.0 swap in the future.”
