Recommended Differential Set-Up Specifications for various differentials.
| Model | Pinion Bearing Preload (in-lbs) | Backlash (.001 in) | R.G. Bolt Torque (ft-lbs) | Bearing Cap Torque (ft-lbs) | |
|---|---|---|---|---|---|
| New | Used | ||||

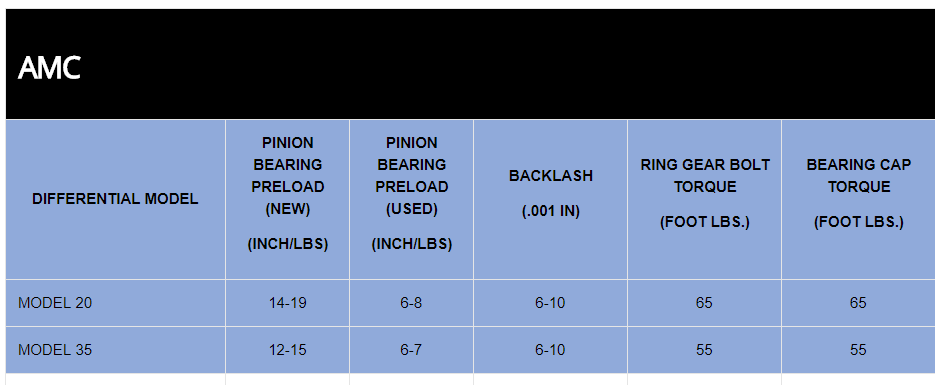

| AMC | |||||
| AMC Model 20 | 14–19 | 6–8 | .006–.010 | 65 | 65 |
| AMC Model 35 | 12–15 | 6–7 | .006–.010 | 55 | 55 |
| GM | |||||
| GM 7.5 | 12–15 | 8–10 | .006–.010 | 60 | 60 |
| GM 10 Bolt | 12–15 | 8–10 | .006–.010 | 60 | 60 |
| GM 12 Bolt | 15–20 | 10–12 | .006–.010 | 60 | 60 |
| GM 8.875″ (12 Bolt Car) | 15–20 | 10–12 | .006–.010 | 60 | 60 |
| GM 8.875″ (12 Bolt Truck) | 15–20 | 10–12 | .006–.010 | 60 | 60 |
| GM 9.5″ | 20–25 | 10–15 | .006–.010 | 120 | 120 |
| GM 10.5″ (14 Bolt) | 35–40 | 15–20 | .006–.010 | 120 | 120 |
| Chrysler | |||||
| Chrysler 7.25″ | 12–15 | 6–7 | .006–.010 | 55 | 55 |
| Chrysler 8.25″ | 15–20 | 10–12 | .006–.010 | 55 | 55 |
| Chrysler 8.75″ | 15–20 | 10–12 | .006–.010 | 55 | 55 |
| Chrysler 9.25″ | 25–35 | 15–20 | .006–.010 | 120 | 120 |
| Dana Spicer | |||||
| Dana 25 | 15–25 | 10–15 | .006–.010 | 55 | 55 |
| Dana 27 | 15–25 | 10–15 | .006–.010 | 55 | 55 |
| Dana 30 | 15–25 | 10–15 | .006–.010 | 55 | 55 |
| Dana 35 | 15–25 | 10–15 | .006–.010 | 55 | 55 |
| Dana 44 | 15–25 | 10–15 | .006–.010 | 60 | 60 |
| Dana 50 | 20–30 | 15–20 | .006–.010 | 100 | 100 |
| Dana 60 | 20–40 | 15–25 | .006–.010 | 120 | 120 |
| Dana 61 | 20–40 | 15–25 | .006–.010 | 120 | 120 |
| Dana 70 | 20–40 | 15–25 | .006–.010 | 150 | 150 |
| Dana 80 | 20–40 | 15–25 | .006–.010 | 150 | 150 |
| Ford | |||||
| 7.5″ | 16–28 | 8–14 | .008–.015 | 70–85 | 70–85 |
| 8.0″ | 12–14 | 6–7 | .010–.015 | 60 | 60 |
| 8.7″ | 14–19 | 6–8 | .010–.015 | 60 | 60 |
| 8.8″ | 16–29 | 8–14 | .008–.015 | 70–85 | 70–85 |
| 9″ OEM R&P | 22–32 | 8–14 | .010–.016 | 70 | 70–85 |
| 9″ Non-OEM | 22–32 | 8–14 | .008–.012 | 65–80 | 70–85 |
| 9″ Daytona | 14–16 | 6–8 | — | — | — |
| 9-3/8″ | 14–16 | 6–8 | .010–.015 | 70 | 60 |
| 10-1/4″ | 20–35 | 6–8 | .011–.016 | 95 | 80 |
| Toyota | |||||
| Passenger | 11–13 | 5–6 | .006–.009 | 55 | 60 |
| Truck w/o V6 | 12–15 | 5–6 | .006–.010 | 70 | 70 |
| Truck: V6 | 14–17 | 5–6 | .006–.010 | 70 | 70 |
