95 Ford Ranger 3.0L 4x4

[Bburton]

Hello, please help?

The radius arm snapped driving through DC one day.
I ordered a new radius arm, through rockauto. It does not fit.

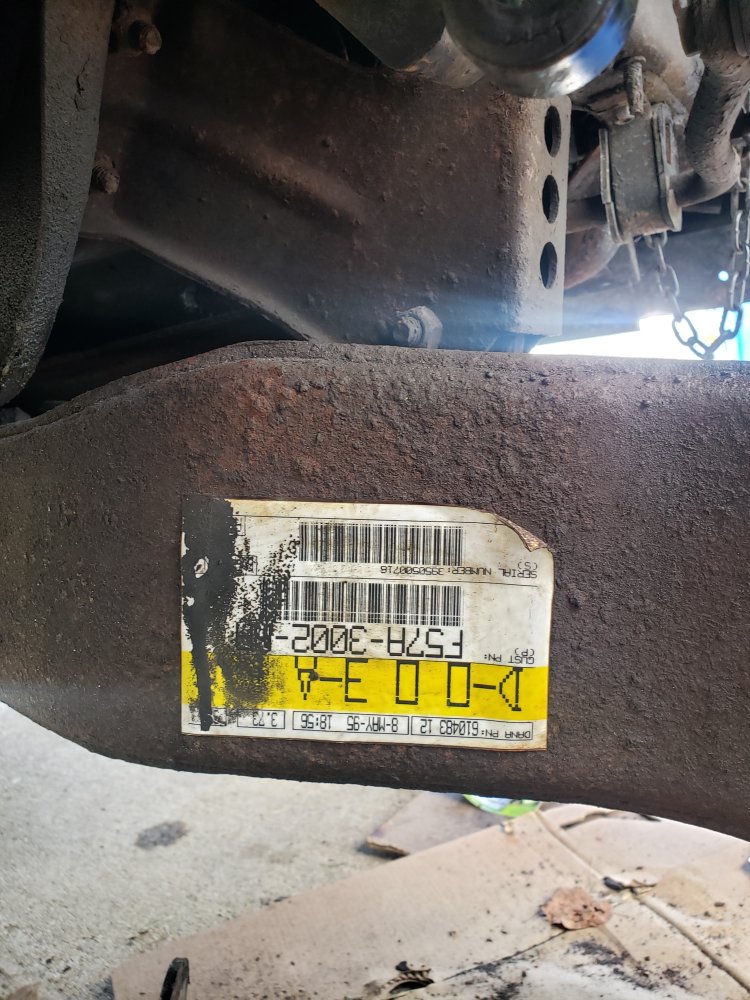

From the sticker on the Axle, it identifies as a Dana28

Has this happened to anyone else?
Can anyone recommend a radius arm that would fit?

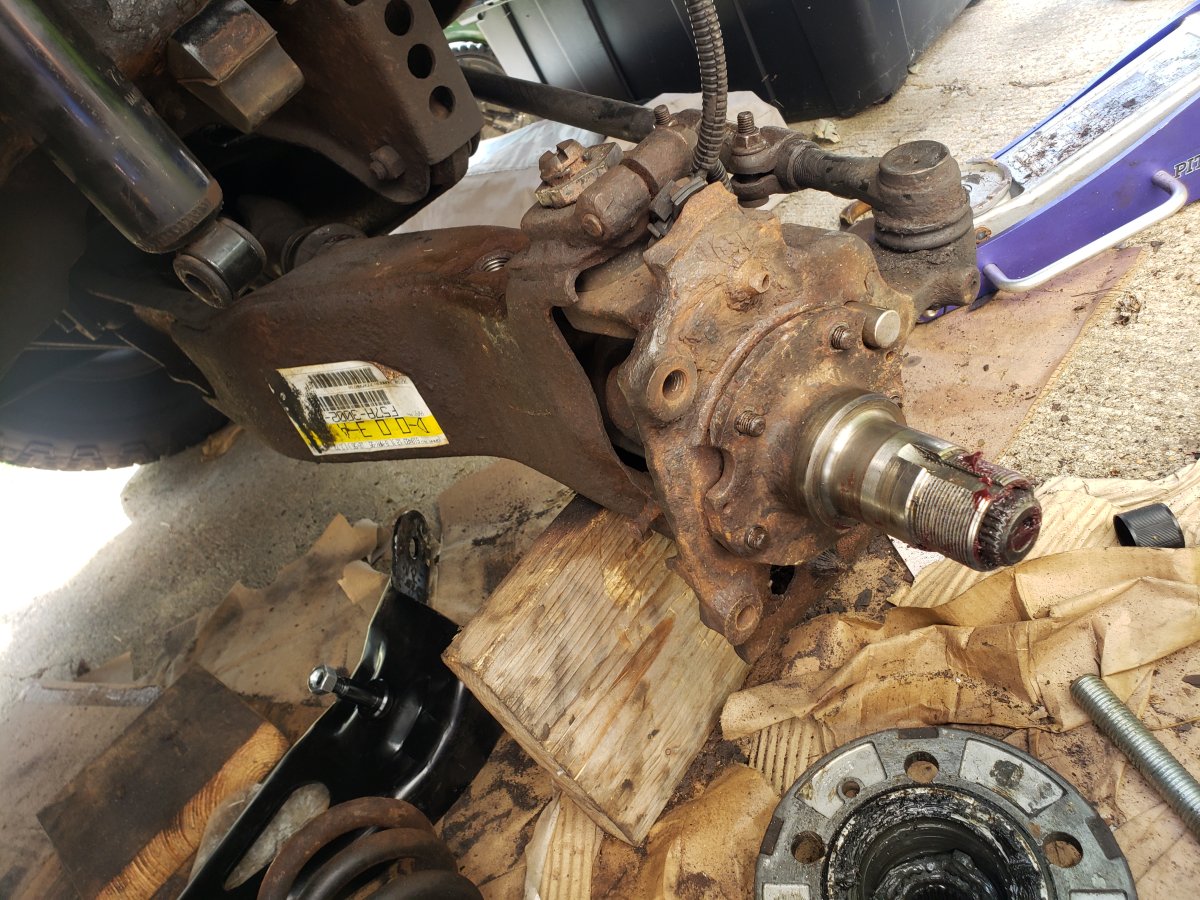

Photos attached



[alwaysFlOoReD]

Are you sure it's not a d-35?



[Curious Hound]

I would expect it to be a D35. Should be able to find in junk yard, Rock Auto, LMC Truck,???

If necessary, I'm pretty sure I have the ones that came off my 93. They should fit. Not sure what shipping would be from zip code 29385 to you.



[scotts90ranger]

You have a Dana 35, the F5 number is '95 design (some minor differences and the twin piston calipers were done in '95) and all '90 up Rangers came with Dana 35 external components (lets not get into internals, there's some goofy stuff in some...)

That also looks like a Dana 35 radius arm with the shock stud instead of the double shear setup a Dana 28 had. I'm pretty sure you just need to spread the ears some to get them to go over the axle housing. First make sure the radius arm bolts go through the holes though...



[Bburton]

Thank you!. They do have shock studs, do you think this may be one of the ones with the goofiness?

How would you recommend going about spreading the ears out?
I'm currently heating and "tampering" the ears to move them into position but it seems like a lengthy process.
I really feel like I am at my wits end with this truck sometimes.

I've had to install a new radius arm bolt on the top side, that nut would not come off...thats when I got motivated to buy the map gas



[Bburton]

I would expect it to be a D35. Should be able to find in junk yard, Rock Auto, LMC Truck,???

If necessary, I'm pretty sure I have the ones that came off my 93. They should fit. Not sure what shipping would be from zip code 29385 to you.

If you want to exchange some photos to make sure they will fit ill gladly pay the shipping, im headed to GA as soon as I know the ol ranger is roadworthy.



[scotts90ranger]

Heat shouldn't be necessary, I'd just put an ear over something and hit it with a hammer back a bit at the base of the ears...

Being a 3.0L chances are you have the hybrid axle with a smaller ring gear and spider gears but the outers are all the same so I wouldn't worry about it unless you are planning on being tough on the front axle (33" tires or bigger with low gears)... even then it's just a matter of swapping the center section and the inner axle shafts...



[Bburton]

Heat shouldn't be necessary, I'd just put an ear over something and hit it with a hammer back a bit at the base of the ears...

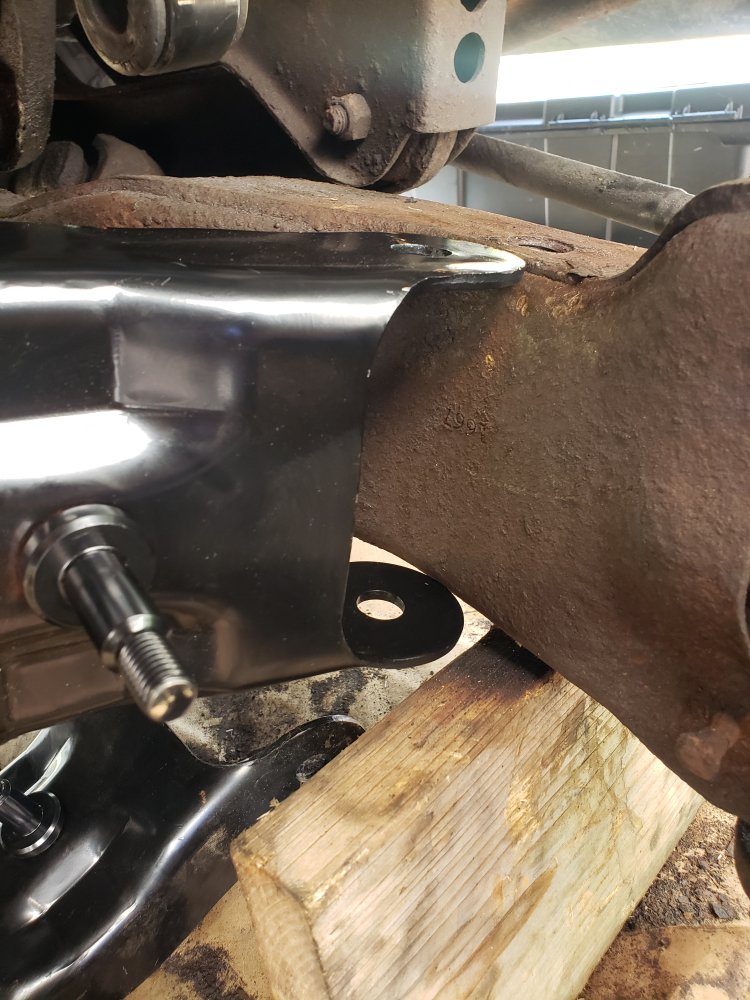

The photo does not really do the radius arm justice but im having a hell of a time bending/beating the ears out wide enough so that they will fit down on to the current axle...it seems to me that there is not enough metal/meat on the radius arm to cover the Axle since the gap on the radius arm is smaller than the width of the axle...I spent two weeks thinking I ordered the wrong parts.



[Curious Hound]

Sorry I forgot to get these photos yesterday.

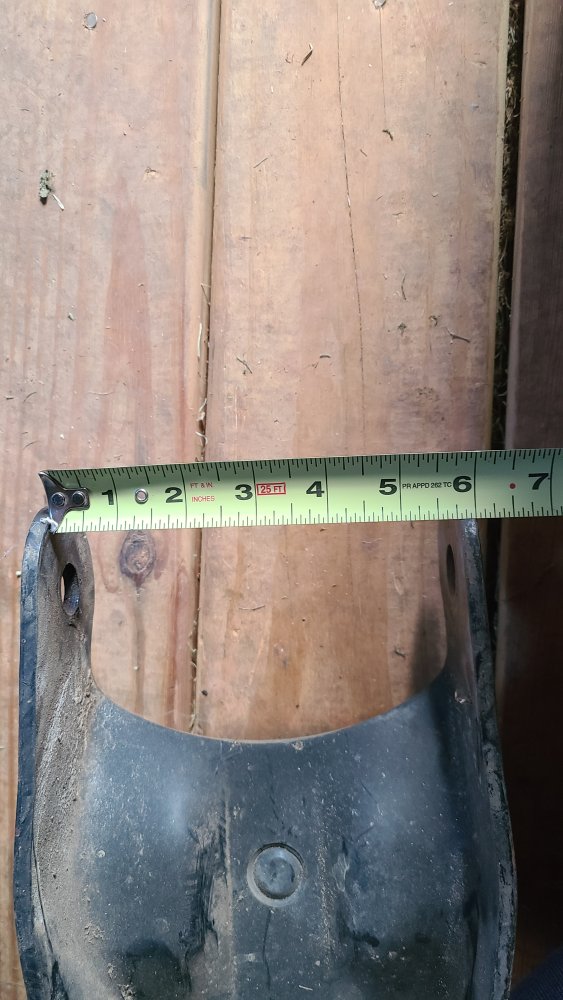

Here's the shot I think you're interested in.
5 3/4" between the ears.



[Bburton]

I

Sorry I forgot to get these photos yesterday.

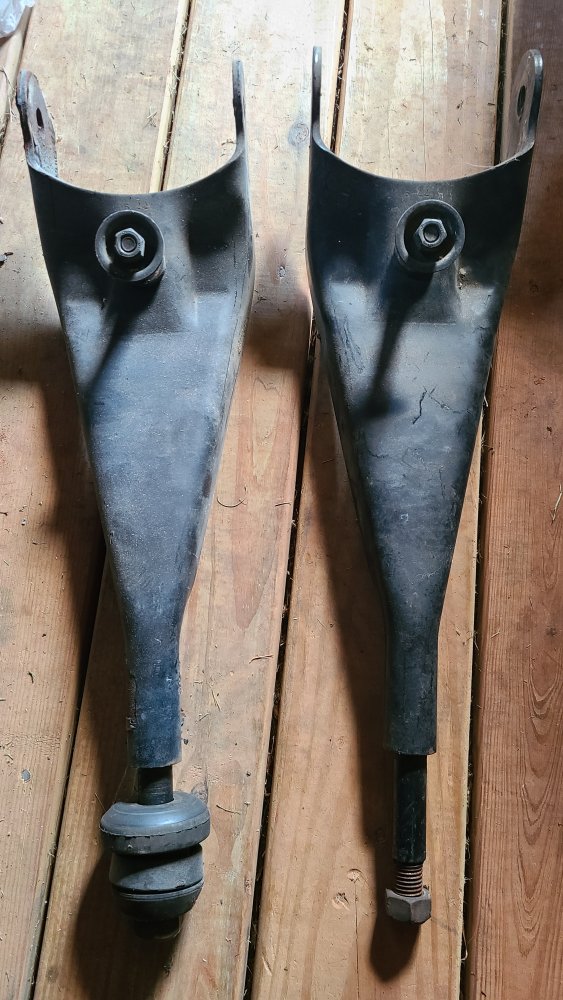

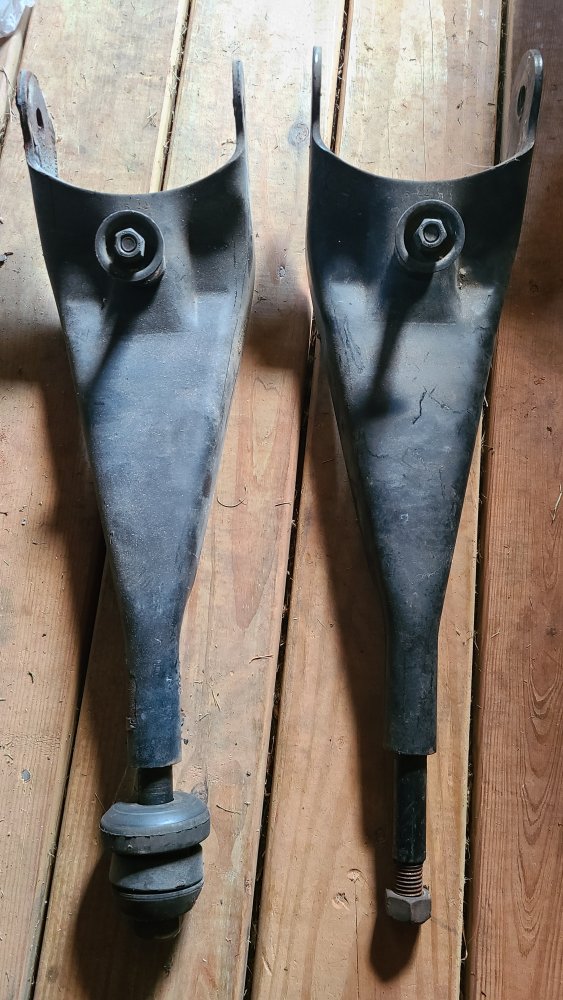

View attachment 81427View attachment 81427

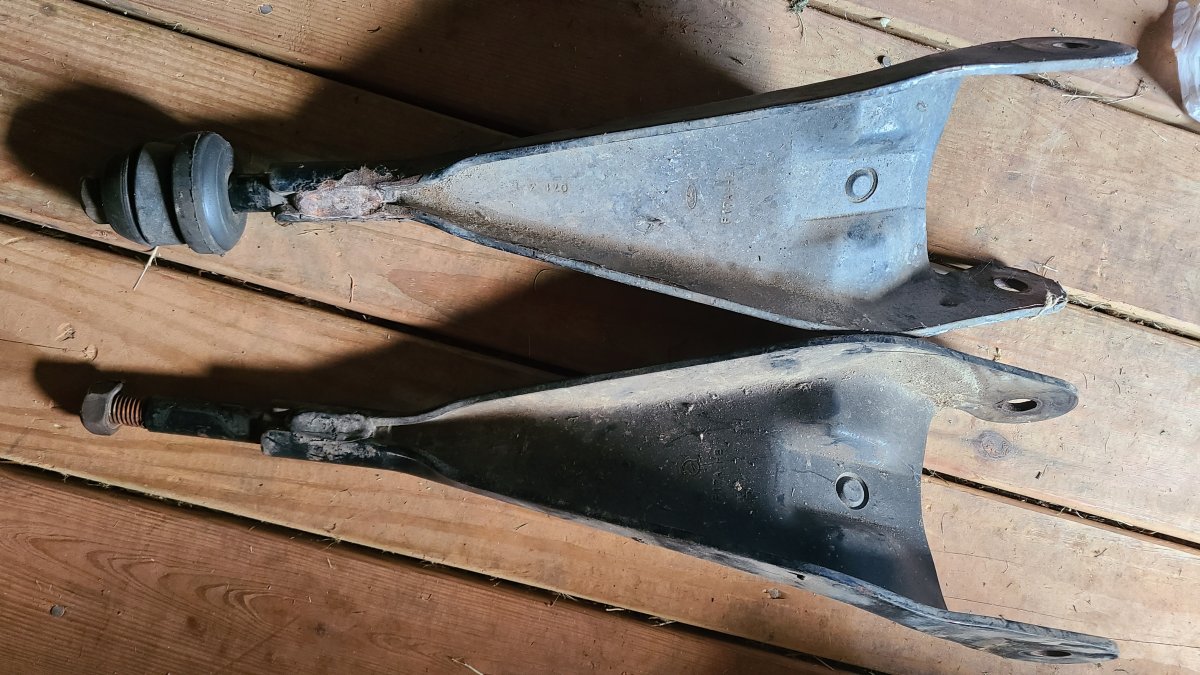

View attachment 81428

Here's the shot I think you're interested in.
5 3/4" between the ears.
View attachment 81429

Ill take em!
How do you want to proceed with me buying these!



[sgtsandman]

I

Ill take em!
How do you want to proceed with me buying these!

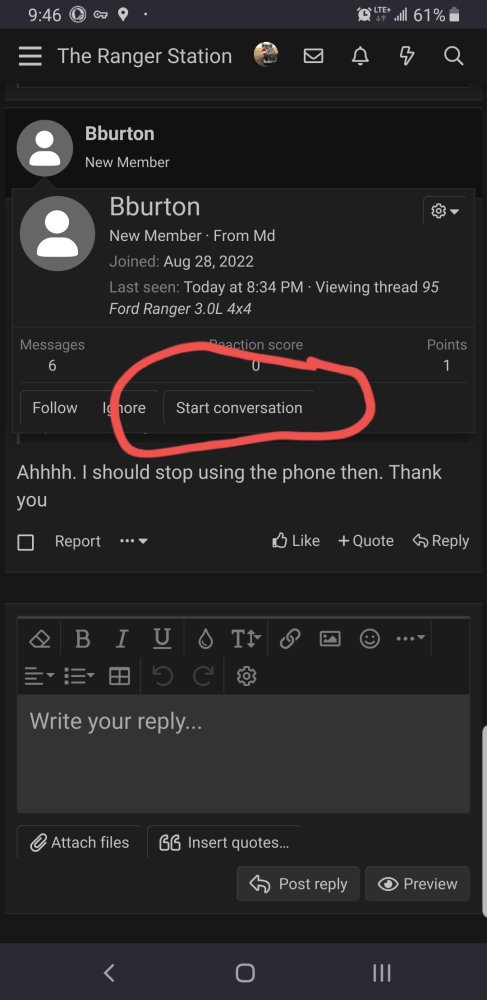

Send him a private message so you can send contact information without having it out in the open on a public forum. If you hold your mouse point over his name or click on his profile icon, a menu should pop up with different buttons including "start a conversation". That is how you can send him a private message.



[Bburton]

Send him a private message so you can send contact information without having it out in the open on a public forum. If you hold your mouse point over his name or click on his profile icon, a menu should pop up with different buttons including "start a conversation". That is how you can send him a private message.

Ahhhh. I should stop using the phone then. Thank you



[alwaysFlOoReD]

Im on android Galaxy s9.
If you press on the profile a drop down menu appears. Click on the "start conversation";



[sgtsandman]

Ahhhh. I should stop using the phone then. Thank you

It works similarly with an iPhone as well.



[Bburton]

Im on android Galaxy s9.
If you press on the profile a drop down menu appears. Click on the "start conversation";

View attachment 81992

Thanks that was helpful
