The time has come to put my Ranger out of her misery. She's seen 190K since 1990, when my uncle bought her. I beat the tar out of it for the past 120K and she took it like a champ. So I decided to give her a new life as a trailer.

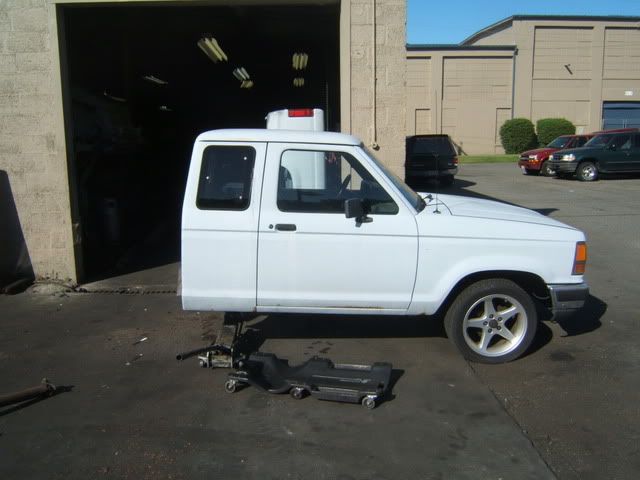

How it looked as of friday: (Ignore the ugly red cap, thats off our company s-10. We just needed a place to put it for a few days.)

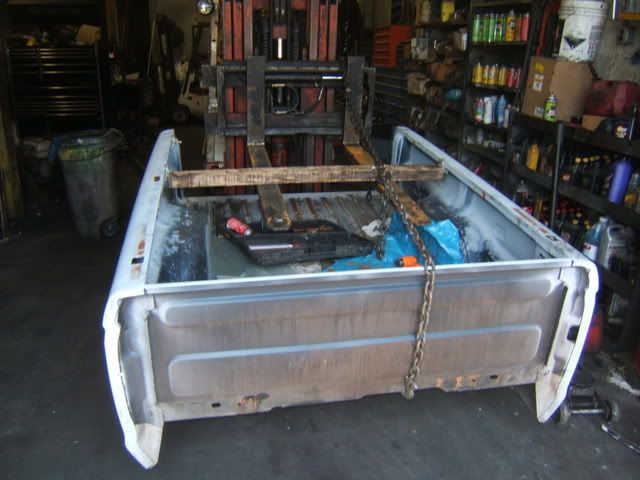

Lets get right into this. Pulled the bed: (The van in the background is mine, so is the Cobra behind it.)

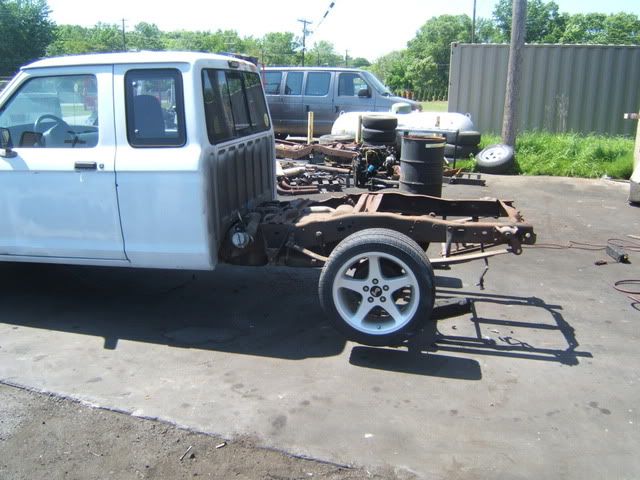

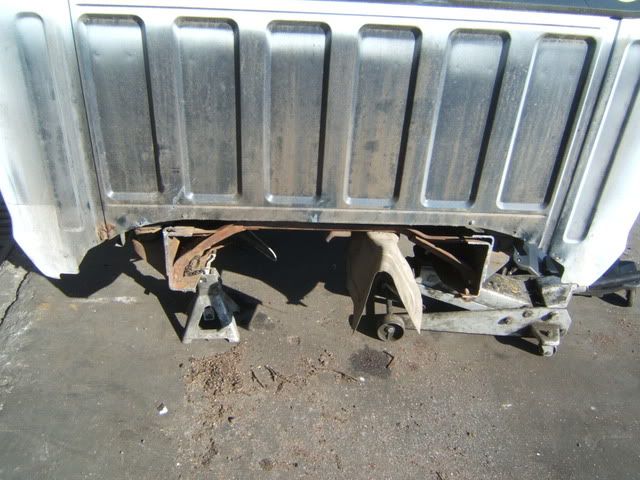

I found a little rust on the frame, nothing too bad. (Oh look, a 1" BII sway bar.)

Forklifts make this kind of work so much easier, everyone should have one.

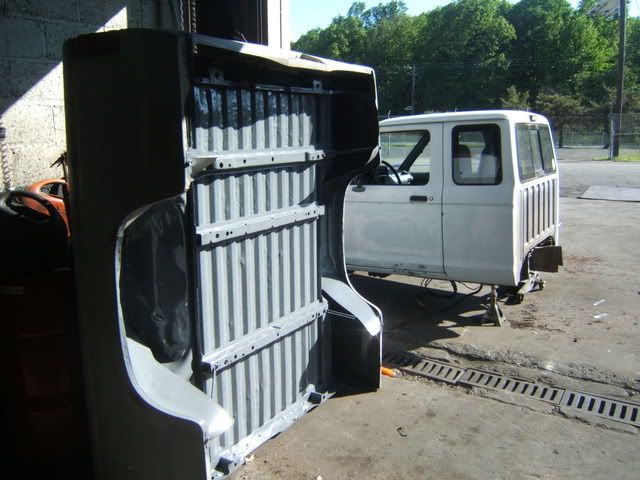

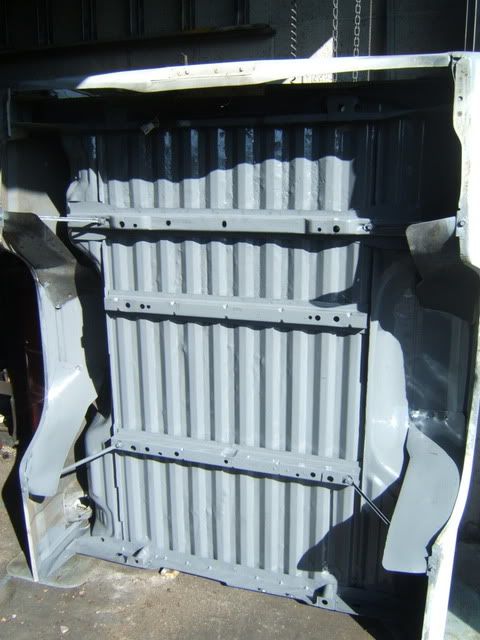

I cleaned up the surface rust on the underside of the bed and painted it with POR15: (I even found a use for the floor mats :D)

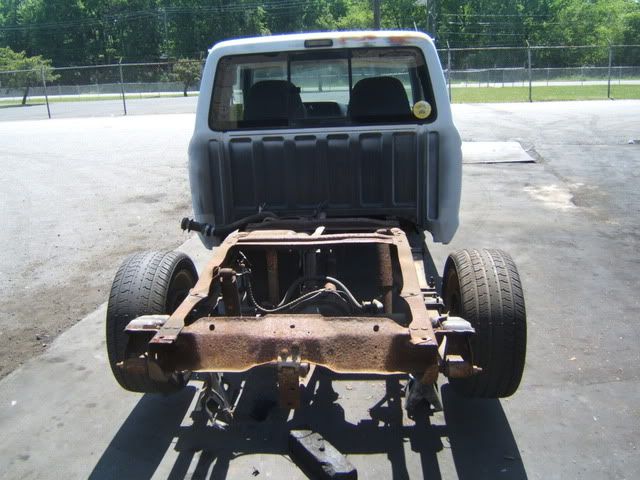

While that was drying, I chopped the frame in half. (The 2 green Explorers in the background are mine.)





Rock Auto 5% Discount Code: 29781F0E77DE4B Expires: March 31, 2019

snoranger

Well-known member
Supporting Member
ASE Certified Tech
Joined
Nov 25, 2007
Messages
3,650
Reaction score
128
Points
63
Location
Jackson, NJ
Vehicle Year
'79,'94,'02,'17
Make / Model
All Fords
My credo
I didn't ask for your life story, just answer the question!
Next, we need to do some work on the frame.

I leveled it and welded in a new front crossmember and a support to the factory crossmember. (It may not look straight in some of the pics, but I can assure you its within 1/16" of perfect in every dimension.)






I added another crossmember near the rear. I have a few reasons for this.
1) The rear crossmember seems weak to me.
2) Im not putting a bumper on it, I have a rollpan on the bed already.
3) I may put some stabilizer legs on the back, for loading and unloading my quad when I'm not hooked up to a tow vehicle.



I welded all the factory crossmembers to the frame rails, in an attempt to stiffen the frame a little.


Gratuitous weld shot. Yes everything is stick welded, thats all we have at work.



How she sits as of today.



I have to cut a hole in the front crossmember for the tongue. Its going to extend into the chassis about 8" and be gusseted to the 2nd crossmember. The tongue will extend about 4.5' from the front of the bed and have braces off the frame on either side.

The company next door does hot dip galvanizing. I may strip it down and send it over to them before final paint and assembly. Last time I had something of this size dipped, they charged me less then $50. They cut me a good deal, because I fix their forklifts.
