1995 Instrument illumination dimmer

[BobSacamano]

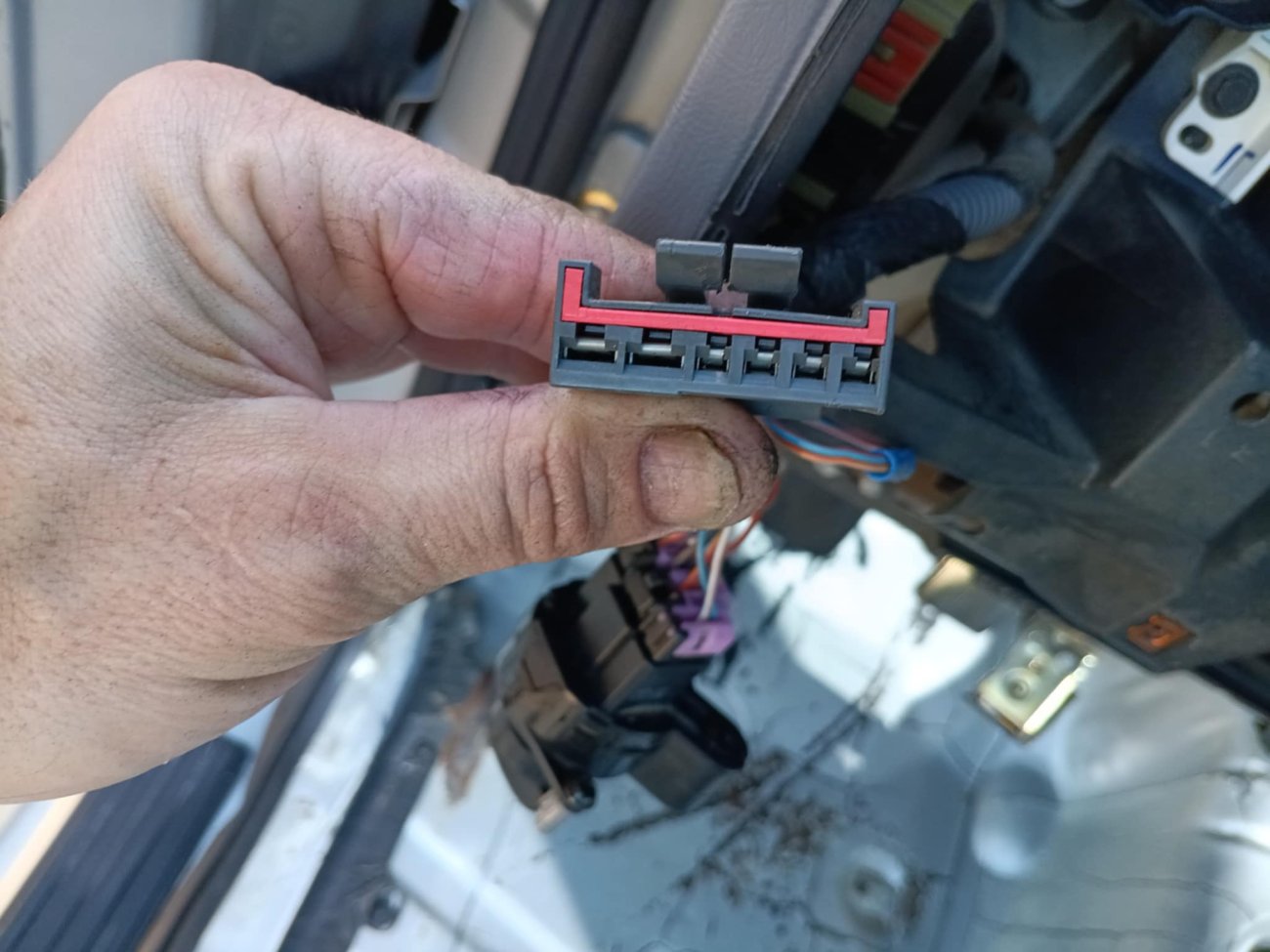

I’m trying to help a friend out on this problem. He bought the truck without the dimmer. His connector has six wires going into it. My 96 has four. I went to the junkyard and found several 97’s, 96s, 98s and they all had four wire connectors. Why does his have six? Where does he find a six wire switch?



[franklin2]

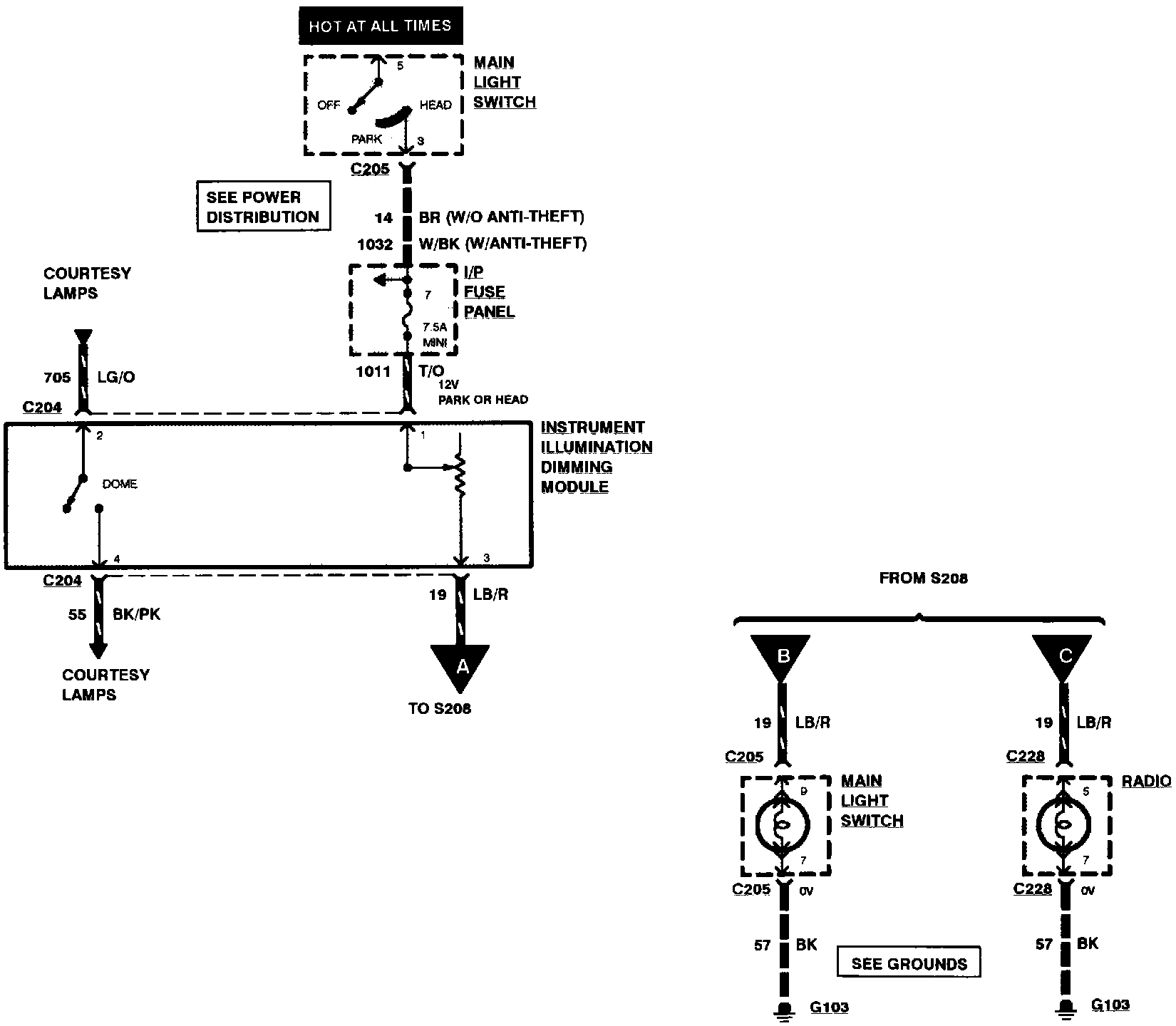

1995 dimmer module



[BobSacamano]

Thank you. I have that diagram and also the one for mine. And they both show six wires going to the dimmer, but I have only four going into mine and all the junk cars that we found only had four also.



[franklin2]

1997 dimming module



[franklin2]

Seems like the main switch illumination and the radio illumination are fed separately in 1995. They are also fed separately in 1996-up, but from a different place, thus the less pins.



[franklin2]

The part you need might be F57Z-11691-A



[BobSacamano]

By

Seems like the main switch illumination and the radio illumination are fed separately in 1995. They are also fed separately in 1996-up, but from a different place, thus the less pins.

OK. Thank you, That makes since, sort of, I have always heard 95s had quirks about them and I guess this is one of them. So I guess we need to narrow the search for a 95. Thanks again.



[BobSacamano]

The part you need might be F57Z-11691-A

Thanks. of course, it is discontinued.
