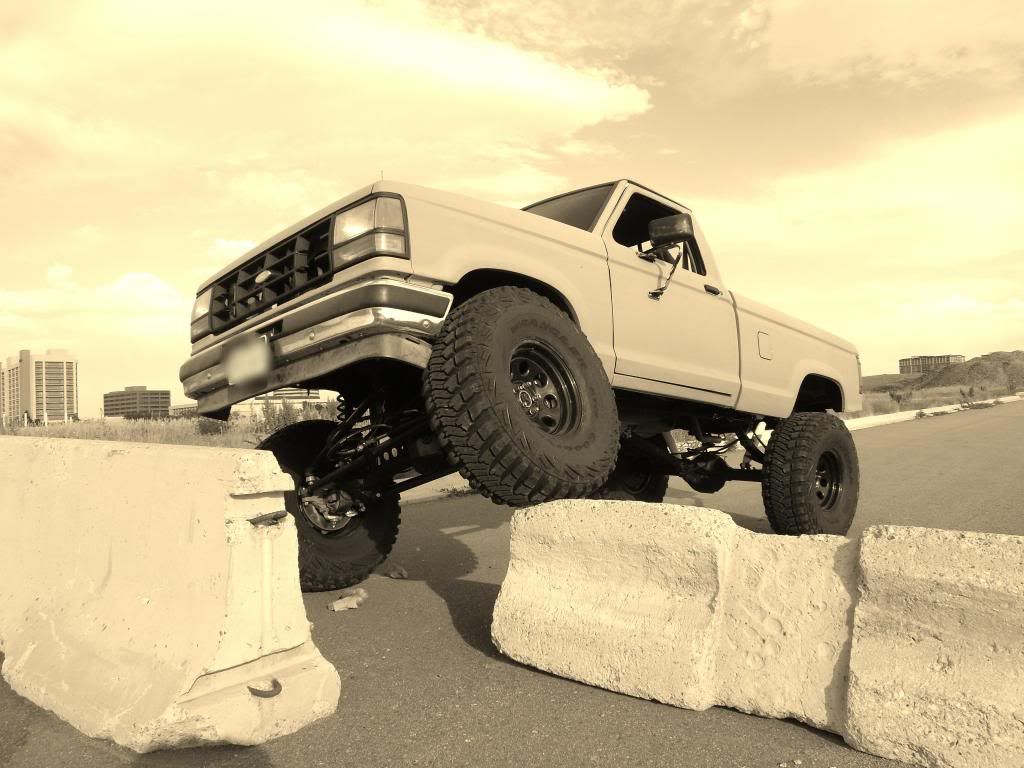

Rocky Mountain Ranger '92 SAS


Dual Transfer Case


cut up a 1350

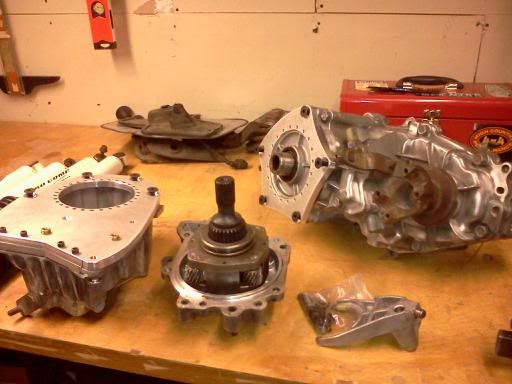

fit the block off plates and clock the shifters

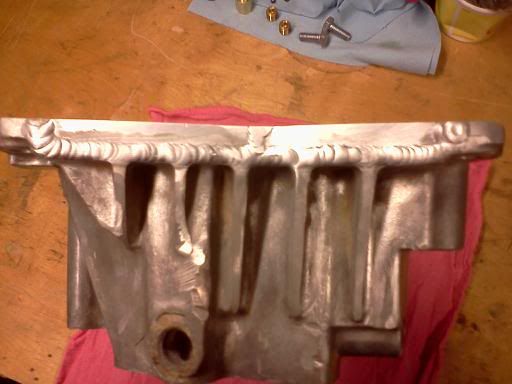

replaced the guts in the 1350 with 6 gear planetaries and shiftfork assembly from a 1997 ranger Electric 1354 case Front case welded inside and out, then milled flat for a good seal.

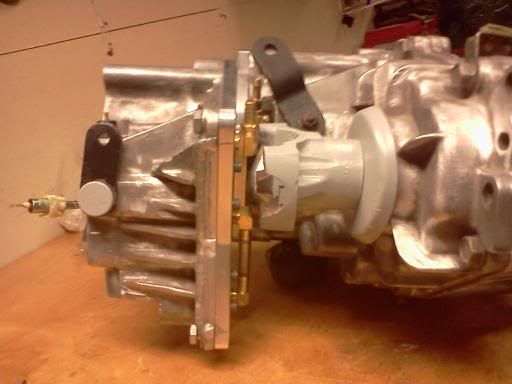

tight clearances all around, I added a sight tube and vent


I broke one of the plastic shift guides during assembly and had to go pull another case for a replacement...scavenging for parts at the pull and pay

cutting down the 1354 shifter 1350 and 1354 shifters, each one shifting the opposite case. lol

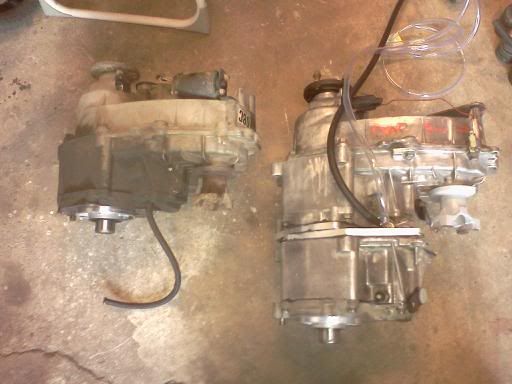

1354E next to doubler setup 1990 Aerostar speedo cable fits perfect)





1st gear x LO Tcase x LO Doubler x R&P = Final Crawl

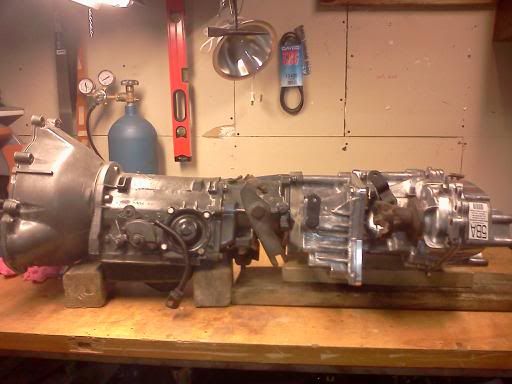

4.0 M50D w dual T-case
3.40 x 2.48 x 2.48 x 4.56 = 95.36:1 :D


couldn't use the offset TREs because they rubbed the rims so I shaved the diff cover and used standard one ton chevy TREs

mounted the ram to drivers side coil bucket, the track bar to the pass side and boxed them in


had a local place resize my driveshafts


Trailgear 6" ram had plenty of throw for the D30




Looks good. I'll be starting my doubler soon, in a couple weeks, but I've got a slightly different approach. What's the measurement from the reduction box mounting surface at the trans to the rear Tcase mounting flange? As I recall, its right at 8"...

SVT

Looks good. I'll be starting my doubler soon, in a couple weeks, but I've got a slightly different approach. What's the measurement from the reduction box mounting surface at the trans to the rear Tcase mounting flange? As I recall, its right at 8"...

SVT

Thanks. Few things to do before I can wheel it. The kit adds ~7.5", and the overall length of both cases came out to ~19.5" (Trans mount surface to rear flange)

I'm going to build my own crawlbox using the 54 internals. I'm thinking I can get it down to the 4-6" length range. I'll know more when I get it apart and start measuring things in a couple weeks...

SVT

Ranger looks great! Get that front shaft in so we can go wheeling. :)

Nice, looks great
