Picture of wire colors

[82801]

94 ranger clutch pedal position switch wires all were cut trying to rewire it new connector has all black wires .



[Curious Hound]

Should just be two wires. Doesn't matter which way you wire it. It's just a set of contacts in the middle of the circuit.



[Snoranger]

Should just be two wires. Doesn't matter which way you wire it. It's just a set of contacts in the middle of the circuit.

Ford called it a clutch triple function switch for a while. It has 6 wires.



[BlackBII]

Here's the one from my 1992 manual



[Bgunner]

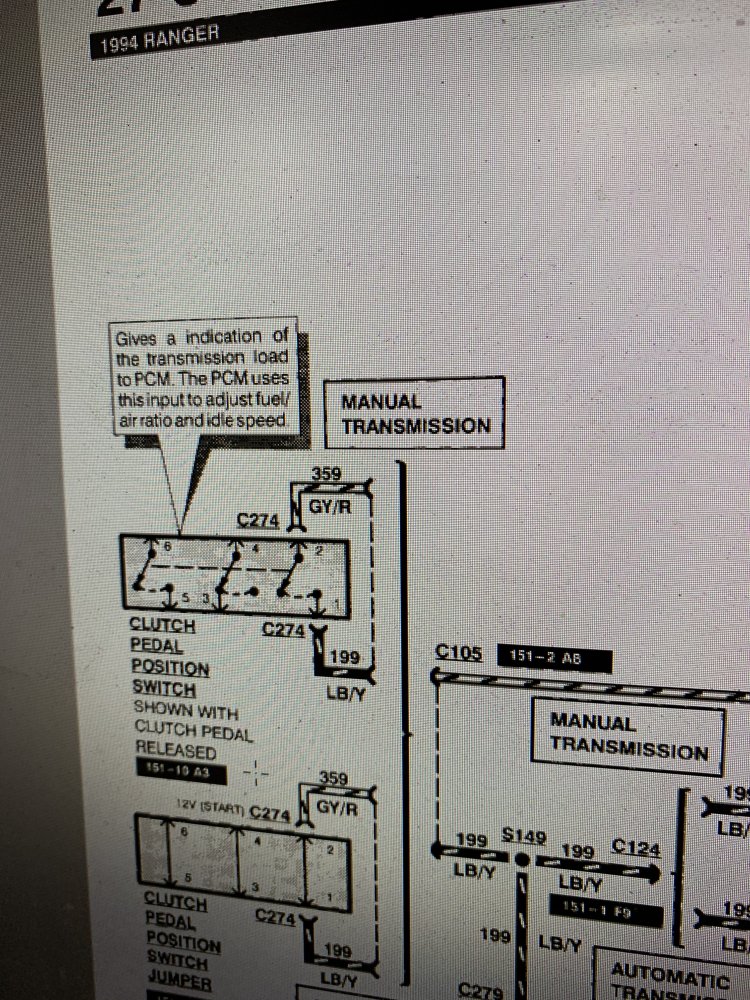

Here is the wire diagram I have for 94- 3.0l. This switch will be the same for all 94 models with the manual transmission.



[Curious Hound]

Oops. I read that wrong last night in my EVTM.



[1990RangerinSK]

Ford called it a clutch triple function switch for a while. It has 6 wires.

Hmm. Functions:
1) "neutral" safety switch (prevents engine from turning over unless the clutch is held to the floor)
2) cruise cancel switch (cancels cruise control when you step on the clutch
3) Unknown (what would the third function be?)



[Snoranger]

Hmm. Functions:
1) "neutral" safety switch (prevents engine from turning over unless the clutch is held to the floor)
2) cruise cancel switch (cancels cruise control when you step on the clutch
3) Unknown (what would the third function be?)

1. neutral start
2. CC cancel
3. PCM signal



[Dirtman]

Hmm. Functions:
1) "neutral" safety switch (prevents engine from turning over unless the clutch is held to the floor)
2) cruise cancel switch (cancels cruise control when you step on the clutch
3) Unknown (what would the third function be?)

Pcm input so the computer knows that the IAC valve is now taking over.



[1990RangerinSK]

1. neutral start
2. CC cancel
3. PCM signal

View attachment 45537

Oh. That makes sense. Thanks.
