302/np435 to ranger hydraulic clutch

[v8ranger89]

has anyone done this swap ? what did you use? right now i have a 7/8 master(ranger) 1in slave (f250) not quite enough throw advanced adapters makes a 7/8 and a 3/4 slave anyone had anyluck with these?



[ChrisR1S]

Just use the Master cylinder from the donor truck the NP435 came from



[v8ranger89]

brake booster is in the way



[cammeddrz]

i have the stock broncoii master plumbed into a 1" slave.....it works the pedal is really hard to push but it works



[ChrisR1S]

oh dang, Im not running the stock booster so I didn't encounter that..



[cammeddrz]

oh dang, Im not running the stock booster so I didn't encounter that..

hydra-boost? i have been considering that swap.



[v8ranger89]

camm are u using a np435 or chevy tranny behind the 350? could affect throw reqd



[ChrisR1S]

yep, hyro out of a mustang cobra. still have to run hoses and junk, but I've got the rod modified and have it mounted at least



[cammeddrz]

camm are u using a np435 or chevy tranny behind the 350? could affect throw reqd

its an sm465. but the throw at the slave is 2" or so. if yours is more than that i'd be suprised



[v8ranger89]

i can just get the clutch to disengage and the balance point of the pedal is almost on the floor i tried playing with pivot points and i need just a little bit more, or the pedal would have to stick up like 6" higher than the brake pedal



[cammeddrz]

i experienced the same phenomena. it was pivot points. but you are using a different trans so.....



[v8ranger89]



[cammeddrz]

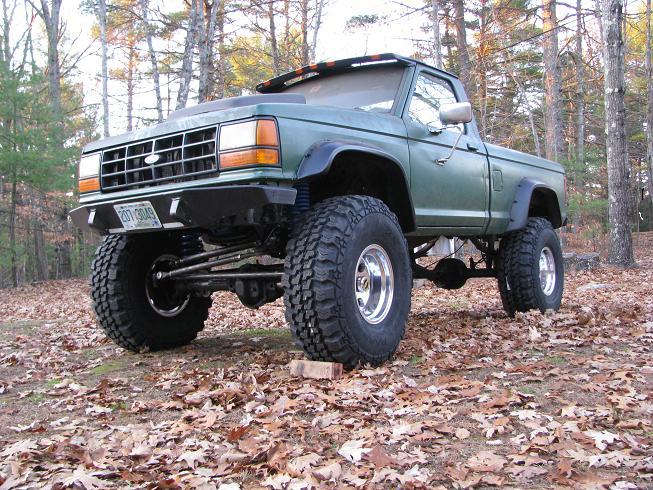

View attachment 4236



[v8ranger89]

well thanks for your help, ive been wrenching for a while but im new to the computer so the more input i can get the better. im still working on my profile. where could i post build pics on here?



[ChrisR1S]

Build pics? Head on over to the RBVs under construction tab
