Hey guys, I tried to due diligence before starting this thread and search for my answer but there is quite a bit to dig through.
So I'm hoping someone can help me.
I am LS swapping my 1995 Mazda B2300 and I want to mend my aftermarket engine harness to the OEM Chassis harness via deutch connector, but I cannot find the correct diagram and reference for the harness I have to do so.

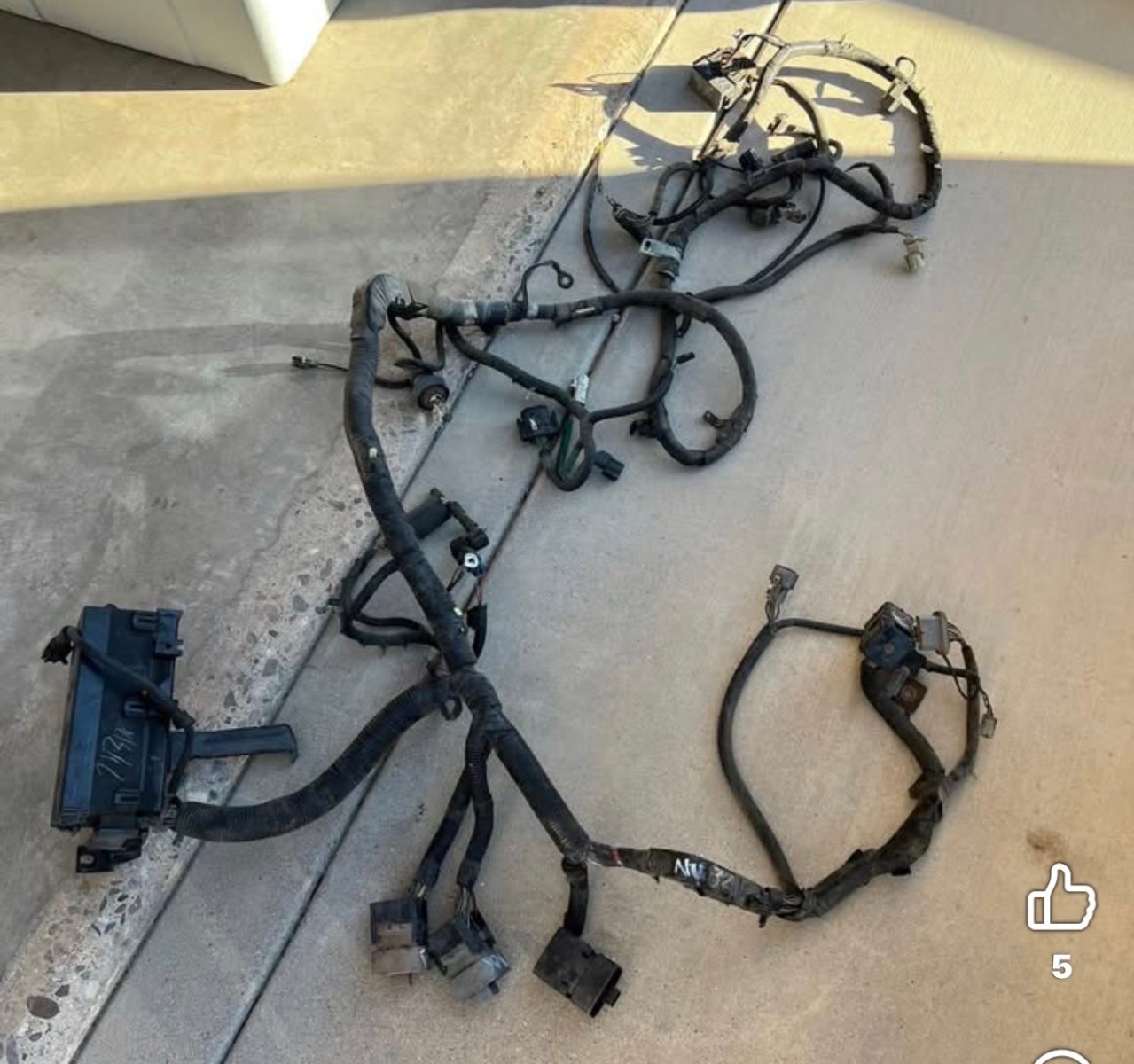

This is the only picture I have currently of the Chassis harness, I can update with better pictures at end of day 10/13/2026 with wiring colors on the connectors if needed.
I mainly just need the engine connector diagram and reference as well as fuse box diagram.
Thank you in advance!
