temp sending unit location

[HeatManDan]

1994 Mazda B3000. 3.0L v6 Temp gauge not working. Tried to ground test the ECT, (thinking this was sender). No movement . only movement seen is when key turns on accessories it will be on cold line and then drop when powered. have only replaced sensor(ECT),still nothing on dash. Where please is the sender located on engine. found one back pass. side top, but test ground shows oil press.



[franklin2]

Can't find a picture. It will have a single wire connector on it, not a two wire connector. They are usually up around the top front of most engines but I do not know about a 3.0.



[Mister G]

1994 Mazda B3000. 3.0L v6 Temp gauge not working. Tried to ground test the ECT, (thinking this was sender). No movement . only movement seen is when key turns on accessories it will be on cold line and then drop when powered. have only replaced sensor(ECT),still nothing on dash. Where please is the sender located on engine. found one back pass. side top, but test ground shows oil press.



[HeatManDan]

Can't find a picture. It will have a single wire connector on it, not a two wire connector. They are usually up around the top front of most engines but I do not know about a 3.0.

SENDER NOT SENSOR



[Curious Hound]

It’s on the front, nearly center, right next to the hose going to the heater core. I just posted a picture of the heater hose elbow a couple days ago that showed the sender. Let me find it.



[pjtoledo]

previously posted info was incorrect and has been deleted.



[Curious Hound]

For his '94, the sender for the gauge is a 1-wire device. The sensor for the ECU is a 2-wire device. Can't find the picture I took a few days ago. I'll try to remember to get another tomorrow.



[Curious Hound]

1993, 3.0l. 94 should be the same.

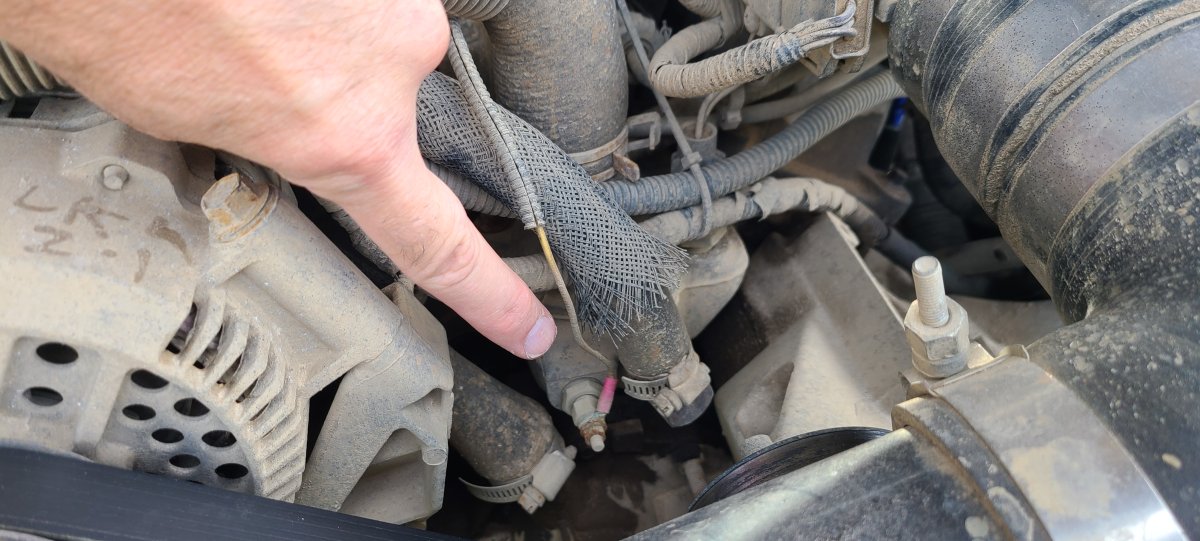

Single wire sender for the gauge cluster

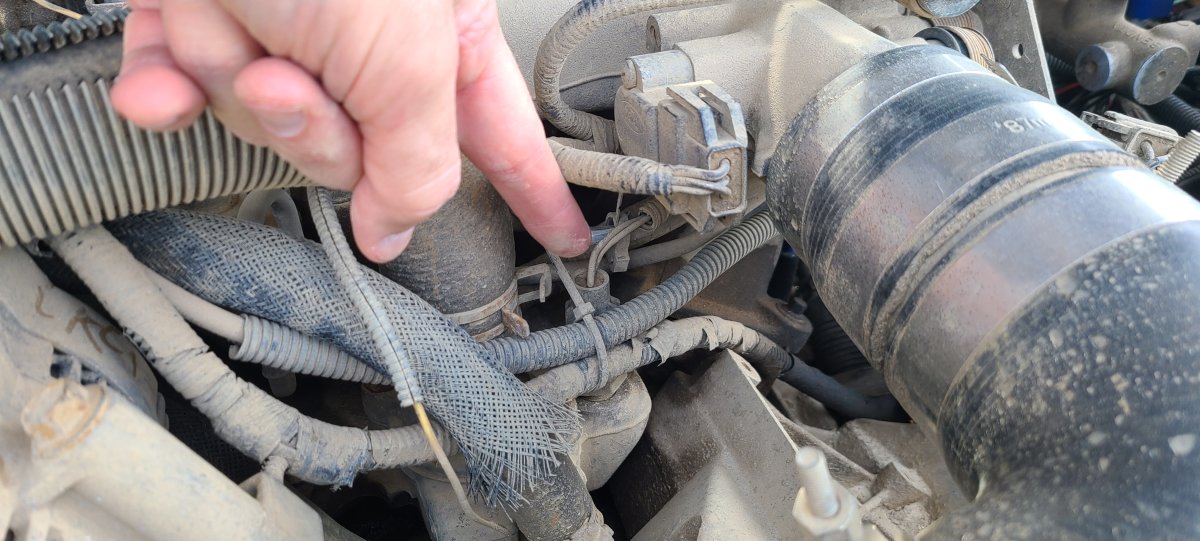

2 wire sensor for the ECU



[HeatManDan]

Thank you sir, that is what I'm looking for, and let me say thanks to all who contributed, . Been around that spot for over a week, never saw it. Thanks again for all your help.
