Photo's Needed [Please Read] (Update 11/1/08)


opening rear window on my b2


ttb flex(mildly modded)



you didnt ask for this but theres alot of questions come up about it.

before duraspark conversion



after duraspark with stock carb and metering block


edge front conversion on my 00


stock ranger beside my 00 with about 2.25" mid travel, custom deaver coils, btf uniball uppers, deaver rear pack(camber is fine, just how its sittin with no sway bar)

Jim, are you still in need of pictures. I got heaps of parts laying around and some other miscellaneous crap... haha.

i'll post up what i got! i've got LOTS more pics of my truck i can post up, and most likely larger versions of all the pics of my truck i posted here

broken spider gears in a 3.55 trac loc 31 spline 8.8 f-150 diff (should be the same as what you would see on the explorer 31 spline 3.55)


stock 07 fx4 level II


3" bl, torsion crank, valance removal, "custom" front end and 33x12.5" km2's i THINK these pics also have me with my belltech 6400's and expo leafs






3" BL custom body work (paint, grill, bumper) 31x10.5 bfg ko tires:

same as above, but with 33x12.5 km2's


fx4 offroad left, fx4 level II right


07 fx4 level II


stereo bezel: i can take a shot of the whole dash, with the stock head unit back in, if you like, i've got an aftermarket one right now, but it would take 5 minutes to pop it out and put my stock back in...


explorer sport trac with 3" BL and metric tires (works out to about 33x10.5)


d35 in place with cross member blocking it (stock)






i forget what year ranger, i can look it up for you if you like these pics though:

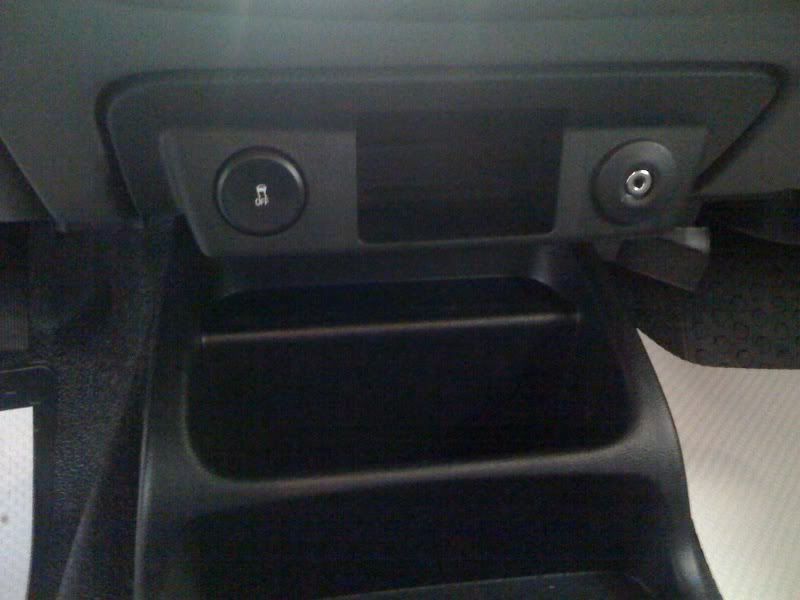

2010 traction control button







Shot of an 8.8, all prettied-up :D

I can get more shots now that its installed.. I thought id grab one before it went in.

Last edited:
Definitely could use some clean pics of that B2. Especially of some full shots with the rear window open and closed.
__

I know this is a pretty old thread but I have a 1991 brochure if you need pictures. I also have the paint chip from that year. If anyone wants to buy one you can get them on ebay, Im pretty sure they have every year of ranger brochure on there.

Last edited:
I allso have a 04 ranger fx4L2
100% stock right down to the Alcoa wheels

I know that are somewhat are was it took my dealer almost 2months to find me one when bought new

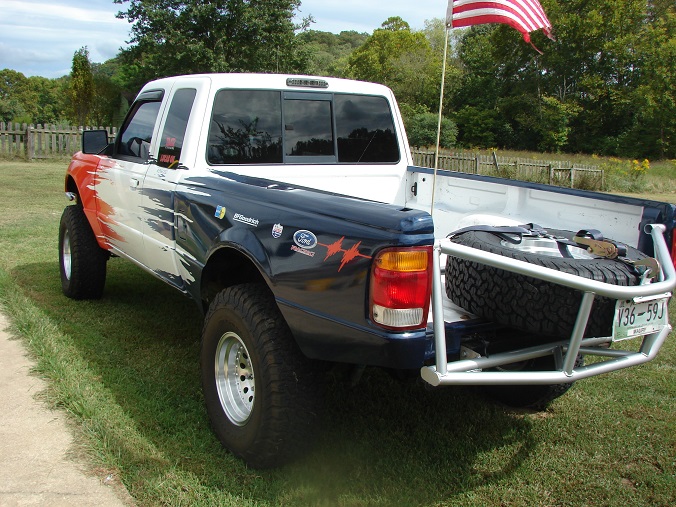

98 xlt 2wd lifted

Lots done, explorer rear end, chevy 64s, 4 in spindle, bed sides pulled and clearanced, fiberwerx fenders , 2 in BORA spacers, 3.0 5 speed 4:33 gears2012-05-17 ranger 007.JPG

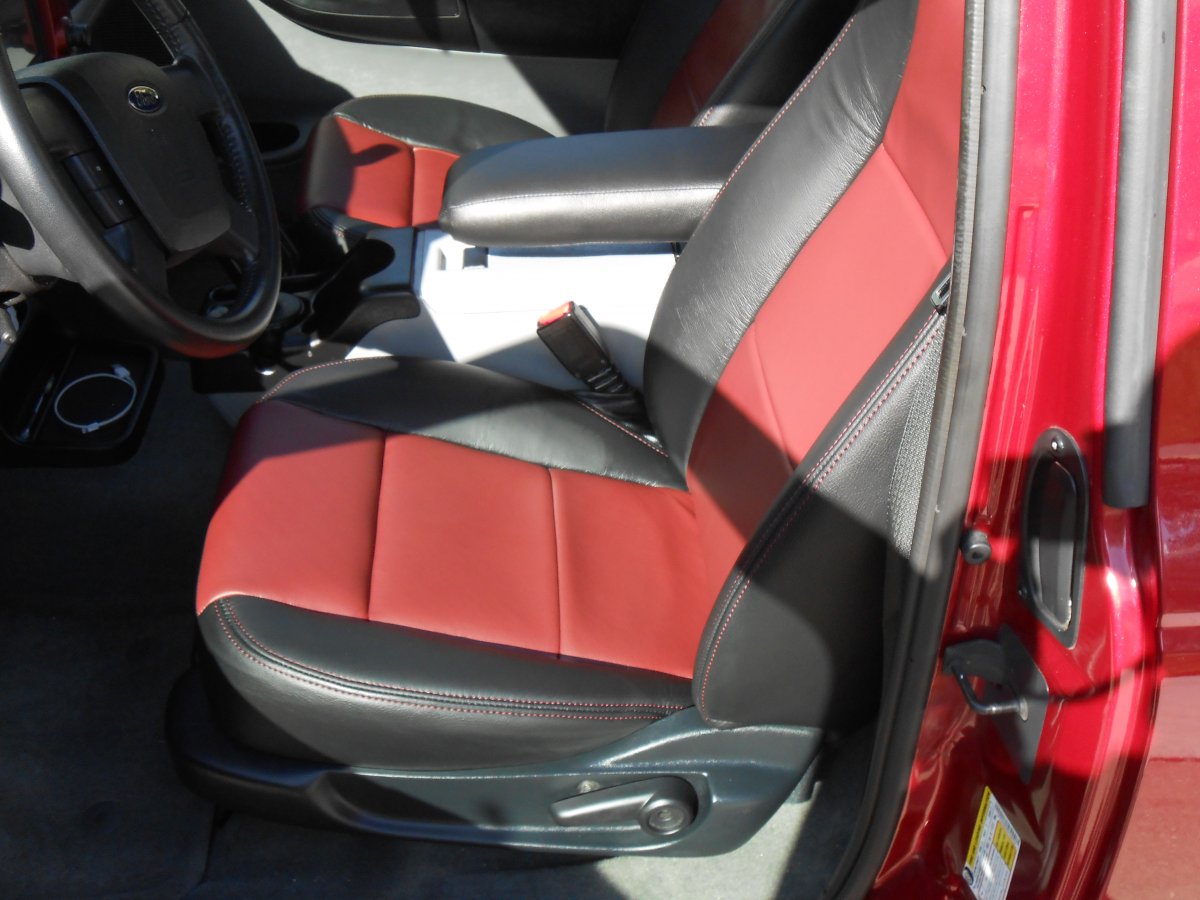

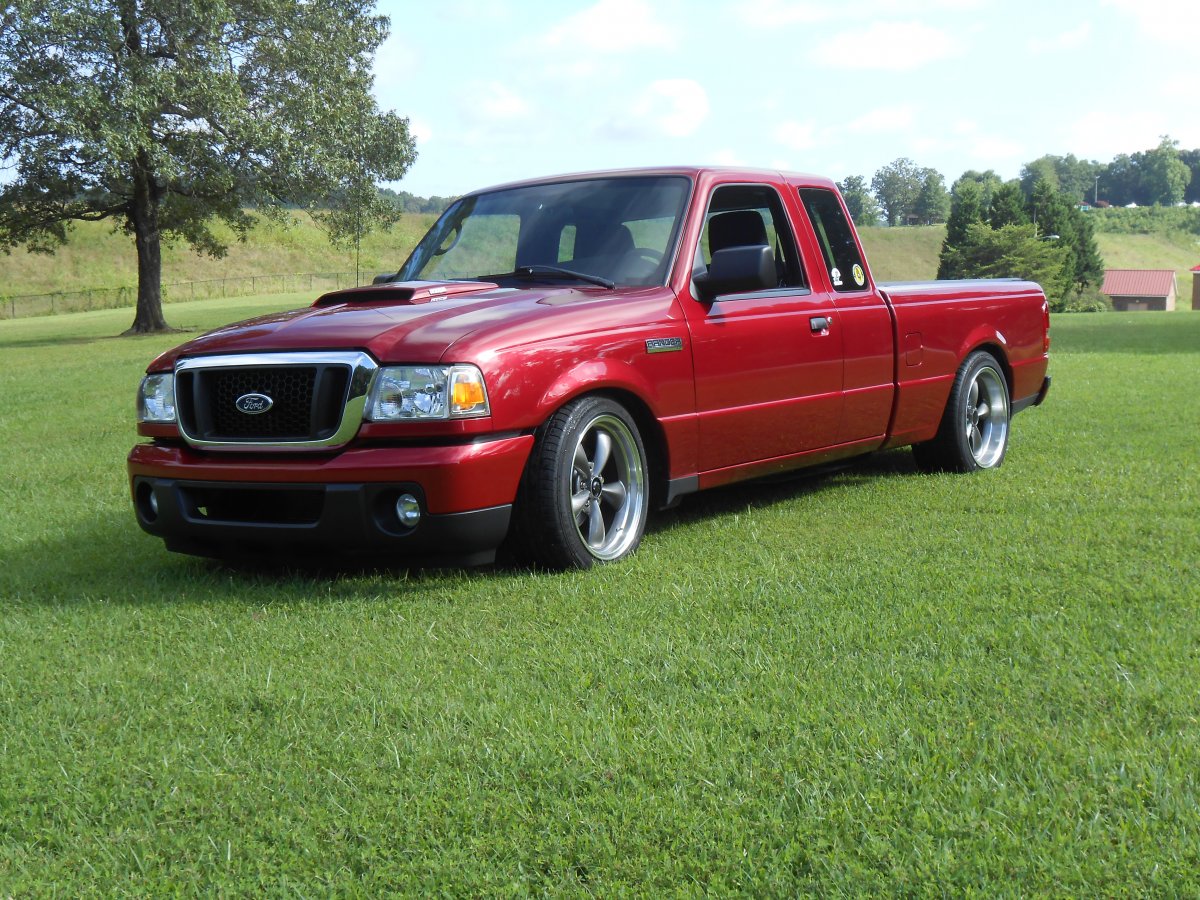

2011 XLT ext cab. 4.0 5 speed auto. Lowered 4/5 245/45-18 and 275/40-18. Bullet Wheels. 2004 Grill, ( I think it looks better ) 2003 Mustang Hood Scoop, QA-1 front coilovers, Belltech rear shackles. Katzkin leather seats and center arm rest.


Attachments

  • Ranger done 4.JPG
    Ranger done 4.JPG
    303.5 KB · Views: 257
  • Leather.JPG
    137.9 KB · Views: 211
Last edited:
I know this wasn't requested but I have yet to find an image comparing the M5OD bell housings.

61659


4.0L OHV - 3.0L - 2.3L DOHC (2004)

72963

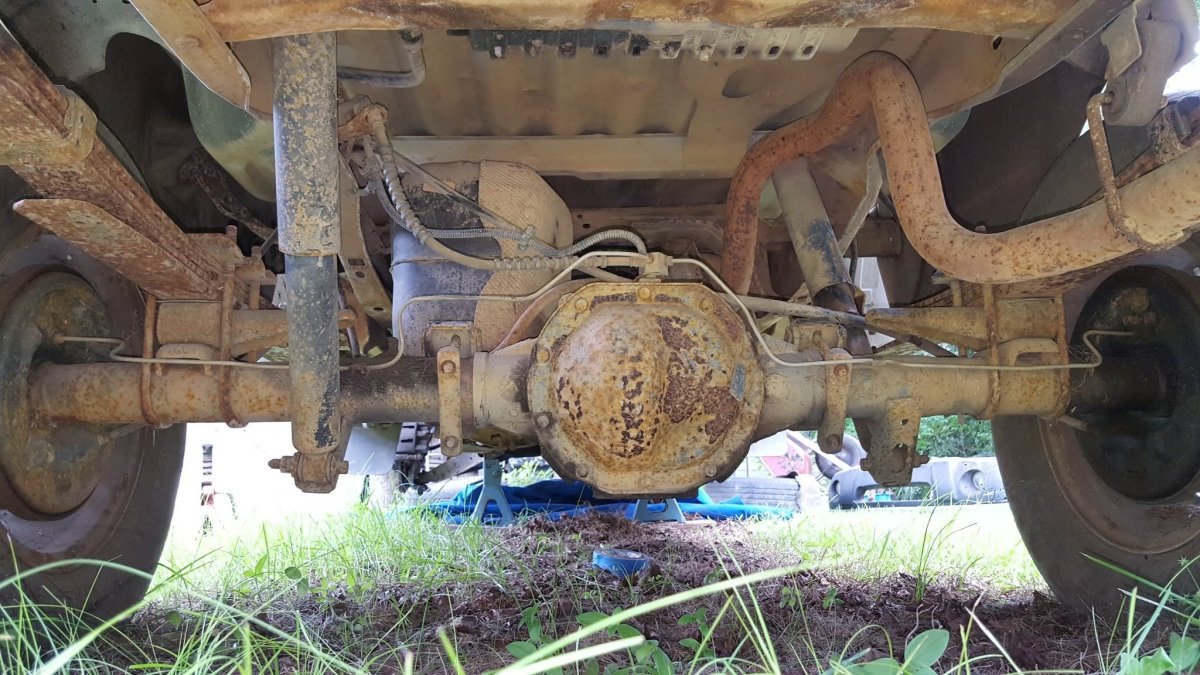

2001 Ranger EDGE Rear end. Open 7.5" 3.73's with factory lift blocks

72964

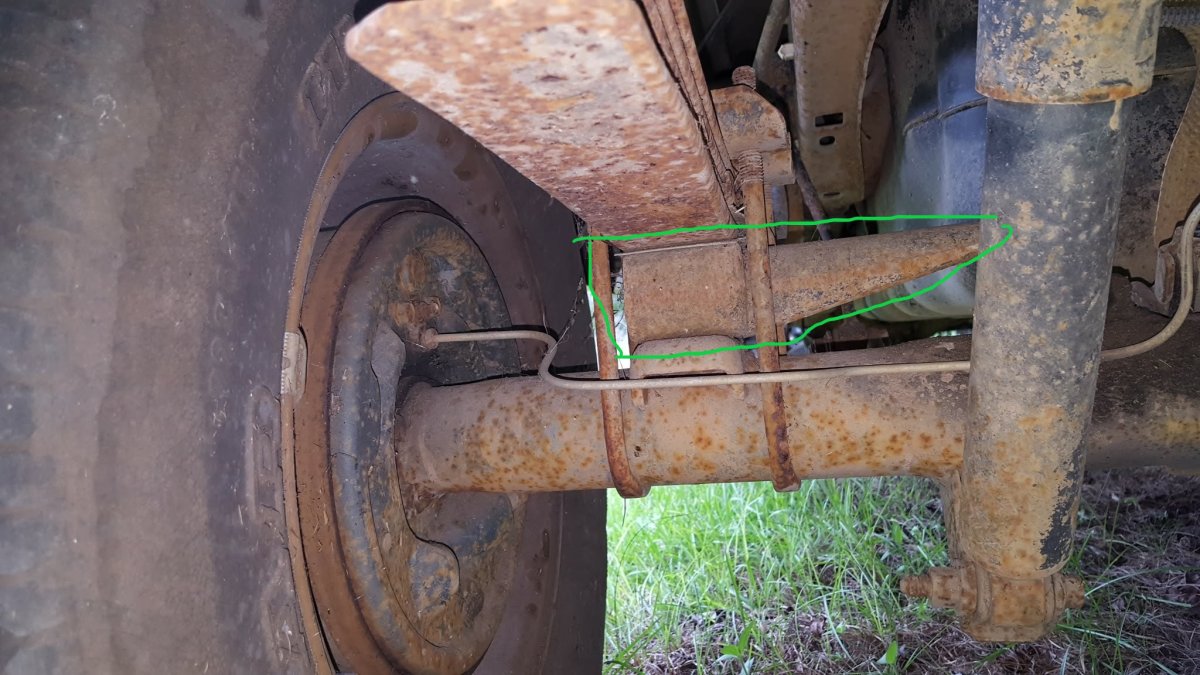

factory lift blocks highlighted


Attachments

  • 1646147648528.png
    374.5 KB · Views: 162
