Photo's Needed [Please Read] (Update 11/1/08)


1990 Bronco II 100% bone stock except for the mirrors, not sure if those were optional or not for '90, it had the floppy ones before


1994 Ranger XLT 4WD reg cab long 100% bone stock (P265 tires):

(I should be able to get better quality on that one if I re-scan it)

Jim, I also have every Ranger brochure from 1992-1997, and 1999-2000. I can scan them at hi-res and email them to you if you want (lots of 'stock' Ranger pics could be cropped out of these).

Last edited:
Jim, I also have every Ranger brochure from 1992-1997, and 1999-2000. I can scan them at hi-res and email them to you if you want (lots of 'stock' Ranger pics could be cropped out of these).

Thanks. I can also work with .pdf's as well.

I need some good photos of the F-250 shock mount conversion. Prefereble with the wheel removed so you can see the whole set up and shock.

Jim I don't have the F-250 conversion, but I do have some good pictures of the James Duff old style dual shock hoops. I will post them below in case you want to stick them somewhere.








Jim Oaks said:
Update 11/2/08:

I need pics of stock and lowered front suspensions. I want pics of both TTB and IFS front suspensions as well.
Look through my BII 2wd to 4wd how-to for any 2wd or 4wd stock BII suspension pictures you want; or you can click the link below for the link to my Photo Bucket page with all the pictures that are in the how to and then some.
http://s11.photobucket.com/albums/a160/lifted97ranger/Tech/BII 2wd to 4wd/?start=all

Would either of these work? (F-250 mount, but the coil mount is also modded)



here sometime else that some might like as well...its a stock coil bucket that has been re worked to mount a shock




I like that. It resembles the Dodge dual shock mounts.

13) Photos of special features.
Don't know if these were special features but..

Found those in an 88 reg cab XLT. Never seen them before? Probably normal.
Pop up roof? Not really a special feature. But oh well.


Never seen another Ranger with those.. but I don't think they're that special.
16) Photos of various Ranger models (not modified) such as Splash, Tremor, GT, Thunderbolt, Saleen, etc.
Saleen.





























































God that was a lot to copy and paste.
If you want more info on it, you can search "Saleen" and one of the results should be a thread (by me) about them, with a link to a past ebay posting for one.

Last edited:
stock torsion IFS 2wd spindle



fabtech torsion IFS 2wd spindle



stock 1986 BII 4x4



stock 1992 Ranger XLT 2wd



stock 2002 Ranger Edge 2wd





stock 2002 Edge interior





explorer OHC


Here's the quickest way--just reach under and feel the lip.

attachment.php



My first time ever posting pics myself. If anyone has any advice let me know. This is my '92 short cab, short bed, 2.3l 2WD. But someone beat me to it, with that clean ass, kickass, blue one. Awesome truck guy.

Last edited:
15) Photos of a nice clean interior that features an Explorer overhead console conversion.

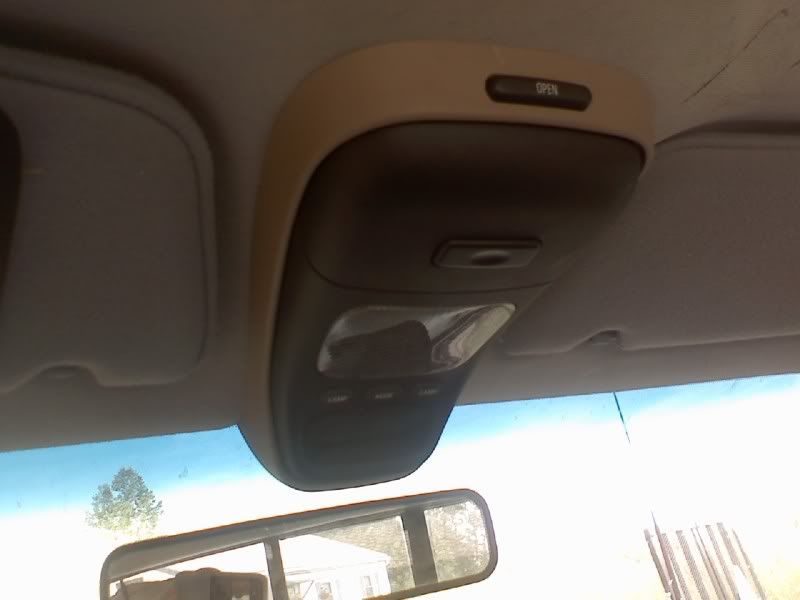

OHC installed; original tan color

OHC painted to match exterior

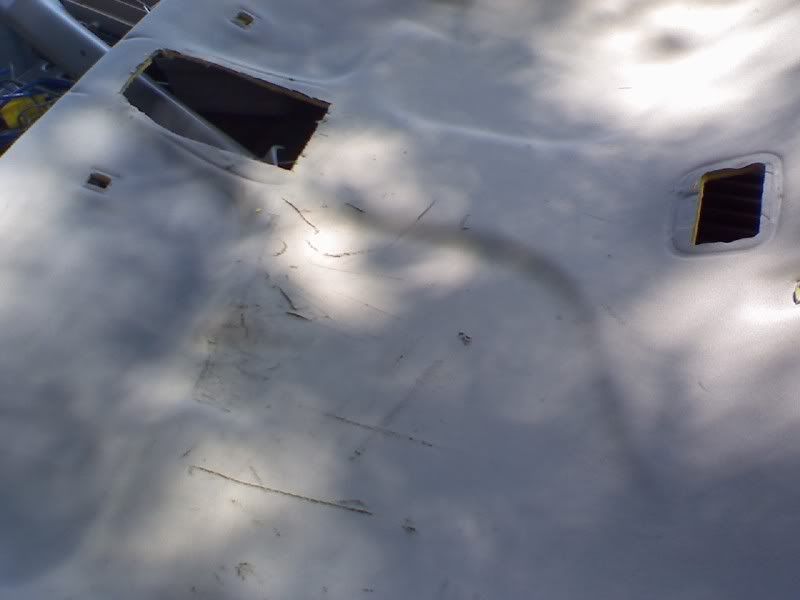

Hole cut in headliner for the OHC bracket

Headliner remover; OHC bracket mounted and wires being run

Headliner removed

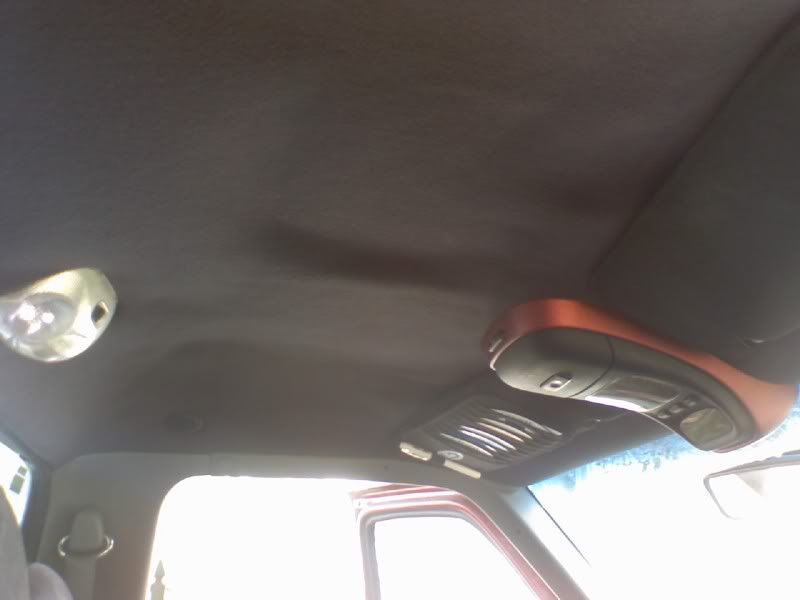

OHC installed and newly covered headliner

Color-matched interior

AFTER shot of 60/40 to bucket conversion complete with cheap center console from walmart and seat covers

color matched door pieces


Random shots with various wheel/tire/lift combos:

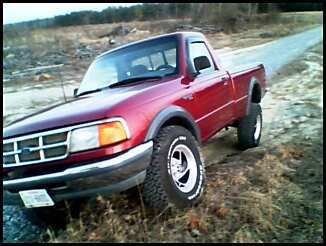

stock Gen-3 longbed

15x10 soft 8's with 31x10.50 all terrains and coil spacers

same as above with the exception of 15x8 dirrectional wheels

Same as above with the exception of 15x10 DC-1s

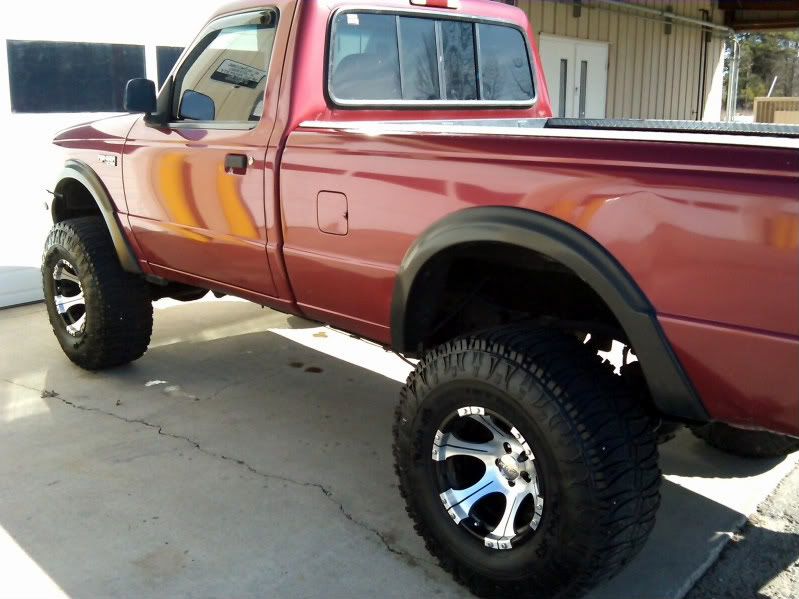

3inch body lift, SJ coils, and 33x12.50s

hopefully something out of this post may be helpfull in someway :icon_thumby:

Jim,
Don't know if you still need pics but here is my bone stock 1994 Splash Super Cab 4x4





If you need any other pics of a Splash, mine is in good shape all around so just let me know

I also got a bone stock 1984 Regular cab long bed with sweet 80's stock decals :headbang:
