96 5.0 42 pin conn. To 94 4.0 ranger harness


ATX

11/2014 MTOTM Winner
MTOTM Winner
Joined
Jul 30, 2011
Messages
406
City
Austin tx
Vehicle Year
1994
Transmission
Automatic
My credo
Built not bought
Ok guys well I'm getting the wiring straighten out right now . So when I pulled the wiring from the expo I made sure to cut as much extra as I could which is enough to reach over to the stock ecu location on the driver side bulkhead . Svt was awesome enough to send me the 42 pin out for the expo harness but I need to find the info to connect it to my ranger harness for power and such and at what connectors to splice into . I labeled every wire on the 42 pin harness with tape so I don't have to keep looking at the chart Svt gave . I know there's like 4 harness connectors that ran to the 4.0 motor that I disconnected . I've been looking on alldata pro at work and haven't came across the diagram yet . A least if someone know what those connector numbers are I can look that up . Thanks guys


Sent from my iPhone using Tapatalk

Here's a pic of the harness I disconnected from the engine that's attached to the body still




Sent from my iPhone using Tapatalk

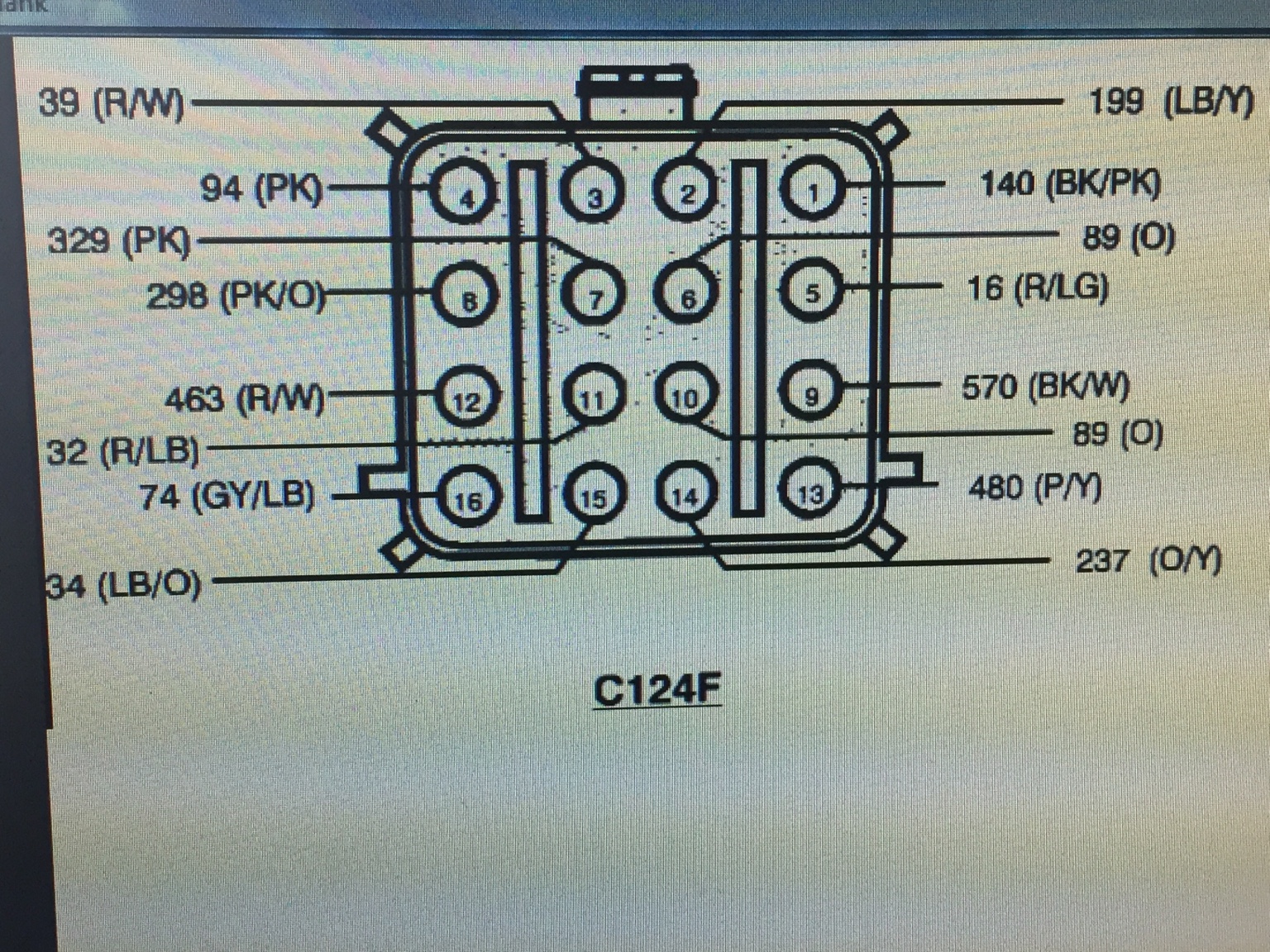

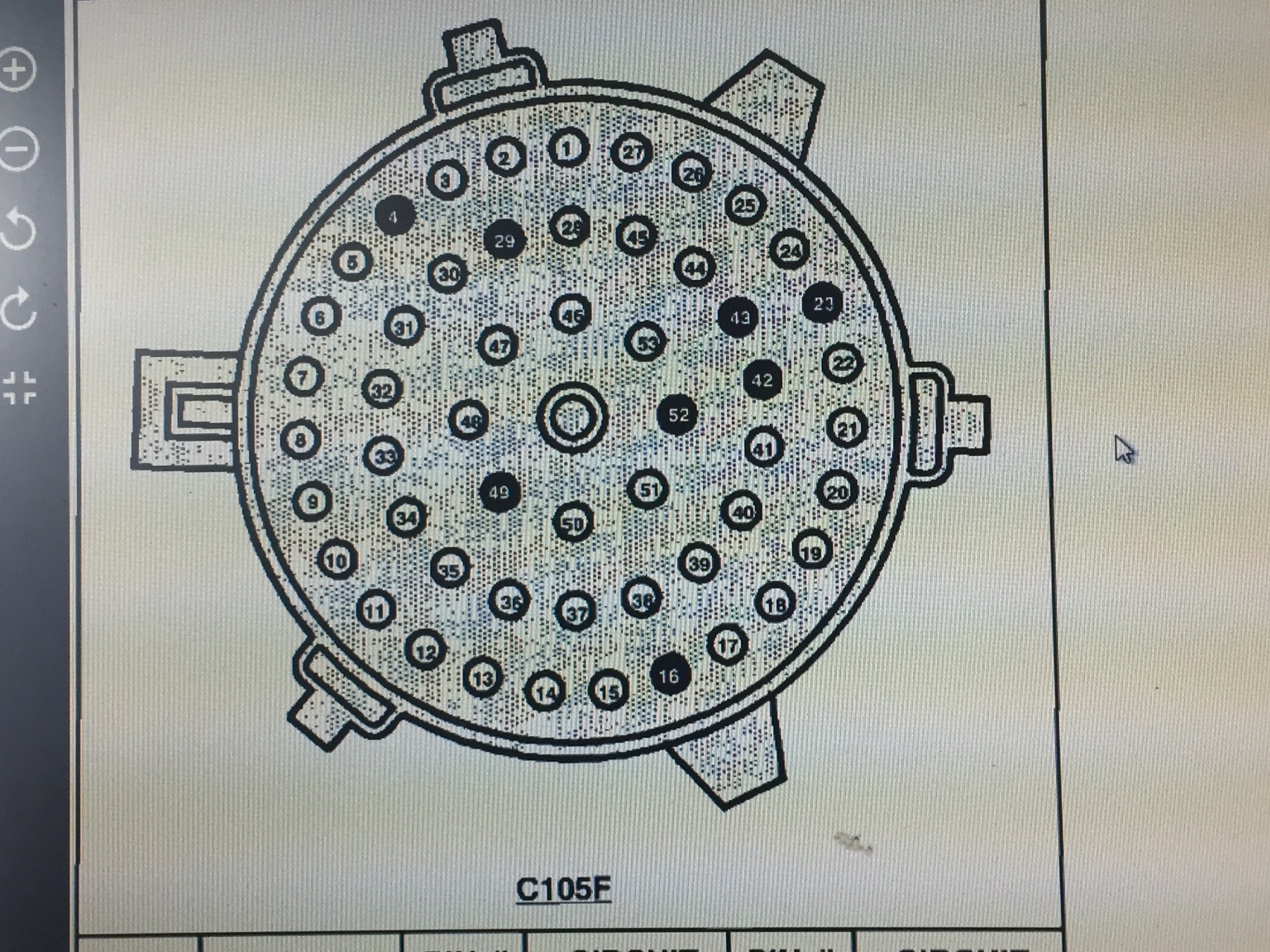

Well found the info at work on what number the connectors are hope this info help any else in my boat .











Sent from my iPhone using Tapatalk

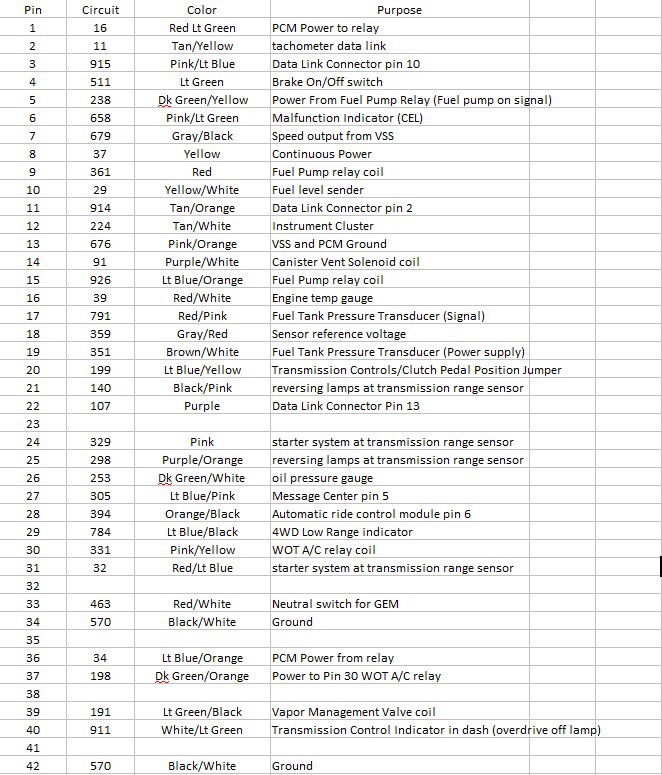

And this is a chart I found after while looking for my expo 42 pin connector . Svt has a even better copy of a spread sheet that he sent me with other ranger chassis newer then mine which would help some . His cool and pretty sure he'd sent that if asked



Sent from my iPhone using Tapatalk
