8H rebuild

[CopyKat]

Rebuilt the M5OD in the Bronco Saturday. Took me under 8H from rolling it into the shop to driving it out. Remember this is Just me doing the work. I had no help.

replaced the bearings and syncros.

Would have taken me less time but I also rebuilt the cardian on the rear driveshaft.



[BlackBII]

Good for you! Want a gold star? HaHa!

That's pretty good, but I have you beat. Two weekends ago I pulled my M5OD, went back to the junkyard and traded for a new one, put it back in. All in ~3 hours.

(I'm not one to rebuild tranny's, I haven't the tools to do so.)



[PaleBlue90]

Good for you! Want a gold star? HaHa!

That's pretty good, but I have you beat. Two weekends ago I pulled my M5OD, went back to the junkyard and traded for a new one, put it back in. All in ~3 hours.

(I'm not one to rebuild tranny's, I haven't the tools to do so.)

i didnt think there was any special tools required to rebuild a tranny i have to take a 2.3 m5od and 4.0 m5od swap the 4.0 guts and tail shaft to the 2.3 case so i can finish my truggy....

i rebuilt a t5 outta a 80 stang, i made it into a world class t5 and it took me 4.5 hours it shifted great and i sold it to a guy for 1K



[CopyKat]

Good for you! Want a gold star? HaHa!

That's pretty good, but I have you beat. Two weekends ago I pulled my M5OD, went back to the junkyard and traded for a new one, put it back in. All in ~3 hours.

(I'm not one to rebuild tranny's, I haven't the tools to do so.)

My Junk yard is 45 min one way. And it's in about 2 feet of snow. No way i could swap one out in 3 H. But if I had the trans ready to go it wouldn't have taken me near as long to do. Rebuilding is cake. There is only one special tool you need but then you really don't need it if you have a cresent wrench big enough. I took my time and made sure everything was good, inspecting nearly all the parts.

The driveshaft was what gave me the most grief. Both taking it off and rebuilding the cardian.

Good thing I have a suspension lift as I needed no jack stands, and thanks I have a 1.25" bodylift as it made getting the top bellhousing bolts a breeze.



[CopyKat]

i didnt think there was any special tools required to rebuild a tranny

Just one.

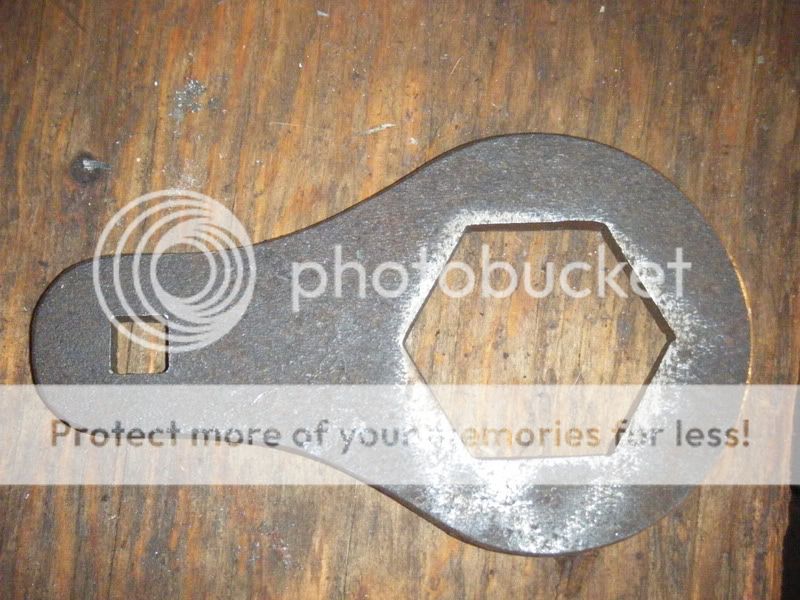

I made this for just this purpose.



[country0001]

Hell it took me 6 hours to get mine out the 1st time. That was just a clutch change. I'll be faster next time.



[PlumCrazy]

i didnt think there was any special tools required to rebuild a tranny i have to take a 2.3 m5od and 4.0 m5od swap the 4.0 guts and tail shaft to the 2.3 case so i can finish my truggy....

i rebuilt a t5 outta a 80 stang, i made it into a world class t5 and it took me 4.5 hours it shifted great and i sold it to a guy for 1K

Dont put the 4.0 guts in the 2.3 case, just swap tail shafts and housings. Unless you want to gear UP. the 2.3 gears are lower in 1,2,and 3.



[CopyKat]

Dont put the 4.0 guts in the 2.3 case, just swap tail shafts and housings. Unless you want to gear UP. the 2.3 gears are lower in 1,2,and 3.

Yup the 2.9L is lower also.

http://www.vibratesoftware.com/html_help/html/Ford/Ford_Transmissions_Main.htm 5 Speed manual. M5OD-R1 and R1HD.

4.0L is the oddball.



[Sasquatch_Ryda]

Hero Cookie!



[trail B2]

The bell housing is different between the 2.3 and the 4.0/2.9 aren't they?



[PaleBlue90]

Dont put the 4.0 guts in the 2.3 case, just swap tail shafts and housings. Unless you want to gear UP. the 2.3 gears are lower in 1,2,and 3.

so i just put the 4.0 tail shaft on the 2.3 trans?



[PaleBlue90]

The bell housing is different between the 2.3 and the 4.0/2.9 aren't they?

that was my understanding. i have a 2.3 in my truggy and its a 2wd. i need 4wd so i yanked a exploder 5speed and was told to swap the guts and tail shaft so i can have 4wd



[PlumCrazy]

The bell housing is different between the 2.3 and the 4.0/2.9 aren't they?

Yes the bell housings are different.

He wants a 4x4 2.3 trans, so he just needs to swap the tail shaft and tail shaft housing from the 4.0 onto the 2.3 trans.



[CopyKat]

that was my understanding. i have a 2.3 in my truggy and its a 2wd. i need 4wd

He wants a 4x4 2.3 trans, so he just needs to swap the tail shaft and tail shaft housing from the 4.0 onto the 2.3 trans.

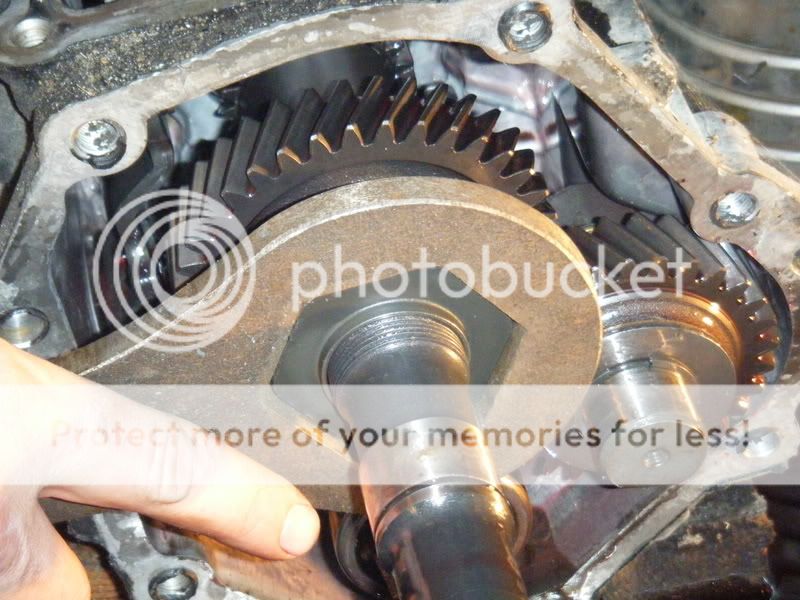

This is all you need to do.



[PlumCrazy]

CopyKat, Do you remember what size the nut is on the output shaft? I borrowed huge crows foot from my uncle last time, but I like your design. I think I may steal your idea for my next hybrid swap.
I would measure the extra one I have laying at home, but I am 2hrs away and I may be able to talk my professor into making one for me on a CNC Laser he has where he works.
