2000 Ford Ranger Cummins 4bt

[shr3dd3r 09]

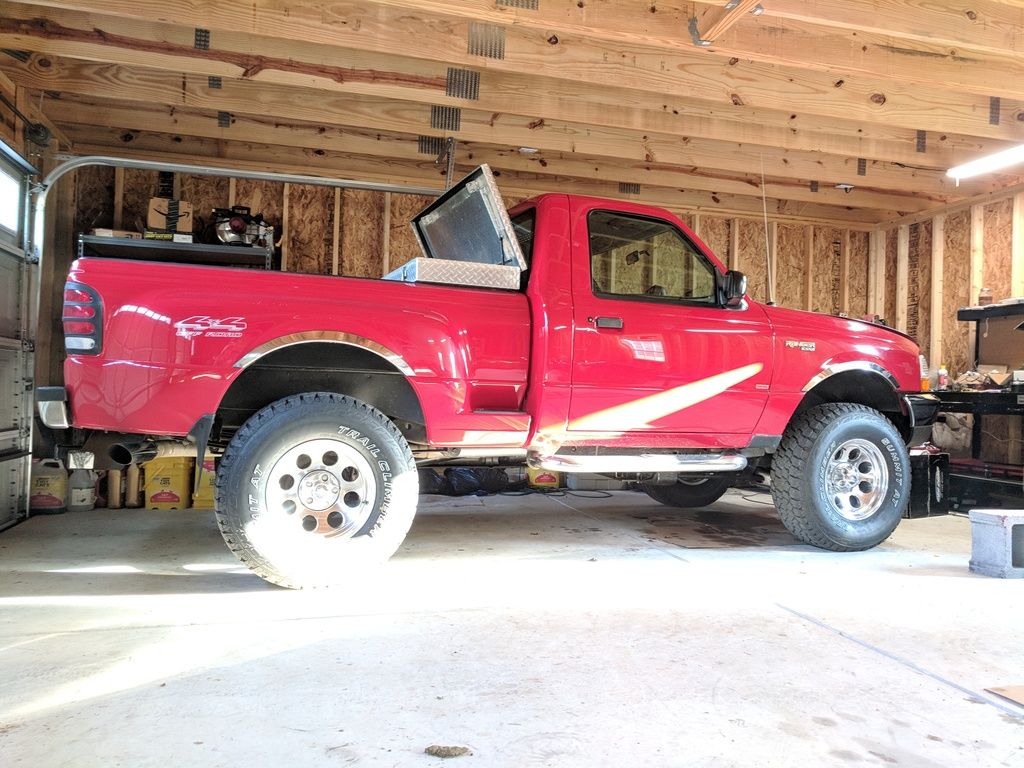

Well here's my truck... I'll post more pics when I get a chance. It's a 2000 regular cab 4x4 with 4.10 gears (will need a taller ratio eventually). It used to have a 3.0 in it, then a 5.0...and now a Cummins 3.9

Mods:

1989 VE pumped Cummins 4BT

M5OD-R2 transmission

BW4406 electronic shift transfer case

Custom driveshafts

Custom gauges (boost, oil pressure, EGT, ECT, fuel pressure, diesel tachometer)

3" PA body lift

285/75R16 Summit Trail Climbers on Pro Comp 1069 16X8 wheels

Bull Bar and KC lights

Custom work for AC compressor install



[alwaysFlOoReD]

Cool build!
Is this going to be your belated build thread?
Did you keep track of your expenses?



[Jim Oaks]

Oh man! Definitely post more photos and a video.



[1991fordranger1]

I love how the Cummins looks like it belongs there upon a quick glance wouldn't bat an eye

Sent from my SM-G930W8 using Tapatalk



[Craig0320]

It does fit in there really well.



[RonD]

Nicely done



[shr3dd3r 09]

I do have a build thread for this on 4btswaps.com. I assume it's allowed if I link it here? Hopefully so...

http://www.4btswaps.com/forum/showthread.php?92506



[85_Ranger4x4]

Very nice swap. Truck looks sharp too



[GJ123]

Good looking swap, truck looks great. Any idea on hp/tq and mileage figures?

Had you considered the new cummins 2.8 motor at all?

Sent from my SM-G920V using Tapatalk



[Curious Hound]

Well done! I'll have to go check out your build thread.

Sent from my SM-G960U using Tapatalk



[shr3dd3r 09]

Good looking swap, truck looks great. Any idea on hp/tq and mileage figures?

Had you considered the new cummins 2.8 motor at all?

Sent from my SM-G920V using Tapatalk

As far as hp and torque the stock numbers are 105hp/265ft-lbs. However I rotated my fuel pin an dinstalled a dynamic timing advance kit to the pump so I'd guess it's closer to 120hp/300ft-lbs.

It's not as fast as it was with the 5.0 I had in it, but not much will slow it down with peak torque at 1600RPM. I'm getting 25mpg right now with 33s and a 4.10 rear. To really have a usable 1st gear and better cruising at 70mph I need 3.55s probably. Once that is done I'd guess mileage will improve to high twenties.

I didn't really consider the 2.8 at the time, though in hindsight it looks like a cool setup and much lighter. I really wanted the simplicity of mechanical injection and easy power mods. It only takes power to the starter and one 12V wire to the fuel solenoid to run this thing.



[shr3dd3r 09]

Oh man! Definitely post more photos and a video.

Will do. I'll try to get more this weekend and a video.



[wildbill23c]

Looks great, expensive but looks great LOL.

I've been wondering about something similar with my 88 Bronco 2...the 2.9L V6 in it is getting tired, only issue is the automatic transmission. Maybe a project for someday when I find me another Ranger.



[wiggle_wagon]

Impressive swap. Its clean and fits really well. Almost has a "why didn't Ford do that?" look to it.



[ThatBostonGuy]

This is one of the coolest rangers I have seen in a while. Nicely done!
