2.3L ('83-'97) 1993 Ranger engine problem.


Carl Allen

New Member
U.S. Military - Veteran
Joined
Jan 15, 2024
Messages
2
City
Washington state
Vehicle Year
1993
Transmission
Manual
last month I posted that my OBD 1 fault code came up 222 which is loss ofd signal to right bank. I swapped out both coil packs and cleared the fault codes. the next KOEO showed 111 or system good. I started my truck and did a KOER the engine ran good for about 15 seconds then started acting funny again. I received the 222 code again and also a 998 code or running in failure mode code. does this code mean the ECM has failed and needs replaced. Any help would be greatly appreciated at this juncture. thank you

I got this off the internet.

Code 998 is only that the computer is in failure mode since it sees a faulty sensor and is substituting the faulty signal. It can also mean the running computer test the brake was not pressed and released and the OD switch cycled and steering turned left and right.

Did you do the required tests they are talking about during the code scan? But they are saying 998 is just telling you the computer recognizes a fault in the system. Duh, it is sending a fault code for something else so of course it see's a fault.

What engine does it have?

This needs to be moved to the appropriate engine forum...

222 is loss of signal to the right side on a dual-plug system. Banks are for V-engines.

If you've already replaced the coil, you're looking at the ICM, crank sensor, ECM, or wiring between them.
Both times ICM failures led me to lose spark from the secondary plugs, I got code 224. I don't know if that means 222 makes the ICM relatively less likely.

The diagnostic flowchart says to start the truck 5 times in a row, and only if it fails to start at least once is the crank sensor suspect.
I would personally do that, jiggle the wires/check the connectors, and then parts-cannon the ICM, but I can post the whole flowchart when I have time.

Pictures of a book and all that, but these look mostly legible. I haven't read the whole thing all the way through, but I don't think it branches out of "B", at least.

Caveat: this is the '94 manual. Out of all the other years, '93 stands the best chance of being exactly the same, but there may be some differences.


EDIT: Figured I would also repost RonD's link from last time this happened to me:


Something like that may be easier to follow which wires are which, since obviously you won't have Ford's diagnostic breakout harness.


Attachments

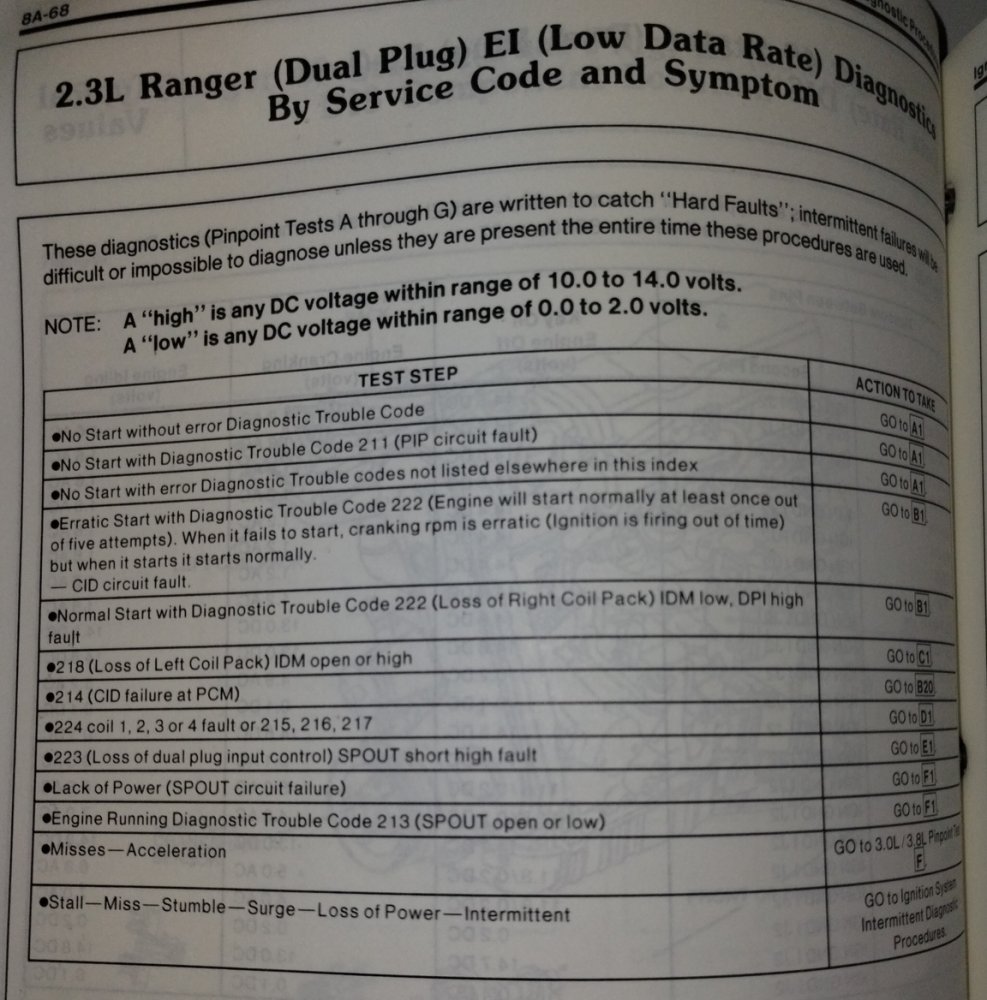

  • 1_codestotests.jpg
    171 KB · Views: 114
  • 2_B1.jpg
    135.9 KB · Views: 87
  • 3_B5.jpg
    130.7 KB · Views: 68

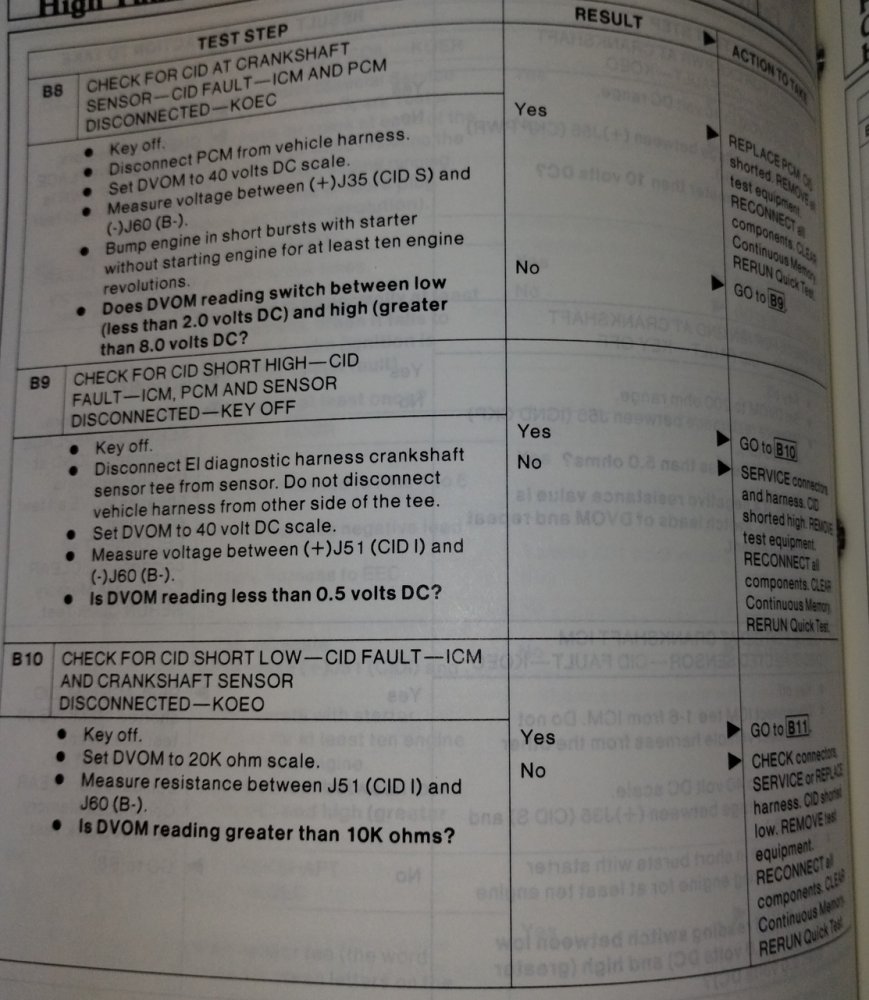

  • 4_B8.jpg
    138.6 KB · Views: 76

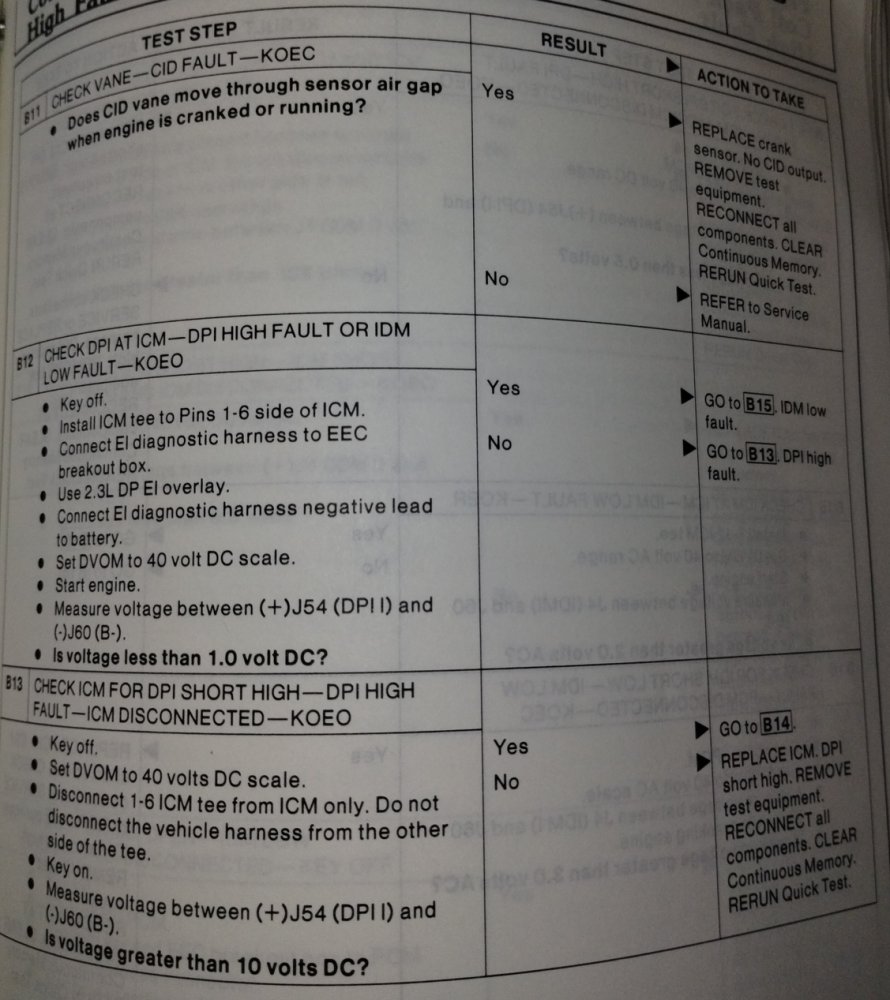

  • 5_B11.jpg
    137.1 KB · Views: 64

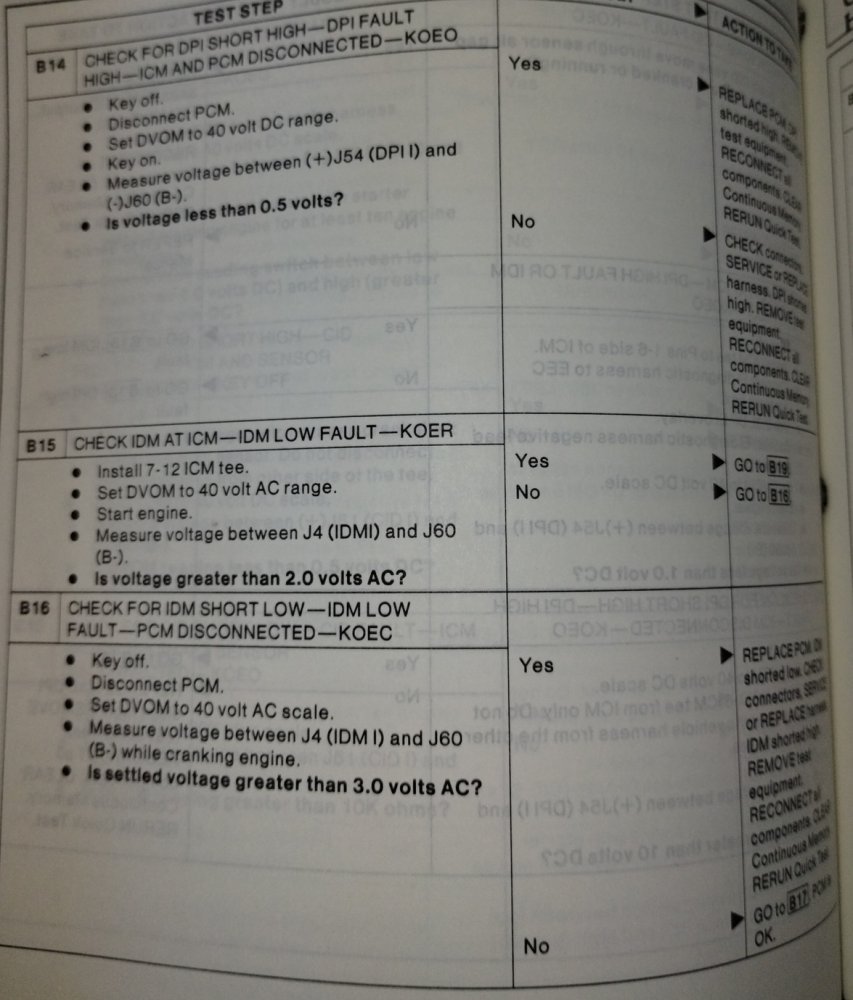

  • 6_B14.jpg
    115.3 KB · Views: 69
  • 7_B17.jpg
    107.9 KB · Views: 74

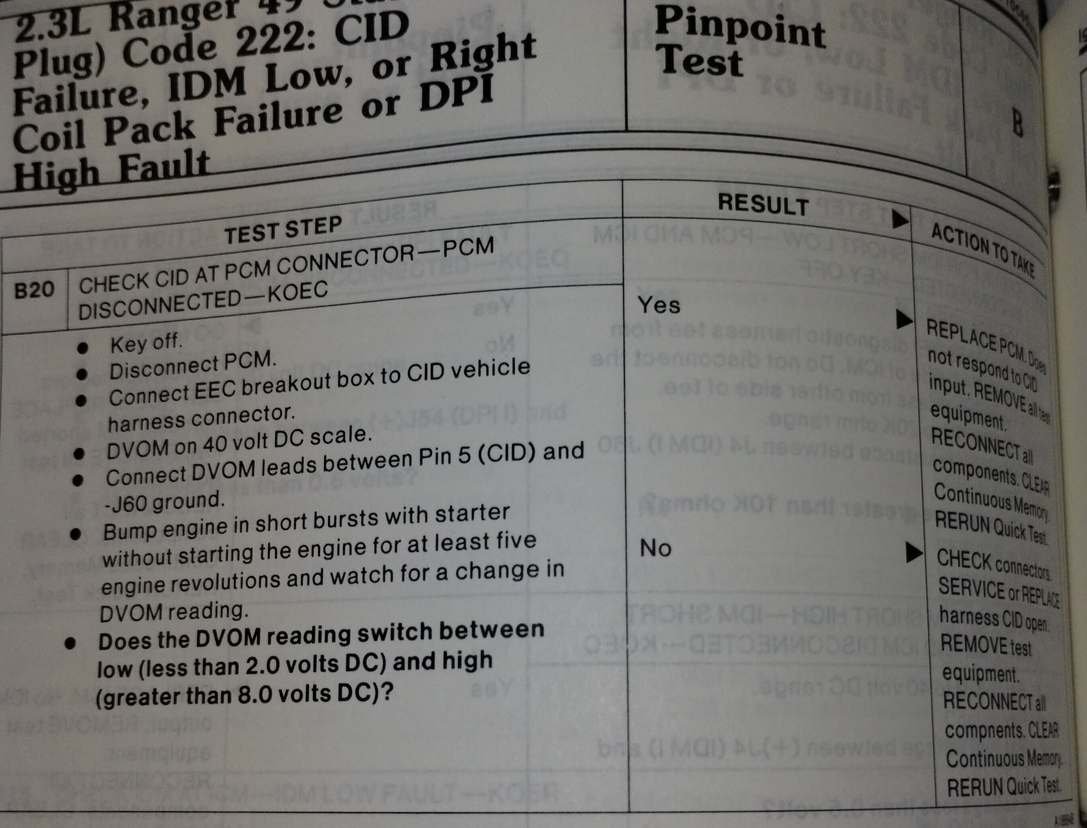

  • 8_B20.jpg
    516.7 KB · Views: 74
