1988 Ford Ranger SAS


1985Ranger124

Active Member
Joined
Feb 10, 2011
Messages
40
City
Penngrove, California
Vehicle Year
1985
Transmission
Manual
Well the day has finally come that I can start my solid axle swap. Ive been doing my research for a LONG time and am confident that i can do this. I am 16 and doing this whole things pretty much by myself so go easy on me.





The Front Axle Build HP Dana 44

Axle: Full Width Dana 44 high pinion
Year: 1976
Locker: Dana Spicer Posi
Axles: Stock
Ring and Pinion: Yukon 4:56 to 1
U-Joints: Spicer
Bearings: Timken


The Rear Axle Build Ford 9’’



Axle: Full Width Ford 9’’
Year: 1979
Locker: Full Spool
Axles: Stock
Ring and Pinion: Yukon 4:56 to 1
Bearings: Timken


Rear Suspension

I needed something that I could get rid of the lift blocks with and give my truck superior flex. After some research, I decided to go with 6” lift 63’’ Chevy Leaf Spring Swap with extended shackles.

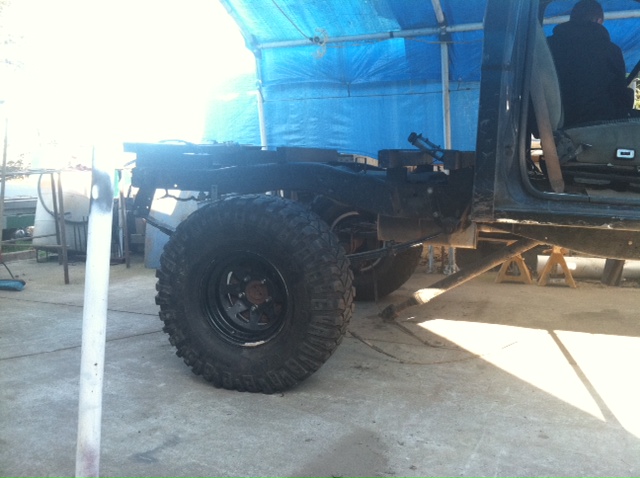

Starting the build is very easy, I started on the rear end first to get some confidence. To make a Full Size axle fit under a ranger, you must move the leaf spring mounts in. I did not weld them up immediately cause I wanted to set the pinion angle. I already had the 63s mounted up on the stock rear end so this was very easy.


Attachments

  • securedownload-1.jpeg
    108.9 KB · Views: 493
  • securedownload-2.jpeg
    115.2 KB · Views: 469
  • securedownload-3.jpeg
    93.8 KB · Views: 414

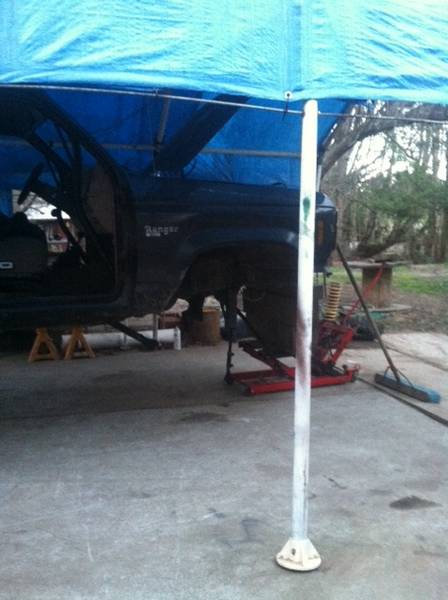

more pics, front axle is completely out, rollers under the front for perspective


Attachments

  • tn.jpeg
    34.1 KB · Views: 481
  • tn-1.jpeg
    33.8 KB · Views: 445
What are your plans for the front suspension and steering? ... I'm assuming your extending your wheel base as it looks to be mocked up like...

Im running a 7/8'' Ruff Stuff Steering kit, Ruff Stuff Pan hard kit, Custom Extended Radius arms with Wild Horse 5.5'' coils. Ive got just about everything out of the way now so ill probably roll the axle under sometime this week.Im kinda caught up in school most of the day so i only get to work on it when i get home

Those Wild Horses coils are junk. Go with the ones from Broncograveyard. They are actually Deaver springs, relabeled as BGY.

The WH coils have a tendency to settle a whole lot (mine dropped 3" ), and then they start to bow outwards really bad.
My coils from BGY only settled about an inch, and they worked really well with my Chevy springs and a 7" shackles.

Last edited:
Well, mine are brand new. i got them cheap off a guy on craigslist. Ill wait it out with them and if they turn out to be shit, ill go with the bronco graveyard ones, thanks for the advice. Any advice on how to do the brake lines. I wanna run them with the ttb hard lines. The ones that under the crossmember and to the coil bucket. MY question is what line do i run off of that to each caliber. Or is it some sort of adapter.

I ran mine down the frame to the radius arm mount. Then used a rear hose from a 93 caravan, and continued hard line down the arm and teed it at the diff, my axle lines are for a 78 bronco.

Super easy and isn't. Affected by articulation.

I ran my brake lines the same way. I use a 90's cavaler (buick buick will work or maybe any GM will work as liong as the threads match the hard lines).

Good thing with this brake line setup is my front tires can swing under my truck (picture that) and touch my rear tires and I would still have front brakes. So theres really no flex limit to them.

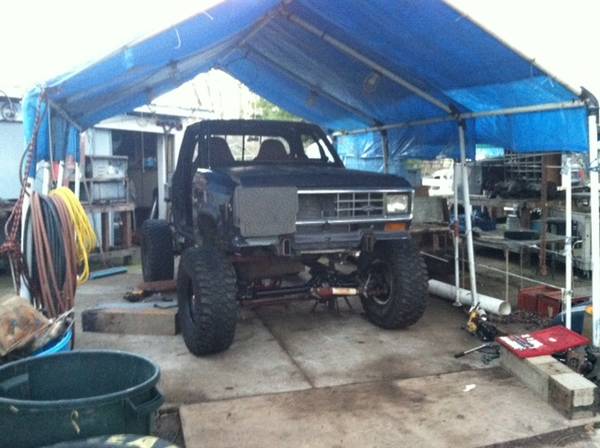

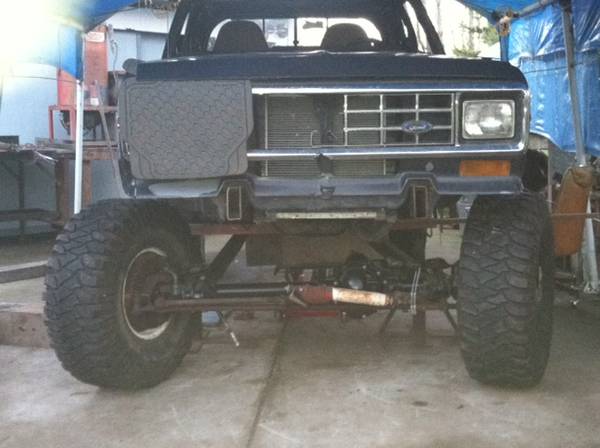

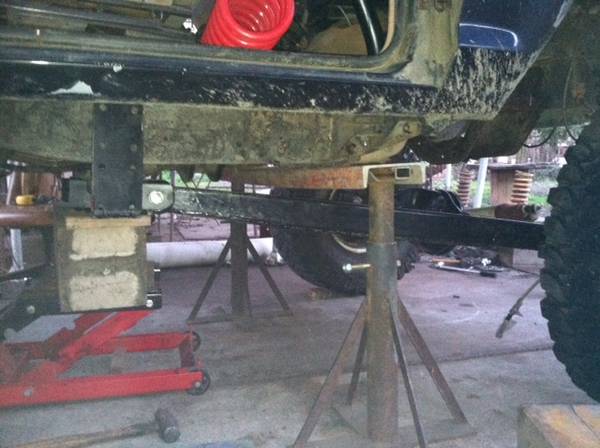

got a little more work done today. Got the axle rolled under. Starting to mock it up.


Attachments

  • tn-3.jpeg
    39.6 KB · Views: 478
  • tn-4.jpeg
    39.2 KB · Views: 519
  • tn-2.jpeg
    33.4 KB · Views: 701
