wiring diagram power windows


basketranger

Well-Known Member
U.S. Military - Veteran
Joined
Jun 14, 2009
Messages
197
City
Dallas, Tx
Vehicle Year
1993
Transmission
Manual
need diagram for '90 model BII door side of harness. found loaded doors for swap to second gen ranger (was not loaded - pwr window, lock, mirror). A big Thank You on the front side. :bawling:

Hello,
Here is the info for the pwr locks/windows/mirrors. I've never seen a BII with power mirrors even though there is a diagram for them in the EVTM. Say, I'll be retired mlitary relocating to Dallas next summer. Perhaps we can meet up sometime. Hope this info helps you out.


Attachments

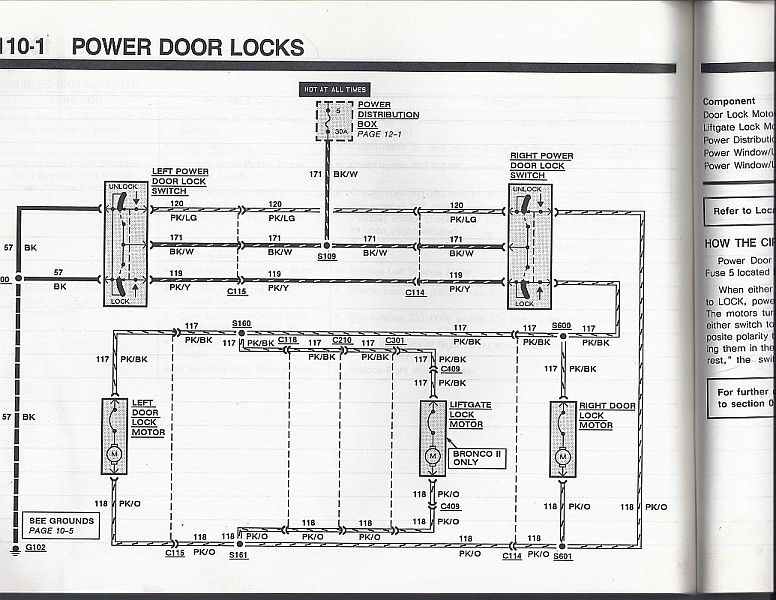

  • 90 BII pwr locks.jpg
    90 BII pwr locks.jpg
    99.3 KB · Views: 495

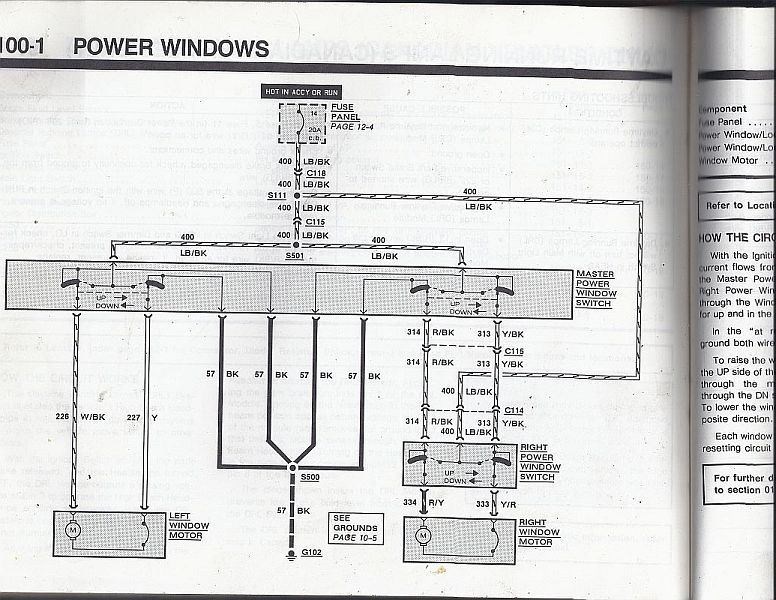

  • 90 BII pwr windows.jpg
    90 BII pwr windows.jpg
    103.4 KB · Views: 570
  • 90 BII pwr mirrors.pdf
    90 BII pwr mirrors.pdf
    523 KB · Views: 190
Easy way to do it is to grab the cross harness that runs behind the grille. Then just tap the blue and black and black and white, to power and the black to ground.

need diagram for '90 model BII door side of harness. found loaded doors for swap to second gen ranger (was not loaded - pwr window, lock, mirror). A big Thank You on the front side. :bawling:

yo basketranger,, I have an official Ford Truck Shop manual for my '88 II Bronco II with some good schematics in it. Got it From Helms.com on line. very good maual about 3" thick the mechanics used in dealers shops. It may have info you could use,, 88-90 are similar in certain aspects. I'm in north-west Arlington just off I-30, if you ever want to get together and have a tech. session(work on trucks). be glad to help you out. have truck,,will travel,,haha.:icon_thumby: Larry
