Wiper Motor Wiring

[kevinmcgowan25]

99 Ranger Ext Cab 4.0 4wd, looking to see if anybody can provide me with a wiring diagram for the wiper motor. Specifically looking to know what color wire is what function.



[franklin2]

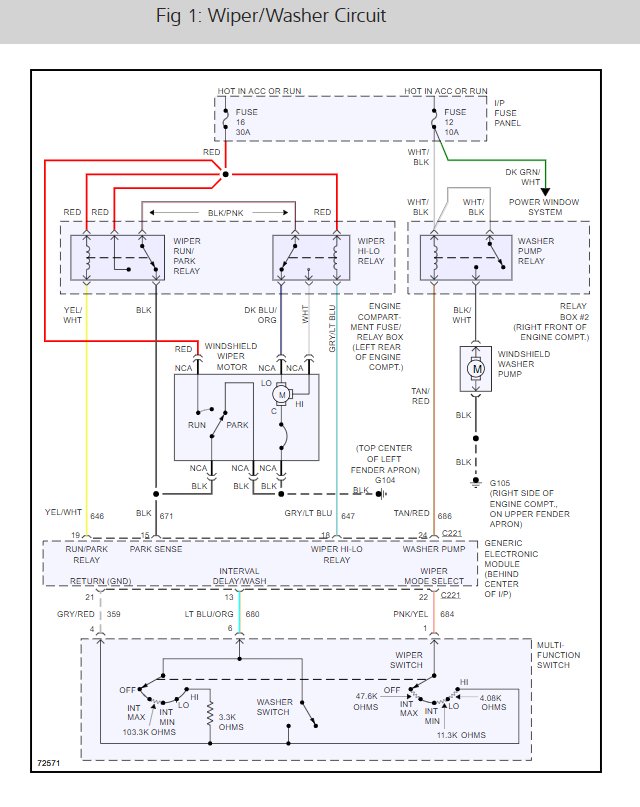

I don't have a diagram, but see some troubleshooting info. Are you having a problem with it? It's wiring and functions are tied into the GEM module.



[kevinmcgowan25]

The truck is completely gutted and I’m looking to get the motor to work using a toggle switch without any of the factory wiring except the pigtail off the motor. Got it to function correctly. Hooked it up on a single pole double throw switch.
Red wire 12v ignition on line side of switch.
Blue with orange stripe wire low speed. Load side #1
White wire high speed. Load side #2
Blue wire park switch. Park is on the low speed leg of switch as older motors were wired the same I believe.
Black wire ground. Thought that was correct but I’m stumped because the wiring gets warm when the motors powered on. I’m wondering if it’s supposed to be grounded from the motor housing. And the black wire is for intermittent function.
Truck has 351w with a zf5
With Dana 60 and 10.5 sterling.
Was hoping to get it to work with the original wiper motor and linkage. The dash and steering column have been swapped out for one I fabbed up, so I don’t have the original multifunction switch.
