Help swapping 97 Explorer 5.0, Data link Connector questions


bronco2guy

Banned - Selling busted parts
--- Banned ---
Joined
Aug 31, 2008
Messages
357
City
Columbia, MO
Vehicle Year
97
Transmission
Manual
Hi all, need some help fast cause trying to get this truck ready for a trip this weekend. Low down, 97 Ford Explorer 5.0 swap, using explorer PCM but tieing wiring into a 92 Ranger Cab that had 3.0, my question is the Data Link Connector /OBD2 connector check port for Scan Tool, has 7wires, 3 of them go to my pcm wiring there colors are (PK/LB), (T,O) (P), no question on these 3, next there is Black/white (ground) no question, then solid Orange, thats goes to Hot at all times, with fuse no question. The 2 im still unsure about.

Solid Black wire & Lt Blue/white line -I think white line going off memory?
What do these 2 wires do?? Please help

:icon_confused:And yes I have tried searching with no luck so please dont advised try a search.

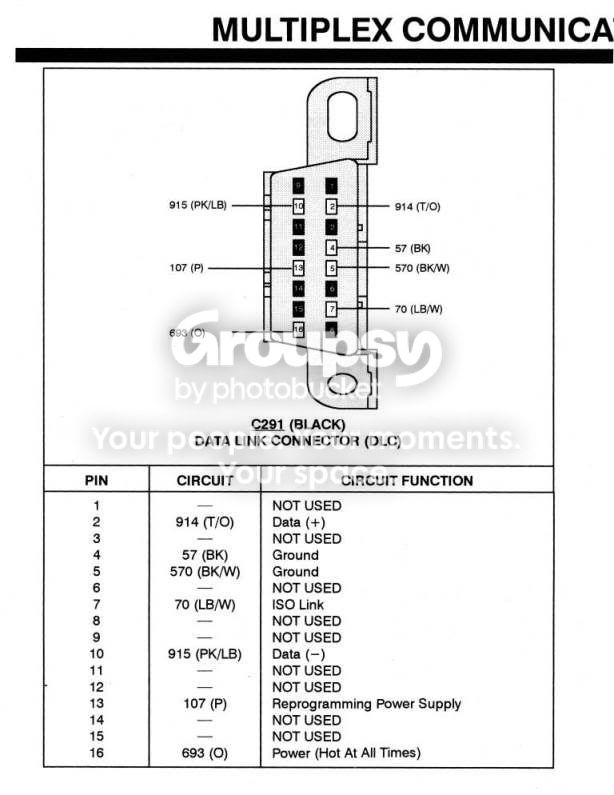

Well, here's the wiring at the Data Link Connection. Black is just about 99% of the times a ground, circuit 57 along with 570.
Dave
