94 Limited Power Seats Wiring?


95BLKB4

10+ Year Member

Joined
Oct 4, 2007
Messages
3
Points
3,001
Vehicle Year
1995
Transmission
Manual
Hopefully someone has done this and can shed some light here.

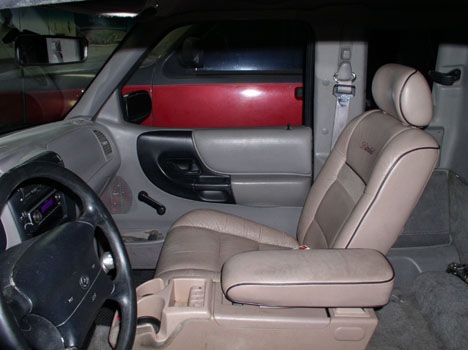

I'm putting power seats with memory from a 94 limited explorer in my 95 b4000 (no power seats).

The passenger seat has two wire connector, power/ground. Done.
The driver's seat connector has about 10 wires coming from it, varying thickness. By using trial and error with 12v source, I can't get the seat to move with any combo of pwr/grnd.

Anyone know what wire does what? Any way to remove the 'memory' option so the driver's seat is just like the passenger's?

Thanks


Last edited:

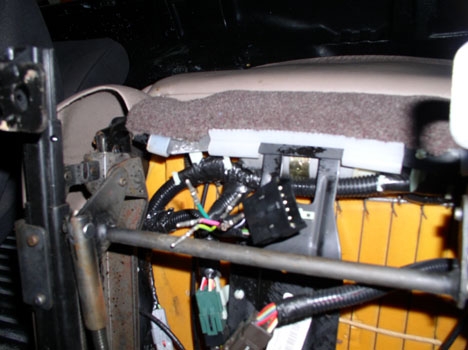

Ok, used the 6-wire plug from the motors (very bottom of pic, red in middle)
to jump it into place.

Still need help with wiring the seat so the switches work.
