94 ford ranger diagram

[C.Fuller305]

I am looking for the diagram of the connector that goes into my firewall and goes into my cab. I need the male and female side of the connector with the wire color and circuit number. Please if anyone can provide me with the diagram.



[rusty ol ranger]

The ECM plug?



[2011Supercab]

1993 FORD RANGER ELECTRICAL AND VACUUM TROUBLESHOOTING GUIDE MANUAL BOOK | eBay

Find many great new & used options and get the best deals for 1993 FORD RANGER ELECTRICAL AND VACUUM TROUBLESHOOTING GUIDE MANUAL BOOK at the best online prices at eBay! Free shipping for many products!

www.ebay.com



[Curious Hound]

If I remember, tonight, I’ll upload pictures from my ‘93 EVTM. Should be close, if not identical. But if you plan on doing your own work, it will eventually be a good idea to get a copy of the EVTM for your 94



[lowspeedpursuit]

Ask and you shall receive, but ditto what everyone else said about buying the book. They're like $30.



[Kenny Hebert]

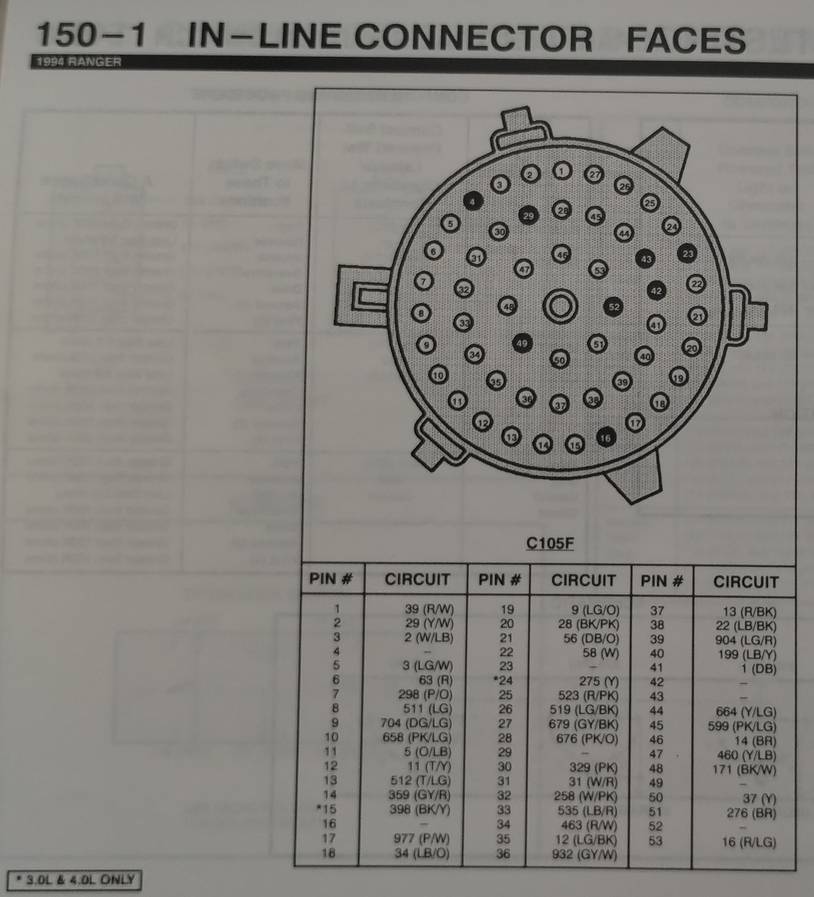

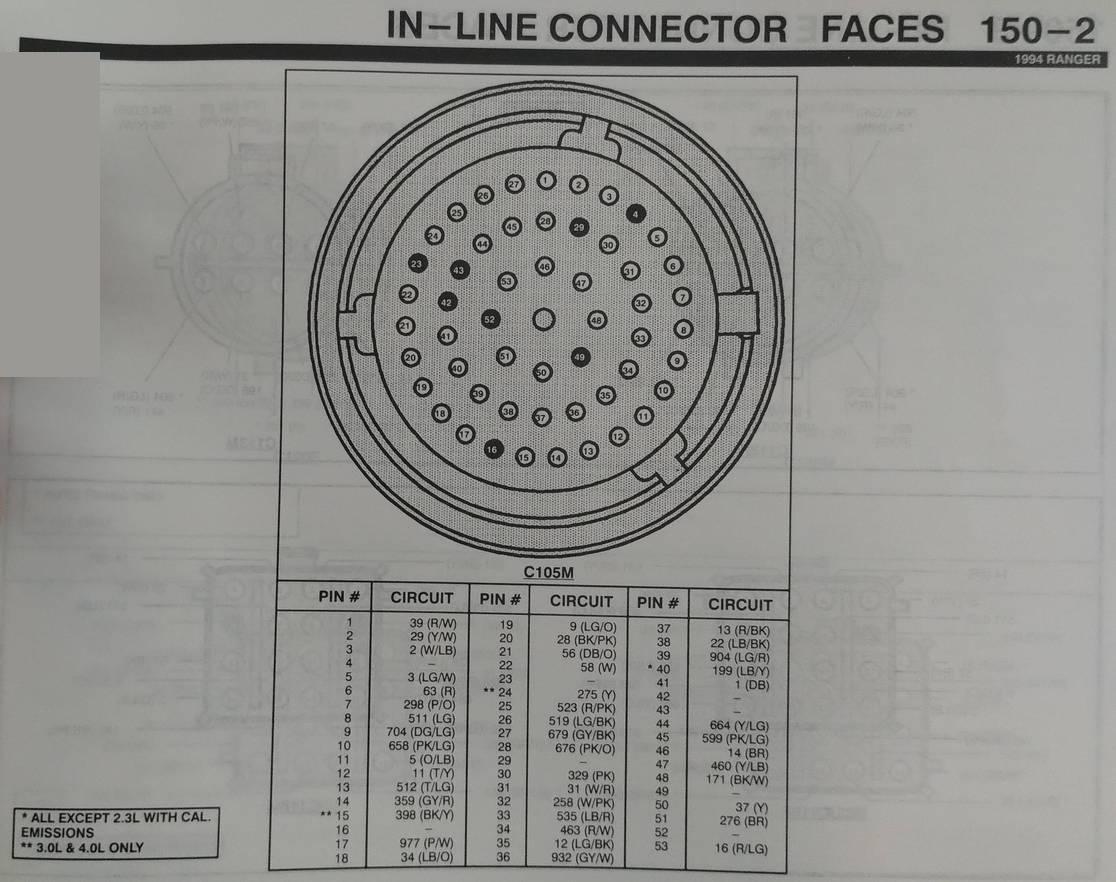

View attachment 89769View attachment 89770

Ask and you shall receive, but ditto what everyone else said about buying the book. They're like $30.

Next question is the list for what pin goes to what function ?



[lowspeedpursuit]

It isn't indexed like that. As convenient as that would be, the intended purpose of the EVTM is to troubleshoot faults, not modify harnesses.
