2.3L ('02-'11) 2002 4cyl 2.3 oil dip stick tube.


Gwb2224

New Member
Joined
Apr 6, 2025
Messages
1
City
Alabama
Vehicle Year
2002
Transmission
Automatic

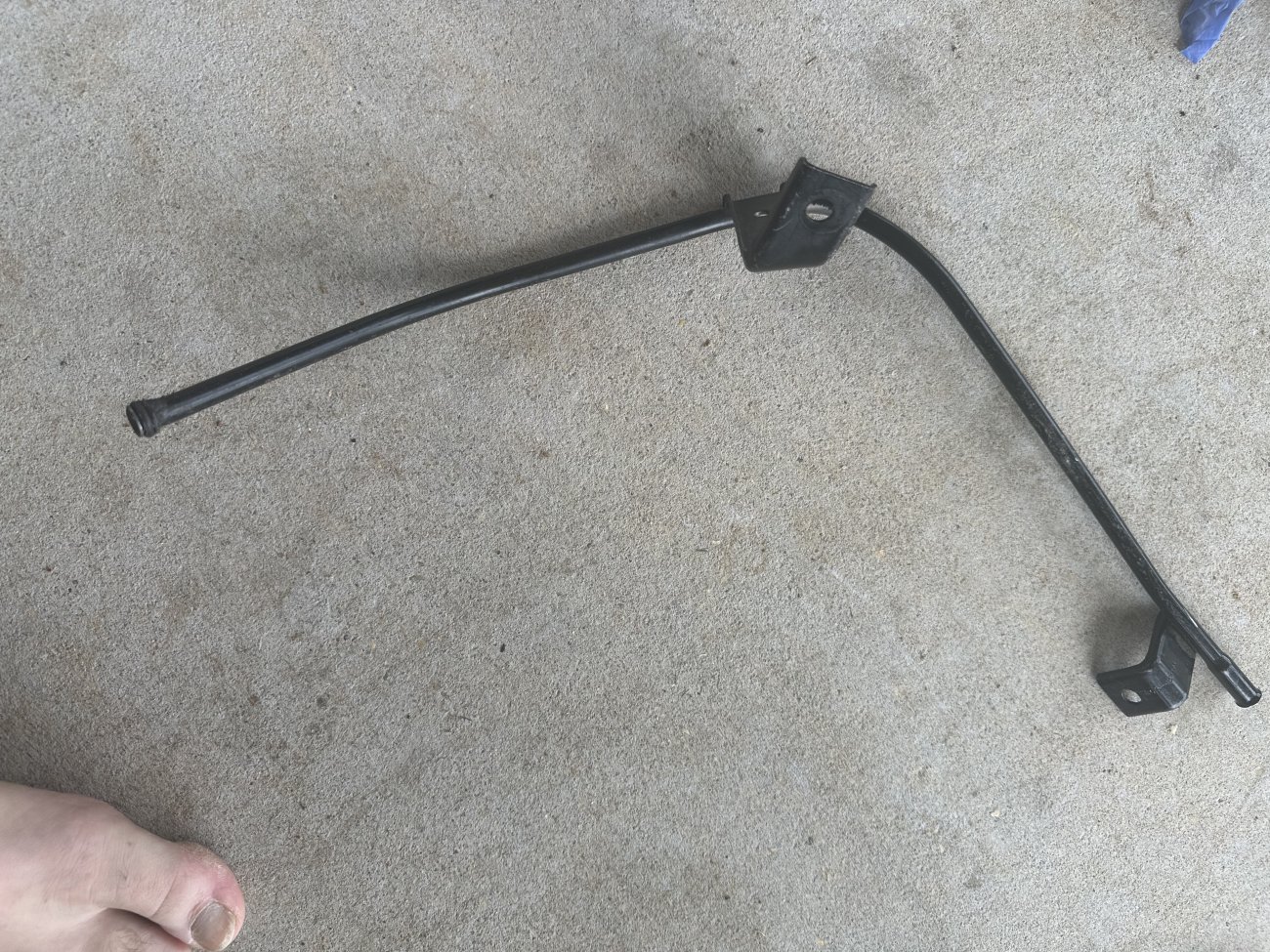

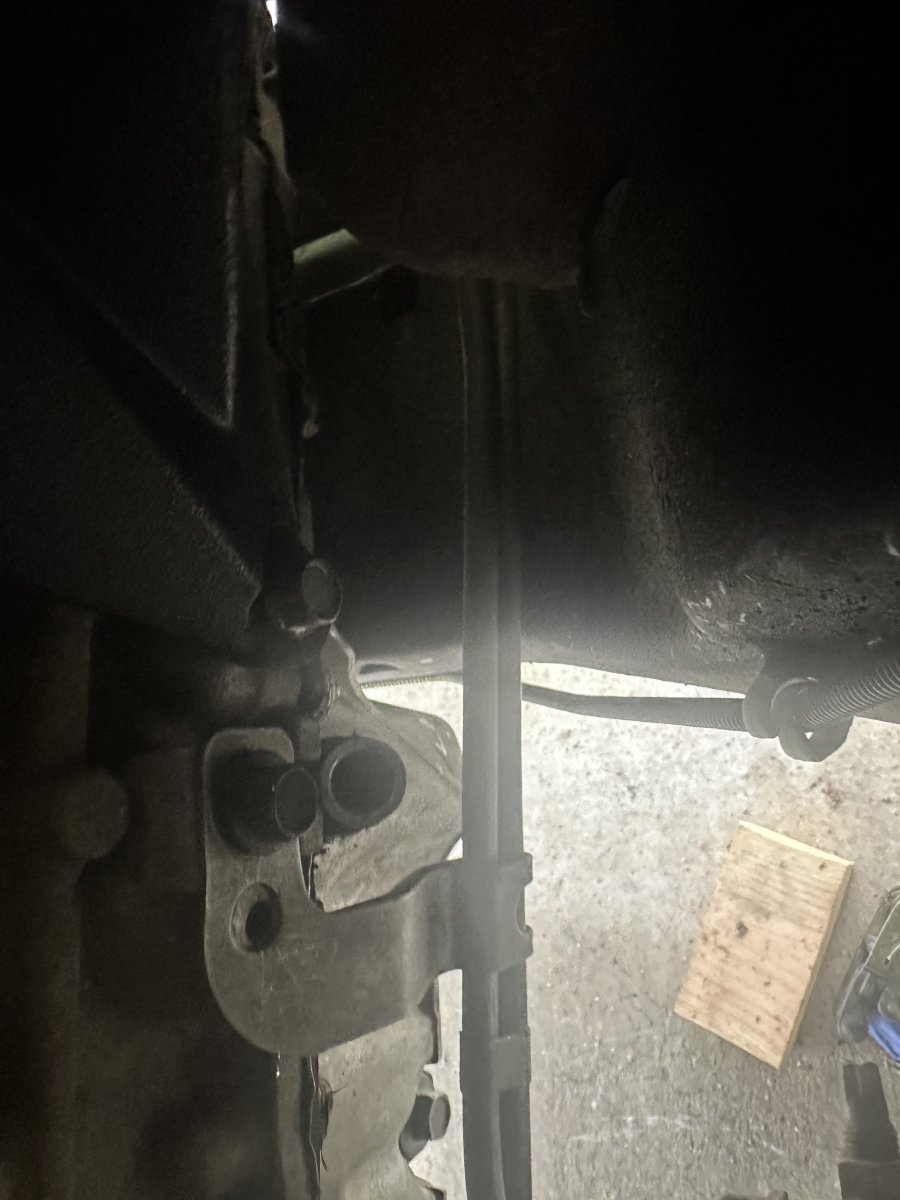

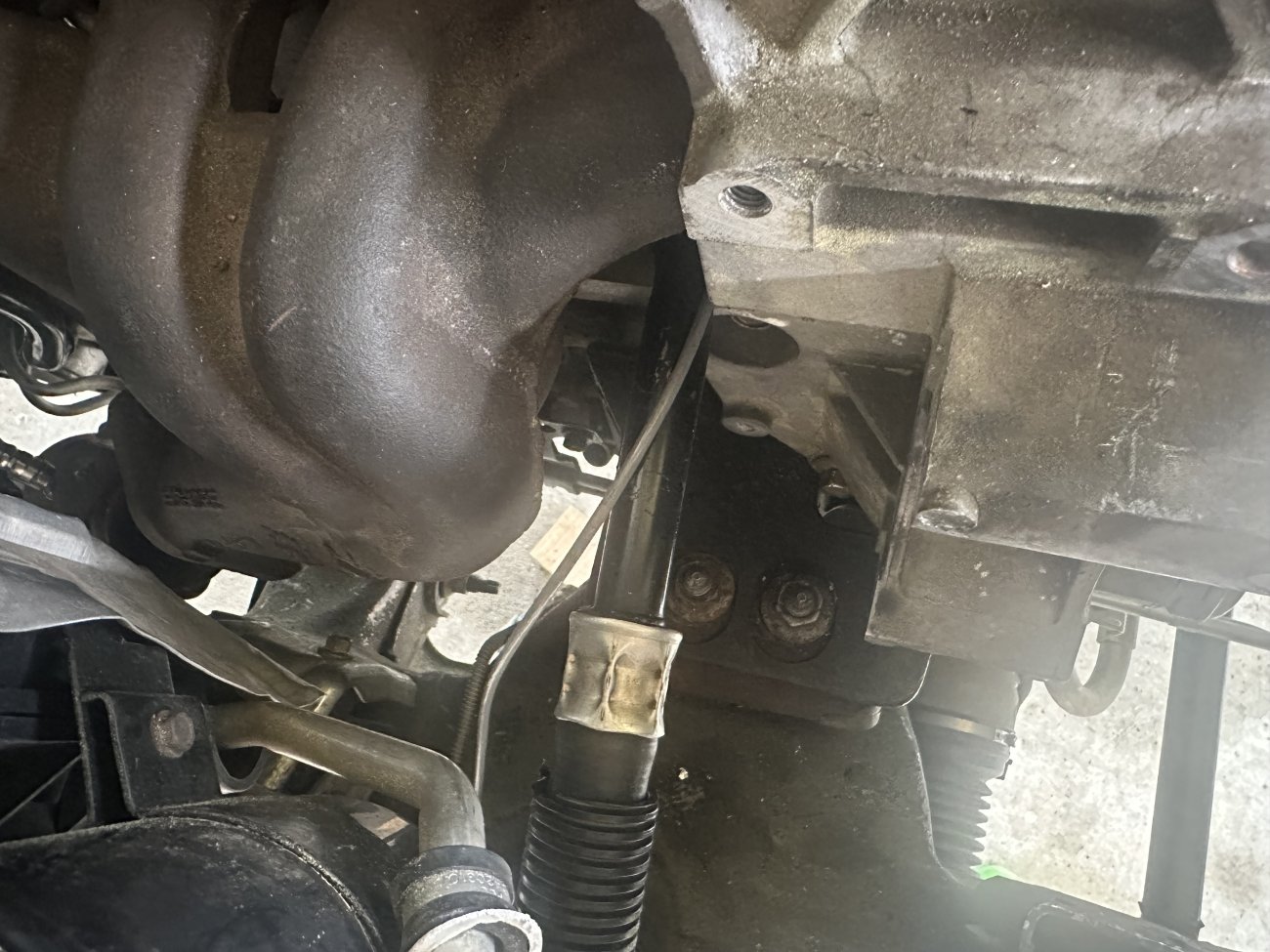

This is driving me crazy, trying to place the oil dipstick back and cannot figure out how it mounts to the engine/ or what it mounts too. It is on the passenger side or looking at the engine the left side. And can not find a good picture on the internet for reference. The top picture is of the tube, the second picture is where it goes into and the third pic is from the top looking down to where it goes into the oil pan. Any help would be appreciated


Attachments

  • IMG_5656.jpeg
    436.7 KB · Views: 33
  • IMG_5657.jpeg
    113.7 KB · Views: 29
  • IMG_5658.jpeg
    214.3 KB · Views: 36
