2001 Ranger 4x4 5R trans issue


wwlightning

New Member
Joined
Oct 29, 2018
Messages
2
City
Belleville, MI
Vehicle Year
2001
Transmission
Automatic
My daughters Ranger started flashing the OD light on the dash. A day later, she says that it is sometimes free revving while driving. After checking the fluid, it was a bit low. I went ahead and changed out the filter and fluid. Level is good now. No leaks anywhere with it. OD light is still flashing. I finally got Forscan and pulled the codes today. P0731 P0733 P0734. These are the trans codes. What would cause all of this at once?
Thanks for any input.

My daughters Ranger started flashing the OD light on the dash. A day later, she says that it is sometimes free revving while driving. After checking the fluid, it was a bit low. I went ahead and changed out the filter and fluid. Level is good now. No leaks anywhere with it. OD light is still flashing. I finally got Forscan and pulled the codes today. P0731 P0733 P0734. These are the trans codes. What would cause all of this at once?
Thanks for any input.
Since the trans is slipping in 1st, 3rd and 4th, my first guess would be the O/D sprag is FUBAR. That's a common engagement for all three of those gears and also reverse. See attachment. This is assuming it's a 5R55E. That's what's in my '01 4.0 4x4.

I'm not an ASE tech though, so it's probably best to have it diagnosed by a trusted shop.


Attachments

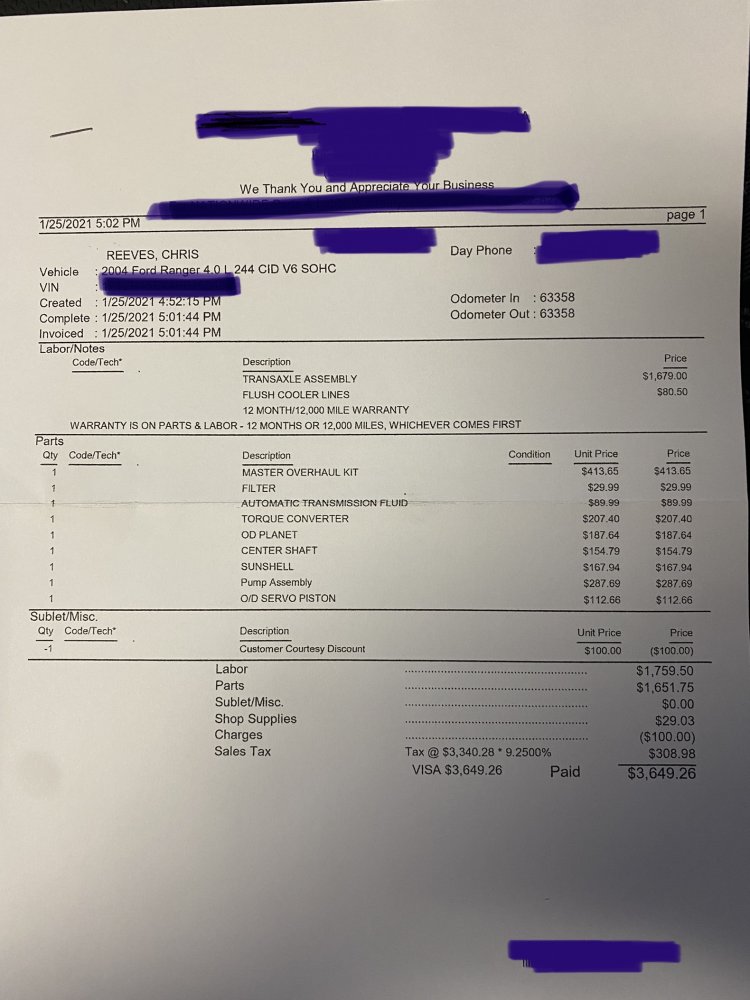

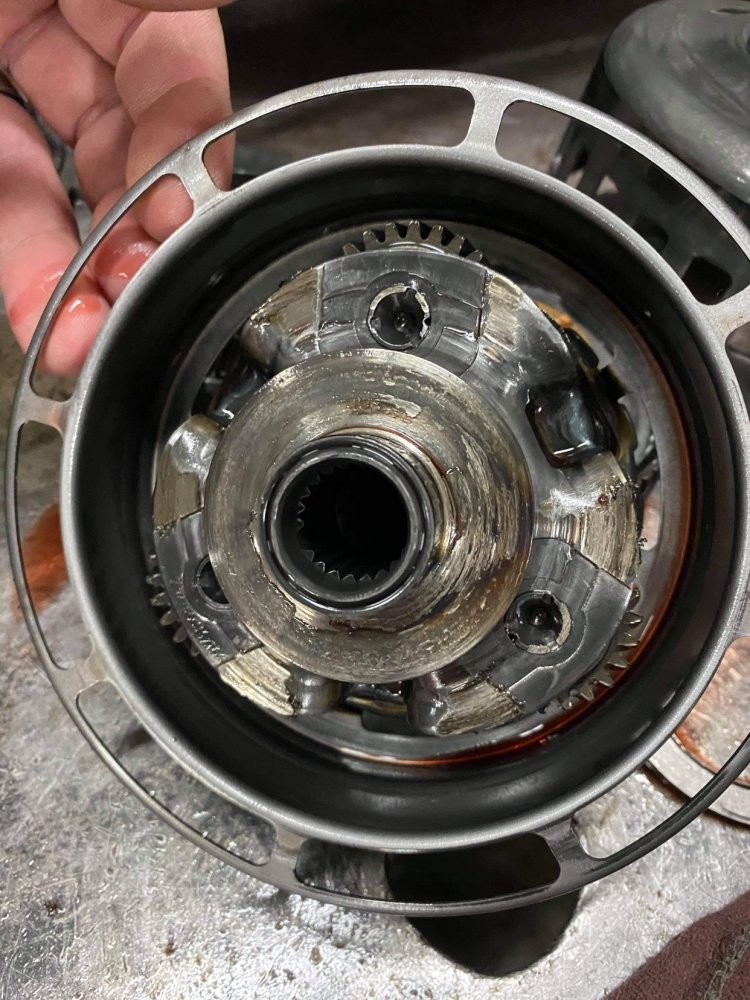

Just had the same happen with my 04 only had 59K on it! I bought it a month ago and 10 days later complete tranny rebuild needed to the tune of $3551.00 with updated valves, shift kit and added a larger trans cooler, as G8orFord mentioned above it was indeed the OD Sprag and Planetary that was roached shop said the OD issue is super common on these trucks usually from heat but known for failure

Last edited:

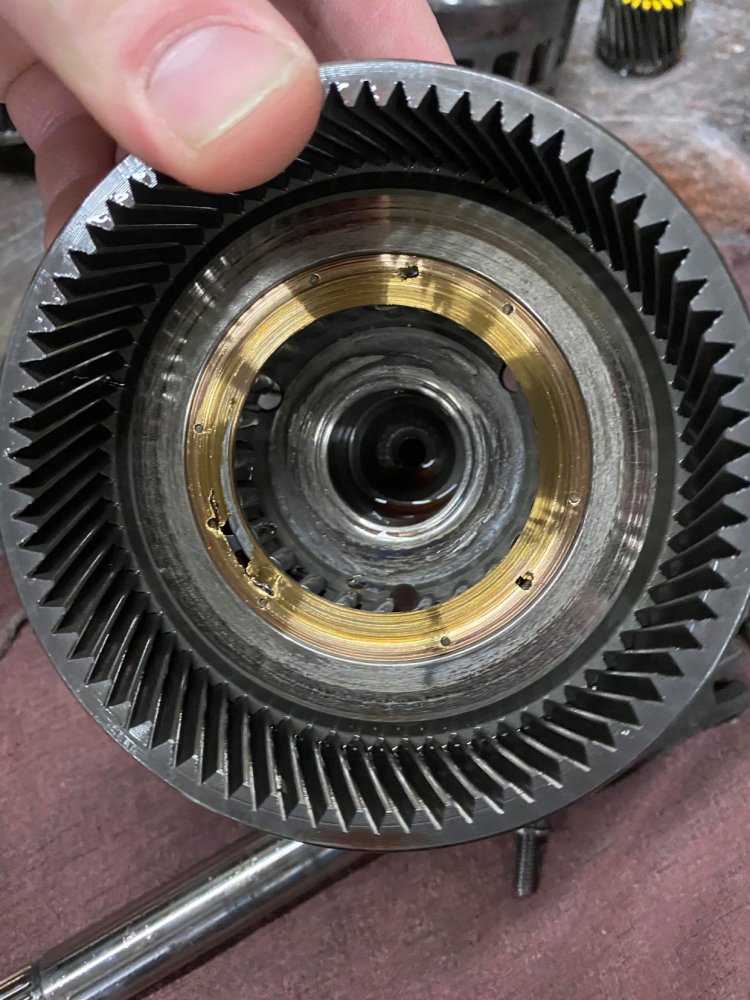

Didn't realize you could buy a gold plated 5r55e...
55376
55377
Funny I said the same thing, must be the gold lining in the second pic LOL

Holy crap! You're superman!!!!!!

Labor seems a bit steep
Parts are parts

Labor seems a bit steep
Parts are parts
I agree I wasnt too happy but in a pickle and needed the truck they had it done in 4 days, two other shops in town were within 100.00 of this quote so I had to pull the trigger. Sure did miss my garage while paying for it would have done it myself

Last edited:
