mounting bolt dimensions

[94 lngbd]

Wondering if ANYONE has the extended cab & bed off the frame. looking for the distance from floor board front cab mounting bolt to the front bed mounting bolt. this distance will tell me how much I need to make my frame longer to allow for an extended cab swap & still retain my 7 ft bed.



[DSD]

I got that dimension for you from front mount at rad support to cab mount at front door post is 45.77 inches and from front cab post to rear of cab is 42.18 inch



[DSD]

Mounting bolts

Here is a frame pic, this might help



[94 lngbd]

what i need is from the door post cab mounting bolt location of a supercab to the front bed bolt



[DSD]

I get approx 49.18 inch its also about 7 inches from rear cab mount center



[Snoranger]

'83-'97 Ranger short bed 107.9"

'83-'97 Ranger long bed 113.9"

'86-'97 Ranger super cab short bed 125.4"

I though you already figured this out?

If the wheelbase of the reg cab / short bed is 107.9"
and the wheelbase of the supercab / short bed is 125.4"
then the difference is 17.5".

You need to lengthen the frame 17.5". Your new wheelbase will be 131.4" (or 6" longer then a reg cab/long bed.)



[DSD]

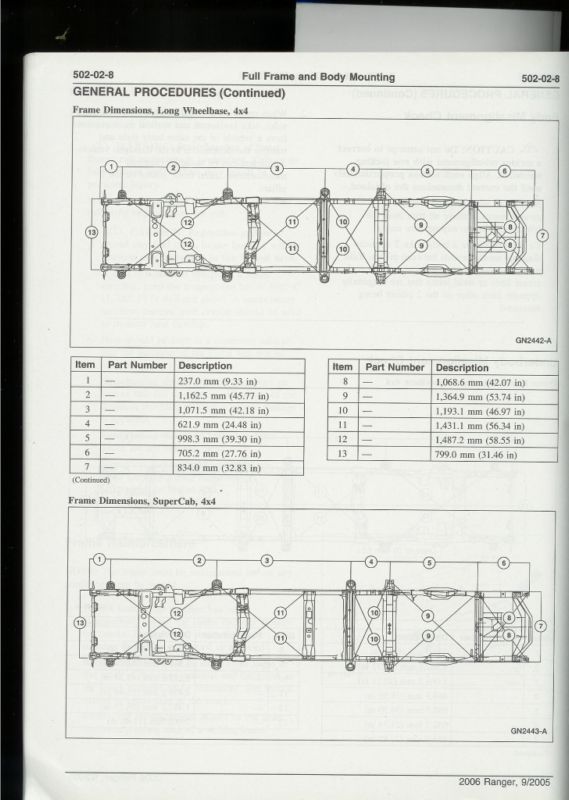

Looked up that in TRS Tech Library and saw its only till 97 here is a pdf for 2008 and some measurement have changed not sure of the year 94ingbd was after but here it is maybe a Mod will move this to the Library...
