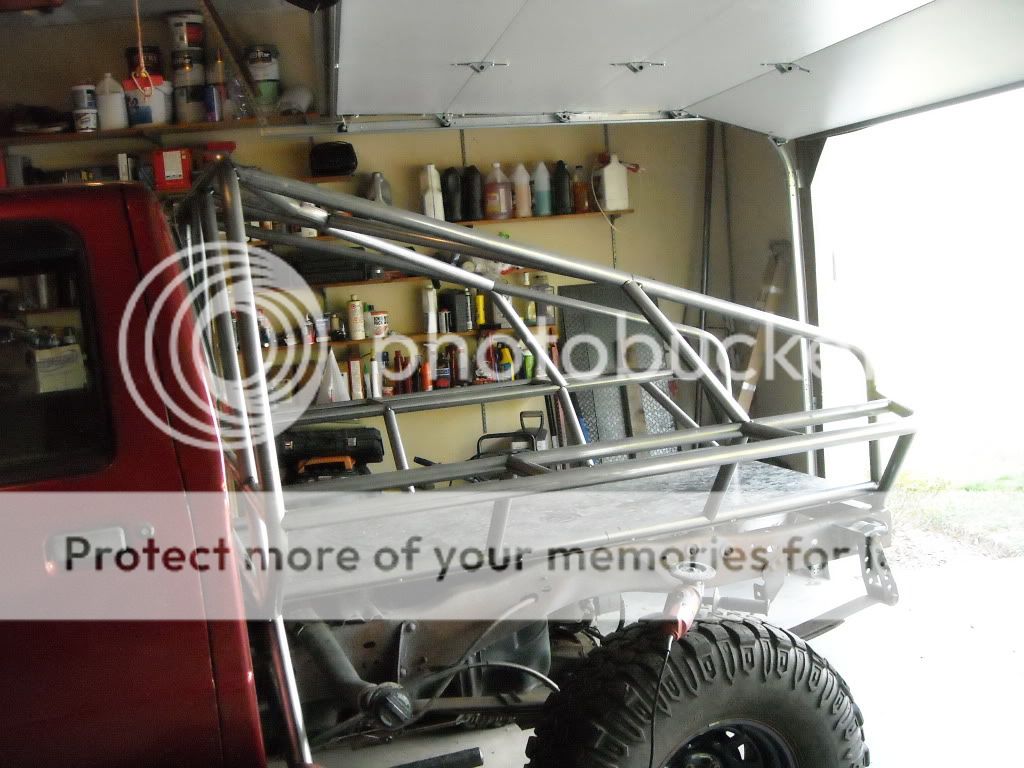

I'm going to loose the small hoop . But do need something to take it's place . Any ideas ?
I like the hoop

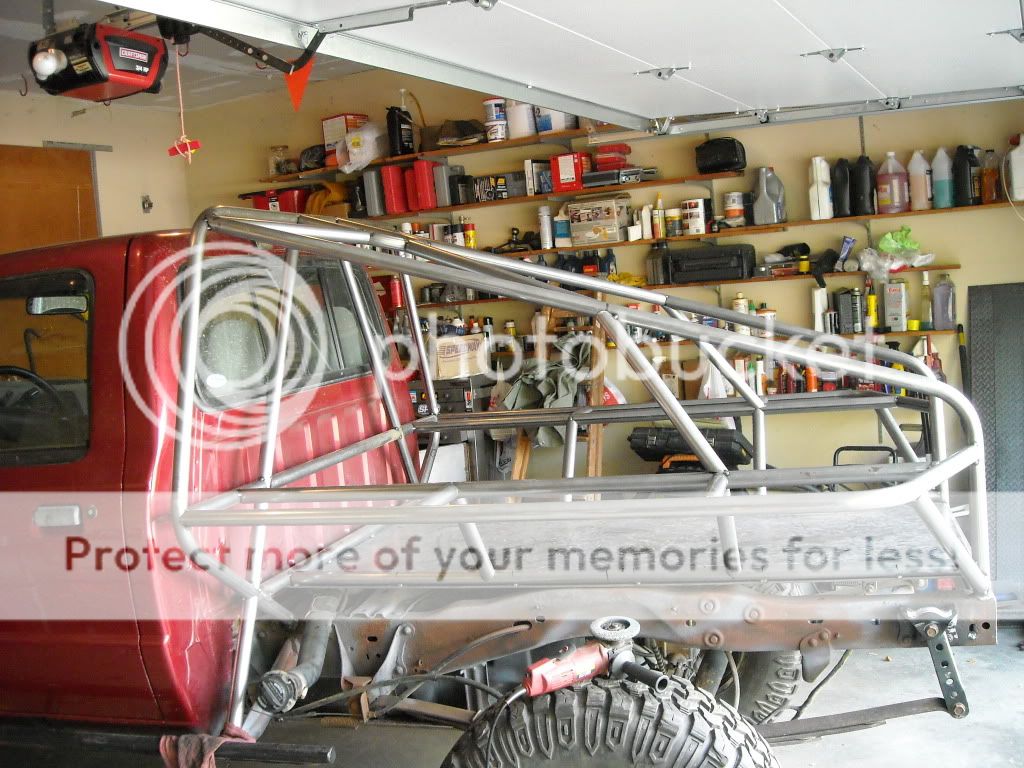

Would it look better if I moved the tubes coming off the hoop more to the sides like almost totally off the radius ?
nate09
Well-Known Member
i think pointing them more towards the center or the main hoop (off the radius as you mentioned) would make it look better.
- Joined
- Sep 23, 2004
- Messages
- 4,290
- Vehicle Year
- 2008
- Transmission
- Automatic

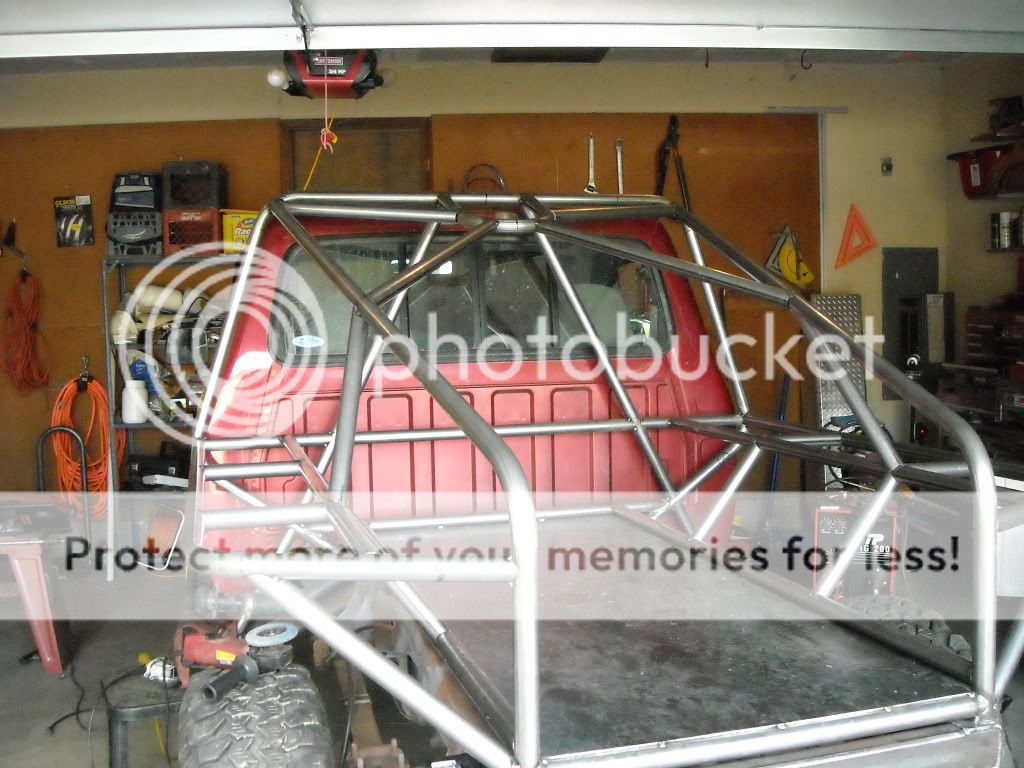

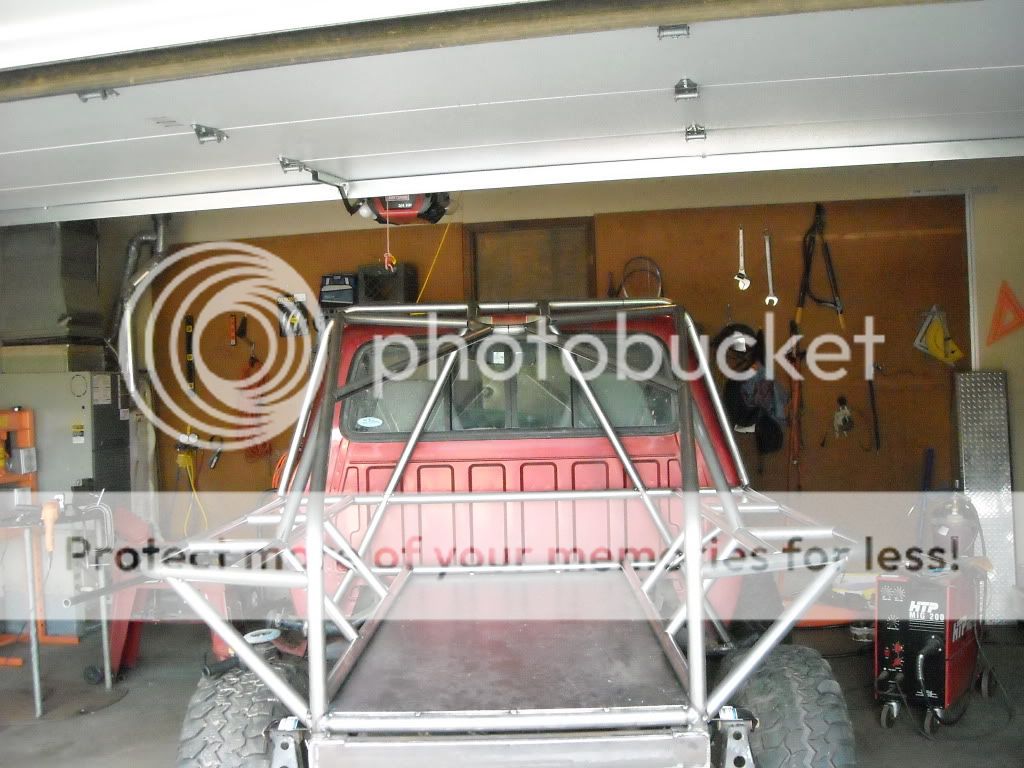

My biggest problem is the rear-most "supports" that just go to the center of your main stringers. They're completely unsupported there unless you run another tube downward into the center bedrail support. No node should be unsupported. If those supports went all the way to the rear of the bed and truncated at that node, then I would like the design better.
I would also be very tempted to add a single diagonal brace from the center of the bend (or where the bedrail intersects) forward to the next bedrail support as well.
I would also be very tempted to add a single diagonal brace from the center of the bend (or where the bedrail intersects) forward to the next bedrail support as well.
RollinWOT
Well-Known Member

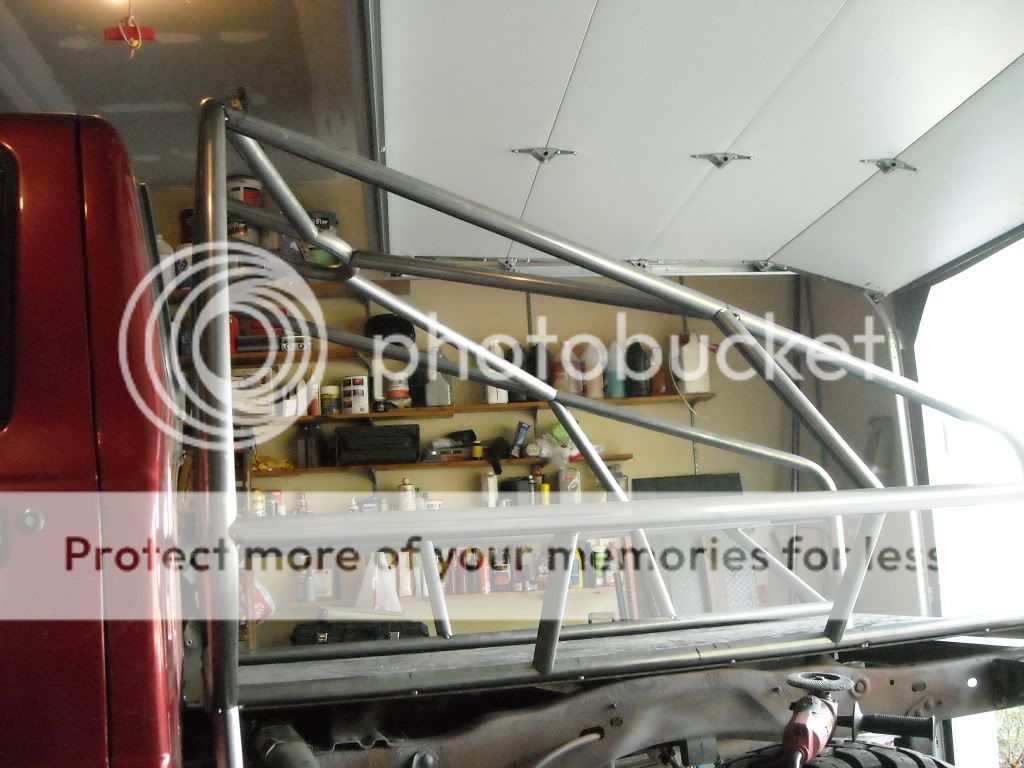

Using HREW or DOM? everything looks great, but yeah, it really is too high for the spare. It would ruin your field of view too much. Good Job!
Kind of waiting until closer to the end for gussets .
it is 1.5' .120 wall HREW
- Joined
- Sep 23, 2004
- Messages
- 4,290
- Vehicle Year
- 2008
- Transmission
- Automatic
I can tell that you know what you're doing, I was just offering a suggestion. It looks top notch so far. (Get it, notch?) LOL. Sorry.
bobbywalter
TRS Technical Staff
TRS Event Staff
V8 Engine Swap
TRS Technical Advisor
TRS 20th Anniversary
Ugly Truck of Month
TRS Event Participant
TRS 25th Anniversary
- Joined
- Aug 9, 2007
- Messages
- 25,142
- City
- woodhaven mi
- Vehicle Year
- 1988
- Engine
- Transmission
- Automatic
- Total Lift
- sawzall?
- Tire Size
- 33-44
- My credo
- it is easier to fix and understand than "her"
looks great. wish i could get away with the cooler looking setup like that but i need a bed.
for the boxes i suggest to have them on their side under the fenders...possible captured with some rod type brackets for protection or just hanging from the fender. i seen em like that on a few old trucks and it looked like it worked great.
i started a bed and think i am just gonna make the boxes part of the fender and have a big drawer where your bed floor is in the back part and a fuel tank in the front part with my deck being what your fenders are all the way across with extensions to make it wider and longer when those needs arise. the suck there is the deck is pretty tall. the vehicle i was using so i could work on the bed broke a few days later so i never been able to work on it since as i been driving the truck....i just set some wood on top and plopped a tank up there and some batteries as i was in a bind. hopefully that will change this week.
i just need a headache rack and rear most extensions incorporated into some sides so i can haul ladders, wood, 4-5 motorcycles and stuff trucks do... wont be building rollover protection in my bed.
so i am jealous of yours, its a damn fine looking upgrade!
really i think its overbuilt already for protection....if that is even possible..maybe, its past the minimums would be a better analogy
for the boxes i suggest to have them on their side under the fenders...possible captured with some rod type brackets for protection or just hanging from the fender. i seen em like that on a few old trucks and it looked like it worked great.
i started a bed and think i am just gonna make the boxes part of the fender and have a big drawer where your bed floor is in the back part and a fuel tank in the front part with my deck being what your fenders are all the way across with extensions to make it wider and longer when those needs arise. the suck there is the deck is pretty tall. the vehicle i was using so i could work on the bed broke a few days later so i never been able to work on it since as i been driving the truck....i just set some wood on top and plopped a tank up there and some batteries as i was in a bind. hopefully that will change this week.
i just need a headache rack and rear most extensions incorporated into some sides so i can haul ladders, wood, 4-5 motorcycles and stuff trucks do... wont be building rollover protection in my bed.
so i am jealous of yours, its a damn fine looking upgrade!
really i think its overbuilt already for protection....if that is even possible..maybe, its past the minimums would be a better analogy
No new pics of ranger tonight . So here is a pic of my old 4runner I build a half exo for .
bobbywalter
TRS Technical Staff
TRS Event Staff
V8 Engine Swap
TRS Technical Advisor
TRS 20th Anniversary
Ugly Truck of Month
TRS Event Participant
TRS 25th Anniversary
- Joined
- Aug 9, 2007
- Messages
- 25,142
- City
- woodhaven mi
- Vehicle Year
- 1988
- Engine
- Transmission
- Automatic
- Total Lift
- sawzall?
- Tire Size
- 33-44
- My credo
- it is easier to fix and understand than "her"
No new pics of ranger tonight . So here is a pic of my old 4runner I build a half exo for .
damn
.....thats friggen bad ass too!
Ended up keeping the hoop , it started growing on me .
