File Sharing! Anyone have any handy Ranger Related STL and DXF files to share?

[PlumCrazy]

I wanted to start a thread for sharing useful files for 3D printing and/or CNCing stuff for Rangers

With how affordable 3D printers are and how easy it is to have things made by CNC like through Send-cut-send etc.... I why not share files here for Ranger related stuff

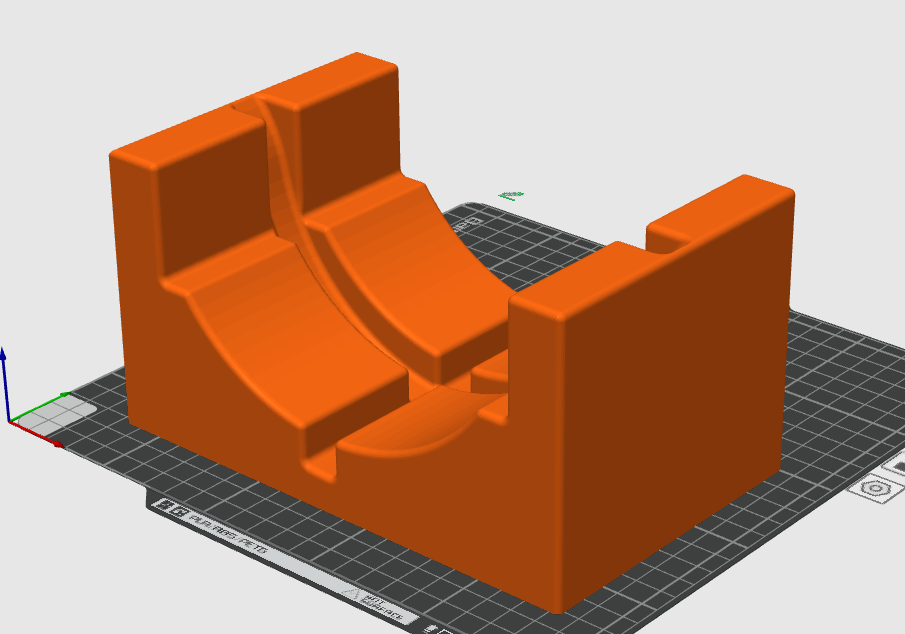

I'll start by attaching this M5OD support block STL I whipped up for sitting the trans on a trans jack without it constantly trying to slide off or roll over.

I'm somewhat new to the 2D/3D data world so if there are other file types that would be helpful lets discuss them here. I know @Jim Oaks has enabled STL and DXF so far.



[Shran]

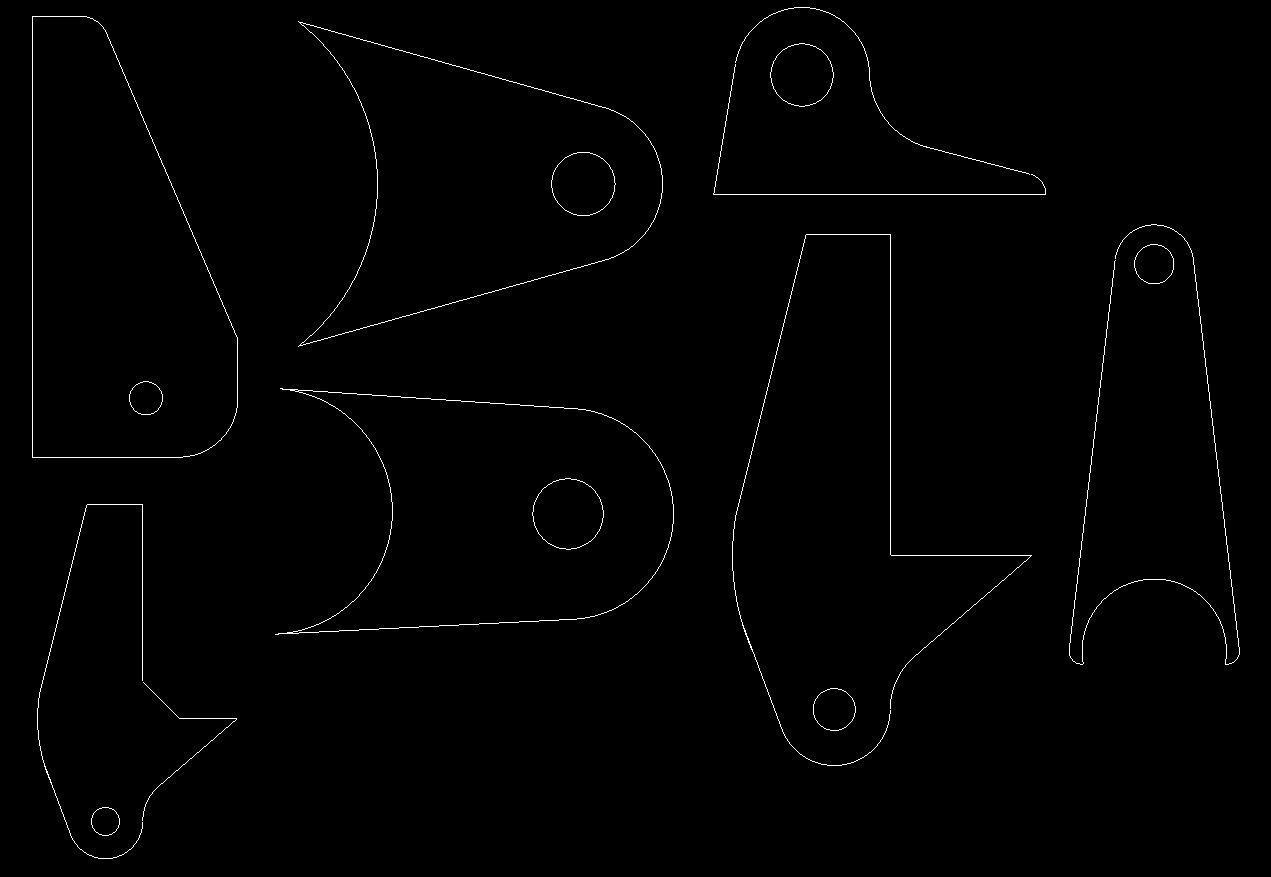

Here's a handful of tabs & brackets - these are all my drawings



[Shran]

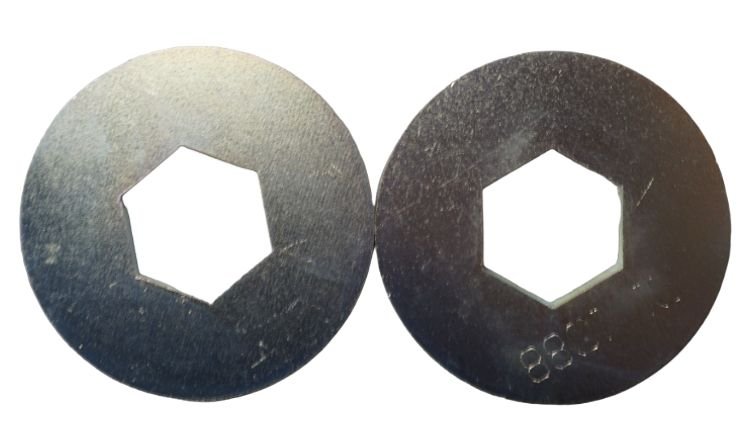

RBV Related: TTB coil spacers. You can get these at Bronco Graveyard but since I have a plasma table I drew my own version and cut them as needed. I use 1/4" plate, you need 1-2 of the hex ones to start with and then as many round ones as you feel are necessary on top of those. Great for levelling your truck side to side.
