93 Ford Ranger 3.0L v6 - EEC 30 amp fuse keeps blowing

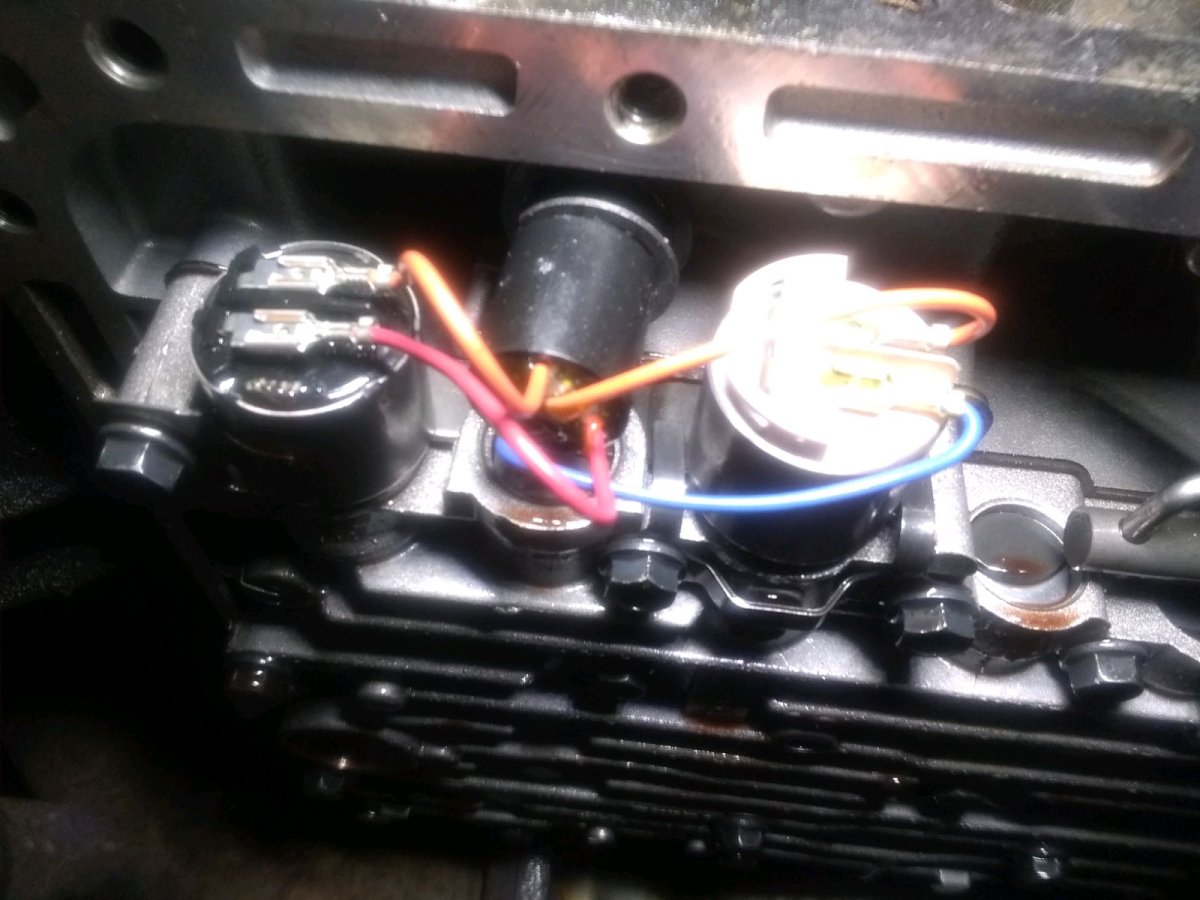

Update, I dropped the valve body and replace both solenoids (TCC & 3/4 shift). Now, the truck fires up and drives as expected.


Attachments

  • 93 Ford Ranger 3.0L v6 - EEC 30 amp fuse keeps blowing
    136.3 KB · Views: 105
  • 93 Ford Ranger 3.0L v6 - EEC 30 amp fuse keeps blowing
    164.1 KB · Views: 100
  • 93 Ford Ranger 3.0L v6 - EEC 30 amp fuse keeps blowing

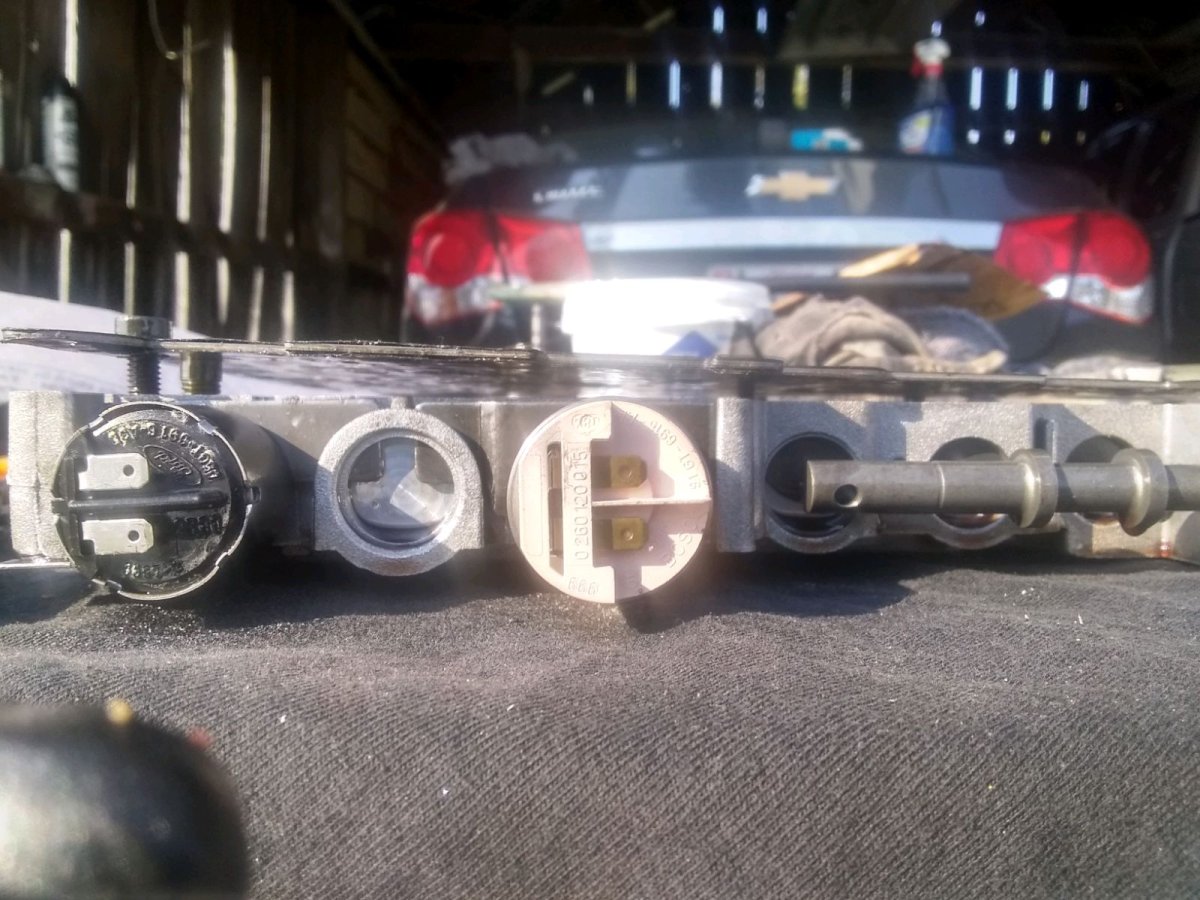

    valve body open and solenoids.jpg
    190.3 KB · Views: 114

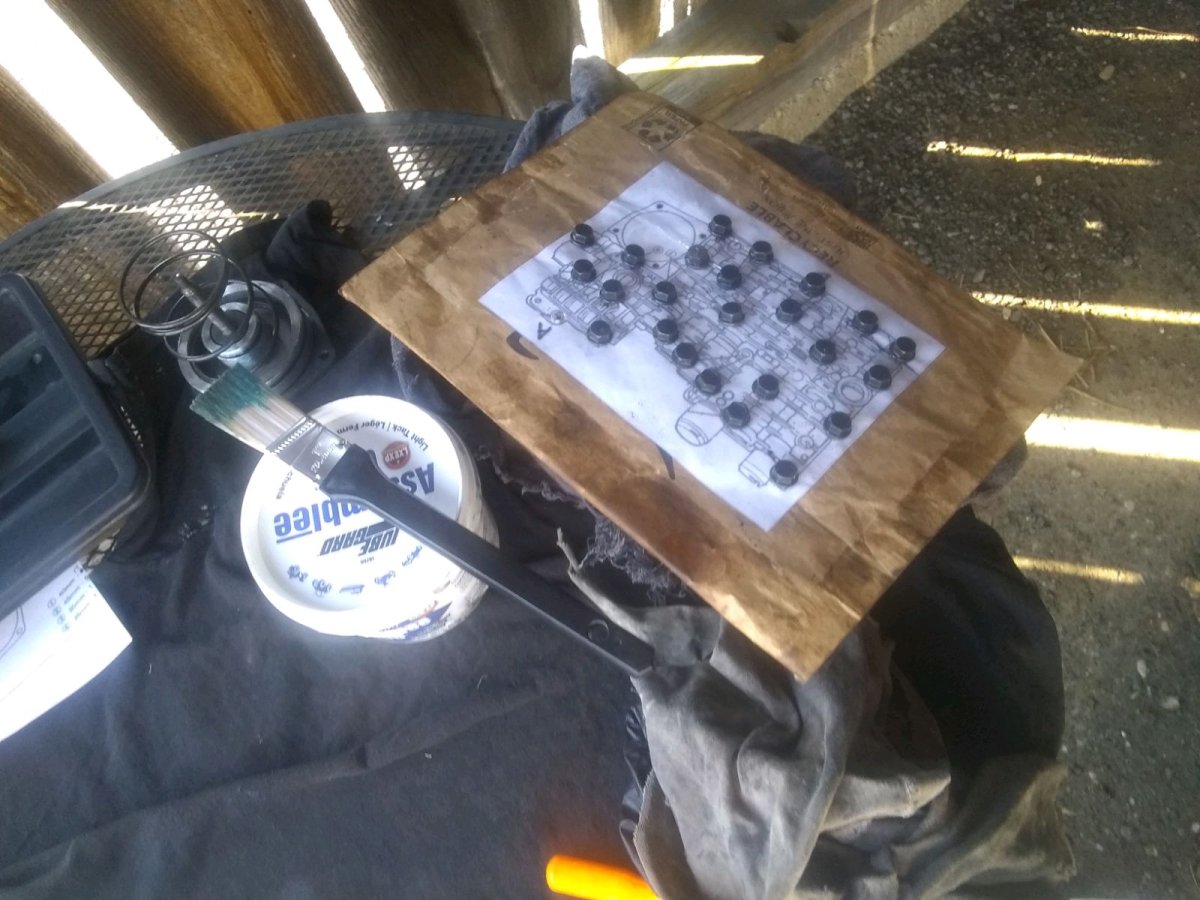

Nice work, and excellent help from "the helpers". I like how you kept the valve body bolts in order during the R&R.
