42 pin harness connector 00Ranger/04Sport Trac

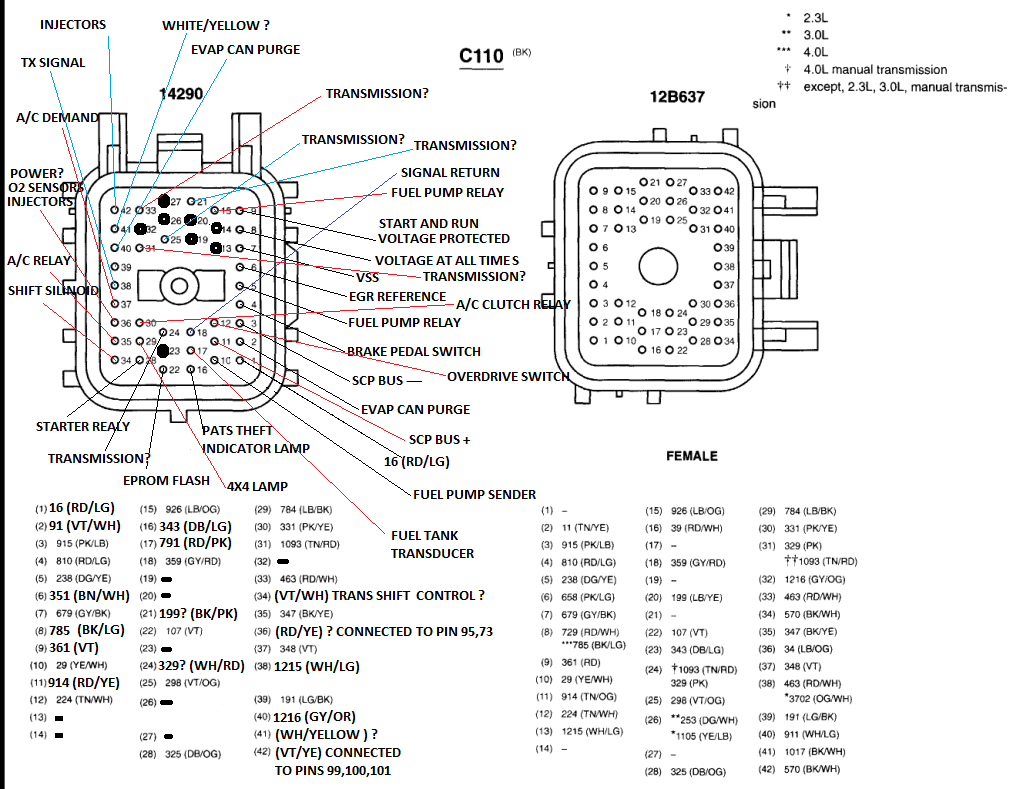

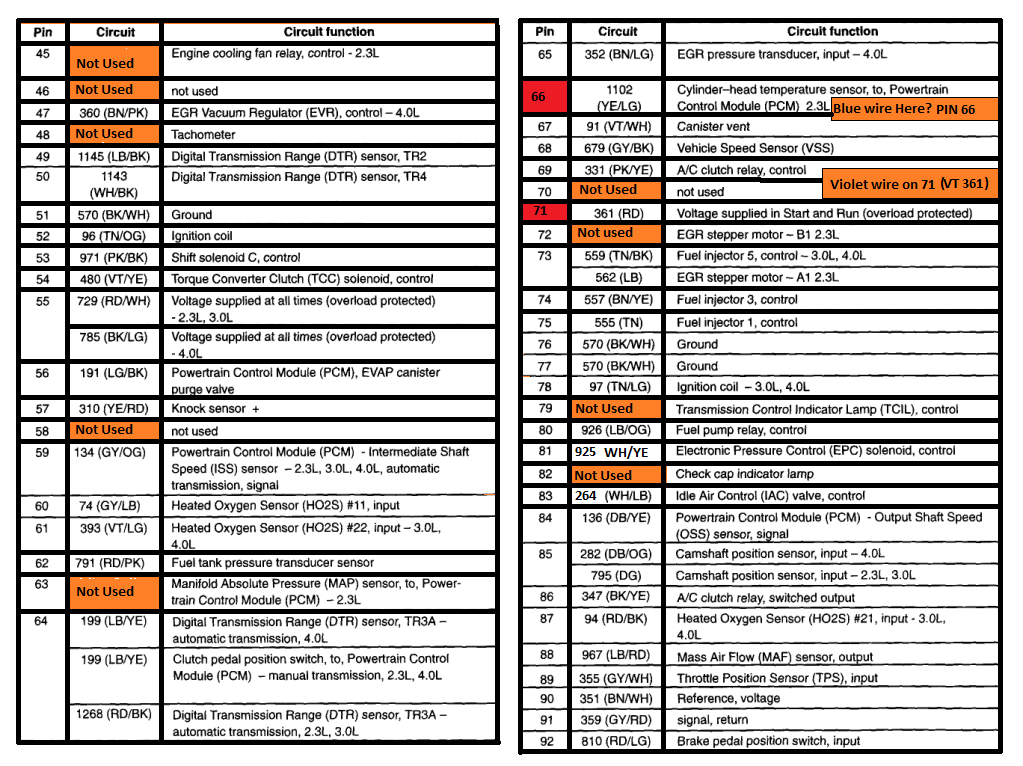

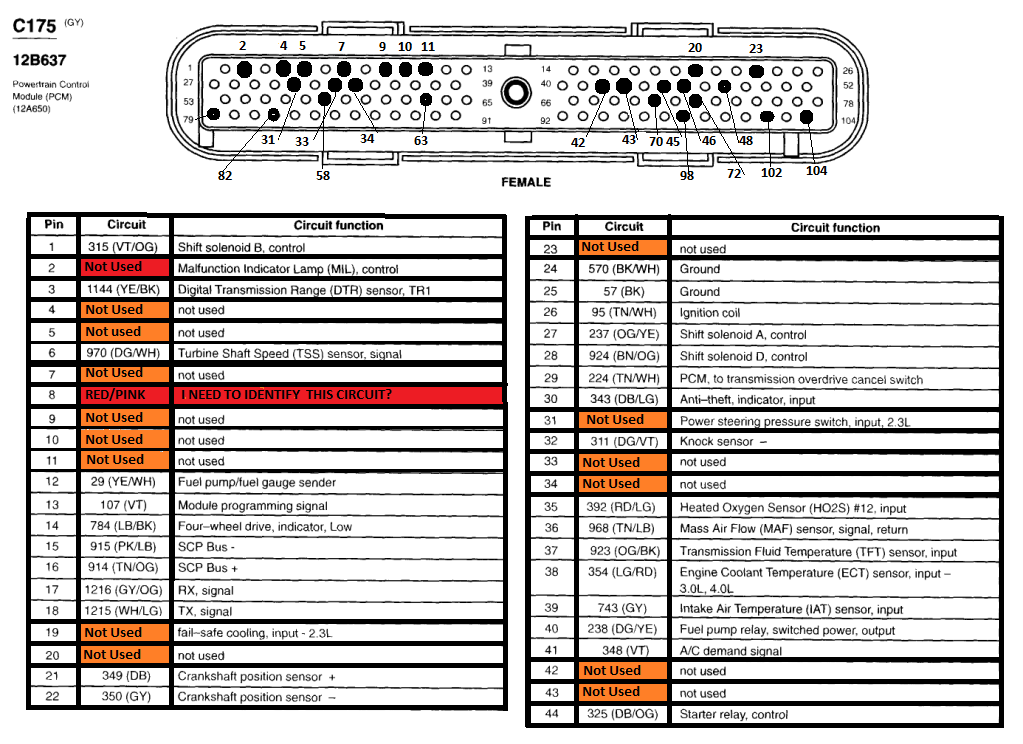

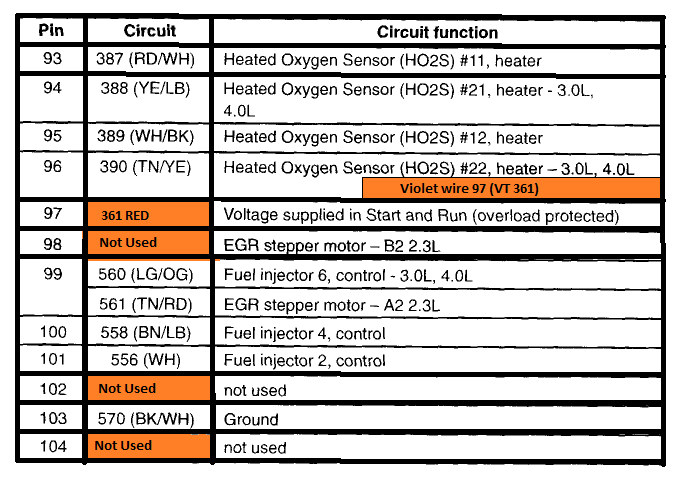

Ok fellas this is what I have pinned out so far. I highlighted all the 2.3 stuff that isnt used, I also highlighted the ones I have questions about. I identified all the wires on the 42 pin connector. I have questions about some of those wires and their function. This info should be helpful to anyone that is looking at swapping a later 4.0 sohc.:icon_thumby:


Attachments

  • 1.png
    248.8 KB · Views: 505
  • 2.png
    300.2 KB · Views: 595
  • 3.png
    46.1 KB · Views: 505
  • 4.png
    229.4 KB · Views: 843
Hi all, Newbee here,
Dumb question, are all the wires used in the 42 pin harness connector 18 gauge? or if not, where could I find a list.?
I am specifically looking for #9 pin red.
This for my 1999 Ranger 3.0. I had a rat eat that wire.
Thank you, Lisa
