How To: Remove First Gen Grill and Change First Gen Headlight

Original Poster: 1qaz

Difficulty: 1 out of 10

Time to install: 30 minutes

Disclaimer: The Ranger Station.com, The Ranger Station.com Staff, nor the original poster are responsible for you doing this modification to your vehicle. By doing this modification and following this how-to you, the installer, take full responsibility if anything is damaged or messed up. If you have questions, feel free to PM the original poster or ask in the appropriate section of The Ranger Station.com forums.

Brief Explanation: How-to to remove the front grill on a first gen Ranger and change a first gen headlight. Though this sounds simple, this how to offers a way to change your headlights without damaging your grill or headlamp retaining ring. The 1987 Ford Ranger Shop Manual describes the project without removing the grill but I could not remove the retaining ring without first removing the grill.

Tools Needed:
- Phillips head screwdriver

Parts Needed:
- Headlight (Shown is a Sylvania H6054)



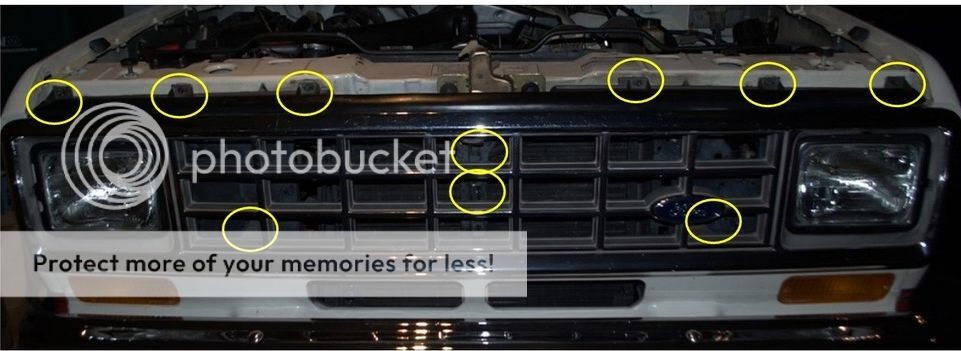

Step 1: Remove 10 visible grill screws (locations shown in yellow circles below)



Step 2: Remove two front parking lights (directly below headlights, two Phillips screws each) to expose two hidden grill screws.



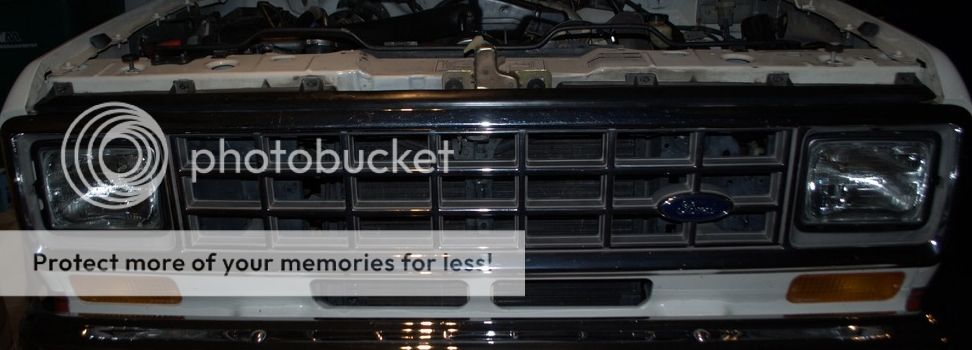

Step 3: Remove grill

Step 4: Remove four headlight retaining ring screws and remove the retaining ring. The screw in the middle (top pic) is an adjusting screw...do not unscrew or adjust. There is another on the outside portion of the headlight. Neither one holds the headlight or retaining ring.





Step 5: Pull the headlight forward and disconnect the wiring plug...it simply pulls out.



Step 6: Plug in new bulb and place back in position. Ensure headlight is positioned right side up. Plug will be on top and logo on front of headlight will be right side up.

Step 7: Replace retaining ring.

Step 8: Replace the grill.

Step 9: Replace parking lights. Done.

Good job...photobucket seems to have gotten a bit faster lately...it was extremely slow for a while and I all but gave up on waiting for it to load.

Anyway...very helpful for someone who has never done this...I remember breaking a few grills and destroying other things...

I still have a set of the pods and trim pieces from my 88...have them for sale but so far no takers...even have the original mounting springs and adjusters...but I'm guessing these things can still be bought at a parts supplier if needed. My pods are in good shape for being almost 30 years old...probably due to having removed them and cleaned them up 17 years ago when I first got the truck...and applying a coat of rust enamel...

Amazing what a bit of care will do for the longevity of a vehicle...

You don't need to take the grille off to get the headlights out. I've done it many times.

For me, it made more sense and was safer to just remove the grill. The retainer ring metal on mine is sharp and easily slices flesh. Getting the ring in front of grill is way harder than it should be.

I think mine had rubber splash guards that made it harder to remove the retainer ring and removing the grill...or at least loosening it off enough to slip the ring out...made it easier.

Been a long time since I took one apart though...so kinda vague memories.

On my truck I have Hella "E-code" headlamps that use a removeable H4 (HB2) bulb
which is can be changed from behind the radiator support...

Which is an good thing considering that I have an integrated tow-bar bracket, push-bar and grille guard the push bar and grille-guard fit very close to the grille making the grille an major PITA to remove.

Though to replace the passenger side bulb requires removing the battery.
and of course removing the battery requires removing the top of the air-cleaner box and the duct to the engine..

I swapped out the first gen front end for a second gen with the replaceable halogen bulbs. It was easier to change them after that...with the same gyrations of removing the battery and air filter cover.

I was thinking there had to be an easier way and considered moving the battery...but that was next to impossible without putting it in the cab or the bed...and a battery in the cab is a bad idea generally.
