Many of you use your Ford Ranger to travel off-road, and more and more of you are using them for camping trips. Anyone who has camped for more than a day knows how important it can be to have a fully charged battery. They also know how quick you're battery can die if your motor isn't running.

This is where a solar charging setup becomes very handy. A solar setup can help you with simple things like keeping your phone charged, to providing enough electric to run appliances.

Portable Solar Charging Options:

Cell Phone Charger - If all you're concerned about is keeping your cell phone charged while camping, then you can get a Portable Solar Cell Phone Charger.

(Portable Solar Cell Phone Charger)

Battery Tender - A Solar Battery Tender (Maintainer) will help keep your battery charged if you plan to let the vehicle sit for extended periods of time. They work by plugging in to your cigarette lighter, or some also come with cables to clamp it directly to the battery.

Important: The style that plugs in to your cigarette lighter will only work if the lighter works when the key is off. If your lighter jack only works with the key on, then you'll need to use the battery clamps, or either rewire your lighter jack so it always has power, or added a secondary jack.

Also, not all solar battery tenders have a voltage regulator to keep it from over charging.

(Solar Battery Tender)

Portable Solar Power Kits - You can buy Portable Solar Power Kits that you can set up anywhere to offer either 12-volt or household AC current.

Above was some ideas about portable solar options. Now let's take a look at some more serious setups.

Hard Mounted Solar Panel Setups:

If you have a camper (or SUV), then you may want to go with a hard mounted solar panel setup. In this setup, the panel is bolted to the roof and is permanently wired in.

The biggest factors when choosing the right setup is:

  • How many watts / amps do I need?

  • How much space do I have available to mount it?

Choosing the right solar panel wattage probably seems like the most confusing part of picking a set up. What size solar panel (wattage) do I need? Some just go with the biggest panel they can fit or afford. But it's possible that one panel may not be enough.

What's Involved:

Typically in a hard mounted solar setup, you would have:

Solar panel - To absorb sunlight and turn it in to electricity.

Controller - Think of it like the voltage regulator on your truck. The solar panel, just like your alternator, puts out more than volts than required to charge the battery. In the case of a solar panel it's around 17 volts. The controller controls the voltage going to the deep cycle battery you're using in your solar charging system (deep cycle batteries require 14.5 volts to charge. Most car batteries require 13.6 volts). It will keep the batter charged, and keep it from overcharging.

Battery - Your battery (or battery bank if you have more than one) stores the power being generated by the solar panel.

You'll need a deep cycle battery. The more Amp Hours (AH or AHR) it lists the better. Ideally you'll want a 100AH battery. Batteries like Optimas Bluetop only puts out 50AH - 75AH. The VMAX SLR100 AGM 100AH battery is a good example.

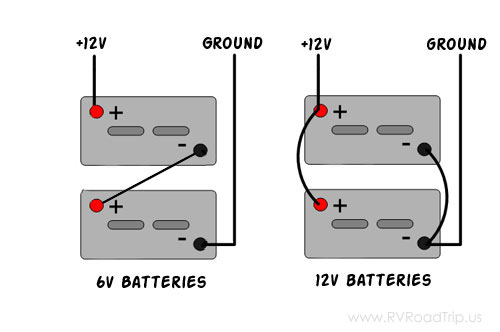

Also, if you're running more than one battery for power storage (dual 6-volt or dual 12-volt), you'll need to wire them in parallel as shown below:

Inverter - An inverter can be added to convert 12 volt DC to household AC to run small appliances.

Transfer Switch - A transfer switch (not shown) is used to hardwire inverters into a system where there is an alternative source of AC. It only allows one source of AC power to pass through it to the loads. This ensures that the inverter will not be damaged if the generator or utility power is hooked up while the inverter is running.

How Many Amps Am I Using / What Are My Needs?

Here's a chart to use as a basic guide.

12 Volt Appliance Amps X Quantity X Hours Run/Day = Total Amps 120 VAC Appliance Using DC to AC inverter Amps X Quantity X Hours Run/Day = Total Amps
10 Watt Light 0.8       Incadescent 40W 0.3
15 Watt Light 1.3 4 3 15.6 Incadescent 60W 0.5
8 Watt Fluorescent Light 0.6       Flourescent 40W 0.1
LED Light 0.1       Flourescent 60W 0.1
Water Pump 12V 4.0       Fridge (small) 3.3
Furnace Fan 4.0       Microwave (1000W) 8.3
DC Fan 4.0       Blender (small) 2.5
Propane Alarm 0.2       Coffee Maker 6.7
Fridge (Propane) 0.4       Toaster 10.0
Fridge (12V)* 3.0 1 24 72.0* (21.6) TV (19 Inch) 0.8
Stereo 12V 0.8 1 3 2.4 DVD Player 0.3
CB Radio 0.8       Cell Phone Charger 0.2
VHF Radio 0.8       Laptop 1.3
TV 12V 3.0

Total =

      39.6
*Note: Fridge only runs approximately 30%. Multiply the total by 0.30

Amps Basic Math:

You'll need to know some basic math:

Amps x Volts = Watts

Watts / Volts = Amps

Watts / Amps = Volts

Looking at the chart above, you'll see that I calculated 39.6 amps used in a day. That's a total of 475.2 watts (39.6 Amps x 12 Volts = 475.2 Watts).

According to the sun chart below, the area I live in gets an average of 4.2 good solar sun hours a day. To simplify things, I'm going to round down to 4 hours.

To regain 475 watts in 4 hours, my panel would have to produce 118.75 watts. If I wanted to fully recharge in 1/2 that time, I would need panels putting out 237.5 total watts.

How Many Watts Am I Using / What Are My Needs?

Here's a chart to use as a basic guide.

12 Volt Appliance Watts X Quantity X Hours Run/Day = Total Watts 120 VAC Appliance Using DC to AC inverter Watts X Quantity X Hours Run/Day = Total Watts
10 Watt Light 10       Incadescent 40W 40
15 Watt Light 15 4 3 180 Incadescent 60W 60
8 Watt Fluorescent Light 8       Flourescent 40W 11
LED Light 1       Flourescent 60W 16
Water Pump 12V 48       Fridge (small) 400
Furnace Fan 48       Microwave (1000W) 1000
DC Fan 48       Blender (small) 300
Propane Alarm 3       Coffee Maker 800
Fridge (Propane) 5       Toaster 66
Fridge (12V)* 36 1 24 864* (259) TV (19 Inch) 100
Stereo 12V 10 1 3 30 DVD Player 30
CB Radio 10       Cell Phone Charger 20
VHF Radio 10       Laptop 150
TV 12V 36

Total =

      469
*Note: Fridge only runs approximately 30%. Multiply the total by 0.30

Watts Basic Math:

You'll need to know some basic math:

Amps x Volts = Watts

Watts / Volts = Amps

Watts / Amps = Volts

Looking at the chart above, you'll see that I calculated 469 Watts used in a day (39 Amps).

According to the sun chart below, the area I live in gets an average of 4.2 good solar sun hours a day. To simplify things, I'm going to round down to 4 hours.

To regain 475 watts in 4 hours, my panel would have to produce 118.75 watts. If I wanted to fully recharge in 1/2 that time, I would need panels putting out 237.5 total watts.

What You Should Buy:

You're better off getting a complete system than trying to piece something together on your own. This will ensure that everything is compatible and you get the best performance.

For me, the Go Power 160 Watt Weekender SW Complete Solar Kit With Inverter looks to be the best setup for me. It's a complete kit (minus battery) that includes an inverter

Sun Hours Map:

Comments:

Want to add to this article? Feel free to submit your comments HERE.

Resources:

Go Power
