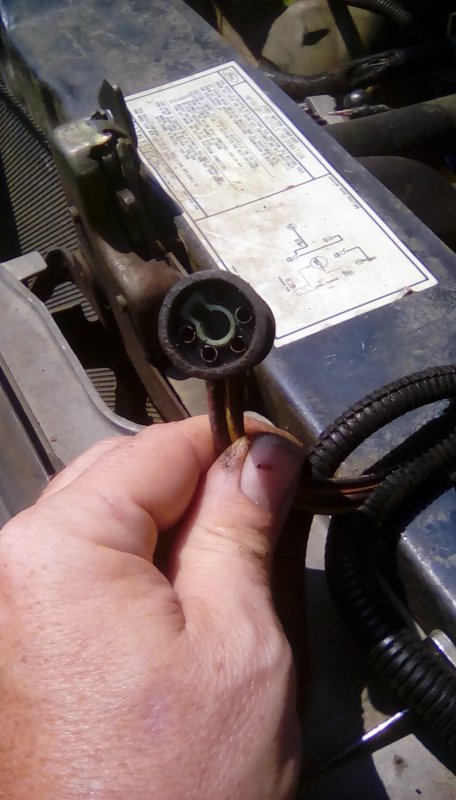

I need the pin out for the trans plug a4ld
- Thread starter bf750
- Start date
Snoranger
Professional money waster
TRS Event Staff
TRS Forum Moderator
Supporting Member
Article Contributor
RBV's on Boost
ASE Certified Tech
VAGABOND
TRS Event Participant
GMRS Radio License
TRS 25th Anniversary
- Joined
- Nov 25, 2007
- Messages
- 13,848
- State - Country
- NJ - USA
- Vehicle Year
- '79,'94,'02,'23
- Vehicle
- Ford Ranger
- Engine
- 2.3 EcoBoost
- Transmission
- Automatic
- My credo
- I didn't ask for your life story, just answer the question!

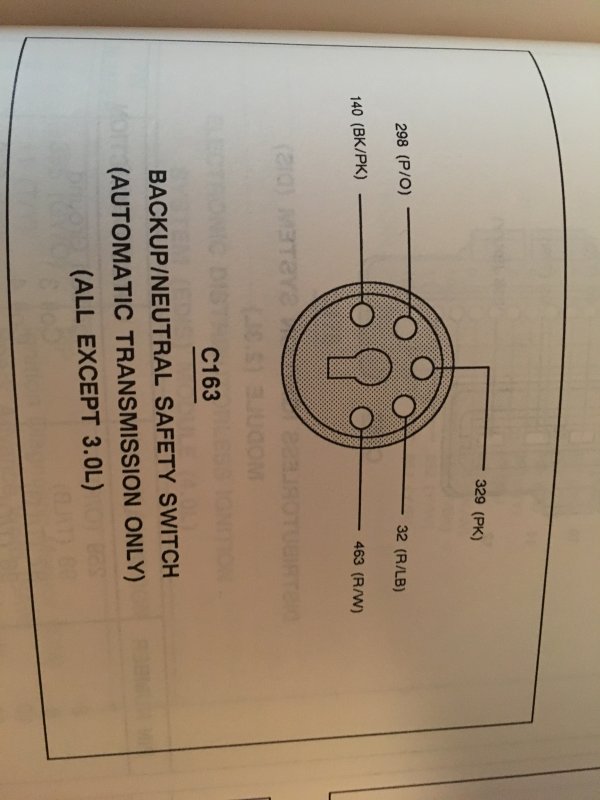

Wire 32 goes to the starter solenoid.
Wire 329 comes from the ign switch through the clutch position switch jumper.
Wire 463 has ground in neutral only. (It's for the e-shift transfer case.)
Wire 298 is power in for reverse lights.
Wire 140 is power out to reverse lights.
That's from memory. It's been about 15 years since I used that info... stop making me think at 2AM.
Wire 329 comes from the ign switch through the clutch position switch jumper.
Wire 463 has ground in neutral only. (It's for the e-shift transfer case.)
Wire 298 is power in for reverse lights.
Wire 140 is power out to reverse lights.
That's from memory. It's been about 15 years since I used that info... stop making me think at 2AM.
