Got my 4.0 done and forgot where the "shim" washer goes for the flywheel?


richard booth

Well-Known Member
Joined
Mar 18, 2012
Messages
205
City
Tacoma wa
Vehicle Year
1988
Transmission
Manual
Got the 4.0 done and when I went to assemble the flywheel and clutch I have a washer or shim w 6 holes that goes either on the front or back of the flywheel? anyone remember where the 6 hole washer goes? Thanks.

Think I figured that I do not need to use the washer, think it may have been from the automatic the motor came from. Thoughts?

How thick is this thing? If it's just a little thing then it goes under the flywheel. If it is big, about 3/4" thick, then yes, it was for an automatic.

Pictures would help.

Does it have marks from the bolt heads? That would be a dead giveaway.

How thick is this thing? If it's just a little thing then it goes under the flywheel. If it is big, about 3/4" thick, then yes, it was for an automatic.

Pictures would help.


Attachments

  • 15867122847215291932670849854879.jpg
    152.2 KB · Views: 193

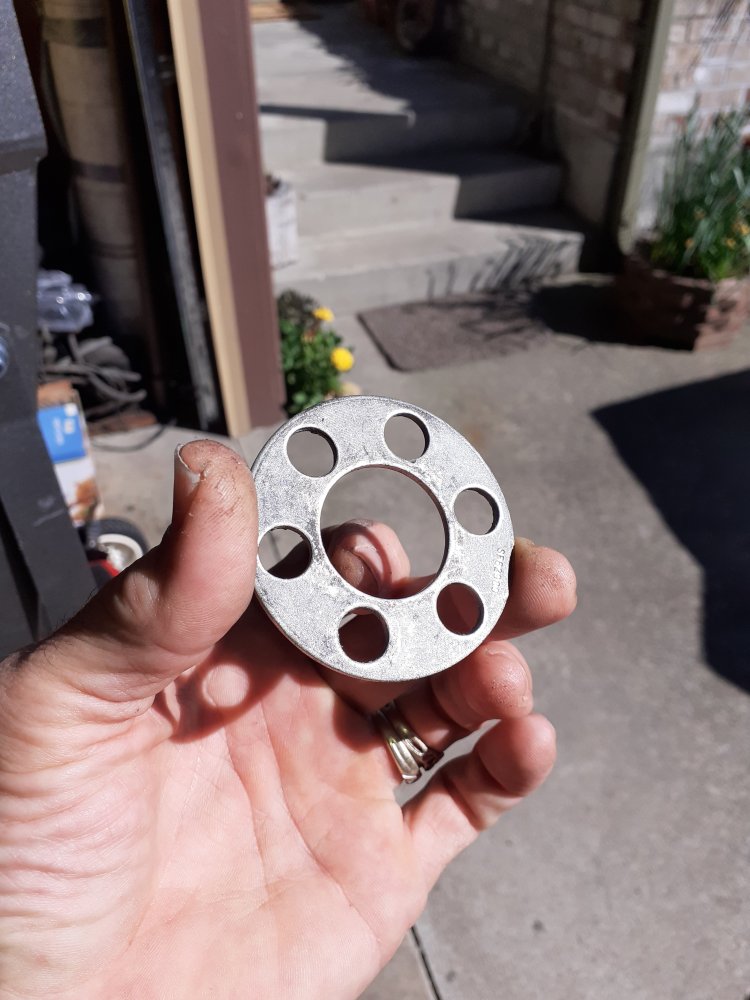

It's thin, .010 but it takes up most of what appears to be alignment for the flywheel so I wasn't sure, thanks for your time all.

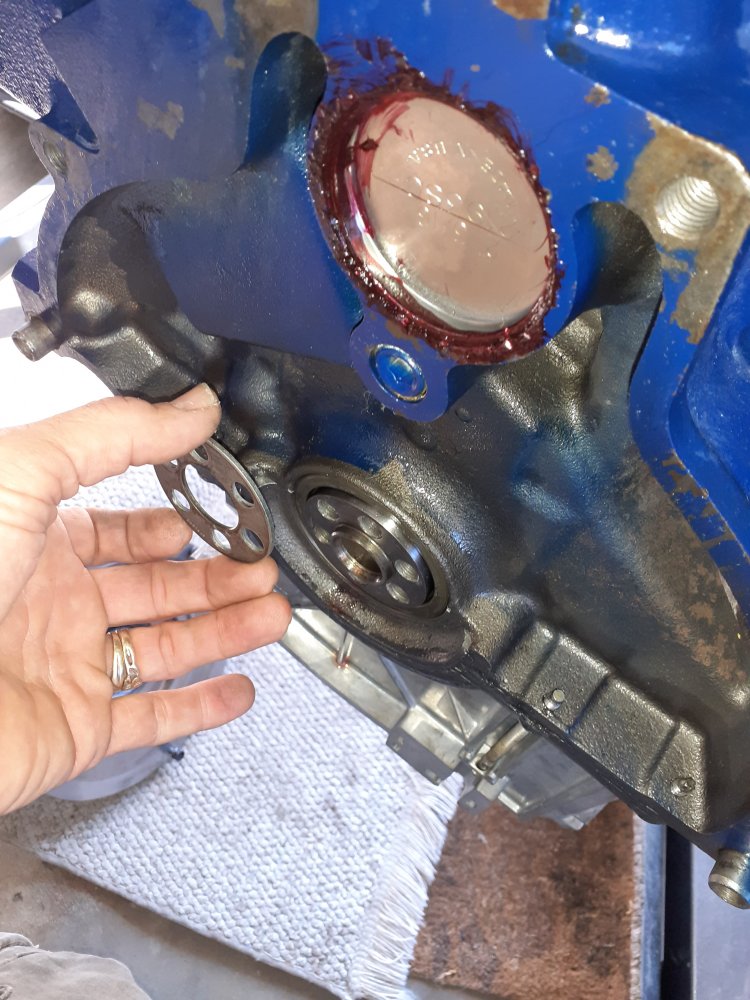

No bolt head imprint and kinda oily so must go on the crank before the flywheel, just takes up more than half of what appears to be alignment portion of the crank for flywheel to go on, thanks.


Attachments

  • 15867125127191862364688505073560.jpg
    103.7 KB · Views: 170
Shims like that are used to take up space when the flywheel is surfaced. When the flywheel is surfaced there is material removed. So now the clutch surface is farther away. Putting a shim on the crank side of the flywheel brings it back to where the distance from clutch to flywheel is back in spec.

Yup, looks like a machining shim.

I don't like them personally because it also changes where the ring gear falls on the starter gear.

Yup, looks like a machining shim.

I don't like them personally because it also changes where the ring gear falls on the starter gear.
Thats what went through my mind, I agree. Thanks for your input.
