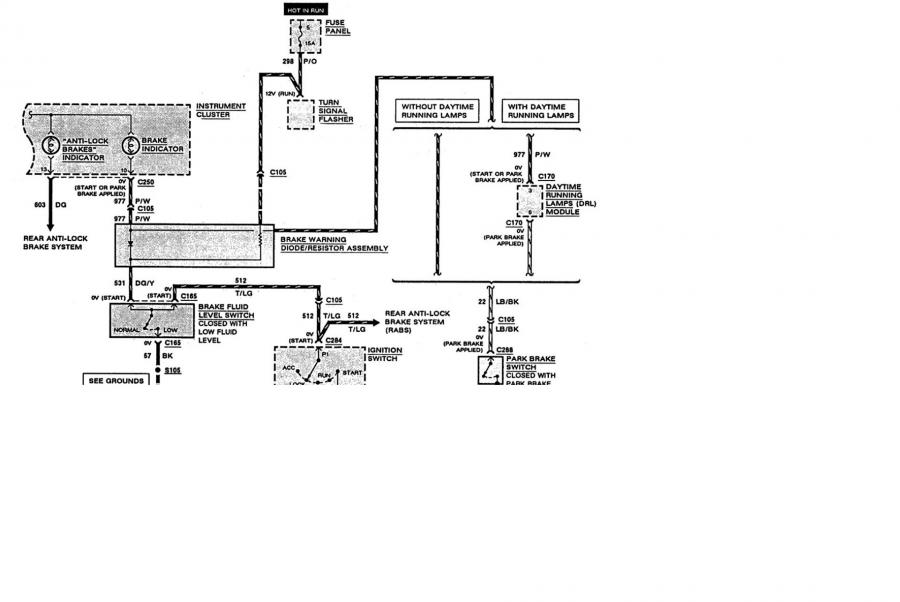

brake warning light schematic

[--weezl--]

I'm giving my friend a hand working on his 1993 ranger, his e-brake hasn't been turning the brake warning light on the dashboard on, as long as he's had it, and he finally decided to fix it. The bulb is fine, it lights up when you start the truck, the switch seems fine, as we bypassed the switch and grounded the wire (single wire to the switch) and tried it ungrounded. truck is disassembled right now, and we can't find any schematic that shows that circuit on it! anyone have this or have had this problem?



[rtg143]

Try this



[--weezl--]

thabks rtg, while that didnt help me at all, the owner of that truck took a look at it and realized it was his drl module, of all things, so that post did save the day!



[rtg143]

Glad to hear that it's fixed. Thanks for the update.
