302 efi swap progress

[reef93]

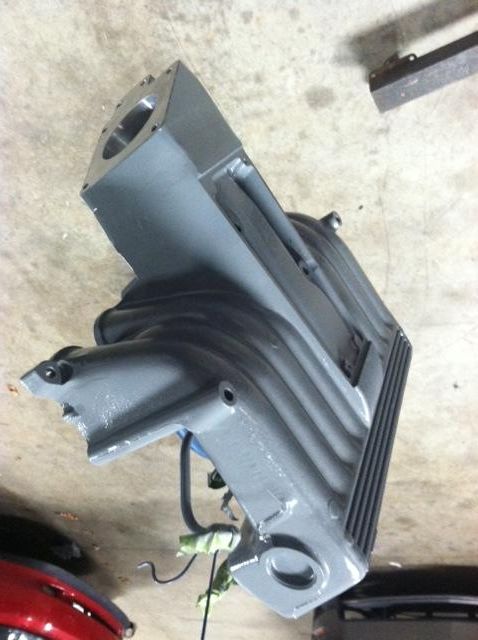

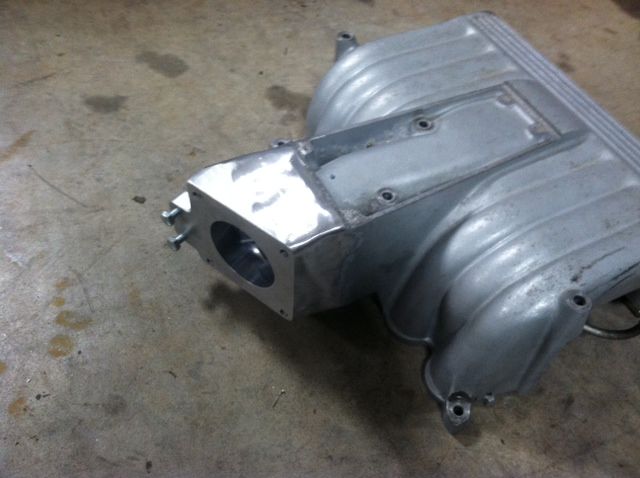

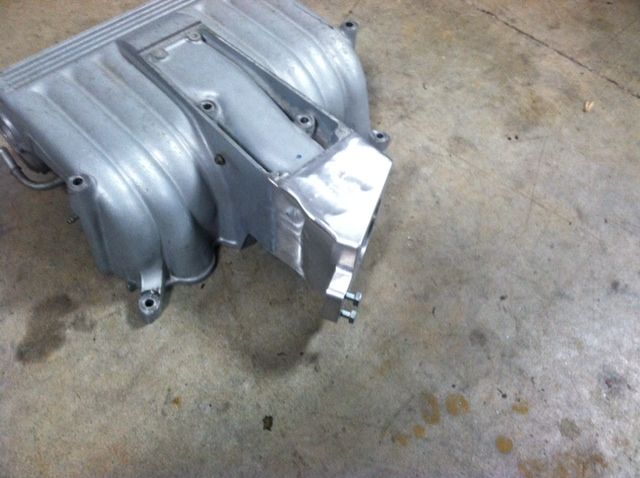

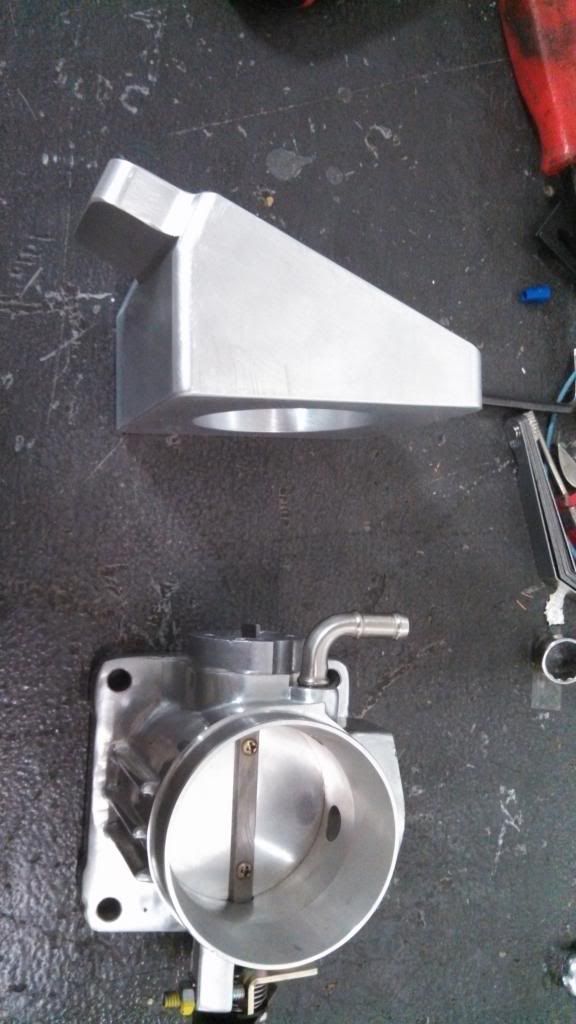

A while back I started the switch from a 2.9 Ranger to an Explorer motor with a TFS stage 1 cam and EFI. Its been a little time consuming to say the least but really not difficult. Few bumps in the road here and there but figured I would share my modified intake. We were having trouble with everything hitting the heater box and didnt want to run a 94-95 mustang intake and tried installing a 94-95 elbow and that wouldnt clear either and would'nt allow for a fox throttle body. Probably be a little easier if we didnt have to have AC....lol Let me know what you guys think



[Road Angels]

intake

nice job, hope you left a little extra for the engine torqueing towards the heater box



[reef93]

nice job, hope you left a little extra for the engine torqueing towards the heater box

Sure did, with the intake modified it ended up clearing by about an inch and 1/2



[morse johnson]

That's excately why in my 91 2wd I turn my plennum 180 degrees and ran my stuff da other way for clearance and made me a bracket to hold mass air flow



[reef93]

That's excately why in my 91 2wd I turn my plennum 180 degrees and ran my stuff da other way for clearance and made me a bracket to hold mass air flow

That was our original plan also but having all fox mustang parts I didnt see anyway of making the throttle body work without it being upside down. I could have just ran all truck stuff I guess.
