2007 Ranger 4x4 rear yoke

[Ajnewman31]

Aloha everyone,

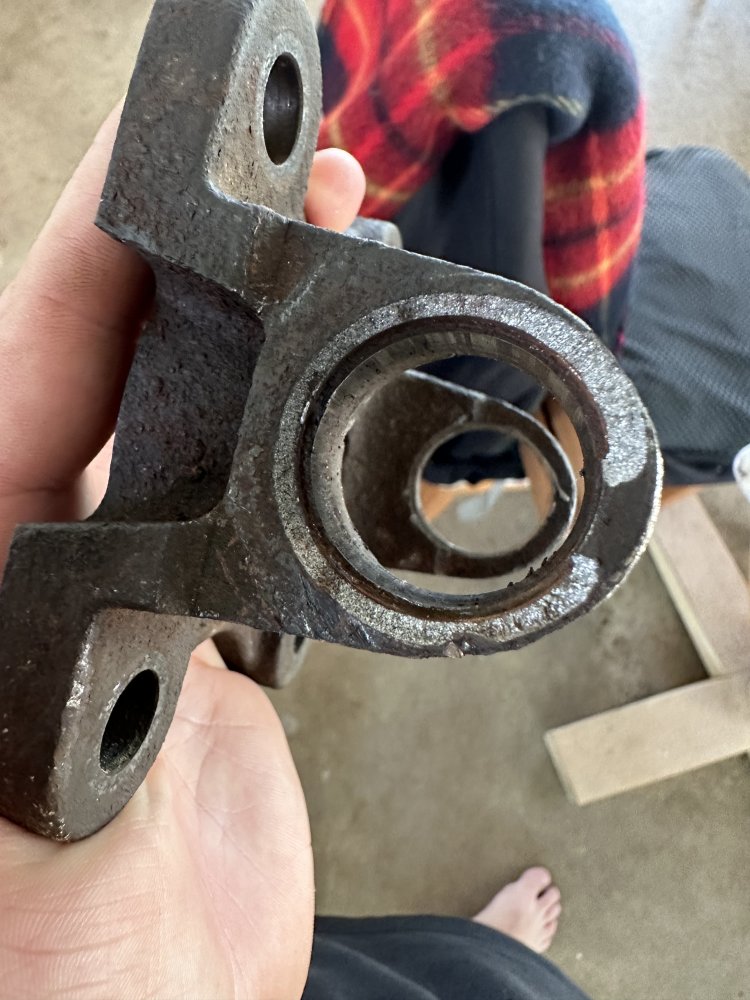

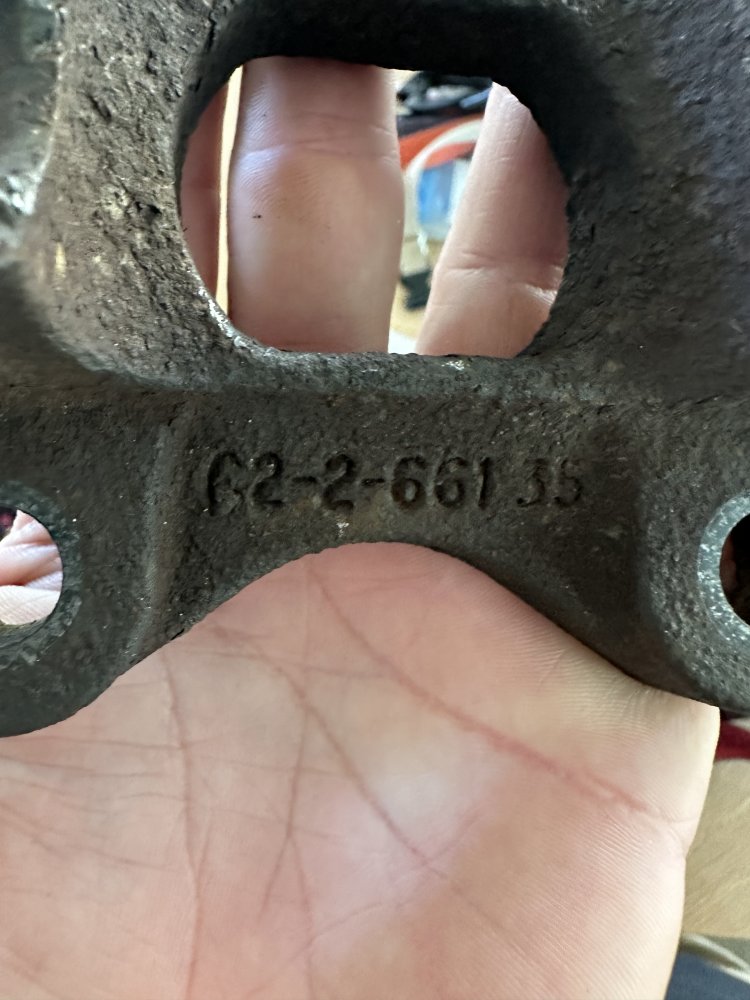

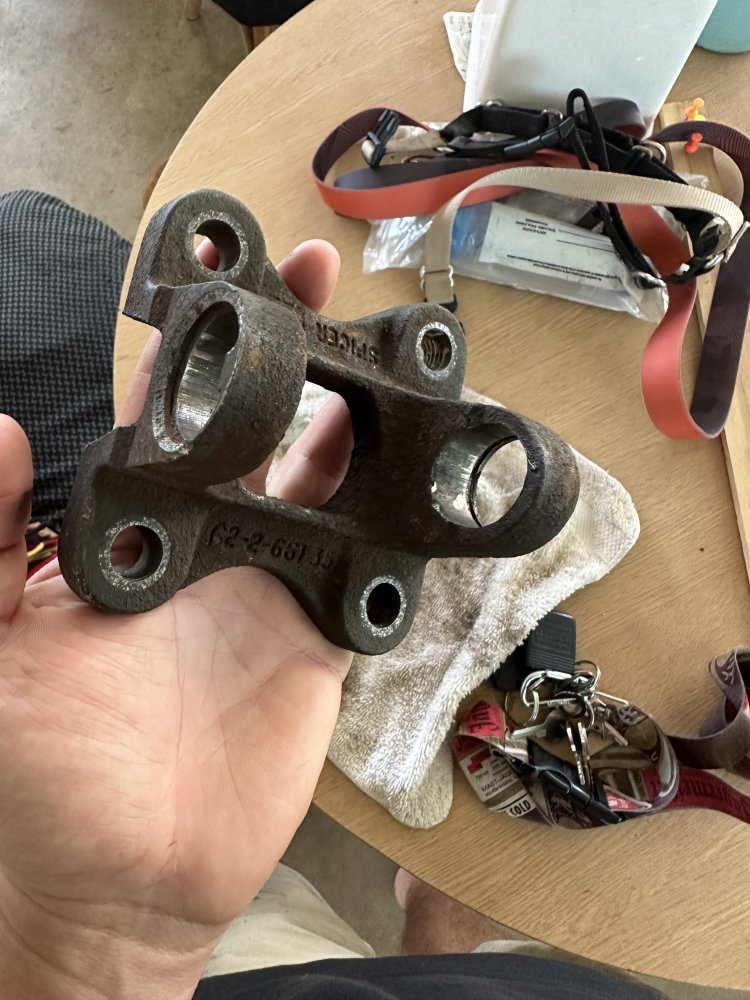

I’ve been searching everywhere and can’t seem to find the rear yoke connecting my rear driveshaft to my rear diff for my specific Ranger. I’ve seen it discontinued but can’t find the replacement part. I have found it OEM on EBay but was wondering if anyone knows of another make/model I can find it on to hopefully pick up at the junkyard or something. Couldn’t find it on Rock Auto either. I was replacing my rear UV joint and when setting it, the snap ring blew out the one side. It’s an automatic 2007 Ranger XLT V6 4.0 4x4



[pjtoledo]

try this one, may have to call/text for more info.

1310 Driveshaft Flange Yoke-Broncograveyard.com



[Ajnewman31]

try this one, may have to call/text for more info.

1310 Driveshaft Flange Yoke-Broncograveyard.com

unfortunately not the correct part. If anyone had had this issue before, I’m still looking. If I find the correct part I’ll post a link on the thread.



[pjtoledo]

is this it? with the part # E9TZ4782B that is a 1989 part, it should be in millions of Ford vehicles. open the related parts window, select 4782

https://parts.ford.com/shop/en/us/transmission/powertrain-engine-parts/coil-spring-suspension-drive-shaft-shaft-drive-%2830l-mt%29-p-5l5z4602ab?pdp=y#/collapseRelated3

EDIT: this Ford part is for a 1330 joint



[Uncle Gump]

Just a heads up...

I moved this to the axle forum.



[pjtoledo]

gave it the shaft, eh?



[Uncle Gump]

Uh huh...

Just keeps things organized.



[Ajnewman31]

is this it? with the part # E9TZ4782B that is a 1989 part, it should be in millions of Ford vehicles. open the related parts window, select 4782

https://parts.ford.com/shop/en/us/transmission/powertrain-engine-parts/coil-spring-suspension-drive-shaft-shaft-drive-%2830l-mt%29-p-5l5z4602ab?pdp=y#/collapseRelated3

I checked the link and it’s something way off I’m pretty sure. I might have found it on bronco graveyard but need to double check the measurements again. Went out and bought a micrometer



[Ajnewman31]

I think this may be the one but I’m having trouble understanding the sizing at the bottom of the page. I know there’s a diagram but there are multiple of each letter and it doesn’t say which figure number it’s referring to.

2-2-1379 Drive Shaft Flange Yoke - Broncograveyard.com

uses 1310 series jointbr br Other Recommended Parts:br Sealbr Pinion Nutbr br

shop.broncograveyard.com



[Uncle Gump]

It looks pretty self explanatory to me....



[pjtoledo]

size matters, here is a chart. measure from cap to cap ends on the joint. measure from the inside edge of the retaining grooves on the coupler/yolk.

1310 u-joint dimensions - Search (bing.com)



[Northidahotrailblazer]

Have you been to a local drive line shop? This is all common stuff in the driveline world. They might be able to help you out. Might be even have something in stock. These flanges were very common in fords, jeeps and im sure other things. And they are like the same flange for 20 years. I'm sure thats the same flange that was on my 91 explorer rear driveline. I have a unknown year drive line from a xj in my ranger.



[Ajnewman31]

It looks pretty self explanatory to me....

Woah! Congratulations! Here’s your gold star ️. Thanks for helping….



[Ajnewman31]

Have you been to a local drive line shop? This is all common stuff in the driveline world. They might be able to help you out. Might be even have something in stock. These flanges were very common in fords, jeeps and im sure other things. And they are like the same flange for 20 years. I'm sure thats the same flange that was on my 91 explorer rear driveline. I have a unknown year drive line from a xj in my ranger.

We’ve got slim pickings on the island but I’ll give that a try



[Uncle Gump]

Woah! Congratulations! Here’s your gold star . Thanks for helping….

Easy Aj...

There is no room here for that. We collectively help 100's of folks like yourself and have been fir almost 25 years.

It looks to me like there is enough info there to bounce off your part.
