1997 4.0 camshaft synchronizer wrong size.

[Lost_In_Wal-Mart]

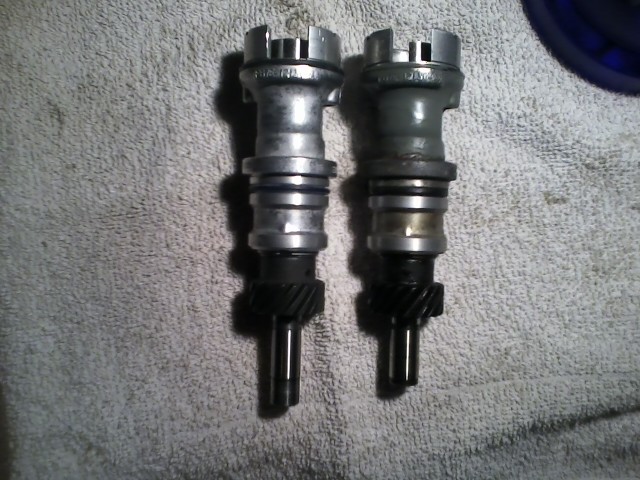

So my 97 for ranger started the deathly "chirp" so after searching, I found out it was the camshaft synchroziner, no problem, didn't look that hard, so I ordered the new parts, can't find where I read it, but I read that 97+ 4.0's take the 132mm shaft, so that's what I ordered from rockauto, well I got my old symchronizer out today, and it's smaller than the new one.....I'll let pictures do the talking..



So would you all say I need the 123mm shaft, or is there something I'm missing...???

Hoping sense I buy a lot from rockauto they'll help me out getting the right part....



[monsterchuck]

Yep, looks like you need the shorter synchronizer. Rockauto has always been pretty good to me with returns and such, it's just a pain waiting for shipping.
