1987 2.3 Vacuum and Coolant Line Routing

[velcro7279]

Well pulled a duh and didn't take pics of the way the coolant and vacuum lines were routed on my 2.3.

Just rebuilt it and am about ready to put it back in the truck and I need to know where the coolant line hooks into the intake. I know that it goes around behind the valve cover, but I am not sure where in hooks into the throttle body.

I also don't know how the vacuum lines are hooked to the throttle body and the vacuum tree on the top of the intake. I need to know what ones hook where.

If anyone has some good pics of how the lines hook up or could direct me somewhere that I could see some pics.

Thanks,

Steve



[SykoRanger88]

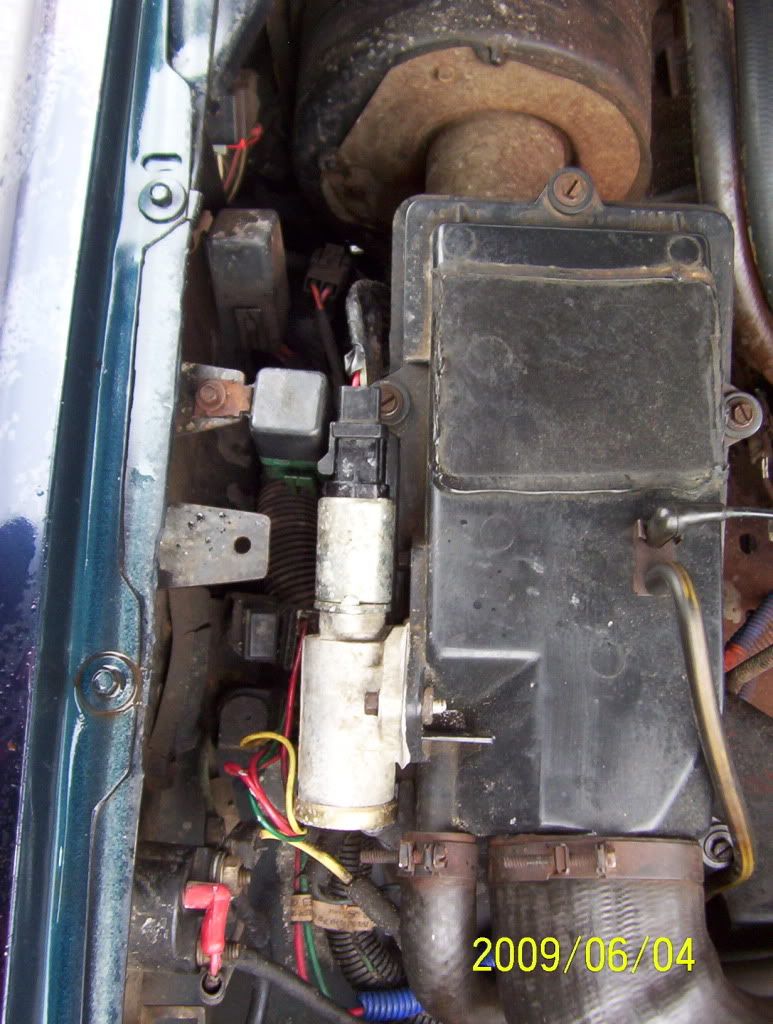

these are the only ones i got...



[velcro7279]

Thanks Syko.

Steve



[SykoRanger88]

this may help also go to http://search.ebscohost.com/ user:auto, pass:auto, auto repair, 87 ford ranger 2.3 FI gas, repair procedures, emission controls, vacuum diagrams.
