Some exploded views of how various style sway bars fit together. Fronts are 2wd, 4wd is similar.

I have the sway bar colored in gold and the mounting bracketry you may need to go with it for those that are retrofitting it in red.

Behind Axle (83-88)

Behind Axle.png


In Front of Axle (89-97 Ranger, all Bronco II)

The hole where 5D484 brace mounts to the frame is different second gens/BII's (they use the same brace) and mere mortal first gen trucks, it is roughly a quarter inch too high and the brace will need shimmed. Second gen Rangers and first gen BII's in my testing use the same brace.

Ahead Axle.png




Rear axle (83-11) Everything Except Explorer


Last edited:


Rock Auto 5% Discount Code: DE2235E7692E8C: July 5th, 2021

Otis413

Active Member
Joined
Jun 2, 2018
Messages
175
Reaction score
97
Points
28
Location
Cass, WVa
Vehicle Year
2004
Make / Model
Ford
Engine Size
4.0 SOHC
Transmission
Automatic
Good stuff! While we're on the subject, did the FX4 Lev2 (31 spline) ever come with a rear sway bar? Just wondering about the larger (3.25") axle tubes and the mounting brackets.


85_Ranger4x4

Forum Staff Member
Forum Moderator
Article Contributor
V8 Engine Swap
OTOTM Winner
TRS Banner 2010-2011
TRS 20th Anniversary
Joined
Aug 7, 2007
Messages
26,262
Reaction score
6,235
Points
113
Location
SW Iowa
Vehicle Year
1985
Make / Model
Ford
Engine Type
V8
Engine Size
5.0
Transmission
Manual
Good stuff! While we're on the subject, did the FX4 Lev2 (31 spline) ever come with a rear sway bar? Just wondering about the larger (3.25") axle tubes and the mounting brackets.
I do not know, I have seen exactly 1 FX4 in a u-pull-it yard... and it was missing the rear axle.

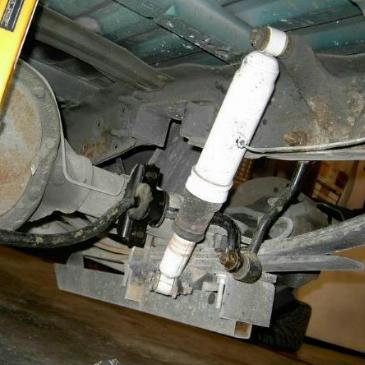

I adapted F-150 brackets to fit my 31 spline 8.8:



wildbill23c

Well-Known Member
U.S. Military - Veteran
TRS Banner 2012-2015
TRS 20th Anniversary
Joined
Aug 22, 2012
Messages
3,690
Reaction score
390
Points
83
Location
Southwestern Idaho
Vehicle Year
1988
Make / Model
Ford Bronco II
Engine Type
2.9 V6
Transmission
Automatic
2WD / 4WD
4WD
Total Lift
0
Total Drop
0
Tire Size
235/75-R15
My credo
19K, 19D, 92Y, 91F
Great information, but where can you get replacement bushing kits?


85_Ranger4x4

Forum Staff Member
Forum Moderator
Article Contributor
V8 Engine Swap
OTOTM Winner
TRS Banner 2010-2011
TRS 20th Anniversary
Joined
Aug 7, 2007
Messages
26,262
Reaction score
6,235
Points
113
Location
SW Iowa
Vehicle Year
1985
Make / Model
Ford
Engine Type
V8
Engine Size
5.0
Transmission
Manual

wildbill23c

Well-Known Member
U.S. Military - Veteran
TRS Banner 2012-2015
TRS 20th Anniversary
Joined
Aug 22, 2012
Messages
3,690
Reaction score
390
Points
83
Location
Southwestern Idaho
Vehicle Year
1988
Make / Model
Ford Bronco II
Engine Type
2.9 V6
Transmission
Automatic
2WD / 4WD
4WD
Total Lift
0
Total Drop
0
Tire Size
235/75-R15
My credo
19K, 19D, 92Y, 91F
Your results may vary, some are available and some aren't. :dntknw:
Yep exactly the problem I have ran into. They need replaced but finding replacements seems to be impossible.


85_Ranger4x4

Forum Staff Member
Forum Moderator
Article Contributor
V8 Engine Swap
OTOTM Winner
TRS Banner 2010-2011
TRS 20th Anniversary
Joined
Aug 7, 2007
Messages
26,262
Reaction score
6,235
Points
113
Location
SW Iowa
Vehicle Year
1985
Make / Model
Ford
Engine Type
V8
Engine Size
5.0
Transmission
Manual

wildbill23c

Well-Known Member
U.S. Military - Veteran
TRS Banner 2012-2015
TRS 20th Anniversary
Joined
Aug 22, 2012
Messages
3,690
Reaction score
390
Points
83
Location
Southwestern Idaho
Vehicle Year
1988
Make / Model
Ford Bronco II
Engine Type
2.9 V6
Transmission
Automatic
2WD / 4WD
4WD
Total Lift
0
Total Drop
0
Tire Size
235/75-R15
My credo
19K, 19D, 92Y, 91F
Which ones?
All of them. Front and rear for my Bronco 2. I don't think my Ranger has sway bars, I don't recall, its been a while since I have payed any attention to it...I know my Bronco 2 has both front and rear. Shops won't touch any of them anyways, but would be nice if someone made replacement bushing sets. I guess this is one sure way to get these things off the road, is to not make parts ugg. Tried every place around I can think of, as well as online parts stores like Rock Auto.

Any other places to search? I haven't found a source around for any bushings at all. Orielly's, Autozone, NAPA, Rock Auto, none of them carry bushings.


85_Ranger4x4

Forum Staff Member
Forum Moderator
Article Contributor
V8 Engine Swap
OTOTM Winner
TRS Banner 2010-2011
TRS 20th Anniversary
Joined
Aug 7, 2007
Messages
26,262
Reaction score
6,235
Points
113
Location
SW Iowa
Vehicle Year
1985
Make / Model
Ford
Engine Type
V8
Engine Size
5.0
Transmission
Manual
Rockauto has them for the front depending on what diameter bar you have.

Rears should be out there too, they used that design 83-11.


sgtsandman

Aircraft Fuel Tank Diver
Forum Moderator
Supporting Member
U.S. Military - Active
TRS 20th Anniversary
Joined
Mar 11, 2017
Messages
5,779
Reaction score
3,267
Points
113
Location
Aliquippa, PA
Vehicle Year
2011 & 2019
Make / Model
Ford XLT & FX4
Engine Size
4.0 SOHC & 2.3 Ecoboost
2WD / 4WD
4WD
Tire Size
31X10.5R15 & 265/65R17
My credo
I work in fuel tanks for a living. Don't judge me!
I need to measure my front bar and see what bushings I need. I'm getting a bit of a thump that indicates it's one of those bushings. Also, being that everything else up front is new, that pretty much is the only thing left. I have half a mind to drill and tap the brackets so I can install zirc fittings. I've seen others do that in the past with success and the aftermarket options I've seen all have them installed on the bottom right where they can get broken off.


Bird76Mojo

Well-Known Member
Joined
Jun 28, 2009
Messages
2,251
Reaction score
1,000
Points
113
Location
nunya
Worst case scenario, you can remove the factory sway bar mounts and use some universal mounts like Energy Suspension sells. They sell sets for all diameters of sway bars.

I used these on the front of my 87 V8 truck with a sway bar and end links from a 97 2wd Ranger. Though I do have a 97 beam swap installed. They do take some "creativity" when installing though. It's not a true bolt-on. Minor mods are involved.

I have a usable set of bushings from the 97 along with the factory steel straps that go around them. Fresh coat of paint.. I won't be using them.



cbxer55

Well-Known Member
Joined
Oct 9, 2009
Messages
1,201
Reaction score
249
Points
63
Location
Midwest City, Oklahoma
Vehicle Year
1998
Make / Model
Ford
Engine Size
3.0
Transmission
Automatic
Yah. I redid mine in 2015 with Energy Suspension parts that I bought off the shelf at Auto Zone. Just figure out what diameter the bar is and how long the end links are, and match them up. It's not rocket science. And yup, they have grease fittings on them.
