Rock Sliders.. Anybody Else Have Them On Their 5th Gen Rangers?


HenryMac

Active member
Article Contributor
Joined
Aug 28, 2019
Messages
181
Reaction score
108
Points
43
Location
Central Colorado
Vehicle Year
2019
Make / Model
Ranger SuperCab
Engine Size
Direct Injected Turbocharged 140 Cleveland
Transmission
Automatic
2WD / 4WD
4WD
Tire Size
LT 265/65 R17
Installed a set of Shrockworks Rock Sliders on our SuperCab yesterday.

I don't know that I've ever bought any fabricated accessory that is built as well as these are.

The raw materials were all nice and smooth, almost no weld splatter was on the parts, the welds look uniform and equally sized and the textured black powder coat is uniform and undamaged.

Each slider weighs about 68 lbs!

As for the installation: everything bolted up just as specified by Shrockworks. They use existing holes in the frame, except you need to drill (1) 1/2" dia. hole. Each slider has (4) 1/2" bolts holding them onto the frame.

Love how they tuck up nice and tight to the rock panels... and they don't stick out past the mudflaps or the tires. We bought the optional dimpled step plates. Should help to protect the rocker panels from road rash.

The folks at Shrockworks certainly did an awesome job designing, building and finishing these.





Rock Auto 5% Discount Code: 32B05A80BF19AF Expires: July 1st, 2020

HenryMac

Active member
Article Contributor
Joined
Aug 28, 2019
Messages
181
Reaction score
108
Points
43
Location
Central Colorado
Vehicle Year
2019
Make / Model
Ranger SuperCab
Engine Size
Direct Injected Turbocharged 140 Cleveland
Transmission
Automatic
2WD / 4WD
4WD
Tire Size
LT 265/65 R17
Here's some installation photo's to help anybody else that's planning to get a set of these.

The item numbers in the photo's correspond to the installation instructions shown above.

Hope this helps. :icon_thumby:



85_Ranger4x4

Forum Staff Member
Forum Moderator
Article Contributor
OTOTM Winner
TRS Banner 2010-2011
TRS 20th Anniversary
Joined
Aug 7, 2007
Messages
22,852
Reaction score
3,373
Points
113
Location
SW Iowa
Vehicle Year
1985
Make / Model
Ford
Engine Size
5.0
Transmission
Manual
They look nice, they are on the to-do list for my ‘85


sgtsandman

Aircraft Tank Diver
Forum Moderator
Supporting Member
U.S. Military - Active
TRS 20th Anniversary
Joined
Mar 11, 2017
Messages
3,631
Reaction score
1,972
Points
113
Location
Aliquippa, PA
Vehicle Year
2011 & 2019
Make / Model
Ford XLT & FX4
Engine Size
4.0 SOHC & 2.3 Ecoboost
2WD / 4WD
4WD
Tire Size
31X10.5R15 & 265/65R17
My credo
I sniff fuel for a living. Don't judge me!
Those look great and well matched to the truck.


The Donald

New member
Joined
Dec 6, 2019
Messages
26
Reaction score
22
Points
3
Location
Kalamazoo, MI
Vehicle Year
2019
Make / Model
Ford Ranger XLT
Engine Type
2.3 EcoBoost
Transmission
Automatic
2WD / 4WD
4WD
Wow, great instructions!
I wish I had your kind of time to do this cool stuff.


Jim Oaks

Administrator
Administrator
Founder / Site Owner
Article Contributor
TRS Banner 2010-2011
TRS Banner 2012-2015
TRS 20th Anniversary
Joined
Aug 2, 2000
Messages
10,233
Reaction score
2,339
Points
113
Location
Roanoke, Texas
Vehicle Year
1996 / 2019
Make / Model
Ford Ranger
Engine Type
4.0 V6
Transmission
Automatic
2WD / 4WD
4WD
Total Lift
6-inches
Tire Size
33x12.50x15
Looks great!

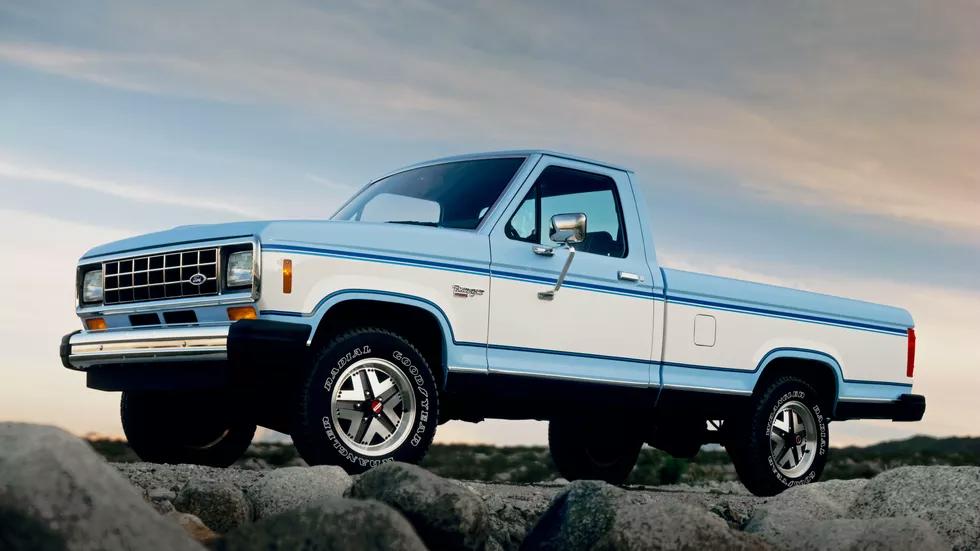

BTW, I personaly consider these trucks a 6th generation. The sheetmetal on the front of the 1983-2011 Ford Ranger changed 5 times, and 'Generation' has typically been defined in the past by these changes.



sgtsandman

Aircraft Tank Diver
Forum Moderator
Supporting Member
U.S. Military - Active
TRS 20th Anniversary
Joined
Mar 11, 2017
Messages
3,631
Reaction score
1,972
Points
113
Location
Aliquippa, PA
Vehicle Year
2011 & 2019
Make / Model
Ford XLT & FX4
Engine Size
4.0 SOHC & 2.3 Ecoboost
2WD / 4WD
4WD
Tire Size
31X10.5R15 & 265/65R17
My credo
I sniff fuel for a living. Don't judge me!
Since there was a gap in time between the 2011s and 2019s, you could call it the "Next Generation".


ericbphoto

Old Redneck just wingin' it.
Forum Moderator
Supporting Member
U.S. Military - Veteran
TRS 20th Anniversary
Joined
Feb 7, 2016
Messages
5,347
Reaction score
2,656
Points
113
Age
55
Location
Wellford, SC
Vehicle Year
1993
Make / Model
Ford Ranger
Engine Type
3.0 V6
Engine Size
3.0L
Transmission
Manual
2WD / 4WD
4WD
Total Lift
6"
Tire Size
35"
My credo
In theory, theory and practice are the same. In practice, they are different.
^%•¢^®®"__!!!

They only make them for the new trucks.


sgtsandman

Aircraft Tank Diver
Forum Moderator
Supporting Member
U.S. Military - Active
TRS 20th Anniversary
Joined
Mar 11, 2017
Messages
3,631
Reaction score
1,972
Points
113
Location
Aliquippa, PA
Vehicle Year
2011 & 2019
Make / Model
Ford XLT & FX4
Engine Size
4.0 SOHC & 2.3 Ecoboost
2WD / 4WD
4WD
Tire Size
31X10.5R15 & 265/65R17
My credo
I sniff fuel for a living. Don't judge me!

ericbphoto

Old Redneck just wingin' it.
Forum Moderator
Supporting Member
U.S. Military - Veteran
TRS 20th Anniversary
Joined
Feb 7, 2016
Messages
5,347
Reaction score
2,656
Points
113
Age
55
Location
Wellford, SC
Vehicle Year
1993
Make / Model
Ford Ranger
Engine Type
3.0 V6
Engine Size
3.0L
Transmission
Manual
2WD / 4WD
4WD
Total Lift
6"
Tire Size
35"
My credo
In theory, theory and practice are the same. In practice, they are different.

sgtsandman

Aircraft Tank Diver
Forum Moderator
Supporting Member
U.S. Military - Active
TRS 20th Anniversary
Joined
Mar 11, 2017
Messages
3,631
Reaction score
1,972
Points
113
Location
Aliquippa, PA
Vehicle Year
2011 & 2019
Make / Model
Ford XLT & FX4
Engine Size
4.0 SOHC & 2.3 Ecoboost
2WD / 4WD
4WD
Tire Size
31X10.5R15 & 265/65R17
My credo
I sniff fuel for a living. Don't judge me!
Sorry, the best I got. Modification might be possible because the frames are similar enough on the back end without having to fabricate a whole new, from scratch system.


85_Ranger4x4

Forum Staff Member
Forum Moderator
Article Contributor
OTOTM Winner
TRS Banner 2010-2011
TRS 20th Anniversary
Joined
Aug 7, 2007
Messages
22,852
Reaction score
3,373
Points
113
Location
SW Iowa
Vehicle Year
1985
Make / Model
Ford
Engine Size
5.0
Transmission
Manual
Installed a set of Shrockworks Rock Sliders on our SuperCab yesterday.

I don't know that I've ever bought any fabricated accessory that is built as well as these are.

The raw materials were all nice and smooth, almost no weld splatter was on the parts, the welds look uniform and equally sized and the textured black powder coat is uniform and undamaged.

Each slider weighs about 68 lbs!

As for the installation: everything bolted up just as specified by Shrockworks. They use existing holes in the frame, except you need to drill (1) 1/2" dia. hole. Each slider has (4) 1/2" bolts holding them onto the frame.

Love how they tuck up nice and tight to the rock panels... and they don't stick out past the mudflaps or the tires. We bought the optional dimpled step plates. Should help to protect the rocker panels from road rash.

The folks at Shrockworks certainly did an awesome job designing, building and finishing these.

View attachment 35797View attachment 35798View attachment 35795View attachment 35796View attachment 35799View attachment 35800View attachment 35801View attachment 35802
View attachment 35803View attachment 35804
You are well on your way to a tech article IMO...


Sorry, the best I got. Modification might be possible because the frames are similar enough on the back end without having to fabricate a whole new, from scratch system.
Supercab is a getcha too.

Its ok, we will give you an E for effort :icon_thumby:


gw33gp

Well-known member
U.S. Military - Veteran
TRS Banner 2010-2011
Joined
Aug 7, 2007
Messages
1,162
Reaction score
71
Points
48
Location
Costa Mesa, CA
Vehicle Year
2002
Make / Model
Ford
Engine Type
4.0 V6
Engine Size
4.0 SOHC
Transmission
Manual
2WD / 4WD
4WD
Tire Size
33"
^%•¢^®®"__!!!

They only make them for the new trucks.
I bought a set for my 02. They would have fit perfectly with a body lift but I didn't have one and didn't want to do it. I sent them back. Apparently, they did not realized the Ranger they used to design the Rock Sliders had a body lift and could not understand why they would not fit my truck. They were very good about accepting the return though.

They appear to make a very solid bolt on system and would not hesitate to try one again if I knew it would fit.


HenryMac

Active member
Article Contributor
Joined
Aug 28, 2019
Messages
181
Reaction score
108
Points
43
Location
Central Colorado
Vehicle Year
2019
Make / Model
Ranger SuperCab
Engine Size
Direct Injected Turbocharged 140 Cleveland
Transmission
Automatic
2WD / 4WD
4WD
Tire Size
LT 265/65 R17
Sooo.... I wonder just how much weight will those Rocksliders will take? Let's look just for shits and giggles..

Since I installed the Shrockworks Rocksliders I've been curious just how much weight they can handle. I fired up an older Finite Element Analysis program I have on a PC and applied various loads to the CAD model that I made of the slider before I installed them.

Weight of our 2019 SuperCab Ranger 4x4 truck is about 4,600 lbs. (includes tow package, LT tires and the rocklsiders). So if it's hung on a rock with one wheel off the ground that's about 1,200 lbs. Both wheels off the ground lets say 2,400 lbs.

The rear of the slider hangs out farther from the frame support than the front... therefore it's weaker than the front of the slider. So 1st analysis assumes 1,200 lbs near the rear of the slider.

Next analysis assumes a rock at the middle, and both tires on that side of the truck off the ground. That's about a 2,400 lb load.

Looks like the sliders are "hell-for-stout" and up to the task.

I also looked at a side impact, like somebody t-bones the truck. I used the full 4,600 lb load on that analysis. And once again the sliders appear to be of an adequate design. That's not enough load if the vehicle that t-bones the truck is moving at a pretty high rate of speed....

It's all for reference... but it's kind of neat to ponder "What If".

1200 LBS AT REAR OF SLIDER - DEFORMATION.JPG
1200 LBS AT REAR OF SLIDER - LOAD LOCATION.JPG
1200 LBS AT REAR OF SLIDER - STRESS.JPG
2400 LBS BEWTEEN 2 INCH SUPPORT TUBES - DEFORMATION.JPG
2400 LBS BEWTEEN 2 INCH SUPPORT TUBES - LOAD LOCATION.JPG
2400 LBS BEWTEEN 2 INCH SUPPORT TUBES - STRESS.JPG
4600 LBS HIT FROM THE SIDE - DEFORMATION.JPG
4600 LBS HIT FROM THE SIDE - STRESS.JPG

Last edited:

acsnowrider

Active member
Ford Technician
Joined
Nov 12, 2019
Messages
250
Reaction score
125
Points
43
Location
ARIZONA
Vehicle Year
2019
Make / Model
FORD RANGER
Transmission
Automatic
2WD / 4WD
2WD
Installed a set of Shrockworks Rock Sliders on our SuperCab yesterday.

I don't know that I've ever bought any fabricated accessory that is built as well as these are.
I like these--Nice picture sequence! Think I'll ditch the SteelCrafts, and order a set-- Thxs!! Never heard anything about these guys!:)
