JEGS Tachometer reading 1/2 rpm speed


Uncle Gump

Token Old Guy
TRS Event Staff
TRS Forum Moderator
Supporting Member
VAGABOND
TRS Event Participant
Joined
Sep 17, 2018
Messages
13,413
Reaction score
12,829
Points
113
Location
Ottawa IL
Vehicle Year
2006/1986
Make / Model
Ranger/BroncoII
Engine Size
4.0L SOHC/2.9L
2WD / 4WD
4WD
My credo
Lead follow or get out of my way
Are you sure you have it wired in right?

You have a waste spark ignition system?

I'm trying to pull from memory here... and I'm old... but aren't those wired a bit differently?



4BangerDangerRanger

New Member
Joined
Jun 12, 2023
Messages
20
Reaction score
0
Points
1
Location
Michigan
Vehicle Year
1995
Make / Model
Ford Ranger
Transmission
Manual
Are you sure you have it wired in right?

You have a waste spark ignition system?

I'm trying to pull from memory here... and I'm old... but aren't those wired a bit differently?
What is a waste spark system?


Uncle Gump

Token Old Guy
TRS Event Staff
TRS Forum Moderator
Supporting Member
VAGABOND
TRS Event Participant
Joined
Sep 17, 2018
Messages
13,413
Reaction score
12,829
Points
113
Location
Ottawa IL
Vehicle Year
2006/1986
Make / Model
Ranger/BroncoII
Engine Size
4.0L SOHC/2.9L
2WD / 4WD
4WD
My credo
Lead follow or get out of my way
If your 4 cylinder has 8 spark plugs... it's a waste spark ignition.


Uncle Gump

Token Old Guy
TRS Event Staff
TRS Forum Moderator
Supporting Member
VAGABOND
TRS Event Participant
Joined
Sep 17, 2018
Messages
13,413
Reaction score
12,829
Points
113
Location
Ottawa IL
Vehicle Year
2006/1986
Make / Model
Ranger/BroncoII
Engine Size
4.0L SOHC/2.9L
2WD / 4WD
4WD
My credo
Lead follow or get out of my way
Is it a waste spark 4 banger?


Uncle Gump

Token Old Guy
TRS Event Staff
TRS Forum Moderator
Supporting Member
VAGABOND
TRS Event Participant
Joined
Sep 17, 2018
Messages
13,413
Reaction score
12,829
Points
113
Location
Ottawa IL
Vehicle Year
2006/1986
Make / Model
Ranger/BroncoII
Engine Size
4.0L SOHC/2.9L
2WD / 4WD
4WD
My credo
Lead follow or get out of my way
I don't have all the answers in memory.

But those systems are picky on where the tach signal comes from.

Do a little googling... I'm sure the answer on how to wire it can be found.


4BangerDangerRanger

New Member
Joined
Jun 12, 2023
Messages
20
Reaction score
0
Points
1
Location
Michigan
Vehicle Year
1995
Make / Model
Ford Ranger
Transmission
Manual
Well I’ve done plenty of that and found which wire to splice and I spliced into the correct one, isn’t there only one rpm wire? It wouldn’t make sense to have multiple. If I’m getting any reading at all I must be on the right wire, right?


Uncle Gump

Token Old Guy
TRS Event Staff
TRS Forum Moderator
Supporting Member
VAGABOND
TRS Event Participant
Joined
Sep 17, 2018
Messages
13,413
Reaction score
12,829
Points
113
Location
Ottawa IL
Vehicle Year
2006/1986
Make / Model
Ranger/BroncoII
Engine Size
4.0L SOHC/2.9L
2WD / 4WD
4WD
My credo
Lead follow or get out of my way
Maybe...

But you have multiple coils... you might only be reading one... half speed.

@RonD you have anything to add?

I'll search in a bit... but I seem to remember something goofy with these set ups on the 8 plug 4 bangers.


Uncle Gump

Token Old Guy
TRS Event Staff
TRS Forum Moderator
Supporting Member
VAGABOND
TRS Event Participant
Joined
Sep 17, 2018
Messages
13,413
Reaction score
12,829
Points
113
Location
Ottawa IL
Vehicle Year
2006/1986
Make / Model
Ranger/BroncoII
Engine Size
4.0L SOHC/2.9L
2WD / 4WD
4WD
My credo
Lead follow or get out of my way

Try this...


4BangerDangerRanger

New Member
Joined
Jun 12, 2023
Messages
20
Reaction score
0
Points
1
Location
Michigan
Vehicle Year
1995
Make / Model
Ford Ranger
Transmission
Manual

Try this...
Yea I’ve been to that exact website, if you read it and scroll down to the year of my truck you will see an explanation of what I did, on jegs tachometers there are purple or green and I tried both and only purple gives me a read


ekrampitzjr

Well-Known Member
Joined
May 28, 2021
Messages
742
Reaction score
1,022
Points
93
Location
Virginia
Vehicle Year
2011
Make / Model
Ford Ranger
Engine Type
4.0 V6
Transmission
Automatic
2WD / 4WD
2WD
In my experience, on most vehicles moving down the road at highway speeds in a top (overdrive) gear, you will get about 25 mph for every 1,000 rpm. This means 60 mph in top gear would be about 2,500 rpm. See if your tach reads anywhere close to 2,500 rpm at that speed in top gear.

If your engine is turning over 5,000 rpm at 60 mph, you've got a real problem. :LOL:


RonD

Official TRS AI
TRS Technical Advisor
Joined
Jun 2, 2012
Messages
25,084
Reaction score
8,182
Points
113
Location
canada
Vehicle Year
1994
Make / Model
Ford
Transmission
Manual

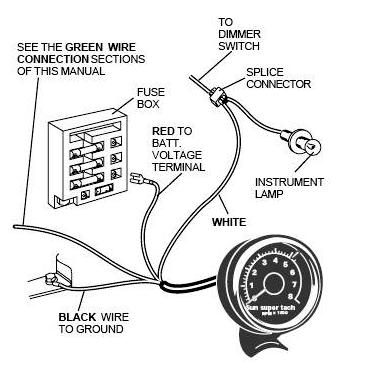

1995 2.3l Ranger, 3rd party tach needs to be hooked up to the tan/yellow wire that runs from PCM(engine computer) in engine bay to the back of the instrument cluster in the cab

Even if you don't have a tach on the cluster that wire is still there
If you do have a tach on the dash you can't use both so cut the tan/yellow wire

On the JEGS model use the Purple wire as the "tach input"
Green wire is just for engines with distributors

Make sure the black ground wire has a good ground
Hook up the 2 12volt wires as described

The white or orange wire is for back lights(dash lights) so in a 1995 would connected to a red/black wire on back of cluster or found at other dash light bulb locations or Dimmer Module

Calibration on JEGS looks to be "2 PPR (4 Cyl) 2000"
Other calibrations if "2" does show correct RPMs is 1 (2cyl) or 4 (8cyl)

If neither works then Tach is bad or not compatible
