Help needed with front axle and diff disassembly


BernardBronco

New Member
Joined
Mar 28, 2022
Messages
2
Reaction score
0
Location
Lithuania
Vehicle Year
1988
Make / Model
Ford Bronco II
Transmission
Manual
Hello, I am currently restoring my Bronco II '88. I'm trying to take the front axle and diff apart due to the fact that 4wd doesn't work and movement of steering causes strange noises. When I tried to take it apart I couldn't get past the removal of the spindle, it seems to be stuck. Do you have any suggestions on how to dismantle it completely and maybe share where can I find the parts required for reassembly? Thanks!



74179
74180
74181
74182



4x4prepper

Well-Known Member
Joined
Feb 2, 2015
Messages
507
Reaction score
216
Location
Atlanta
Vehicle Year
1985
Make / Model
Ford
Transmission
Manual

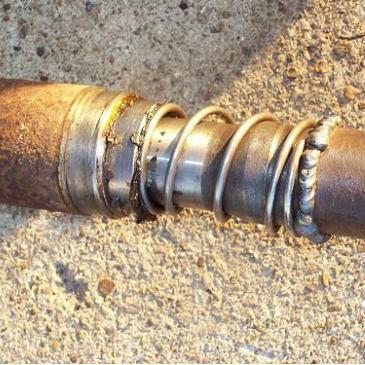

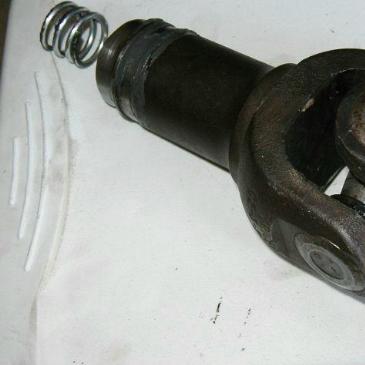

There is a C-clip that holds it in, there is a thread or article somewhere on this site explaining how to remove it and how to replace it with a spring. Requires removing the diff andf "banjo" housing. That is the axle shaft, the spindle is what you removed to get at the axle shaft.


4x4prepper

Well-Known Member
Joined
Feb 2, 2015
Messages
507
Reaction score
216
Location
Atlanta
Vehicle Year
1985
Make / Model
Ford
Transmission
Manual
Bpb's your uncle :)




RonD

Official TRS AI
TRS Technical Advisor
Joined
Jun 2, 2012
Messages
25,364
Reaction score
8,412
Location
canada
Vehicle Year
1994
Make / Model
Ford
Transmission
Manual

Shran

Junk Collector
TRS Forum Moderator
Supporting Member
Article Contributor
V8 Engine Swap
Solid Axle Swap
Truck of Month
Joined
Mar 4, 2008
Messages
9,196
Reaction score
5,616
Location
Rapid City SD
Engine Type
V8
Engine Size
5.0
There is a C-clip that holds it in, there is a thread or article somewhere on this site explaining how to remove it and how to replace it with a spring. Requires removing the diff andf "banjo" housing. That is the axle shaft, the spindle is what you removed to get at the axle shaft.
This is not accurate. The C clip you are referring to is on the passenger side and there would be no spring in there from the factory. This person's pictures indicate that the driver's side is the area in question.

You are missing the universal joint and both axles shafts are junk. Normally you can just pull both shafts out of that hole in the steering knuckle (what you referred to as the spindle, I think.) but since the universal joint is gone and the shafts are damaged, you may have to use a grinder to make them fit. Don't worry about damaging them, they are trash at this point. For what it's worth, the "spindle" is already removed in your pictures... it was the round part that you would have removed in order to see that big hole in the knuckle.

I am not sure where to suggest looking for parts. I cannot imagine that those trucks are common in your part of the world, do any local junkyards have one (or a 1983-89 Ranger) that you could salvage some parts from? eBay maybe? They inner and outer shafts that you will need to fix this are fairly common in the USA but I don't know the logistics of getting them to you.


RonD

Official TRS AI
TRS Technical Advisor
Joined
Jun 2, 2012
Messages
25,364
Reaction score
8,412
Location
canada
Vehicle Year
1994
Make / Model
Ford
Transmission
Manual
You also need to remove the spindle from the ball joints(replace these) to get the axles out


tw205

Bronco II Rancher.
U.S. Military - Veteran
Joined
Jan 23, 2011
Messages
755
Reaction score
1,019
Location
Bronson Michigan
Vehicle Year
1985
Make / Model
Ford Bronco II
Engine Type
2.8 V6
Engine Size
2.8
Transmission
Manual
2WD / 4WD
4WD
Total Lift
6” skyjacker 2” body
Tire Size
33x12.5
The driver side axle shaft will pull straight out of the differential. They can be difficult but a good pry bar is your friend. In the event of a failure they sometimes twist at the splines making extraction difficult.
The passenger side has three shafts. The outer two will separate from the inner one but you will have to remove the clamps at the rubber boot on the slip joint. To get the last inner shaft out you have to remove the differential. Push the axle in and remove a C clip then the axle will come out of the differential
Parts may be difficult. I’ve got a few sets out in the barn but you way way way over there. Good luck fren.
Edit: If you need further information hit me back. Like I said I’ve got a couple of them in the barn I’m sure I could mock up a video to demo for you.

Last edited:

dvdswan

Well-Known Member
U.S. Military - Veteran
Joined
Feb 11, 2021
Messages
2,874
Reaction score
3,074
Location
Seattle, WA
Vehicle Year
1991
Make / Model
Ranger XLT 2WD
Engine Type
3.0 V6
Transmission
Automatic
2WD / 4WD
2WD
My credo
Keep your mind like an umbrella, it only works if its open... Continually learning.
Welcome to the site.


lil_Blue_Ford

Cut & Weld
TRS Forum Moderator
Supporting Member
V8 Engine Swap
TRS 20th Anniversary
TRS Event Participant
TRS 25th Anniversary
Joined
Aug 6, 2007
Messages
9,204
Reaction score
7,690
Location
Butler, PA, USSA
Vehicle Year
00
Make / Model
Ford
Engine Type
V8
Engine Size
5.0l
Transmission
Automatic
Total Drop
4”
This is not accurate. The C clip you are referring to is on the passenger side and there would be no spring in there from the factory. This person's pictures indicate that the driver's side is the area in question.

You are missing the universal joint and both axles shafts are junk. Normally you can just pull both shafts out of that hole in the steering knuckle (what you referred to as the spindle, I think.) but since the universal joint is gone and the shafts are damaged, you may have to use a grinder to make them fit. Don't worry about damaging them, they are trash at this point. For what it's worth, the "spindle" is already removed in your pictures... it was the round part that you would have removed in order to see that big hole in the knuckle.

I am not sure where to suggest looking for parts. I cannot imagine that those trucks are common in your part of the world, do any local junkyards have one (or a 1983-89 Ranger) that you could salvage some parts from? eBay maybe? They inner and outer shafts that you will need to fix this are fairly common in the USA but I don't know the logistics of getting them to you.
This.

Alternatively you could remove the entire knuckle instead of cutting and beating on the axle shafts to get them out through the hole, but they are indeed trashed. If you plan to replace the ball joints, the knuckle has to come off anyway.


alwaysFlOoReD

Forum Staff Member
TRS Forum Moderator
V8 Engine Swap
TRS Banner 2012-2015
TRS 20th Anniversary
Joined
Apr 13, 2009
Messages
14,435
Reaction score
5,798
Location
Airdrie, Alberta, Canada
Vehicle Year
’97, '06
Make / Model
Pontiac, Dodge
Engine Type
V8
Engine Size
2.2,5.7
Transmission
Automatic
2WD / 4WD
4WD
Great instructional vid. Thanks.
@Jim Oaks


SenorNoob

Well-Known Member
TRS Event Participant
TRS 25th Anniversary
Joined
Oct 24, 2012
Messages
3,192
Reaction score
1,173
Location
Middle Tennessee
Vehicle Year
1988
Make / Model
Ford
Engine Type
4.0 V6
Engine Size
4.0
Transmission
Manual
2WD / 4WD
4WD
Total Lift
1.5" Front + 4" Rear
Tire Size
245-70-R16
When you take the differential off the beam, drill a small hole from the inside of the housing into the lowest bolt hole. That way you can use it to drain the oil later without taking it all the way apart again.


4x4prepper

Well-Known Member
Joined
Feb 2, 2015
Messages
507
Reaction score
216
Location
Atlanta
Vehicle Year
1985
Make / Model
Ford
Transmission
Manual
> This is not accurate.
> there would be no spring in there from the factory.

"explaining how to remove it and how to replace it with a spring."

REPLACE

It was accurate.


As to the original poster, in the best of times getting a replacement shaft would have been iffy. Here in the USA, even brake boosters are out of stock with long delays, having to be ordered from the "factory". It is one reason I decided to upgrade my B2 to F-350 brakes, the parts are still available on the shelf or the next day.

I would suggest you keep your shafts, make exact measurements, and have the ends replaced with some easily resourced local UJs, even if it means using something such as a CVJ from a Subaru or something. I think I used Jeep or FSB ones in the past (20 years ago). When modifying destroyed shafts, what I have done is weld on small plates over the cap holes so the cap can't pop through since milling the ends to retain the UJ was out of the question at the time. Most large truck shops can balance driveshafts and axle shafts, that is where I used to get mine done when I lived in a snowy state and used to drive at speed in snowy and icy weather and did not want vibrations.
