95 4.0 with EGR converted to 91 4.0 wiring harness with no egr LOTS of photos


BabyBronco89

New Member
Solid Axle Swap
Joined
Dec 9, 2011
Messages
360
Reaction score
2
Points
0
Location
GR Michigan
Vehicle Year
1989
Make / Model
Ford
Engine Size
95' 4.0 OHV
Transmission
Manual
so spent the night changeing all the components on my 95 explorer 4.0 with EGR to match up with my 91 Non EGR wiring harness

let the fun begin

okay heres the 91 4.0 with no egr in my B2

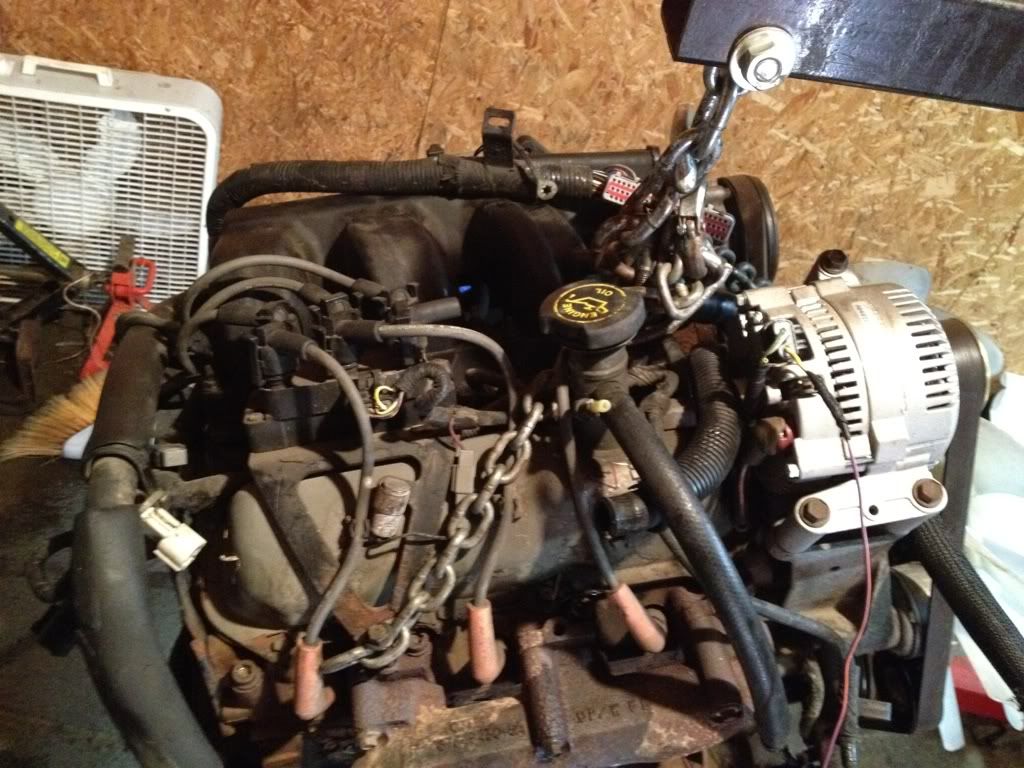

heres the 95 4.0 with EGR

and again


i do like the 4.0 EFI image on the plastic intake too bad its only for the EGR


Nice shiney new alternator


okay heres the majority of all the EGR bs on the drivers side manifold and intake

and again


heres the blown 91 4.0 sitting on top of my funked up stock 2.9
the two plugs below the alternator are the only ones that plug into my harness which i like nice n simple


close up passenger side 91 4.0


95 4.0 intake manifold with all the EGR bs attached n wiring


the engine wiring harness for the 95 4.0 egr with the intake and most egr components its huge and excessive


the 95 4.0 stripped of the intake manifold and wiring harness, also removed the compressor less weight less trouble


removing the exhaust recirculation line to the manifold need to find a plug the right size n thread

also i just broke off the part that attached to the intake manifold



Heres my temporary fix till i get a plug the right size, not a bad picture either makes that rusty broken egr pipe look good, love my iphone 4s


Its ready for the 91 4.0 wiring harness and the 91 intake manifold


Here's the 91 4.0 wiring harness orientated sort of where it would layon the egine , you can see the 6 fuel injector plugs in line in the middle and the two plugs that connect to main harness

heres the 91 wiring harness in place on the 95 engine NO EGR anymore


here it is about ready to go in
just a few more finishing touches


give me some feedback
also have some questions regarding running a newer sohc 4.0 on a 91-92 wiring harness can it be done?



Rock Auto 5% Discount Code: F9A1A579ACFAD1: October 1st, 2021

adsm08

Senior Master Grease Monkey
Supporting Member
Article Contributor
Ford Technician
TRS 20th Anniversary
Joined
Sep 20, 2009
Messages
34,623
Reaction score
3,564
Points
113
Location
Dillsburg PA
Vehicle Year
1987
Make / Model
Ford
Engine Type
4.0 V6
Engine Size
4.0
Transmission
Manual
2WD / 4WD
4WD
Tire Size
31X10.50X15
Did you look over the intake well to make sure there wasn't any debris in it?

Snoranger is the one to talk to about running a SOHC engine on an OHV harness. He has done it before in his 95.


BabyBronco89

New Member
Solid Axle Swap
Joined
Dec 9, 2011
Messages
360
Reaction score
2
Points
0
Location
GR Michigan
Vehicle Year
1989
Make / Model
Ford
Engine Size
95' 4.0 OHV
Transmission
Manual
yeah after taking the intake off the 91 i found there was nothing but water in the intake chamber closet to the trans im guessing i blew a head gasket or cracked a head and coolant was drawn into the cylinder head, which is what snapped the rod
th intake on the 91 wsaas actually very clean, they said it had been rebuilt 10,000 miles ago but after sitting for a yr or more head gaskets will rot n deteriorate
the 95 intake manifold is what really worrys me there is lots of black carbon deposits and grit n grime
thinking about getting a 2nd hand one from the JY n cleaning it up n swap mine out at a later date

and thanks i will defintaley be looking into the SOHC 4.0 n see what info snoranger can pass on.


ronclark

Member
Supporting Member
Joined
Oct 22, 2008
Messages
901
Reaction score
9
Points
18
Location
Woodland, WA
Vehicle Year
1987
Make / Model
Ford
Engine Size
95 4.0 with 93 ECU
Transmission
Manual
I used that plastic intake on my 4.0L i put a rubber expanding plug in it


BabyBronco89

New Member
Solid Axle Swap
Joined
Dec 9, 2011
Messages
360
Reaction score
2
Points
0
Location
GR Michigan
Vehicle Year
1989
Make / Model
Ford
Engine Size
95' 4.0 OHV
Transmission
Manual
Looks good I think I'm going to end up painting the aluminum one black and etching a custom 4.0 badge in it
