The time has come for another engine swap in my '95 4 door 4x4.

The previous swap (SOHC/EEC-IV) isnt having problems, but the gas mileage is poor (15 MPG average over the past year).

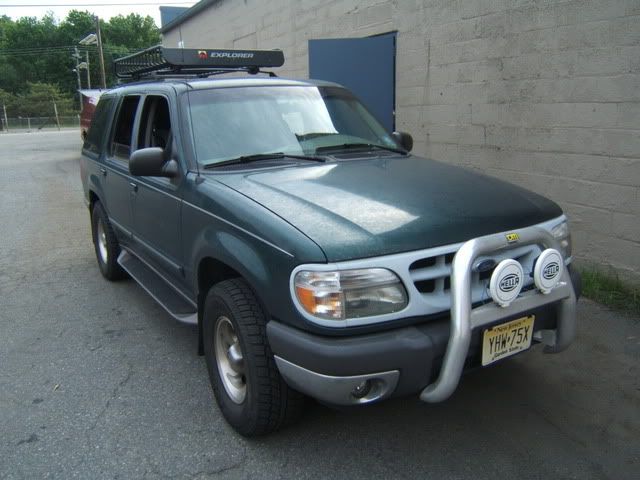

Here's the patient (95 4 door 4x4):

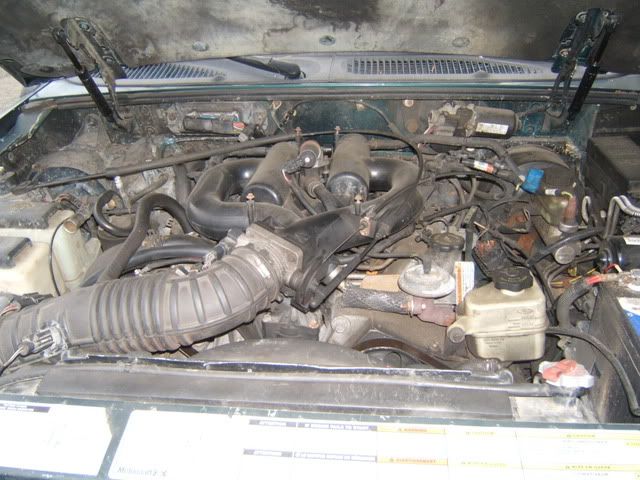

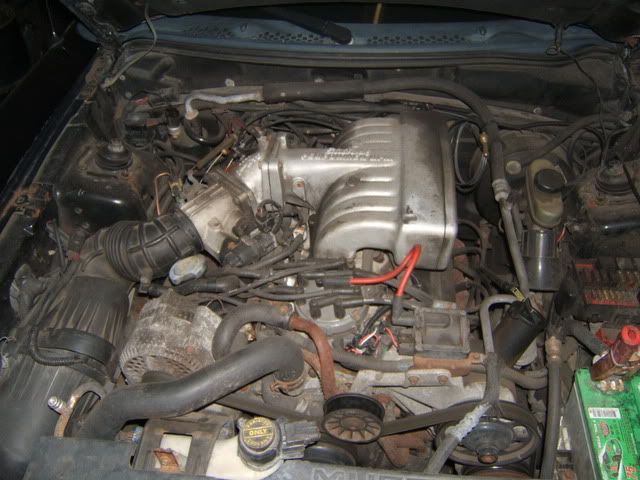

And its soon to be replaced heart ('01 SOHC):



So, you may be saying to yourself, "oh boy, another 5.0l swap." The thought had crossed my mind. I have a 94 Cobra, that could use a bigger engine. Here's the 5.0 Cobra engine that could be used:



But this is my daily driver and needs to get good mileage. I work 35 miles from home. Thats 70 miles a day, 5 days a week, 50 weeks a year (2 weeks vacation) 17,500 miles a year just to get to work. Since I'm running the SOHC on the 95 EEC-IV computer, the higher compression requires me to run 93 octane.

Lets do some simple math:
20,000 miles
15 MPG
$3.75 a gallon (checked the price today on my way home)

Thats $5000 a year in fuel.


What can i swap in that makes power, get good mileage, and will last a few years you ask?



Thats right folks.... Its a Cummins 4bt!

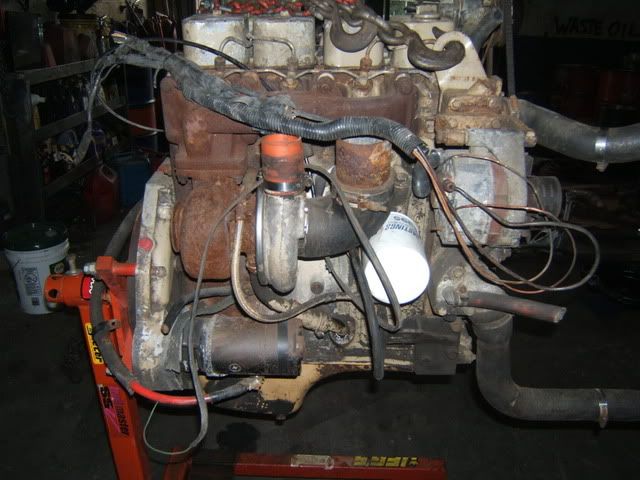

An 84K mile,
105 HP,
265 ft-lb
3.9l turbo diesel.

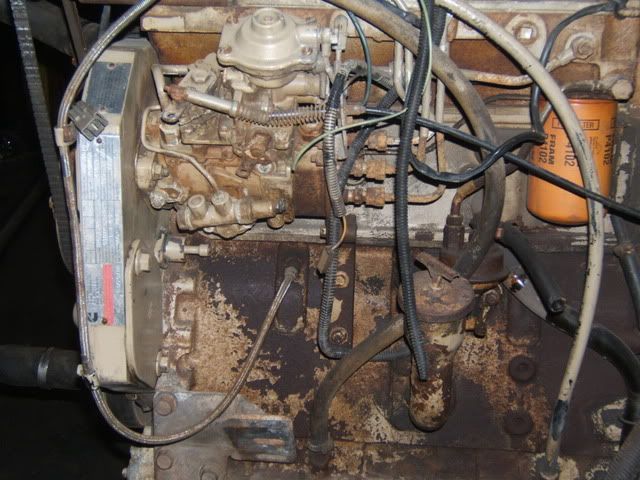

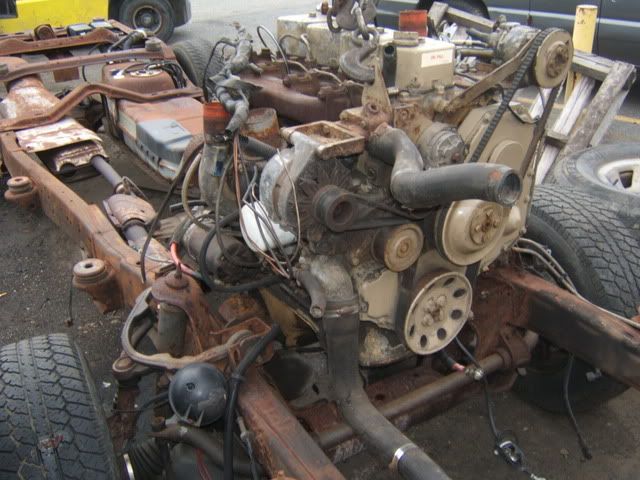

She's a little rusty and the turbos got some play, but for $1200... not bad.

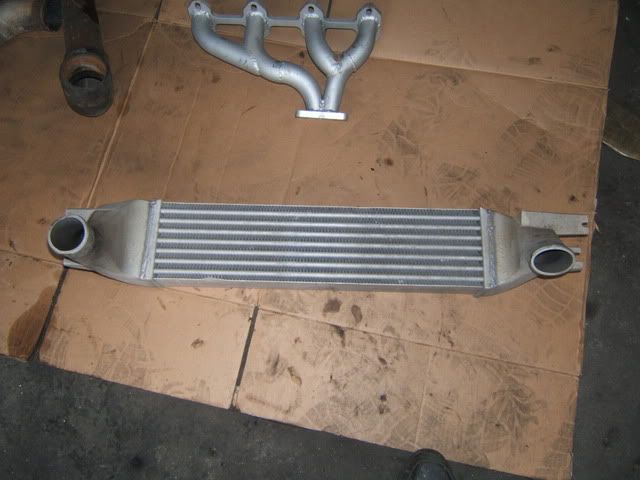

It also came with a Neon SRT4 intercooler and an aftermarket header.

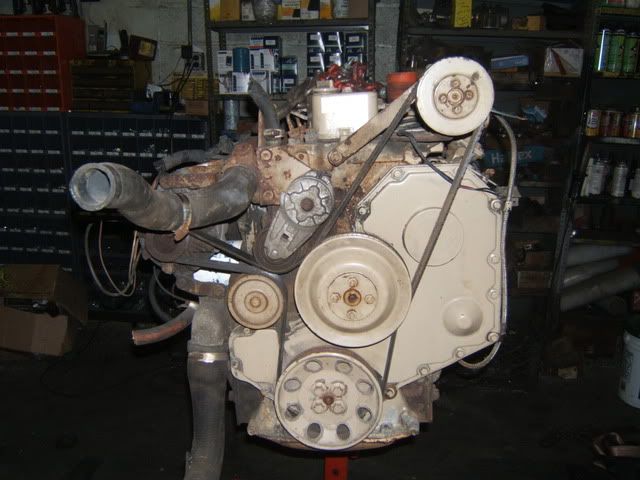

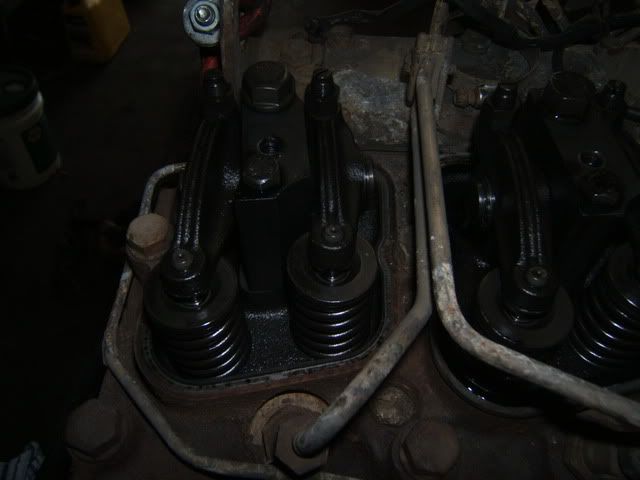

She's clean inside!


Now, you may be saying that diesel fuel is more expensive, it will cost more to run. Most fuel estimates for this engine in a smaller truck or SUV seem to be in the 30 - 35 MPG range.

Lets take that previous number of 20K miles a year.
20,000 miles
30 MPG
$3.80 per gallon (checked today)

That works out to $2533 a year in fuel costs. Quite a bit of savings.

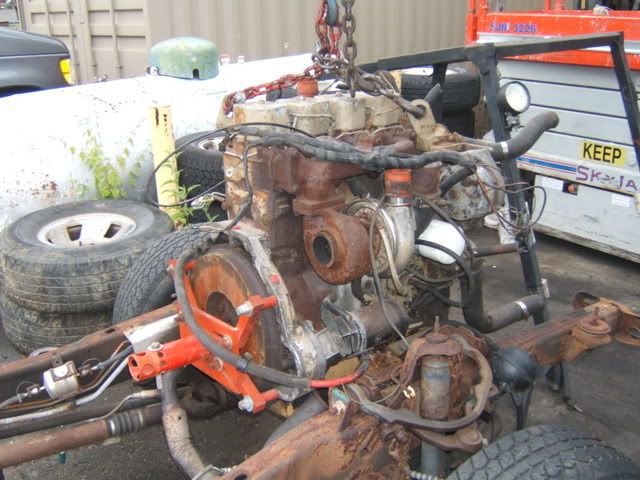

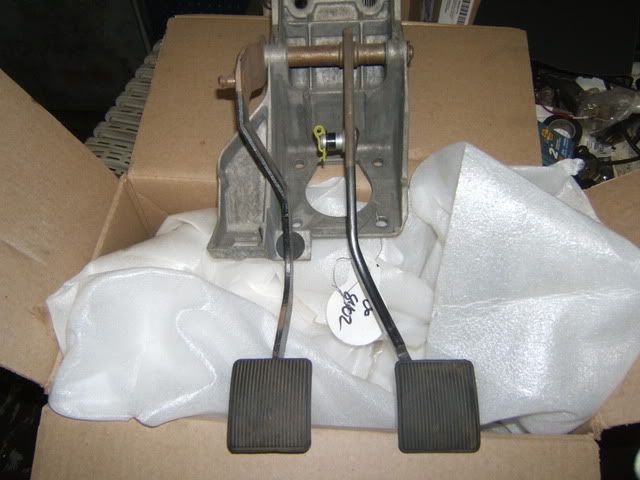

Now lets put all that stuff behind us and get down to the big question. Will a 750 lb, 4cyl engine fit in a 95 Explorer at stock height (or close to it) and still retain 4WD?
Good question, let see.

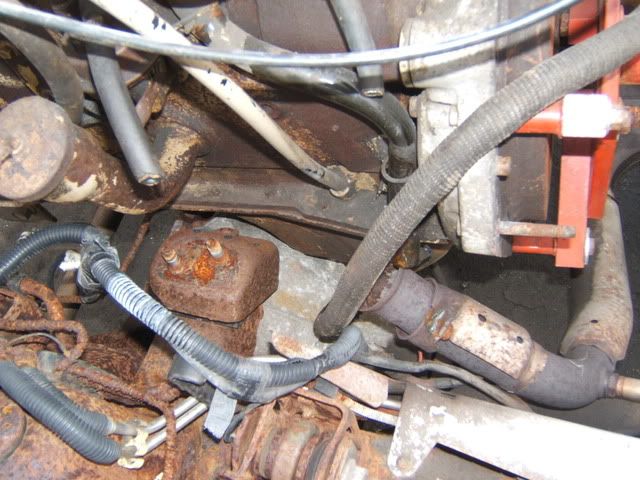

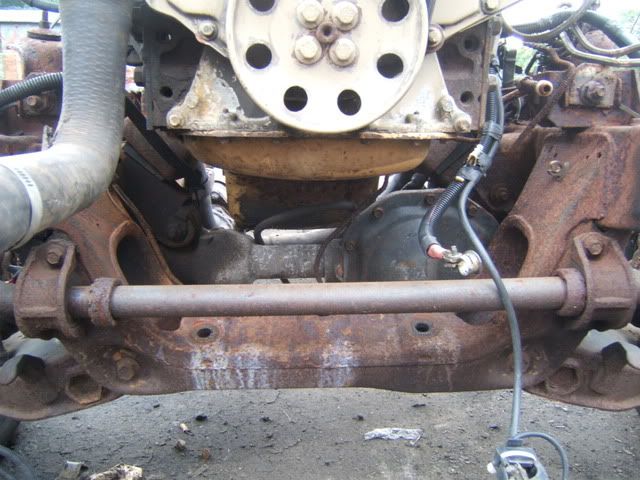

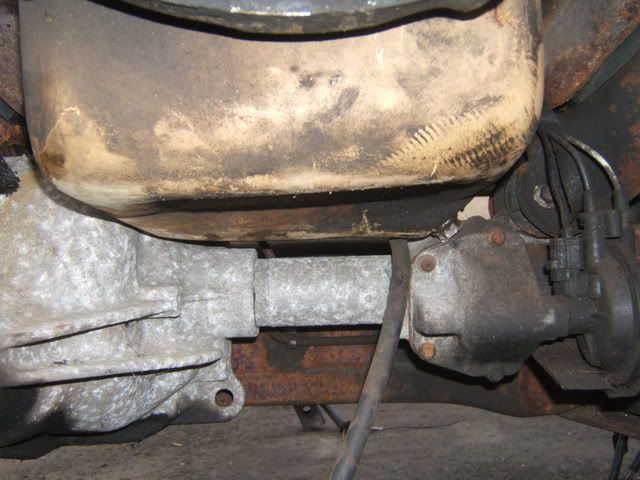

Looks like I will have to mod the oil pan, and make some more room for the starter. Nothing too bad. Height looks good...the hood will close. As it sits is 1/2" higher then the SOHC. So after the oil pan mods, I should be able to drop it down 2" or so. That will put the top of engine about 20 1/2" above the frame rails.
I still have to get some exact measurements front to back. Best estimate is that I'll have about 3" of clearance between the elec fan and the front of the engine.
