This topic comes up frequently enough to need one.:icon_confused:



Rock Auto 5% Discount Code: 173A8B749AB83C Expires: January 1, 2020

85_Ranger4x4

Forum Staff Member
Forum Moderator
Article Contributor
OTOTM Winner
TRS Banner 2010-2011
TRS 20th Anniversary
Joined
Aug 7, 2007
Messages
20,642
Reaction score
1,488
Points
113
Location
SW Iowa
Vehicle Year
1985
Make / Model
Ford
Engine Size
5.0
Transmission
Manual

Mac

Well-known member
Supporting Member
V8 Engine Swap
Joined
Aug 9, 2007
Messages
5,105
Reaction score
178
Points
63
Age
72
Location
C. Wisconsin
Vehicle Year
2003
2000
199
Make / Model
Ford
Engine Size
4.0
Transmission
Manual
Totally agree! Something like a spread sheet that would show all the data: year, engine, transmission, 4x4 or not and how they fit.
Dave


85_Ranger4x4

Forum Staff Member
Forum Moderator
Article Contributor
OTOTM Winner
TRS Banner 2010-2011
TRS 20th Anniversary
Joined
Aug 7, 2007
Messages
20,642
Reaction score
1,488
Points
113
Location
SW Iowa
Vehicle Year
1985
Make / Model
Ford
Engine Size
5.0
Transmission
Manual
Totally agree! Something like a spread sheet that would show all the data: year, engine, transmission, 4x4 or not and how they fit.
Dave
Pics are worth 1000 spreadsheets.

Maybe have an icon you click on and pics pop up?


JoeyB

New member
Joined
Jan 19, 2010
Messages
165
Reaction score
0
Points
0
Location
Everywhere but right now Asheville, NC
Vehicle Year
1987
Make / Model
Ranger
Engine Size
302 / TF heads & cam, Harland Sharp rockers, Intake, Holley Carb, MSD, 5 speed with Hurst Shifter
Transmission
Manual
That would be awesome.


baddad457

Active member
TRS Banner 2010-2011
Joined
Aug 7, 2007
Messages
2,603
Reaction score
12
Points
38
Location
Opelousas La.
Vehicle Year
1989
Make / Model
Ranger
Transmission
Manual
As you know, most of the info is here: http://www.therangerstation.com/tech_library/V8Conversions.html Just needs updated a bit.
:icon_confused: It is ? Better go back and read what little is there. It's not much. And none of the header choices we've been discussing lately are there. And some of the other advice is questionable. Like centering the motor between the frame rails. I tried that, it's almost impossible as the rails aren't paralell and aren't centered under the body. The motor needs to be centered using the fenders as a guide. and the trans tail aimed at the pinion.


Tony Raine

Member
V8 Engine Swap
Solid Axle Swap
Joined
Aug 10, 2007
Messages
910
Reaction score
14
Points
18
Age
36
Location
Jonesboro, AR
Vehicle Year
1984
Make / Model
Ford
Engine Size
302
Transmission
Manual
Like centering the motor between the frame rails. I tried that, it's almost impossible as the rails aren't paralell and aren't centered under the body.
yeah, i just hit that problem in my swap yesterday. i think ford designed the front framerails with 2 different wet noodles as a guide.


mjonesjr

I dance with the Devil...
Firefighter
Forum Staff - Retired
Joined
Feb 6, 2004
Messages
4,967
Reaction score
10
Points
0
Age
35
Location
Salem, IN
Transmission
Automatic
How about instead of expecting someone else to do it, why don't you post the info and if a Moderator thinks it is worthy of a Sticky, then we will. We will also update the tech library page with the info. The only problem is, no one has posted valid info on the topic.

We don't just sticky any ole topic for the heck of it.


85_Ranger4x4

Forum Staff Member
Forum Moderator
Article Contributor
OTOTM Winner
TRS Banner 2010-2011
TRS 20th Anniversary
Joined
Aug 7, 2007
Messages
20,642
Reaction score
1,488
Points
113
Location
SW Iowa
Vehicle Year
1985
Make / Model
Ford
Engine Size
5.0
Transmission
Manual
Ask and you shall receive... let the carpet bombing commense. :icon_twisted:

This is what I have gleaned from this site in my own swap thread, the pics were posted in my thread or I dug up elsewhere on this forum, plus I have a couple of my own in there.

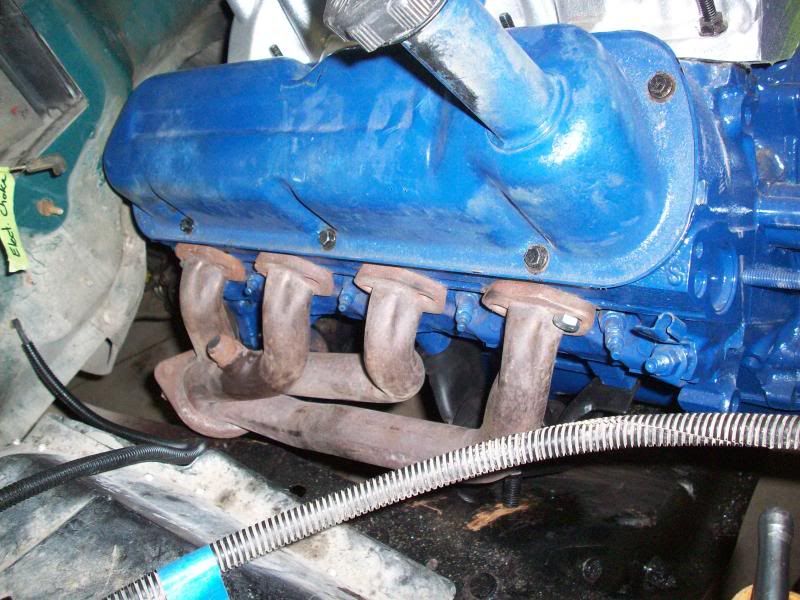

Hedman 88400's, truck unknown:

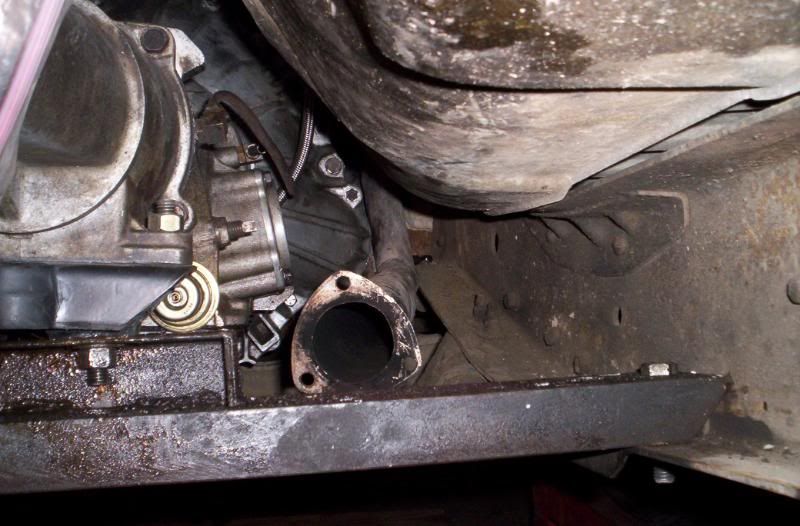

In my truck, of note is that these headers are intended for 1960's cars with a front mounted dipstick. For best results you have to use a steel dipstick tube because it is tight between the header and the block. Passenger side outlet pretty much requires a bodylift (I have 3") or extensive firewall beating.

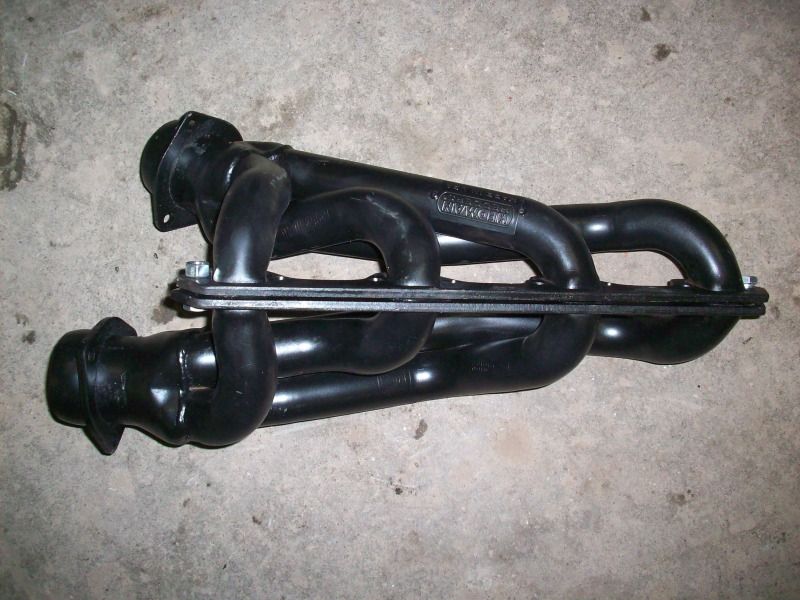

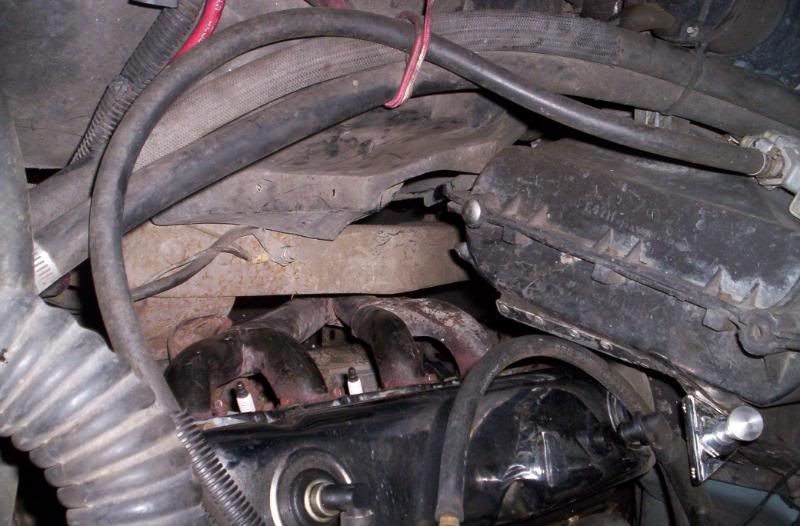

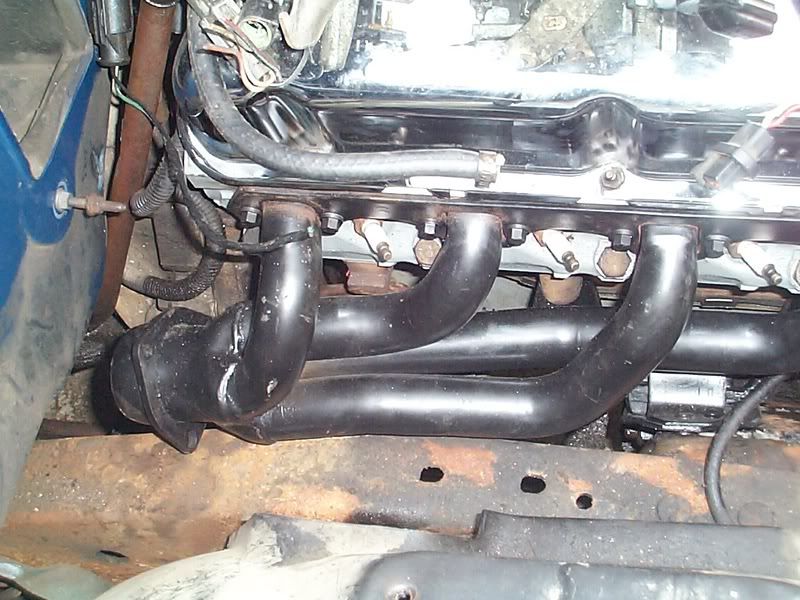

Shelby Tri-Y's, '89 2wd with a 157t C4, Baddad's.

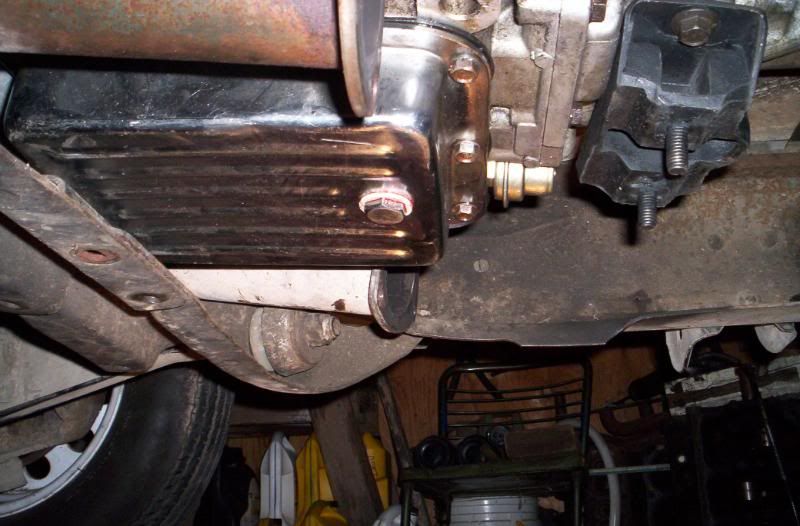

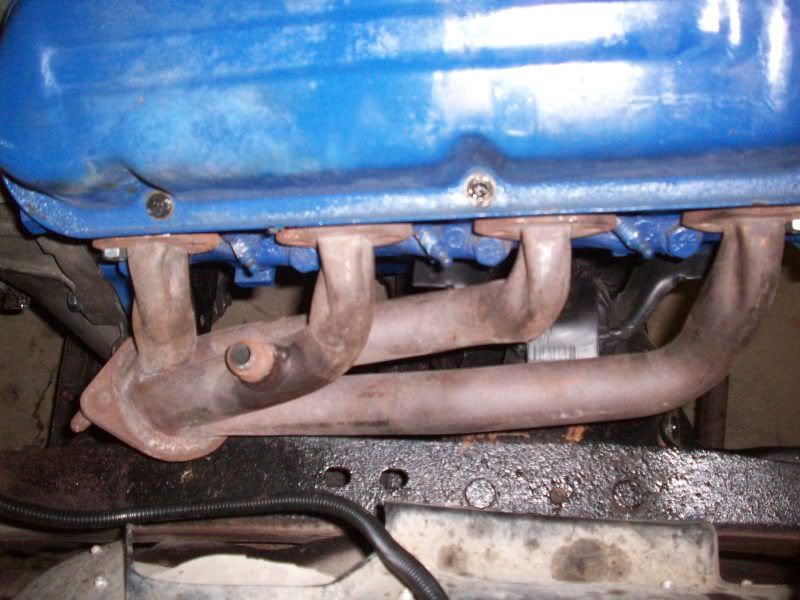

Why Tri-Y's won't work with a 4x4, my truck with stock suspension. The 2.8 and A4LD are still in place as well.

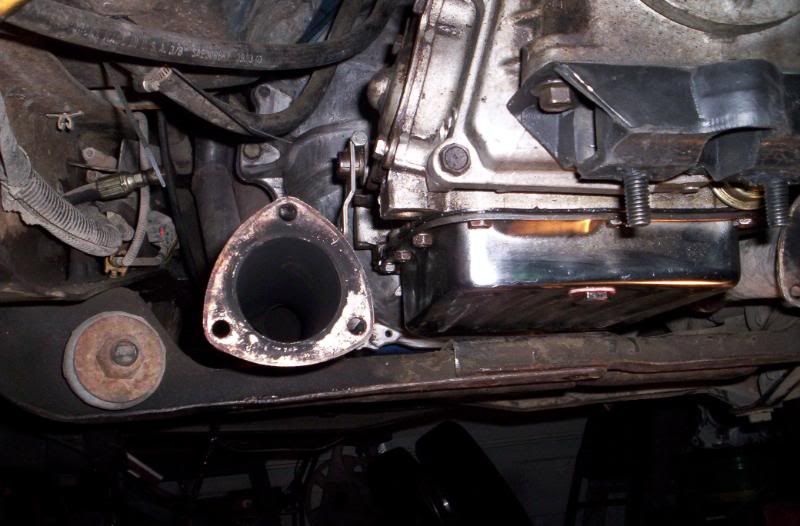

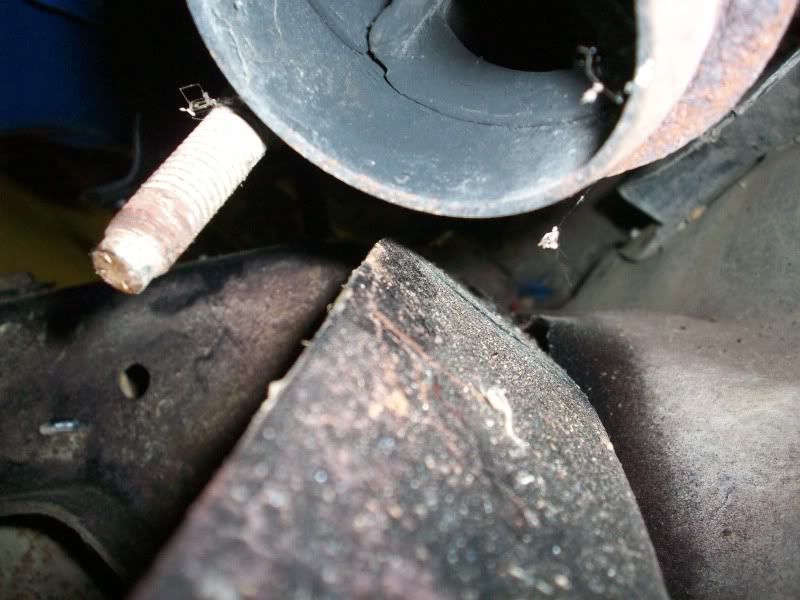

Why they have a problem with the 164t bellhousing. That is a 164t seperator plate. On my engine.

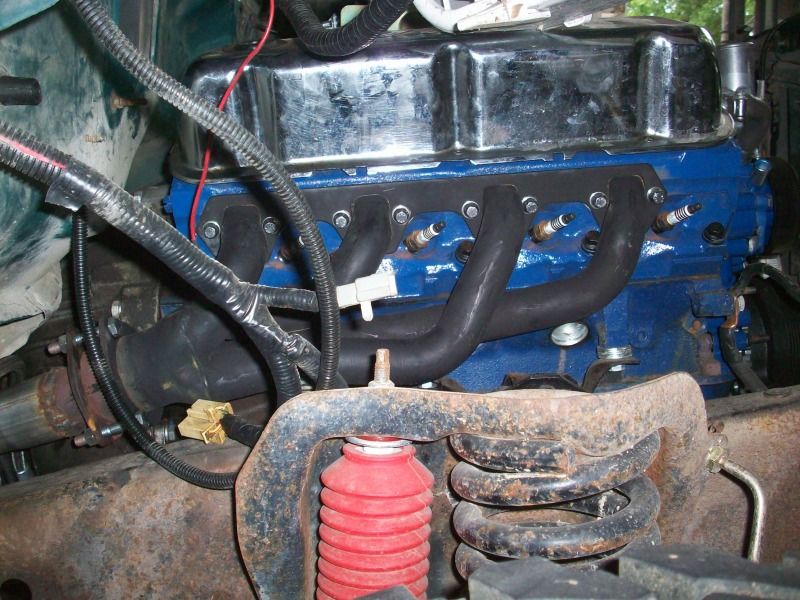

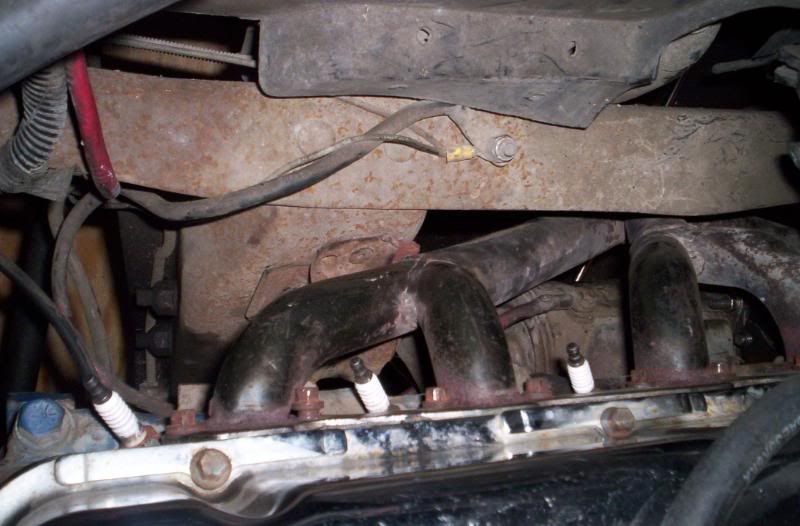

Patriot H8430's, in Wade's truck. It looks like he is using the V6 mounts with a plate vs the fox convert/sn95 mounts that Totalled used with the 88400's, that might effect the height of the engine relative to the frame.





EDIT 2/9/11

Since people are always asking about SN-95 Mustang headers, and some say they do work while most say they don't I decided to check into it.

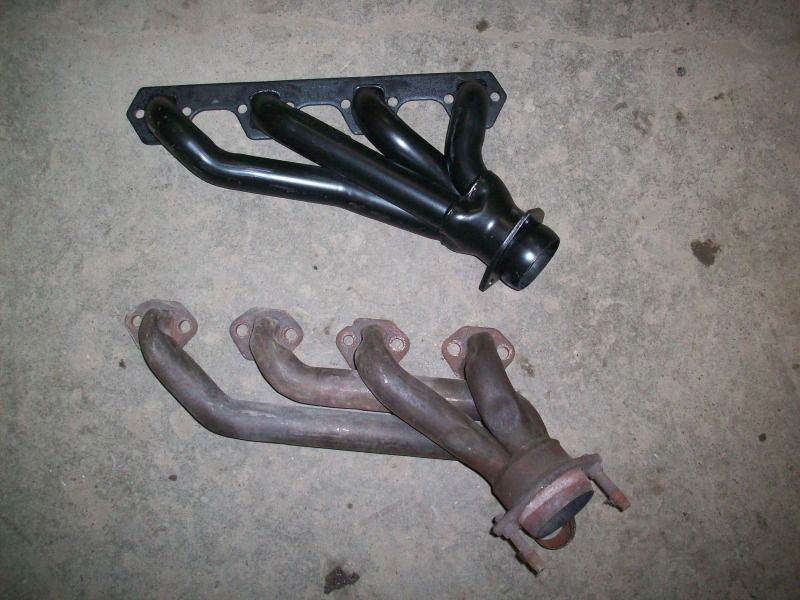

(Heddman 88400 above)

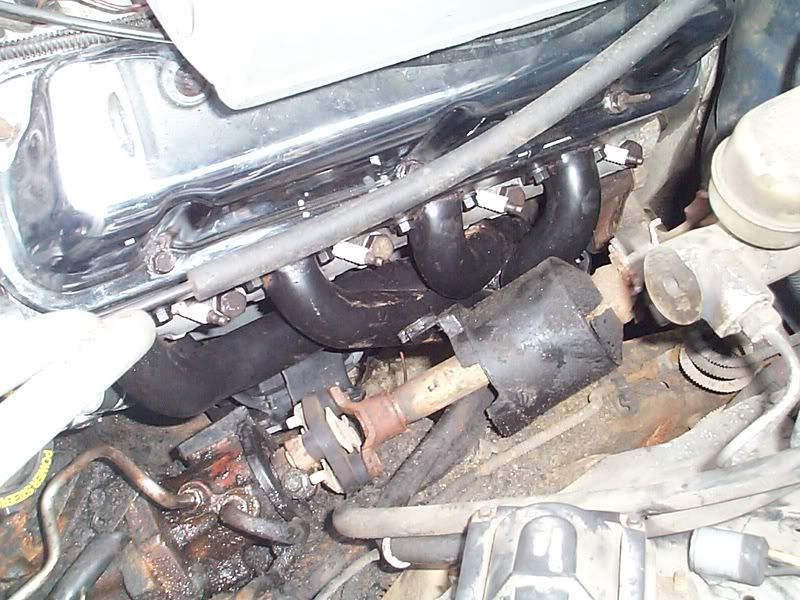

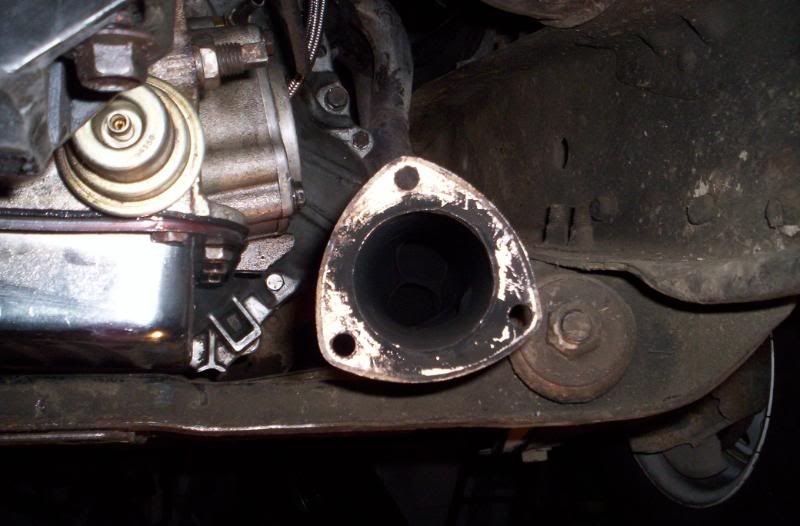

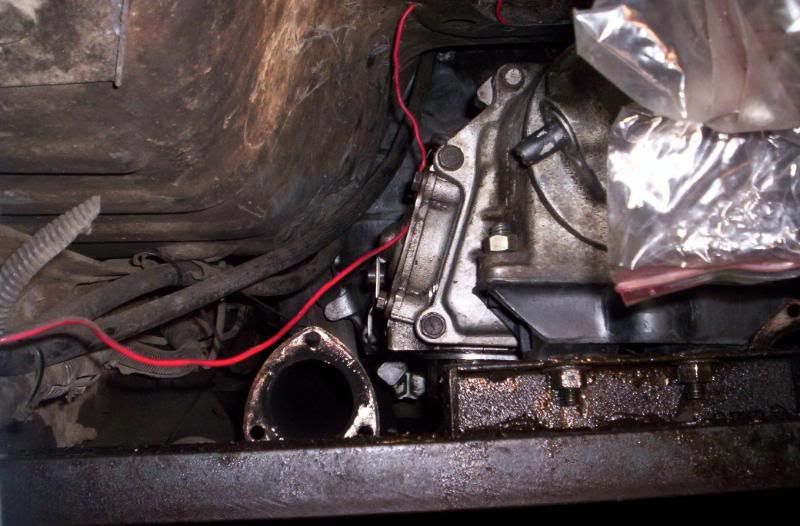

The engine is sitting on the engine mount studs so it will sit lower (probably an inch or two) in real life.

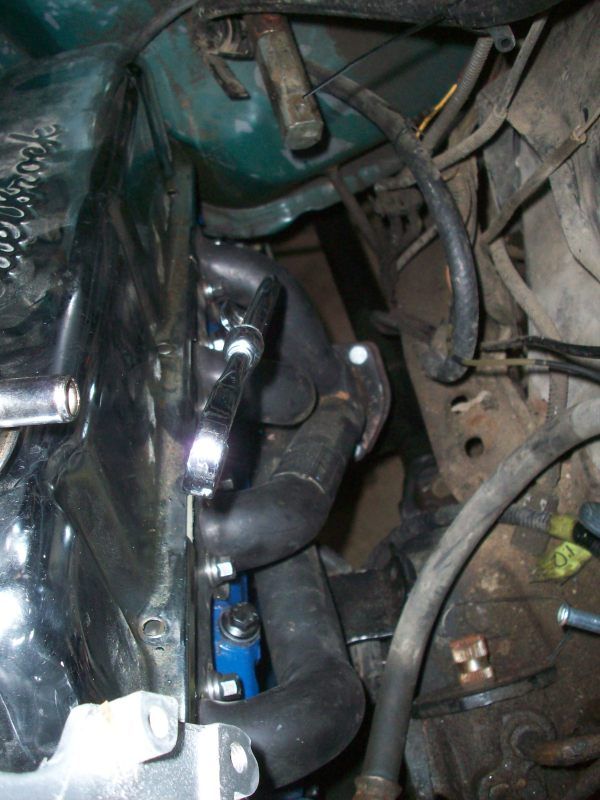

The driver side looked like it would fit (and is supposed to) but I wasn't gung-ho enough to try to snake it up from underneith by myself.

Last edited:

baddad457

Active member
TRS Banner 2010-2011
Joined
Aug 7, 2007
Messages
2,603
Reaction score
12
Points
38
Location
Opelousas La.
Vehicle Year
1989
Make / Model
Ranger
Transmission
Manual
The Patriot H8430 pics were of Wade's truck.


jfl1960

New member
Joined
Mar 21, 2010
Messages
79
Reaction score
0
Points
0
Location
Canada
Vehicle Year
1988
Make / Model
Ford
Engine Size
1993 5.0L EFI
Transmission
Automatic
FYI I tried the factory mustang headers as seen in the last set of pics of your post (factory foxbody exhaust tube manifold) on my 1988 ranger with std steering and trans dapt style motor mount adapters, they would not fit either side, passenger side header pipes and collector hit frame and cannot align hole with head exhaust ports (approx 1 to 1 1/2 inch off), on drivers side front exhaust tube want to occupy same location as steering box shaft (could be cut and re-routed but why bother). If your motor sits very high in frame maybe they will work but they do not flow well, I only use them for exhaust system on my run in stand.

Last edited:

85_Ranger4x4

Forum Staff Member
Forum Moderator
Article Contributor
OTOTM Winner
TRS Banner 2010-2011
TRS 20th Anniversary
Joined
Aug 7, 2007
Messages
20,642
Reaction score
1,488
Points
113
Location
SW Iowa
Vehicle Year
1985
Make / Model
Ford
Engine Size
5.0
Transmission
Manual
I have heard they don't fit at all.

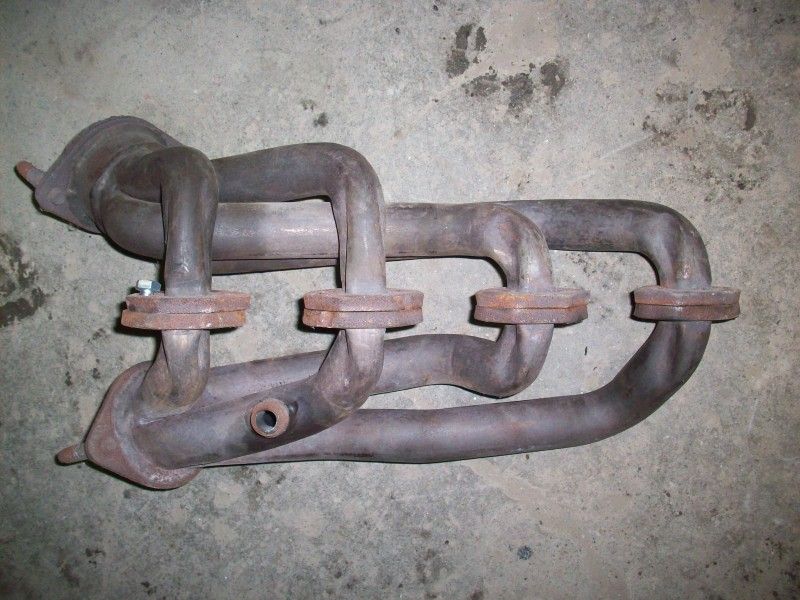

The ones I have shown are SN-95 (94-95 Mustang, these are off a '94), they rerouted the DS header so it would work.
